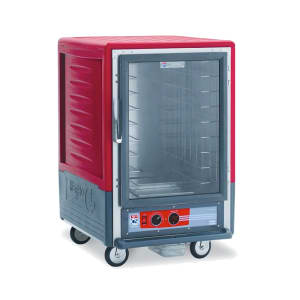

Metro C535-HLFC-4 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v
$2,860.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Metro C535-HLFC-4 Description
Part of the C5™ 3 series, the Metro C535-HLFC-4 heated holding cabinet is a lower-wattage piece of equipment protected by red Insulation Armour™. The cabinet can be used for mobile and stationary applications, and its half-height design doesn't take up as much space as full-size units. This piece of equipment is constructed for optimal insulation. Operators can view product through its clear polycarbonate door, and the removable bottom-mount control module streamlines servicing.
Temperatures in the Metro C535-HLFC-4 insulated mobile heated cabinet range from 80 to 200 degrees Fahrenheit. Its fixed wire slides are on 3-inch centers, and it has the capacity for eight 18-inch by 26-inch pans or (16) 12-inch by 20-inch by 21⁄2-inch pans. For safety, two of the 5-inch casters are equipped with brakes. This piece of equipment is built for heat retention, energy reduction, and employee safety.
Product Details
- Part of the C5 3 series
- (8) 18-in. x 26-in. or (16) 12-in. x 20-in. x 21⁄2-in. pans
- Insulated with durable red Insulation Armour
- 3 control modules for moisture, combination proof and hold, and holding
- Digital thermometer
- Recessed control dials
- On/off switch
- Power-indicator lights
- Removable modules
- Forced, thermostatically controlled convection system streamlines heat-up and recovery times
- Half-height model
- Clear polycarbonate door
- (4) 5-in. casters (2 with brakes)
- 180-degree swing hinges
- Door-mounted gaskets
- Magnetic pull latches
- Hand holds molded into Insulation Armour
- 1⁄4-in.-diameter fixed wire slides welded on 3-in. spacing
- Polymer drip trough and catch pan
- Temperature holding range: 80-200 degrees F
Product Features
Dimensions & Utilities
- 275/8 in. W x 311/2 in. D x 44 in. H
- 12 A, 1440 W
- 120 V/60 Hz/1 ph, 71/2-ft. cord with a NEMA 5-15P plug
From The Manufacturer
C5™ 3 Series Heated Holding Cabinet, lower wattage, with Red Insulation Armour™, mobile, half height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F, fixed wire slides on 3" centers (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Cord Attached
This product includes a cord and plug
Metro C535-HLFC-4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat Only |
| Construction | Aluminum |
| Controls | Dial |
| Depth (in) | 31.5 |
| Door Design | Full |
| Door Type | Lexan |
| Heat | Electric |
| Height (in) | 44 |
| Hertz | 60 |
| kW | 1.4 |
| Pan Capacity | 8 |
| Sections | 1 |
| Size | 1/2 Height |
| Slide Type | Fixed Wire |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 27.63 |
| Series | C5™ 3 Series |
| Control Location | Bottom |
| Load Type | Reach In |
| No. of Doors | 1 |
| Slide Spacing (in) | 3 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 113.00 |
