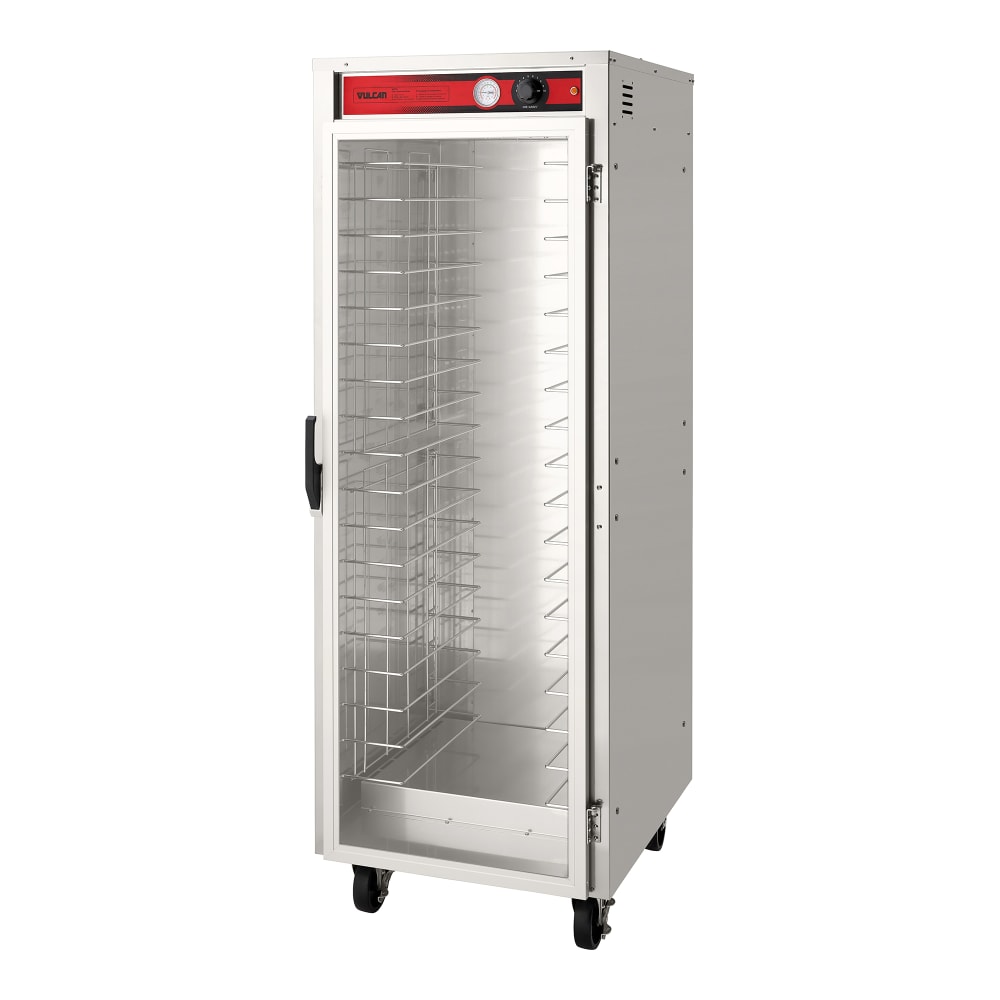

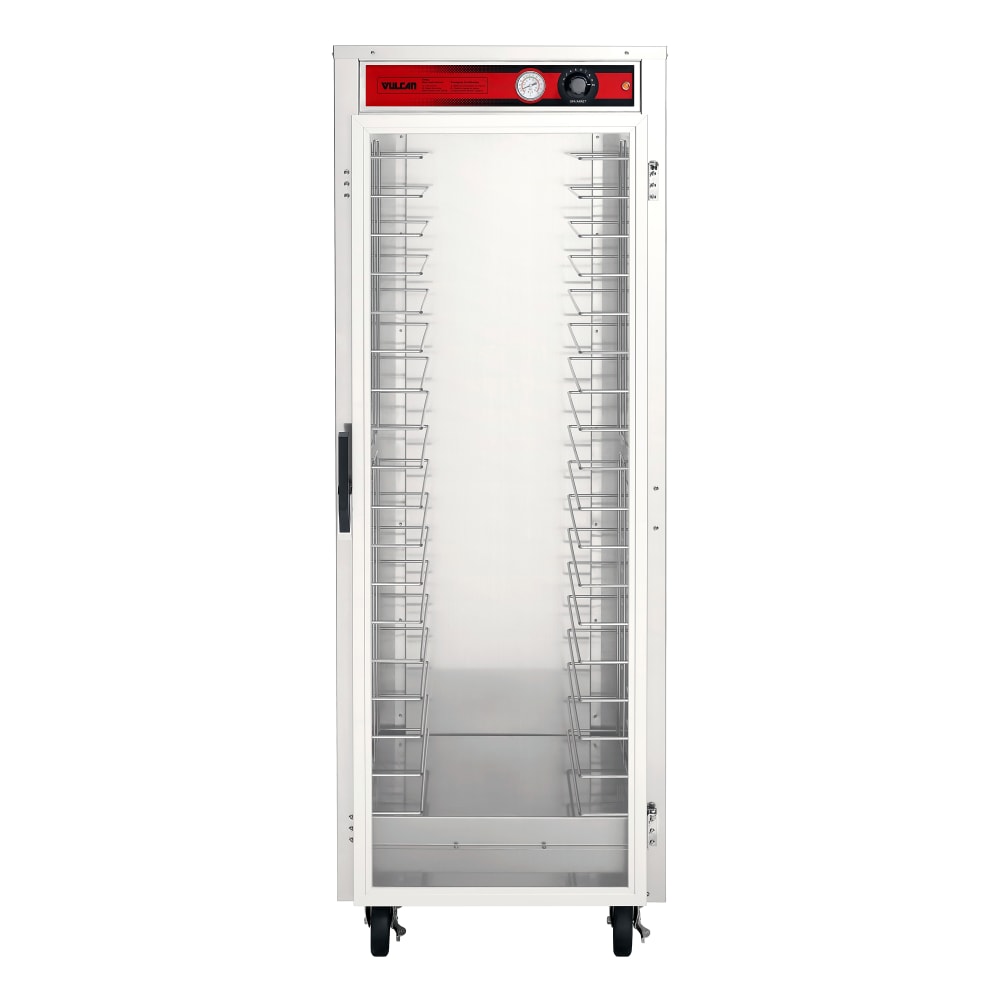

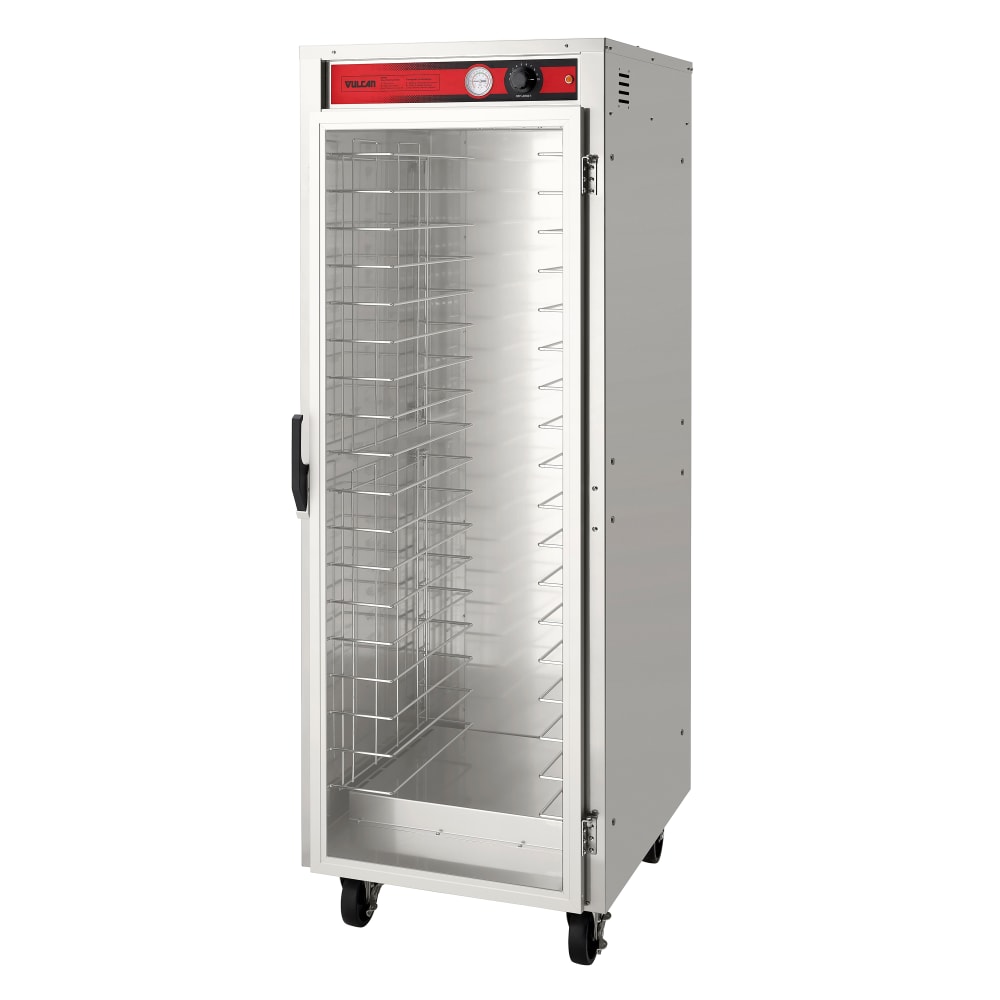

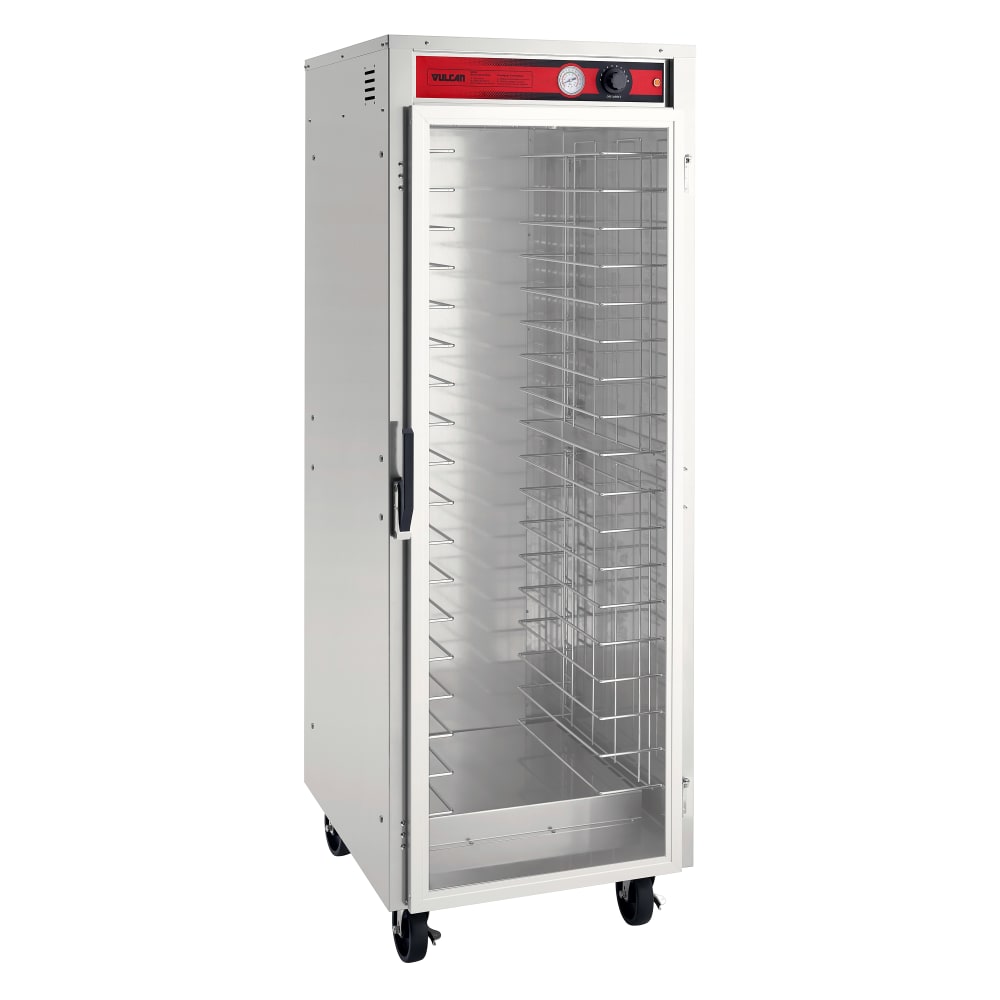

Vulcan VHFA18 Full Height Non-Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 207-VHFA18 • MPN: VHFA18
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $1,875.00

Image may not depict product color, inclusions or accessories.

Vulcan VHFA18 Description


The Vulcan VHFA18 mobile heated cart is used to transport and warm of a variety of items. This cart holds up to 18 sheet pans measuring 18 inches by 26 inches or 36 steam table pans measuring 12 inches by 20 inches and comes on five-inch casters for fluid mobility. The stainless steel construction of this uninsulated cart is durable, and once plugged in, it can heat up to 190 degrees Fahrenheit. There are fixed interior pan supports that are designed to accommodate pan covers for transporting and remove for cleaning. A fan and an air tunnel provide even heat distribution so every pan is warm and ready to serve. Instead of having a control pan down where it could be damaged, it is on the top of the Vulcan VHFA18 mobile heated cart.

Product Details

  • Heated cart keeps pans warm until they are ready to serve
  • 20-gauge stainless steel cabinet
  • Mobile design for catering applications
  • Uninsulated
  • Holds 18 sheet pans measuring 18 in. x 26 in. x 1 in. or 36 steam table pans measuring 12 in. x 20 in. x 212 in.
  • Fan and air tunnel for consistent temperature distribution in the cabinet
  • Top mounted control panel is recessed with a dial thermostat that adjusts from ambient to 190 degrees F
  • Top mounted control eliminates the need for removal for cleaning
  • Full-sized glass door with field reversible heavy duty hinges, door latch mechanism, and gaskets
  • Fixed interior pan supports will accommodate pan covers for transporting and easily remove to clean
  • 2 sheathed metal heating elements at 1000 W
  • 2 swivel casters measuring 5 in. with brakes and 2 rigid casters measuring 5 in. included
  • Polycarbonate door retains heat and clear view of food
  • 20-gauge polished stainless steel cabinet resists corrosion and damage
  • 120 V/60 Hz/1-ph, 2000 W, 16.7 A, 8-ft. power cord with a NEMA 5-20 plug
  • Overall Dimensions: 2514 in. W x 3034 in. D x 71 in. H
  • UL and UL-EPH Listed

Heated Cart, mobile, non-insulated, capacity (18) 18" x 26" x 1" sheet pans or (36) 12" x 20" 2-1/2" steam table pans, fan and air tunnel, fixed tray slides 3" OC, glass door, stainless steel construction, 5" casters; 2 swivel, 2 rigid with locks, 120v/60/1-ph, 2.0 kW, 16.7 amp, 8' cord, NEMA 5-20P

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan VHFA18 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Size Full Height
Slide Type Universal
Type Non-Insulated
No. of Doors 1
Door Type Glass
Load Type Reach In
Pan Capacity 18 Full Size
Construction Stainless Steel
Height (in) 71
Width (in) 25.25
Depth (in) 30.75
Slide Spacing 3"
Warranty 1 year parts & labor
Application Heat Only
Control Location Top
Controls Dial
Door Design Full
Specialty Options All Stainless Exterior
Specialty Options Field Reversible Doors
Hertz 60
Voltage 120
Phase 1
Weight 220.00
Vulcan VHFA18 Certifications
  • UL
