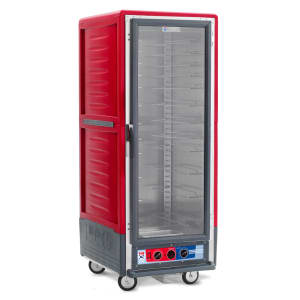

Metro C539-CFC-U Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 001-C539CFCU • MPN: C539-CFC-U
Ships Free | Special Order Item

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $2,545.20

Image may not depict product color, inclusions or accessories.

Metro C539-CFC-U Description


The Metro C539-CFC-U full-height insulated cabinet uses heat and humidity to keep food at safe, ready-to-serve temperatures. It operates from 80 to 200 degrees Fahrenheit. When the temperature is 95 degrees Fahrenheit, the relative humidity is 95 percent. The control module is mounted on the bottom and can be removed when upgrades are available. A digital thermometer and recessed dial knobs on the module simplify operation.

As many as (18) 18-inch-by-26-inch pans fit in the cabinet on universal wire slides. Durable for high-volume use, the Metro C539-CFC-U full-height mobile heated cabinet is made of polymer that resists dents, scuffs, and stains. Insulation keeps heat inside the unit, reducing energy consumption and ensures the exterior is cool to the touch. Casters make sure the cabinet is easy to move around, and vertical handles provide a convenient way to steer the unit.

Product Details

  • (18) 18-in. x 26-in. pan capacity
  • (34) 12-in. x 20-in. x 2.5-in. pan capacity
  • Universal wire slides on 3-in. centers
  • Adjustable slides in 1.5-in. increments
  • Combination heated holding with humidity controls
  • Temperature range: 80-200 degrees F
  • 95-percent relative humidity at 95 degrees F
  • Powder-coated aluminum door has a polycarbonate window for product visibility
  • Insulation Armour™ keeps heat inside the cabinet and ensures the exterior is cool to the touch
  • Red polymer is resistant to damage from impacts and stains
  • Vertical, molded-in handles on the side for transport
  • 2 of the (4) 5-in. casters have brakes
  • Polymer drip trough with integrated catch pan
  • cULus listed; NSF certified

Bottom-mount Control Module

  • Easy-to-read digital thermometer
  • Recessed control dials are protected from damage
  • Master on/off switch
  • Power indicator light illuminates when the unit is running
  • Removable without tools

Dimensions & Utilities

  • 27.625 in. W x 31.5 in. D x 71 in. H
  • 16.7 A, 2000 W
  • 120 V/60 Hz/1 ph, 7.5-ft. cord with a NEMA 5-20P plug

If you want to read more about hot holding, check out the guide to heated holding cabinets.

C5™ 3 Series Heated Holding & Proofing Cabinet, with Red Insulation Armour™, mobile, full height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Metro C539-CFC-U Specifications

PDF Spec Sheet
Manufacturer Metro
Size Full Height
Slide Type Universal
Type Insulated
Warranty 1-year Parts & Labor
No. of Doors 1
Door Type Lexan
Load Type Reach In
Pan Capacity 18
Construction Aluminum
Series C5™ 3 Series
Height (in) 71
Width (in) 27.63
Depth (in) 31.5
Slide Spacing (in) 3
Application Heat & Humidity
Control Location Bottom
Controls Dial
Door Design Full
Special Features Field Reversible Doors
Phase 1
Voltage 120
Hertz 60
Product Type Food Warming Equipment
Product Heated Cabinet
Weight 262.00
Metro C539-CFC-U Certifications
  • UL
  • NSF
