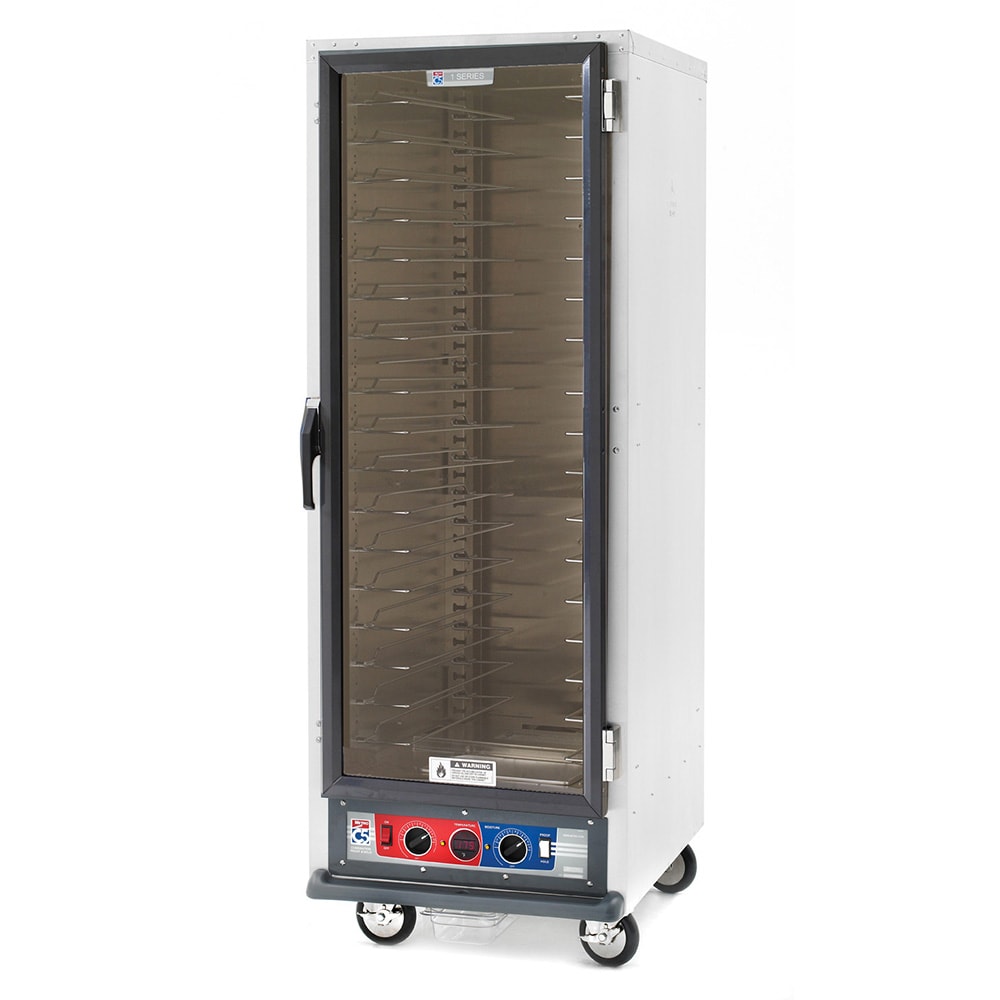

Metro C519-CFC-U Full Height Non-Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 001-C519CFCU • MPN: C519-CFC-U
Ships Free | Special Order Item

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Retail Price: $1,871.20

Image may not depict product color, inclusions or accessories.

Metro C519-CFC-U Description


The Metro C519-CFC-U heated holding and proofing cabinet features insulation designed to save energy while retaining heat and keeping the exterior of the cabinet cool to touch. Powered by forced air circulation, the temperature is regulated throughout the cabinet when used in either proofing or holding mode. Clear polycarbonate doors allow operators to keep an eye on products without opening the door. A full length handle is securely molded to the heavy duty door and offers an easy grip.

Recessed controls and an easy to read digital thermometer make the heated holding cabinet easy to use by staff members of all skill levels. The universal slides are 14 of an inch in diameter and are made from anodized nickel chrome wire. 18 slide pairs are provided but the cabinet can accommodate as many 37, and the slides adjust in 112 inch increments. The Metro C519-CFC-U heated holding and proofing cabinet is a full-size cabinet.

Product Details

  • Combination cabinet lets operator change from heated holding to proofing
  • Full-sized cabinet is made from aluminum
  • Full-length, clear, polycarbonate door allows the operator to see into the cabinet without having to open it
  • Double-hinged, field-reversible hinges with 180 degree swing
  • Door-mounted gaskets keep heat inside the chamber
  • High-strength, magnetic pull latch with lever-action release
  • Universal slides adjust on 112 in. increments
  • 14-in.-dia. nickel chrome wire sides
  • 18 slide pairs are provided, but the cabinet will hold 37
  • Holds 18 pans measuring 18 in. x 26 in.
  • Holds 34 pans measuring 12 in. x 20 in. x 212 in.
  • 4 casters, 2 with brakes
  • Ball bearing blower forced air system
  • Smooth polymer drip trough with a catch pan prevents unnecessary messes
  • Control dials are recessed to prevent damage
  • Digital thermometer is easy to read
  • Master on/off switch
  • Power indicator lights let the operator know if the cabinet is on or off
  • Heating modules are removable for easy cleaning
  • Temperature and humidity have individual analog controls
  • Heat-up and temperature recovery is quick with the thermostatically controlled forced air heating system
  • 80-190 degrees F temperature range
  • Proofing mode provides moisture control and lower temperatures, creating ideal conditions in which bread to rise
  • 120 V/60 Hz/1 ph, 2000 W, 16 A, 712 ft. cord with a NEMA 5-20P plug
  • Overall Dimensions: 2518 in. W x 3014 in. D x 6934 in. H
  • UL listed; NSF certified

Product Features

Metro c519cfcu Features

C5™ 1 Series Heated Holding & Proofing Cabinet, mobile, full height, non-insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 190°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Metro C519-CFC-U Specifications

PDF Spec Sheet
Manufacturer Metro
Size Full Height
Slide Type Universal
Type Non-Insulated
Warranty 1-year Parts & Labor
No. of Doors 1
Door Type Lexan
Load Type Reach In
Pan Capacity 18 Full Size
Construction Aluminum
Series C5™ 1 Series
Height (in) 69.75
Width (in) 25.13
Depth (in) 30.25
Slide Spacing 3"
Controls Dial
Control Location Bottom
Door Design Full
Application Heat & Humidity
Specialty Options Field Reversible Doors
Phase 1
Voltage 120
Hertz 60
Product Type Food Warming Equipment
Product Heated Cabinet
Weight 211.00
Metro C519-CFC-U Certifications
  • UL
  • NSF
