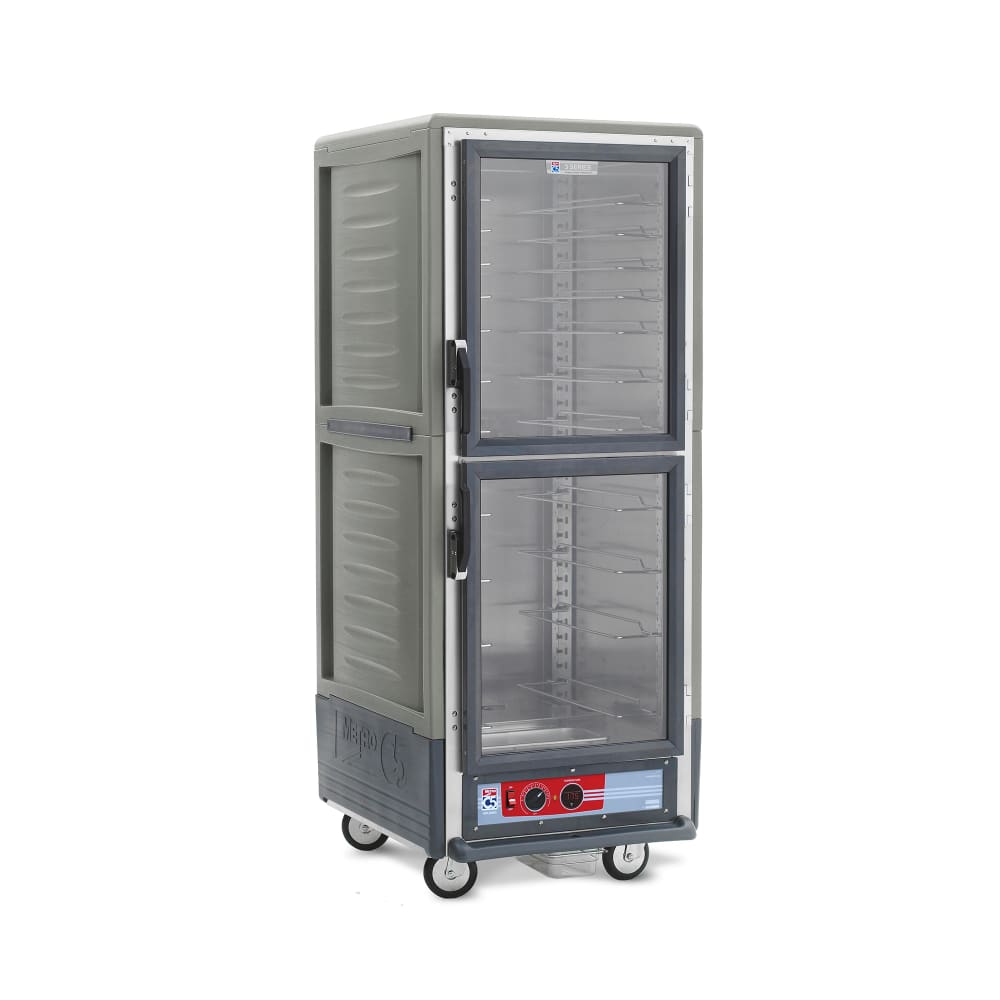

Metro C539-HLDC-U-GY Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

This full-height Metro C539-HLDC-U-GY C5™ 3 Series heated holding cabinet measures 25⁵/₈ inches wide by 31¹/₂ inches deep by 71 inches tall and is positioned on four 5-inch casters—two of which include brakes—to ease transport between kitchen and serving area. For protection against dents, impacts, and stains, this unit is made of durable polymer, and it features hand holds molded into each corner of the unit to enhance steering. Its single holding compartment is lined with electroplated wire universal slides that can be adjusted in 1¹/₂-inch increments. To accommodate high-volume holding, these slides accommodate (18) 18-inch by 26-inch sheet pans and (34) 12-inch by 20-inch by 2¹/₂-inch steam pans. Operators can directly access these pans by opening one of the clear Dutch polycarbonate doors—capable of opening to 180 degrees.

To ensure prepared foods are held at safe temperatures over long periods, the Metro C539-HLDC-U-GY mobile cabinet has an operating temperature range of 80 to 200 degrees Fahrenheit. Its forced convection system quickly heats and recovers for streamlined operation. Staff can adjust the thermostat on the bottom-mounted control module, which includes a digital thermometer, recessed control dials, an on/off switch, and power-indicator lights—all of which are removable for maintenance and cleaning. To preserve generated heat and maintain a cool-to-the-touch exterior, this cabinet is insulated with Insulation Armour® high-density polyethylene.

Product Details

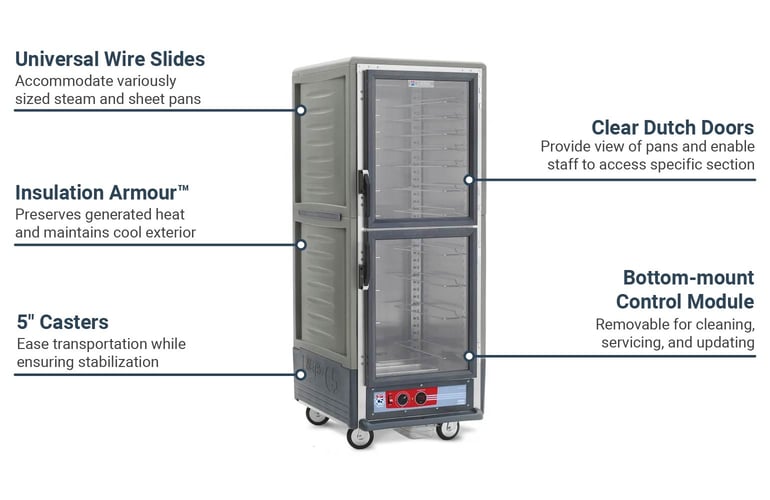

• Part of the C5 3 Series and Insulation Armour collections
• Full-height, reach-in configuration
• 18 universal wire slide on 3-in. centers (adjustable in 1¹/₄-in. increments)
• Accommodates (18) 18-in. x 26-in. sheet pans and variously sized steam pans
• Stain-, dent-, and impact-resistant polymer construction
• Gray exterior
• Aluminum cabinet
• Insulation Armour high-density polyethylene
• Clear polycarbonate Dutch doors with extruded aluminum powder-coated frame
• Doors swing to 180 degrees
• High-temperature, door-mounted Santroprene door gaskets
• Polymer magnetic pull latches with lever-action release
• Vertical hand holds molded into 4 corners
• (4) 5-in. neoprene casters (2 with brakes)
• Thermostatically controlled forced-convection system
• Operating temperature range: 80-200 degrees F
• Removable, bottom-mounted control module (digital thermometer, recessed control dials, on/off switch, indicating power light, water pan, and forced-air system)
• ¹/₂-in. top clearance
• 1¹/₂-in. side and back clearance

Dimensions & Utilities

• 27⁵/₈ in. W x 31¹/₂ in. D x 71 in. H
• 12 A, 1440 W
• 120 V/60 Hz/1 ph, includes 7¹/₂-ft. cord with NEMA 5-15P plug

From The Manufacturer

C5™ 3 Series Heated Holding Cabinet, lower wattage, with Grey Insulation Armour™, mobile, full height, insulated, Dutch clear polycarbonate doors, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, UL, CUL, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects

Metro C539-HLDC-U-GY Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Manual

Product Info

Brochure

Certifications
