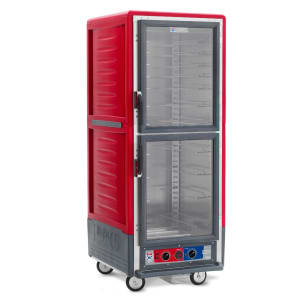

Metro C539-CDC-U Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 001-C539CDCU • MPN: C539-CDC-U
Ships Free | Special Order Item

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Retail Price: $2,672.40

Image may not depict product color, inclusions or accessories.

Metro C539-CDC-U Description


The Metro C539-CDC-U full-height heated cabinet holds as many as (17) 18-inch-by-26-inch pans or (32) 12-inch-by-20-inch-by-2.5-inch pans. It has the ability to hold product at serving temperatures and proof dough. With its proofing mode, the cabinet has moisture control at low temperatures. The unit operates from 80 to 200 degrees Fahrenheit, and at 95 degrees Fahrenheit, it has 95-percent relative humidity.

Insulation Armour™ technology makes this unit durable with high-density insulation and durable polymer. Controlling the settings on this Metro C539-CDC-U heated holding and proofing cabinet is simple since it has a control panel with an on/off switch, power indicator lights, and dial knobs. It also has a digital thermometer that is easy to read. To simplify the cleaning process, the panel is removable without tools; when upgrades are available, the panel can be taken out and replaced by a newer model. It has double-hinged doors, and to fit into different layouts, they are field reversible.

Product Details

  • Part of the C5™ 3 series
  • 18 universal slide pairs hold (17) 18-in. x 26-in. pans or (32) 12-in. x 20-in. x 2.5-in. pans
  • Thermostatically controlled, forced convection system quickly heats up and offers fast recovery times
  • Temperature range: 80-200 degrees F
  • Relative humidity at 95 degrees F: 95 percent
  • Combination controls have modes for hot holding and proofing
  • Moisture control at low temperatures is available for proofing
  • Control panel has an on/off switch, power indicator lights, easy-to-use dial knobs, and a digital thermometer
  • Panel is removable without tools for convenient cleanup and updates
  • Polycarbonate windows in the Dutch doors enhance product visibility
  • Double-hinged, field-reversible doors withstand heavy use
  • Red material works well in kitchens
  • 2 of the (4) 5-in. casters brake to hold the unit in place
  • Requires a 1.5-in. side, back, and top clearance
  • Requires an 18-in. clearance from cooking equipment
  • Avoid contact with surfaces that reach 200 degrees F
  • 2000 W, 16.7 A
  • 120 V/60 Hz/1 ph, NEMA 5-20P plug
  • Overall dimensions: 27.625 in. W x 31.5 in. D x 71 in. H
  • cULus listed; NSF certified

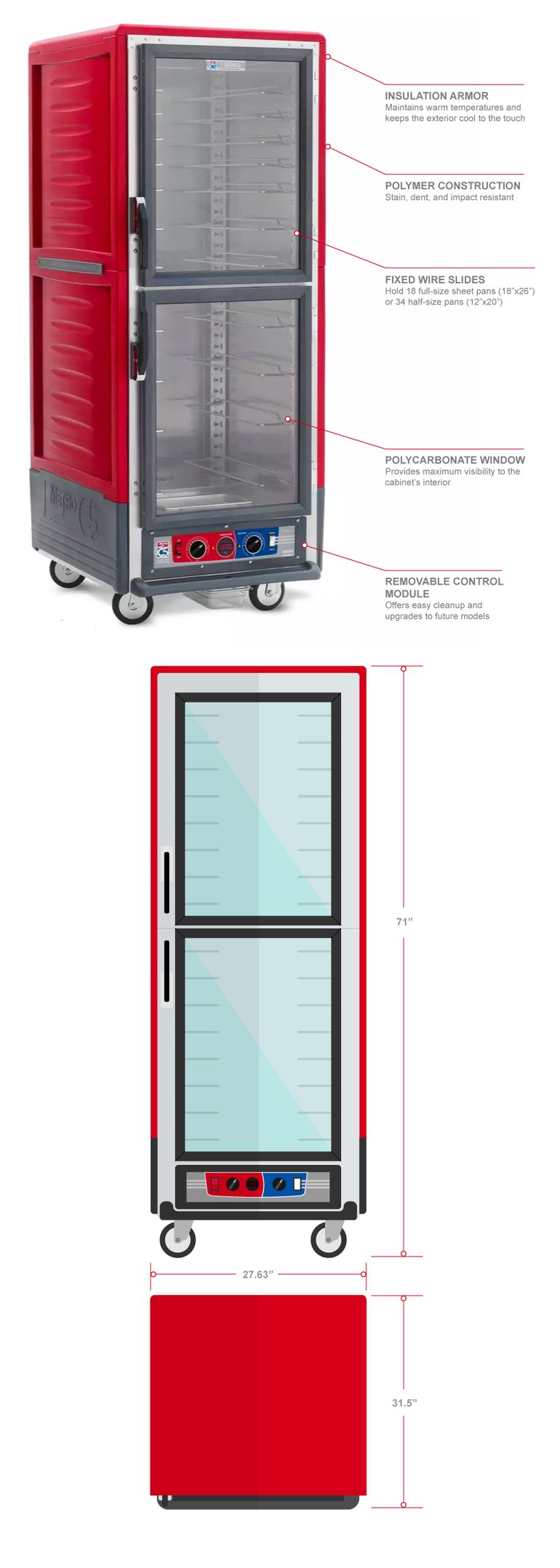

Product Features

Metro c539cdcu Features

Durable Construction with Insulation Armour Design

  • High-density polyethylene insulation retains heat, saves energy, and keeps the exterior cool
  • Polymer construction is impact, dent, and stain resistant
  • Molded-in hand holds create side handles for steering in transport

More in-depth information on holding cabinets is available in our heated holding cabinets buyers' guide.

C5™ 3 Series Heated Holding & Proofing Cabinet, with Red Insulation Armour™, mobile, full height, insulated, Dutch clear polycarbonate doors, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Metro C539-CDC-U Specifications

PDF Spec Sheet
Manufacturer Metro
Size Full Height
Slide Type Universal
Type Insulated
Warranty 1-year Parts & Labor
No. of Doors 2
Door Type Lexan
Load Type Reach In
Pan Capacity 18
Construction Aluminum
Series C5™ 3 Series
Height (in) 71
Width (in) 27.63
Depth (in) 31.5
Slide Spacing (in) 3
Control Location Bottom
Controls Dial
Door Design Full
Application Heat & Humidity
Special Features Field Reversible Doors
Phase 1
Voltage 120
Hertz 60
Product Type Food Warming Equipment
Product Heated Cabinet
Weight 264.00
Metro C539-CDC-U Certifications
  • UL
  • NSF
