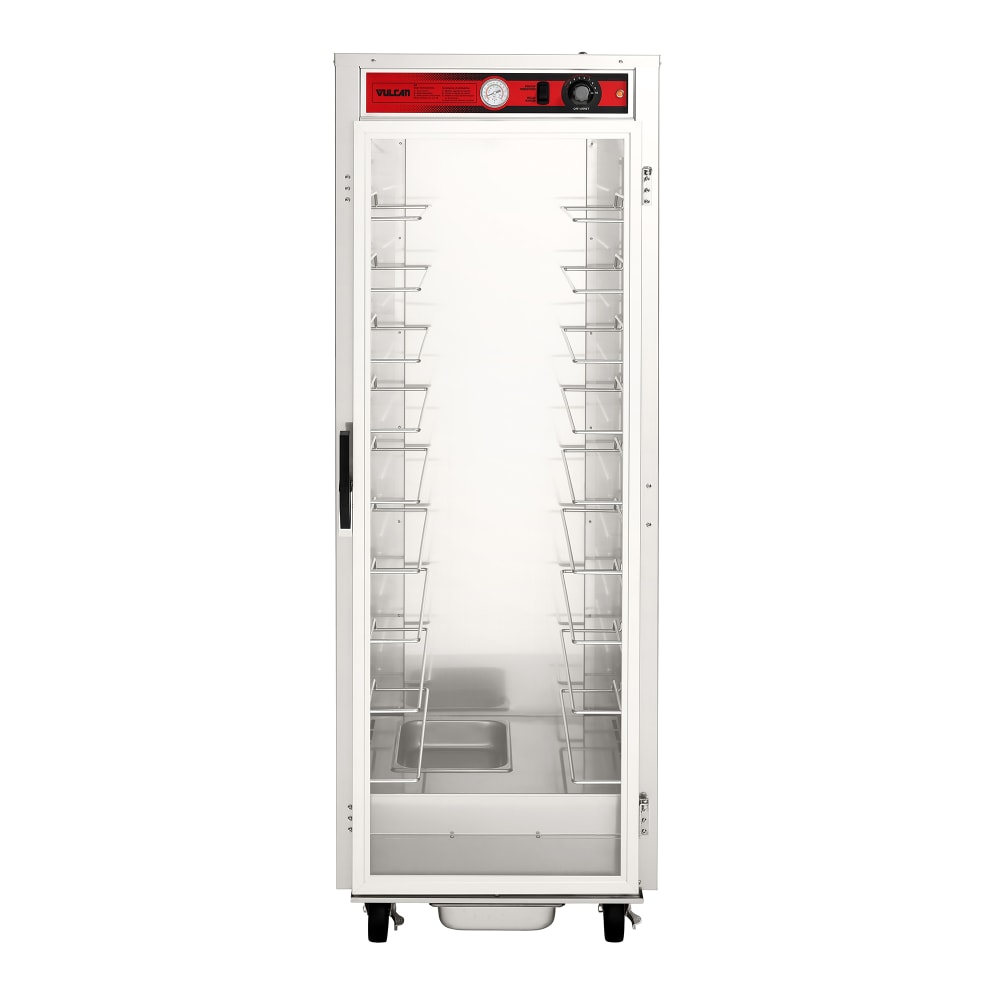

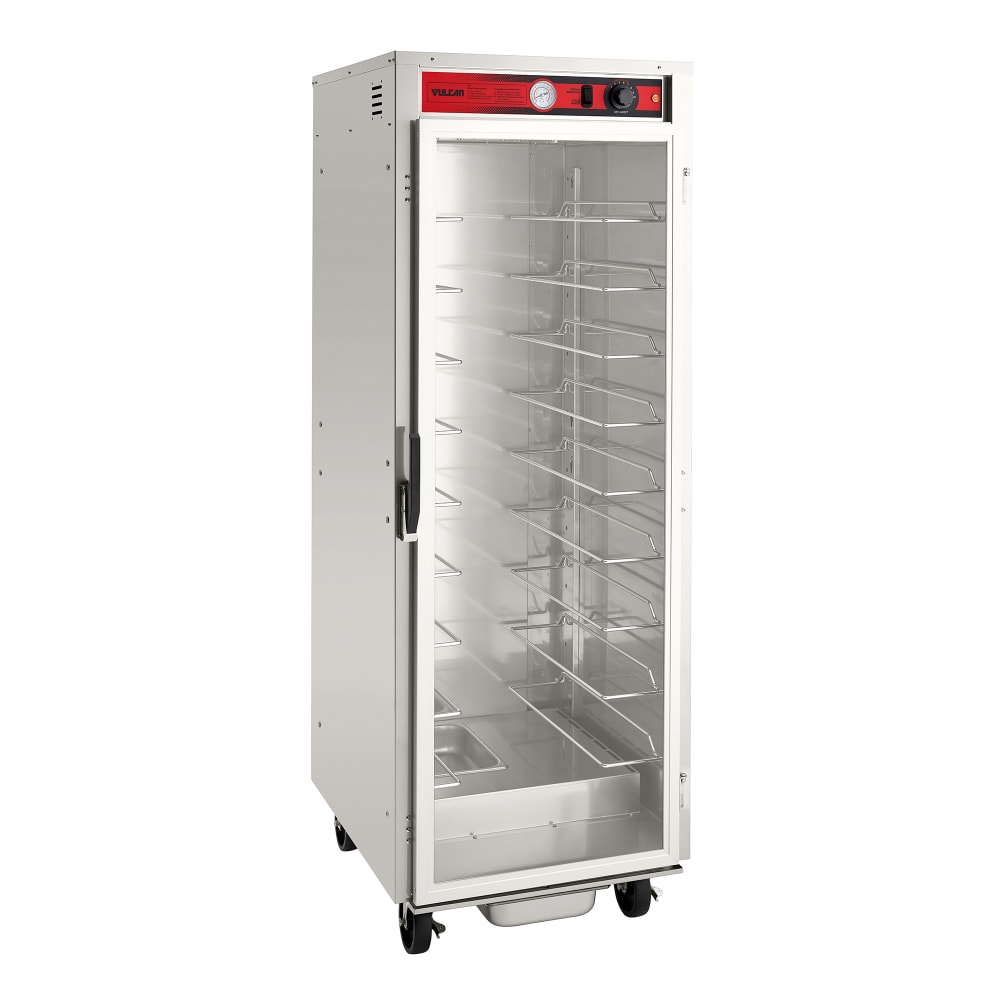

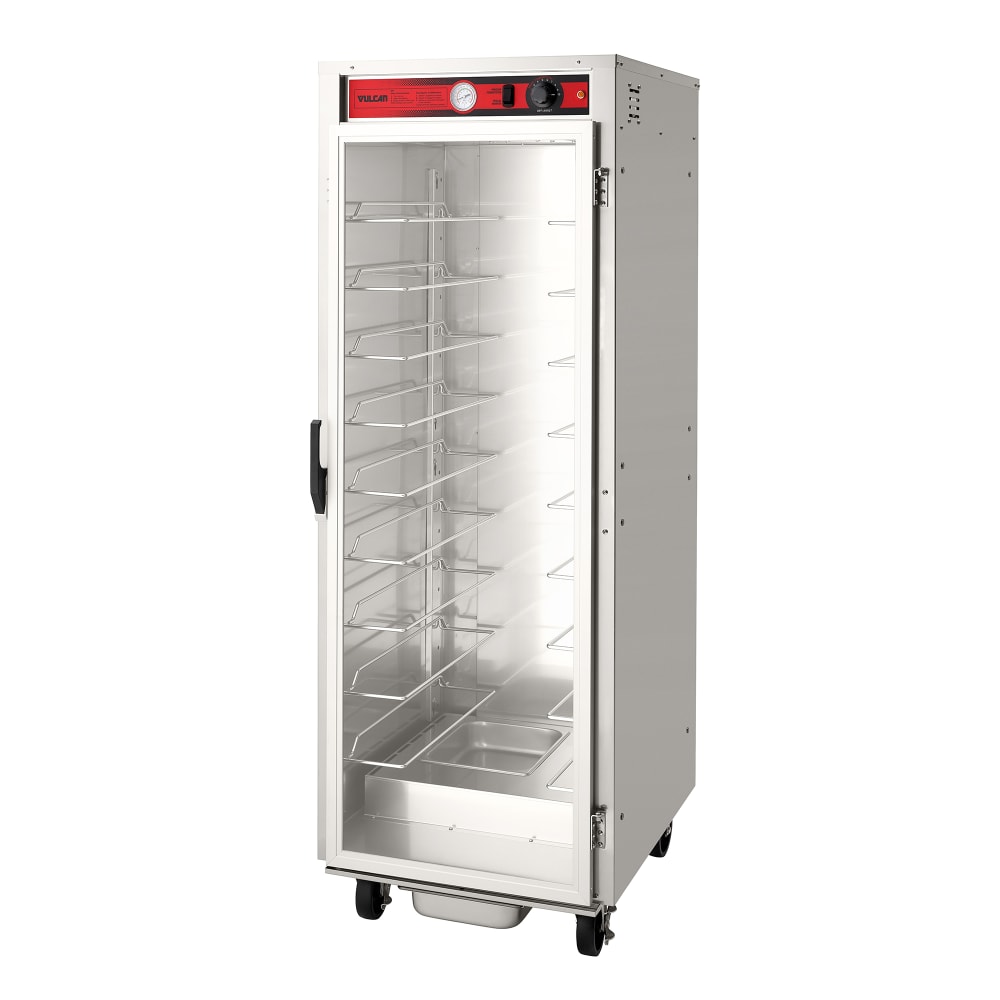

Vulcan VP18 Full Height Non-Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 207-VP18 • MPN: VP18 120
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $2,085.00

Image may not depict product color, inclusions or accessories.

Vulcan VP18 Description


The Vulcan-Hart VP18 heated holding and proofing cabinet keeps food moist longer while keeping it at food-safe temperatures. Heat is evenly distributed with the fan and air tunnel. A top-mounted, recessed control panel includes a fan on/off switch, cabinet temperature thermometer, and switch to change from proofing to holding. Since the panel is mounted at the top, it is easy to use and out of the way for cleaning under the cabinet. The full-size glass door has field-reversible hinges that are convenient for you, as well as a gasket that keeps heat from escaping. The heated holding and proofing cabinet also has interior pan supports that adjust on 3-inch centers and are removable for simple cleaning. This non-insulated, 18-level Vulcan-Hart VP18 heated holding and proofing cabinet accepts 18 pans measuring 18 inches by 26 inches or 36 pans measuring 12 inches by 20 inches.

Product Details

  • Stainless steel cabinet is durable for long-term use and is easy to clean
  • Heat is evenly distributed with the fan and air tunnel
  • Full-size glass door allows you to see inside and has field-reversible hinges for your convenience
  • Door latch keeps the door shut during transportation
  • Door-mounted gasket keeps heat from escaping the cabinet
  • 10 pairs of tray slides
  • Pan supports are adjustable on 3-in. centers and easily remove for cleaning
  • Holds 18 pans measuring 18 in. x 26 in.
  • Holds 36 pans measuring 12 in. x 20 in.
  • 12 gal. water pan for proofing
  • Drip trough and condensation pan are in the bottom of the cabinet to catch debris
  • 5-in.-dia. casters with brakes, 2 rigid and 2 swivel
  • 120 V/60 Hz/1 ph, 2000 W, 16.7 A, cord with a NEMA 5-20P plug
  • Overall Dimensions: 2514 in. W x 3034 in. D x 71 in. H
  • cULus and UL-EPH listed

Top Mounted Control Panel

  • Recessed control panel is mounted at the top of the cabinet is easy to use
  • On/off switch for the fan
  • Dial thermostat can be adjusted from ambient to 190 degrees F
  • Cabinet temperature thermometer tells you what the interior temperature is
  • Switch lets you choose to proof or hold food

Proofing Heated Cabinet, mobile, non-insulated, (18) 18" x 26" x 1" sheet pans or (36) 12" x 20" x 2-1/2" steam table pans, fan & air tunnel, includes (10) pair of adjustable tray slides 3" OC, 1/2 gallon water pan, switch can be set to proof or set for heated holding up to 190° F, glass door, stainless steel construction, includes drip trough & removable drip pan, 5" casters; 2 swivel, 2 rigid with locks, 120v/50/60/1-ph, 2.0 kW, 8' cord, NEMA 5-20P, 120/60/1

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan VP18 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Size Full Height
Slide Type Universal
Type Non-Insulated
No. of Doors 1
Door Type Glass
Load Type Reach In
Pan Capacity 18 Full Size
Construction Stainless Steel
Height (in) 71
Width (in) 25.25
Depth (in) 30.75
Slide Spacing 3"
Warranty 1 year parts & labor
Application Heat & Humidity
Control Location Top
Controls Dial
Door Design Full
Specialty Options All Stainless Exterior
Specialty Options Field Reversible Doors
Hertz 60
Voltage 120
Phase 1
Product Type Food Warming Equipment
Product Heated Cabinet
Weight 236.00
Vulcan VP18 Certifications
  • UL
  • Energy Star
