True TUC-48-HC 48" W Undercounter Refrigerator w/ (2) Sections & (2) Doors, 115v

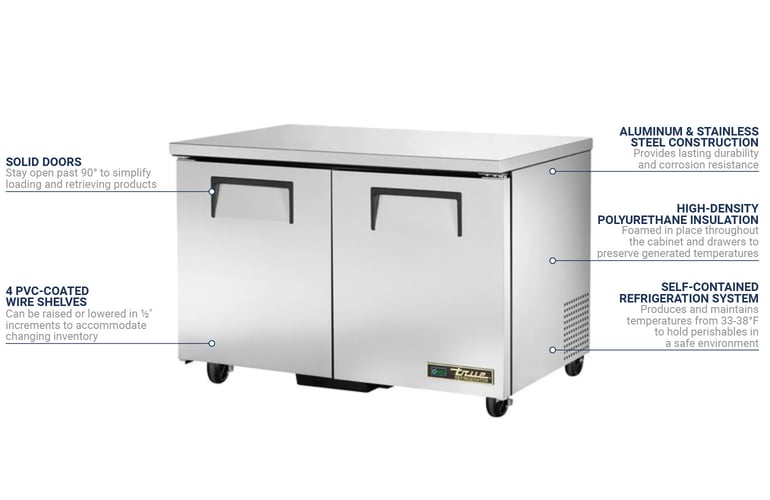

Fruits, vegetables, dairy products, and meat can be stored in the True TUC-48-HC undercounter refrigerator, which produces temperatures from 33 to 38 degrees Fahrenheit. Its self-contained capillary-tube refrigeration system operates with environmentally friendly R290 refrigerant and uses guided airflow to generate uniform temperatures. To minimize heat production and energy consumption, its electronically commutated (EC) evaporator and condenser fan motors move a consistent volume of air. The cabinet and doors are foamed in place with high-density polyurethane insulation to preserve generated temperatures, and for lasting efficiency, its evaporator is coated with corrosion-resistant epoxy. Users can access the slide-out condensing unit from the back of the cabinet.

To maximize space in compact kitchens, the True TUC-48-HC commercial undercounter refrigerator measures 48³⁄₈ inches wide by 31¹⁄₈ inches deep by 36 inches tall. While its front, top, and ends are made of durable stainless steel, the steel back is coated with GalFan® for lasting corrosion resistance. While the interior is lined with clear-coated aluminum, the stainless steel floor's coved corners simplify cleaning. So the unit can be wheeled out of the way as needed, it's built with 5-inch-diameter castors that provide smooth mobility.

The two solid right-hinged stainless steel doors ensure users can access one of the unit's two sections. These self-closing doors feature 12-inch-long recessed handles that are foamed in place, and when opened past 90 degrees, they stay propped so staff can load and retrieve product without holding the doors open. The unit's interior features four 21⁹⁄₁₆-inch-wide by 16-inch-deep heavy-duty PVC-coated shelves that can be raised and lowered in ¹⁄₂-inch increments to accommodate changing inventory.

Product Details

• 2-section undercounter configuration
• Stainless steel front, top, and ends
• GalFan-coated steel back
• Clear-coated aluminum liner
• Stainless steel floor with coved corners
• 2 solid right-hinged, self-closing doors with foamed-in-place recessed handles
• Doors stay open when pushed past 90 degrees
• Removable, 1-piece magnetic door gaskets
• Cabinet and solid doors insulated with foamed-in-place, high-density polyurethane
• 4 heavy-duty PVC-coated wire shelves
• Each shelf includes 4 chrome-plated shelf clips
• Shelves area adjustable in ¹⁄₂-in. increments
• Fitted with 5-in. castors

Refrigeration System Details

• Self-contained
• Environmentally friendly R290 hydrocarbon refrigerant
• Guided airflow enhances temperature uniformity
• Operating temperature range: 33-38 degrees F
• Slide-out condensing unit can be accessed from back of cabinet
• Corrosion-resistant epoxy-coated evaporator
• EC evaporator and condenser fan motors reduce heat production and energy usage

Dimensions & Utilities

• 48³⁄₈ in. W x 31¹⁄₈ in. D x 36 in. H
• 3 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with NEMA 5-15P plug

Product Features

From The Manufacturer

Undercounter Refrigerator, 33 - 38°F, (2) stainless steel doors, (4) PVC coated adjustable wire shelves, stainless steel top & sides, aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, cULus, UL EPH Classified, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor
