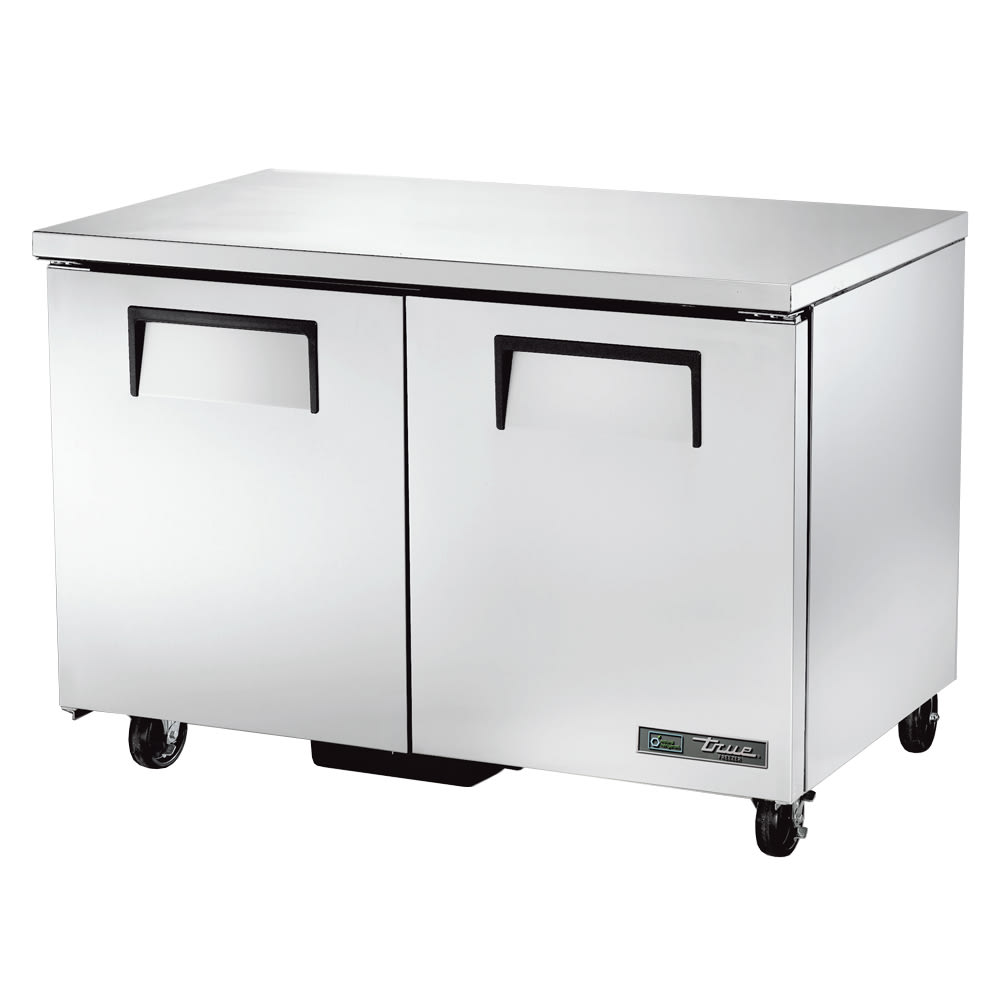

True TUC-48F-HC 48 1/2" W Undercounter Freezer w/ (2) Sections & (2) Doors, 115v

Running through the self-contained capillary tube system, R290 hydrocarbon refrigerant keeps the True TUC-48F-HC undercounter freezer at an average temperature of -10 degrees Fahrenheit. The condenser and evaporator fans provide even airflow, reducing heat production and conserving energy. Its evaporator is epoxy coated to resist corrosion, and for cleanup and maintenance, the condensing unit is accessible from the rear and conveniently slides out.

To maintain a clean condensing coil, the condensing fan motor automatically directs air toward the coil by blowing in reverse for 20 seconds when the compressor turns on. This mechanism helps improve coil efficiency by removing buildup, requiring less energy usage. To ensure the coil is operating correctly over time, preventive maintenance should be incorporated regularly.

To ensure cold air stays inside, the doors close if opened less than 90 degrees, and past this point, the doors stay open, so products can be efficiently loaded and the interior can be quickly cleaned. Product is stored on four PVC-coated wire shelves, and if there are product spills, debris and liquids are not stuck in the corners because they are coved. Its aluminum interior liner and exterior stainless steel construction are durable to withstand heavy use. For cold-air retention, the True TUC-48F-HC undercounter freezer has polyurethane insulation that has been foamed in place.

Product Details

• Stainless steel top, ends, and front withstand repeated use
• Heavy-duty, GalFan-coated steel back
• Polyurethane insulation is foamed in place to add structure
• Corrosion-resistant, clear-coated aluminum interior
• Coved corners in the stainless steel floor facilitate cleanup
• Stainless steel doors with aluminum liner to match the interior
• 12-in. recessed door handles
• 90-degree, stay-open feature keeps the doors open past 90 degrees
• Magnetic door gaskets prevent cold-air leaks
• 4 PVC-coated shelves are adjustable for convenience
• Castors move the unit for cleaning underneath

Product Features

Refrigeration System

• Capillary tube system meters R290 hydrocarbon refrigerant
• Operating temperature: -10 degrees F
• Condenser and evaporator fan motors conserve energy and limit heat production
• Fan motor reverses for 20 seconds when compressor cycles on to maintain a clean condensing coil
• Corrosion-resistant evaporator is epoxy coated
• Slide-out condensing unit is accessible from the back

Dimensions & Utilities

• Shelves: 21⁹⁄₁₆ in. W x 16 in. D
• Overall: 48⁵⁄₁₆ in. W x 31 ¹⁄₁₆ in. D x 35¹⁵⁄₁₆ in. H
• 3.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-48F-HC within the 48 contiguous states.

From The Manufacturer

Undercounter Freezer, -10°F, (2) stainless steel doors, (4) PVC coated adjustable wire shelves, stainless steel top & sides, aluminum interior with stainless steel floor, 5" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 3.2 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

True Refrigeration TUC-48F-HC Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Door
Also Known As	TUC-48F, TRUE TUC-48F, TUC48F, 890-TUC48F, TRU-TUC48F, TUC-48-F, TUC-48-F-HC
Application	Undercounter Storage
Base	Casters
Color	Silver
Compressor Location	Rear
Cubic Feet	12
Depth (in)	31.13
Door Type	Solid
Height (in)	36
Hertz	60
Hinge Configuration	Left/Right
Interior Construction	Aluminum
No. of Doors	2
Phase	1
Product	Undercounter Freezers
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Sections	2
Series	TUC Series
Special Features	Recessed Handles
Suggested Use	Commercial
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	48.38
Weight	275.00
