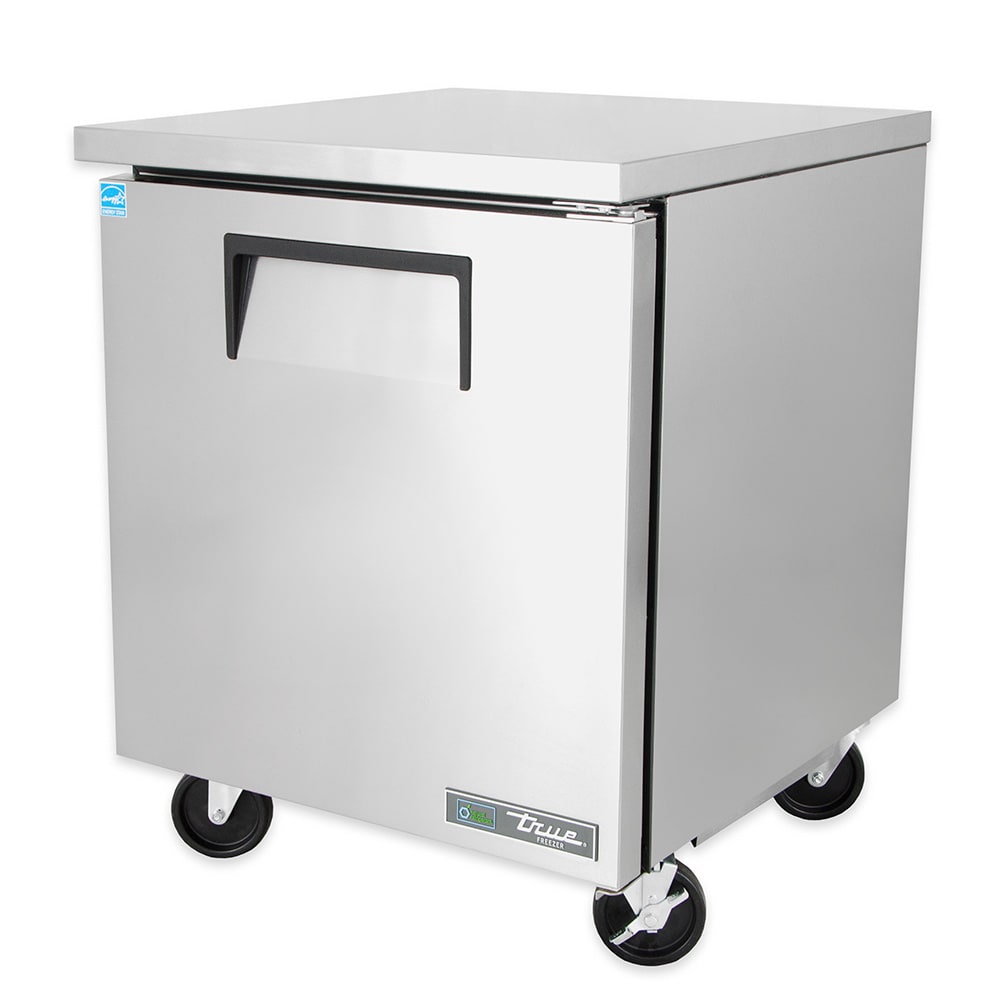

True TUC-27F-HC 28" W Undercounter Freezer w/ (1) Section & (1) Right Hinge Door, 115v

The True TUC-27F-HC undercounter freezer will not scratch or dent effortlessly because of its stainless steel exterior. Its clear-coated aluminum interior liner resists corrosion, and cleanup is efficient since the coved corners do not gather debris. Product can be stored on the stainless steel floor and two adjustable, PVC-coated shelves. Opening the cabinet door is convenient with its 12-inch handle, which is recessed to save aisle space. If the operator needs to clean under the unit, it can be moved on its 5-inch castors.

Lined with foamed-in-place polyurethane insulation, the cabinet traps cold air inside, and a capillary tube system uses R290 hydrocarbon refrigerant to keep the temperature at -10 degrees Fahrenheit. An even amount of air is distributed throughout the cabinet with the condenser and evaporator fan motors. Because of its slide-out design, the condensing unit in the True TUC-27F-HC undercounter freezer is conveniently accessible from the back for maintenance.

To maintain a clean condensing coil, the condensing fan motor moves in reverse for 20 seconds when the compressor is turned on. As the air blows in an opposite direction, it helps remove buildup of dirt, dust, and debris from the coil, enabling it to work more efficiently. To ensure it's operating correctly, preventive maintenance for the coil should be carried out frequently.

Product Details

• 2 adjustable, PVC-coated shelves
• Operating temperature: -10 degrees F
• Eco-friendly R290 hydrocarbon refrigerant runs through the capillary tube system
• Condenser and evaporator fan motors move a consistent amount of air
• Reverse condensing fan motor technology automatically cleans off condensing coil when compressor turns on
• Epoxy-coated, corrosion-resistant evaporator
• Slide-out condenser is accessible from the rear
• 12-in. recessed handle is comfortable to grab
• Door stays open past 90 degrees for cleaning and loading product
• 1-piece gasket around the door prevents cold-air leaks
• 5-in.-diameter castors provide mobility

Product Features

Heavy-duty Construction

• Dent- and scratch-resistant stainless steel exterior
• Steel back is coated in GalFan to add corrosion resistance
• Foamed-in-place polyurethane insulation keeps cold air inside
• Interior liner is made of clear-coated aluminum to resist corrosion
• Stainless steel interior floor has coved corners to simplify cleanup

Dimensions & Utilities

• Shelves: 23¹⁄₄ in. W x 16 in. D
• Overall: 27⁵⁄₈ in. W x 31¹⁄₈ in. D x 36 in. H
• 2.3 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-27F-HC within the 48 contiguous states.

From The Manufacturer

Undercounter Freezer, -10°F, (1) stainless steel door, (2) PVC coated adjustable wire shelves, stainless steel top, front & sides, clear coated aluminum interior with stainless steel floor, 5" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.3 amps, NEMA 5-15P, cULus, UP EPH Classified, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-27F-HC Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
