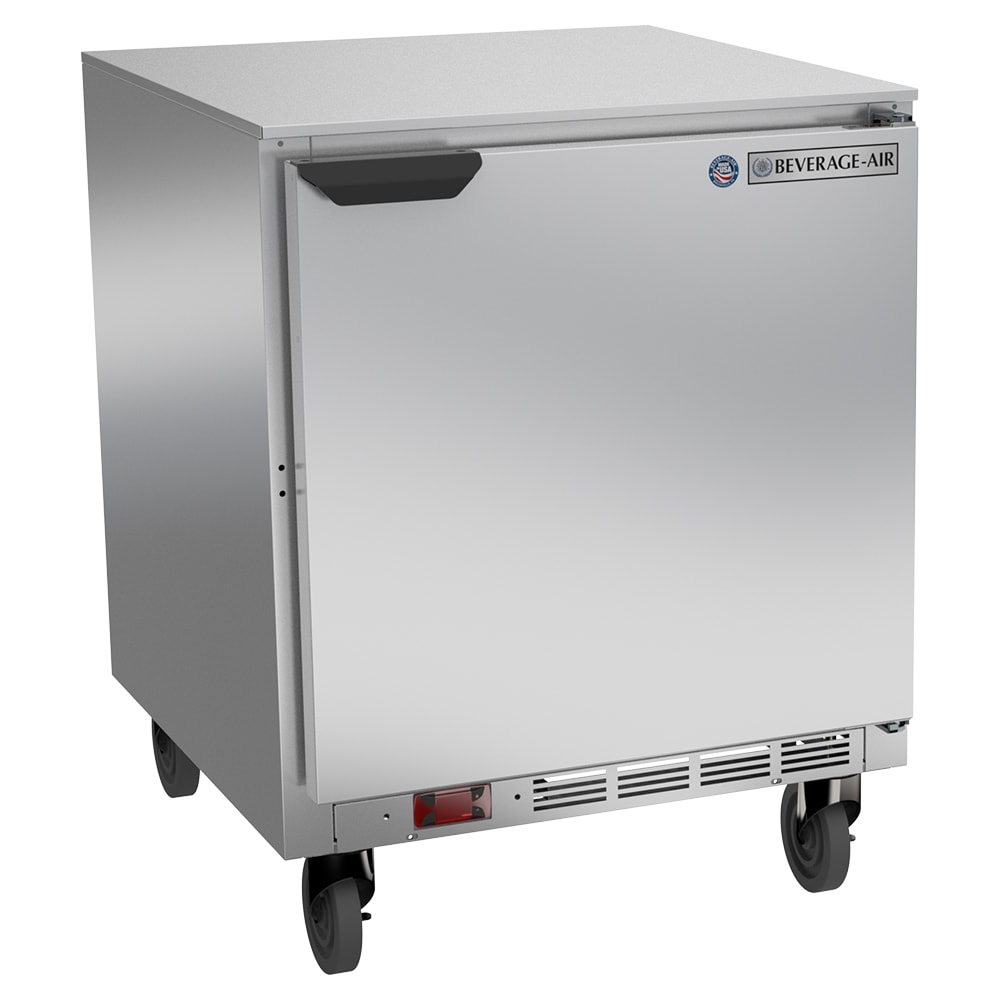

Beverage Air UCF27AHC Description
The two wire shelves in the Beverage Air UCF27AHC undercounter freezer have an epoxy coating that provides corrosion resistance and durability. The liner inside the unit is made of heavy-duty aluminum for use in commercial establishments. The hinged solid door has a stay-open feature that makes loading product simple by holding the door open past 120 degrees, while the self-closing design keeps cold air inside the compartment.
Temperatures inside the Beverage Air UCF27AHC undercounter freezer stay at or below 0 degrees Fahrenheit by using R290 hydrocarbon refrigerant, which is more environmentally friendly than traditional refrigerants. The refrigeration system is self-contained, meaning the components are built together and easy to service. To resist corrosion, the evaporator coil is coated in epoxy, providing lasting durability.
Product Details
- 2 corrosion-resistant, epoxy-coated wire shelves are included
- Aluminum interior liner is built for commercial applications
- Door has a stay-open feature past 120 degrees for cleaning out the cabinet
- Self-closing design on the door keeps cold air inside the cabinet
- Magnetic gasket seals in cold air by creating a seal that prevents leaks
- Field-reversible door enables adjustments to fit into any layout
- 1⁄2-in. sub top creates a barrier between a countertop and the cabinet to keep warm air out
- Stainless steel top, front, door, and sides are durable and corrosion resistant
- 6-in. casters provide mobility for cleaning under the unit
- 2 of the casters have brakes to lock the unit in place
- 1,418 BTU
- 115 V/60 Hz/1 ph, 6 A, 1⁄2 HP, 8-ft. cord with a NEMA 5-15P plug
- Overall dimensions: 27 in. W x 32 in. D x 345⁄8 in. H
- UL, cULus, UL-EPH, and UL-Sanitation listed
- Made in the U.S.
Self-contained Refrigeration System
- Temperatures stay at or below 0 degrees F
- R290 hydrocarbon refrigerant maintains cold temperatures
- Simple operation with an interior thermometer and electronic controls
- Rear-mounted, self-contained system keeps all the components together for simple maintenance
- Evaporator coil is coated in epoxy for corrosion resistance
Undercounter Freezer, one-section, 27"W, 6.03 cu. ft. capacity, (1) hinged solid door, (2) shelves, stainless steel top with turned down edges, stainless steel exterior top, front, sides & doors, galvanized steel exterior bottom and back, aluminum interior, rear-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, UL, cULus, UL EPH Classified, UL-Sanitation, MADE IN USA, 115v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Beverage Air UCF27AHC Specifications
PDF Spec Sheet| Manufacturer | Beverage Air |
| Application | Undercounter Storage |
| Base | Casters |
| Compressor Location | Rear |
| Cubic Feet | 6.03 |
| Exterior Finish | Stainless Steel |
| Height (in) | 34.5 |
| Warranty | 3 years parts & labor/5 years compressor |
| Width (in) | 27 |
| Sections | 1 |
| Width (in) Range | 19 - 28 in |
| Residential Warranty | Units installed in residential applications will be warranted for a period of 1 year parts & labor from the date of original installation |
| Product | Undercounter Freezer |
| Product Type | Commercial Refrigeration |
| Access | Door |
| Weight | 180.00 |
