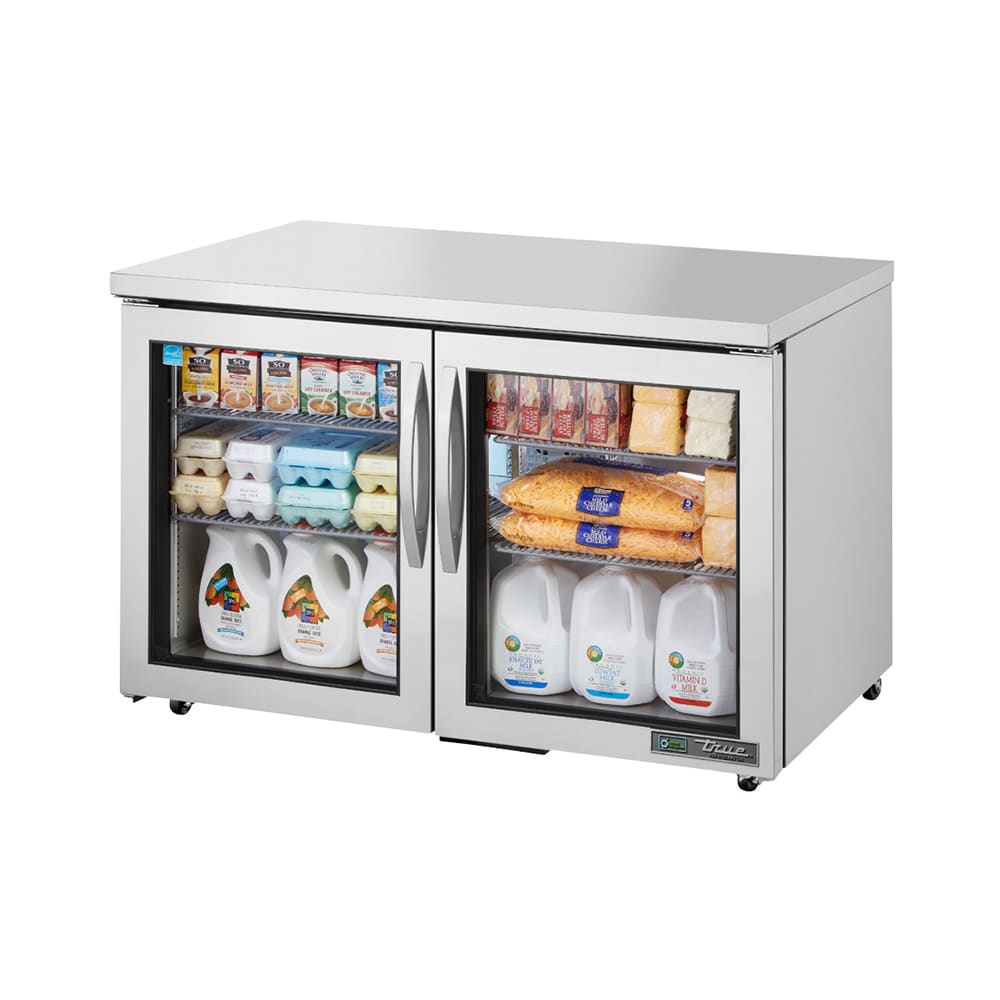

True TUC-48G-HC~FGD01 ADA 48" W Undercounter Refrigerator w/ (2) Sections & (2) Doors, 115v

Made of stainless steel, the exterior front, top, and ends of the True TUC-48G-HC~FGD01 undercounter refrigerator are sturdy, while corrosion-resistant GalFan coats the steel back. The entire cabinet structure is insulated by high-density polyurethane, retaining cold air and enhancing structural strength. To streamline cleaning, its interior has a stainless steel floor with coved corners and a clear-coated aluminum liner that is effortless to wipe down. This unit's self-closing, positive-seal doors swing within the dimensions of its cabinet, and an extruded handle is integrated into each door.

Compliant with ADA guidelines, the True TUC-48G-HC~FGD01 undercounter refrigerator has a 34-inch work surface height and 3-inch-diameter stem castors. The evaporator's epoxy coating eliminates the potential of corrosion, and cleaning is simplified with one-piece, magnetic door gaskets that are removable without tools. This unit has low-e, double pane thermal glass doors with extruded aluminum frames.

The compressor’s fan motor directs air in reverse for a 20-second period at the start of each cycle. This blows away any dirt or buildup that’s settled on the coil. When employed in tandem with preventive maintenance, this feature helps improve efficiency and lengthen the unit’s lifespan.

Product Details

• ADA-compliant, 34-in. work surface height
• 4 PVC-coated wire shelves are adjustable in ¹⁄₂-in. increments
• Stainless steel exterior constructs front, top, and ends with corrosion-resistant GalFan coating on steel back
• Polyurethane insulation is foamed in place for cold-air retention
• Interior contains stainless steel floor with coved corners and attractive, clear-coated aluminum liner
• 3-in.-diameter stem castors
• Magnetic, 1-piece door gaskets are removable without tools
• Double-pane, thermal glass assembly in the doors shows off stored items without letting cold air
• Self-closing, positive-seal doors swing within dimensions of cabinet
• Extruded aluminum door handles

Refrigeration System

• Condenser fan motors and electronically commutated evaporator move air at a consistent volume, which produces little heat and reduces energy consumption
• 20-second fan reversal blows dust off condensing coil each cycle

• Product temperatures are maintained by guided airflow through oversized, factory-balanced refrigeration system
• Condenser has a slide-out design for convenient access from the cabinet's rear
• Temperature holding range: 33-38 degrees F
• Uses R290 hydrocarbon refrigerant
• Evaporator's epoxy coating eliminates potential of corrosion

Dimensions & Utilities

• Shelves: 21⁹⁄₁₆ in. W x 16 in. D
• Overall: 48³⁄₈ in. W x 31¹⁄₈ in. D x 33¹¹⁄₁₆ in. H
• 3 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-48G-HC~FGD01 ADA within the 48 contiguous states.

From The Manufacturer

ADA Compliant Undercounter Refrigerator, 33-38° F, framed glass door version, stainless steel top & sides, (2) Low-E glass doors, (4) shelves, aluminum interior with stainless steel floor, 3" castors, LED interior lighting, front breathing, 1/5 HP, 115v/60/1, 3.0 amps, reverse condensing fan motor, 7' cord, NEMA 5-15P, 34" working height, cULus, UL EPH Classified, CE

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-48G-HC~FGD01 ADA Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
