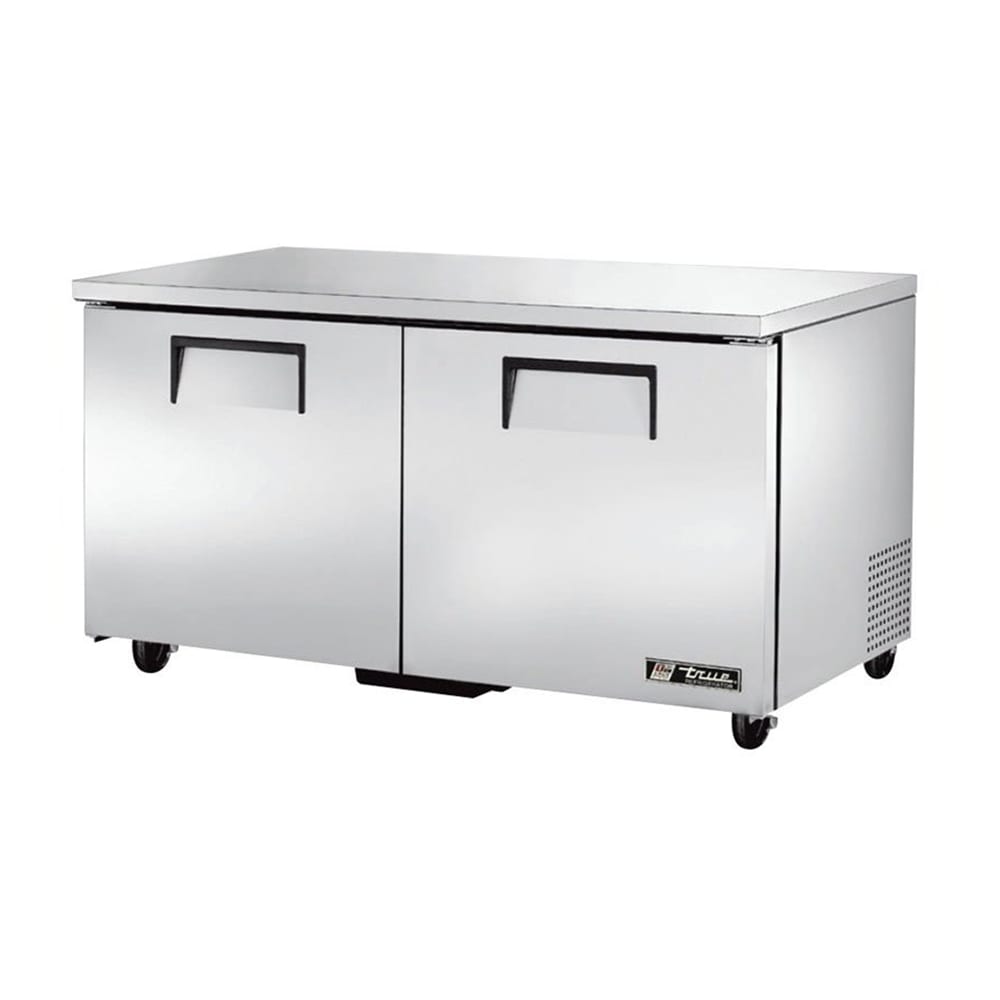

True TUC-60-HC 60" W Undercounter Refrigerator w/ (2) Sections & (2) Doors, 115v

The True TUC-60-HC undercounter refrigerator has two sections with a stainless, coated steel exterior. Each section is equipped with a swinging door, while the interior has a clear-coated aluminum liner and stainless steel floor. For enhanced sanitation, the floor's corners are coved. Its two stainless steel doors can be comfortably opened with 12-inch recessed handles, which are permanently attached with a sheet metal interlock. Door gaskets prevent cold air from leaking out of the cabinet and can be removed for cleaning or replacing. Each door has a stay-open feature that activates at 90 degrees, keeping them out of the way when loading product.

Inside, four PVC-coated wire shelves hold items and are adjustable in ¹⁄₂-inch increments to accommodate various product sizes. Cold air is kept in the cabinet with the help of foamed-in-place polyurethane insulation. The set temperature ranges from 33 to 38 degrees Fahrenheit and is maintained with environmentally friendly R290 hydrocarbon refrigerant. Because the evaporator and condenser fans create a consistent airflow, this system saves energy and keeps product evenly cooled. For cleaning and maintenance, the True TUC-60-HC undercounter refrigerator has a rear-accessible, slide-out condenser.

Though it isn’t a substitute for regular preventive maintenance, the fan compressor’s self-cleaning feature helps improve overall performance and reduce energy consumption. Each time it starts up, the compressor’s fan motor reverses for a 20 second period, effectively blowing away any dust or buildup that’s settled on the condensing coil.

Product Details

• Exterior is constructed of stainless steel for scratch and rust resistance
• Clear-coated aluminum lines the interior
• Interior floor is made of stainless steel and has coved corners for efficient cleaning
• Cold air is kept in the cabinet with polyurethane insulation
• Foamed-in-place polyurethane provides structural strength and attaches handles
• 12-in. recessed handles offer a strong grip
• 90-degree, stay-open feature for stocking the cabinet
• Magnetic door gaskets prevent cold air from leaking out of the cabinet
• 4 PVC-coated wire shelves are durable and adjustable in ¹⁄₂-in. increments
• 5-in. castors for mobility
• Front braking castors keep the unit in place

Product Features

Refrigeration System

• R290 hydrocarbon refrigerant maintains cool temperatures
• Temperature holding range: 33-38 degrees F
• Evaporator resists rust because it is epoxy coated
• Evaporator and condenser fan motors move a consistent volume of air
• Condensing coil kept clean by 20-second fan reversal feature

• Condensing unit is accessible from the rear and slides out for fast access

Dimensions & Utilities

• Top shelves: 27¹⁄₂ in. W x 16 in. D
• Bottom shelves: 27¹⁄₂ in. W x 13³⁄₄ in. D
• Overall: 60³⁄₈ in. W x 31¹⁄₁₆ in. D x 35¹⁵⁄₁₆ in. H
• 4 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-60-HC within the 48 contiguous states.

From The Manufacturer

Undercounter Refrigerator, 33 - 38°F, (2) stainless steel doors, (4) PVC coated adjustable wire shelves, stainless steel top & sides, aluminum interior with stainless steel floor, 5" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.0 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-60-HC Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.

Documents

Spec Sheet

Warranty

Installation Guide

Product Info
