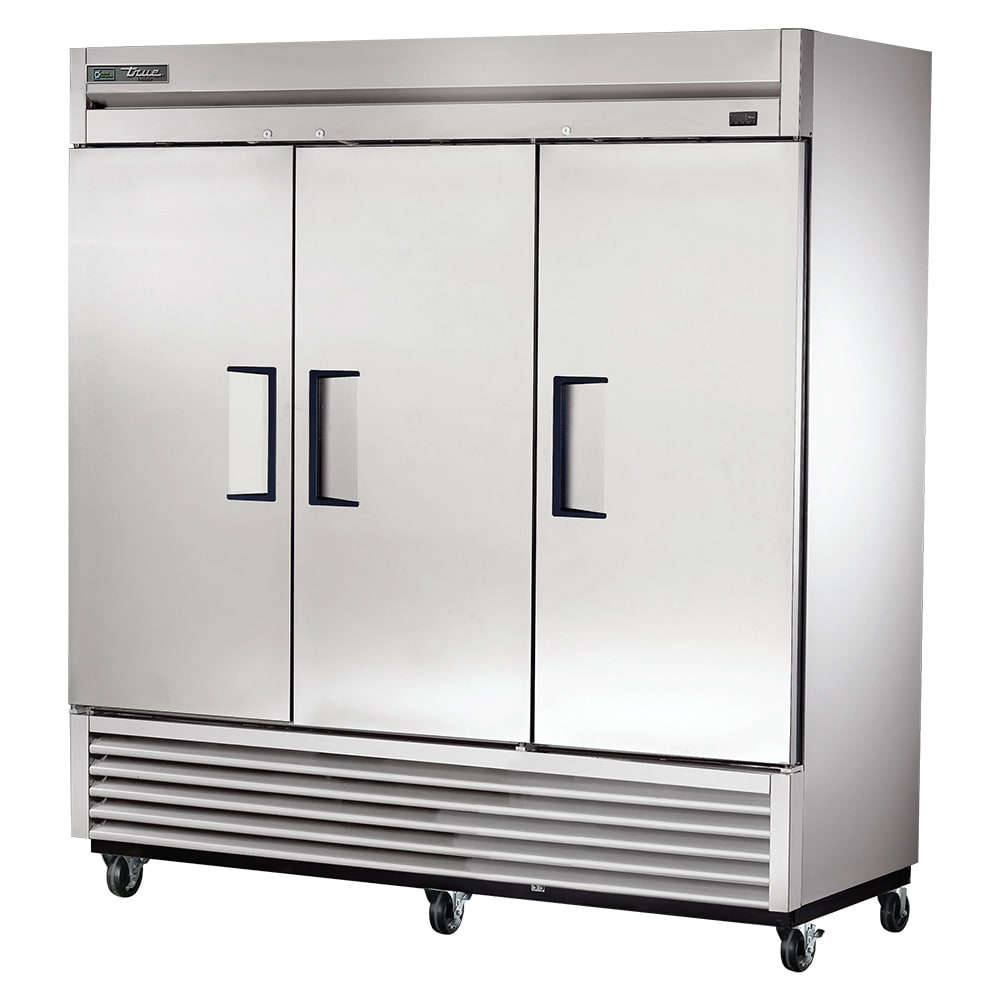

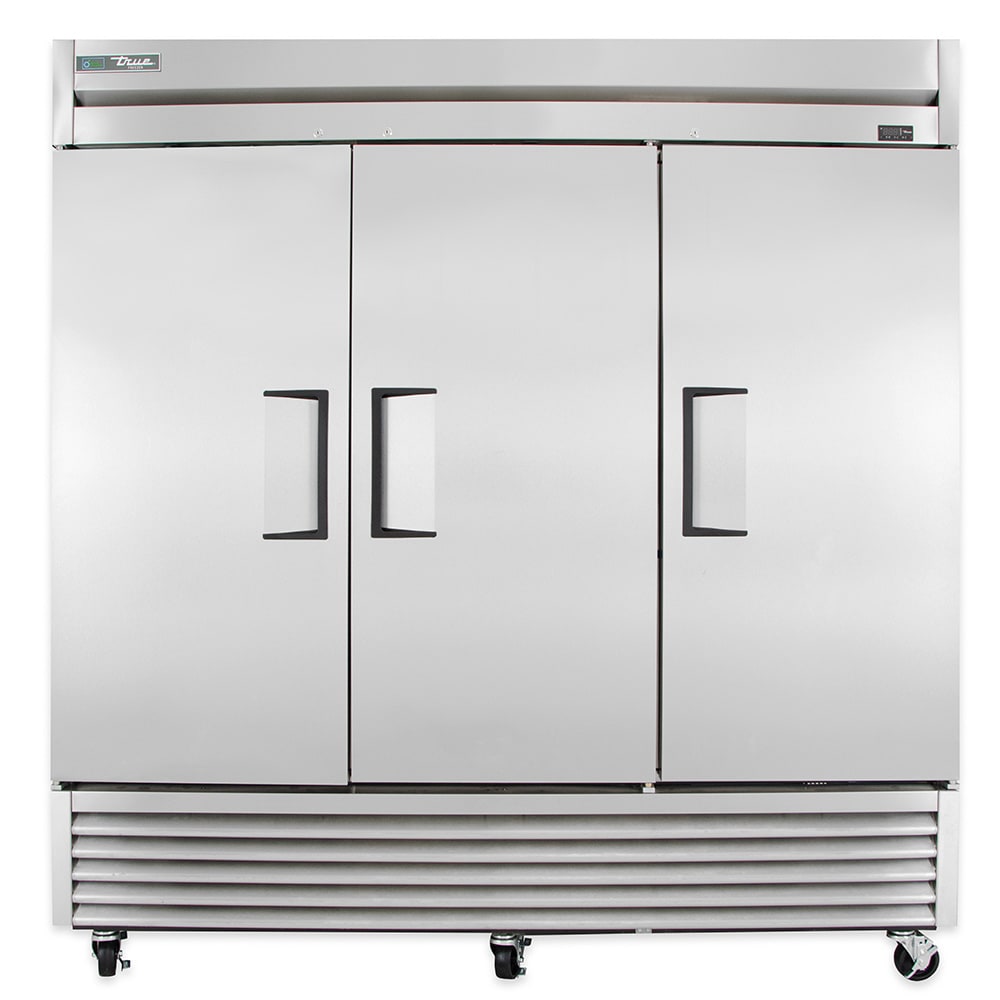

Freezer, Reach-In, 3 Section/SS Doors, 72 cu ft

MODEL T72F

STANDARD FEATURES:

• Oversized and balanced, environmentally friendly (R404A) refrigeration system holds -10° F.
• 300 series stainless steel doors & front.
• Interior - NSF approved, white vinyl coated aluminum sides and top, 300 series stainless steel floor with coved corners.
• Anodized quality aluminum top, sides and back.
• Standard back guard improves airflow.
• Recessed handles (lifetime guaranteed).

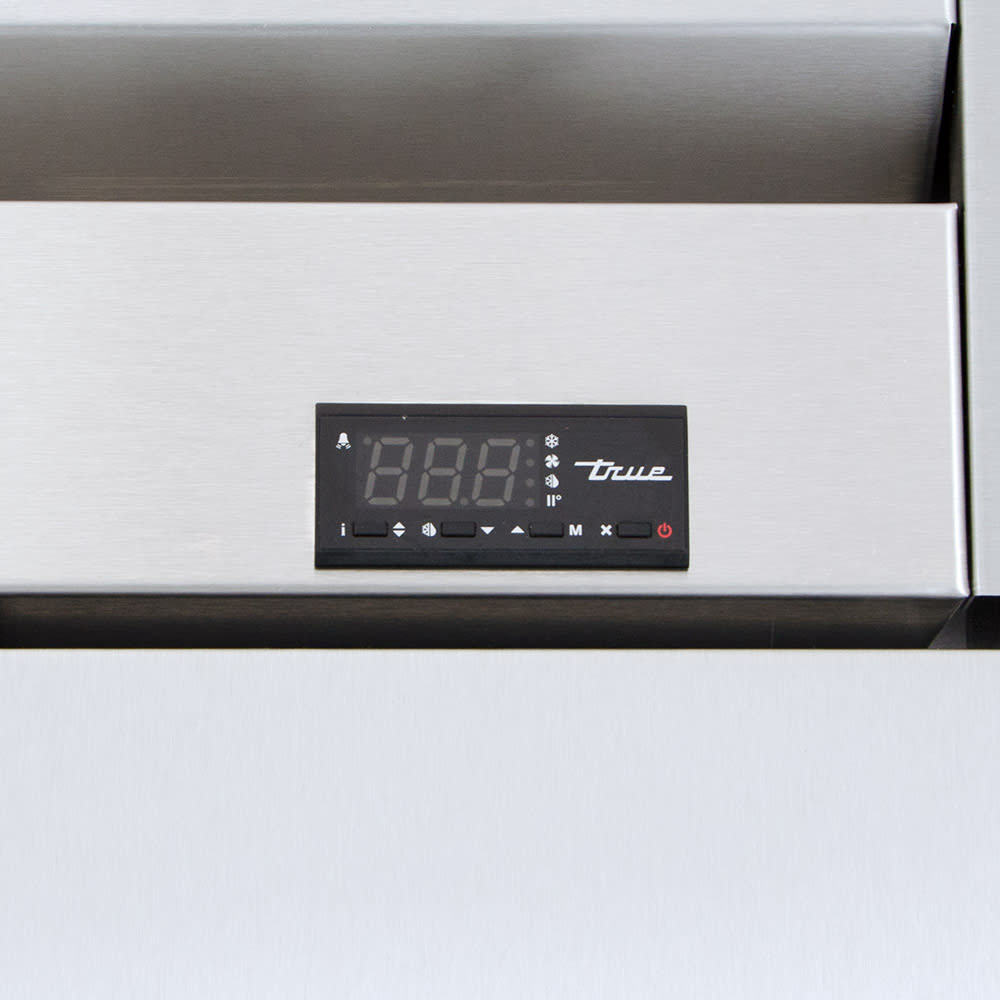

• Exterior mounted temperature monitor.
• Door locks standard.
• Magnetic door gaskets.
• Adjustable vinyl coated wire shelves.
• Epoxy coated evaporator.
• Incandescent interior lighting (fluorescent interior lighting for glass door models).
• 4" diameter swivel castors standard equipment - locking castors provided for front set.
• Foamed-in-place high density polyurethane insulation (CFC free).
• Slide out compressor can be serviced easily and accessed by a single repairman.
• Large evaporator and coil heater permit short defrost cycle.
• Defrost system time initiated, temperature terminated.
• Automatic evaporator fan motor delay during defrost cycle.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty.

REFRIGERATION SYSTEM:

• Refrigeration system factory balanced using CFC free R404A refrigerant.

• Bottom mounted condensing unit - easy access for maintenance.

• Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain -10° F interior cabinet temperature. (non-adjustable capillary tube system superior to problematic expansion valve)

• Defrost system time initiated, temperature terminated.

• Automatic evaporator fan motor delay during defrost cycle.

• Large evaporator and coil heater permit short defrost cycle.

• Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

CABINET CONSTRUCTION:

• 300 series stainless steel front grill, shroud and doors. Anodized quality aluminum exterior ends and back.

• NSF approved, white vinyl coated aluminum and 300 series stainless floor with coved corners.

• Rear wall airflow guard prevents frozen product from blocking optimal airflow.

• Barrel lock standard for each door. Locks keyed alike. Dial exterior mounted temperature monitor.

• Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection. Frame rail fitted with 4" diameter castors, front castors include brakes.

DOORS:

• 300 series stainless steel exterior with white aluminum interior to match cabinet liner. Doors extend full width of cabinet shell. Door gaskets of one piece construction.

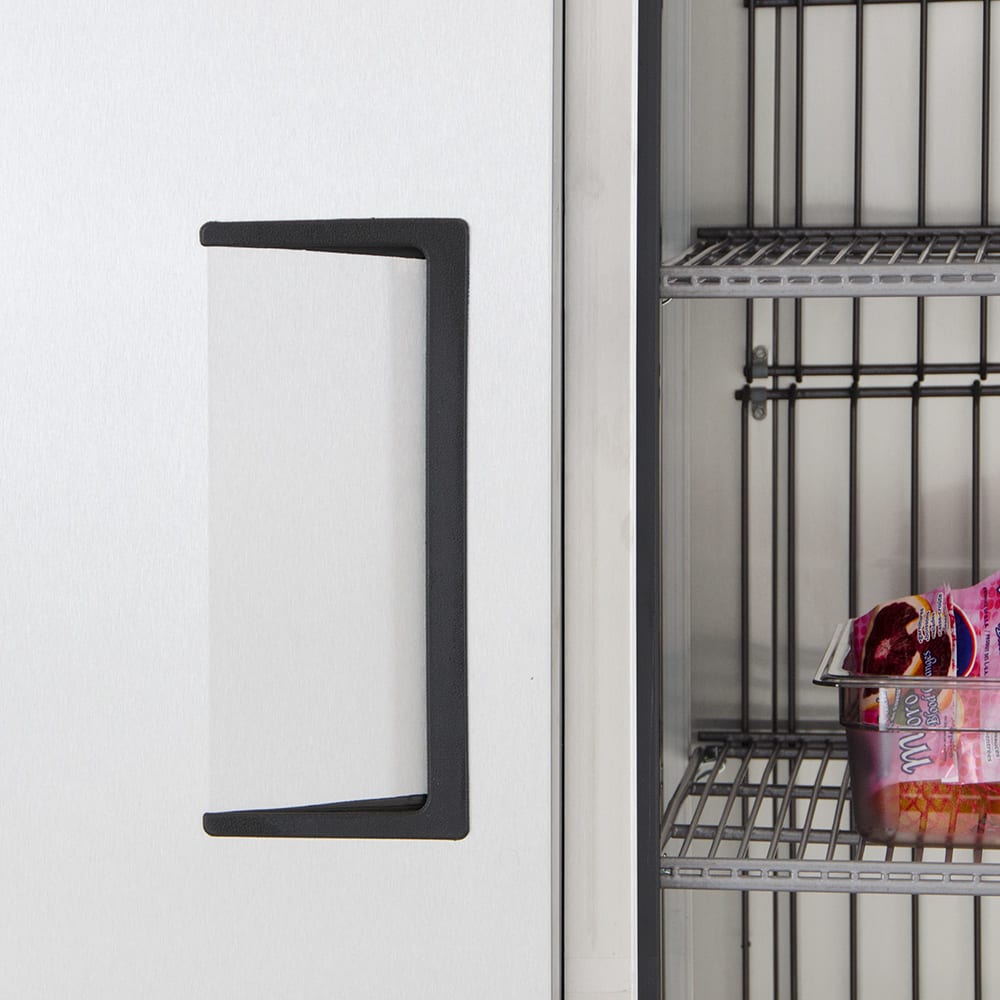

• Lifetime guaranteed adjustable torsion type closure system with aluminum block supports. The face of each door fitted with a 12" long recessed handle with sheet metal interlock. Handles are foamed-in-place to insure permanent attachment.

INSULATION:

• Entire cabinet structure and doors insulated using foamed-in-place CFC free polyurethane foam.

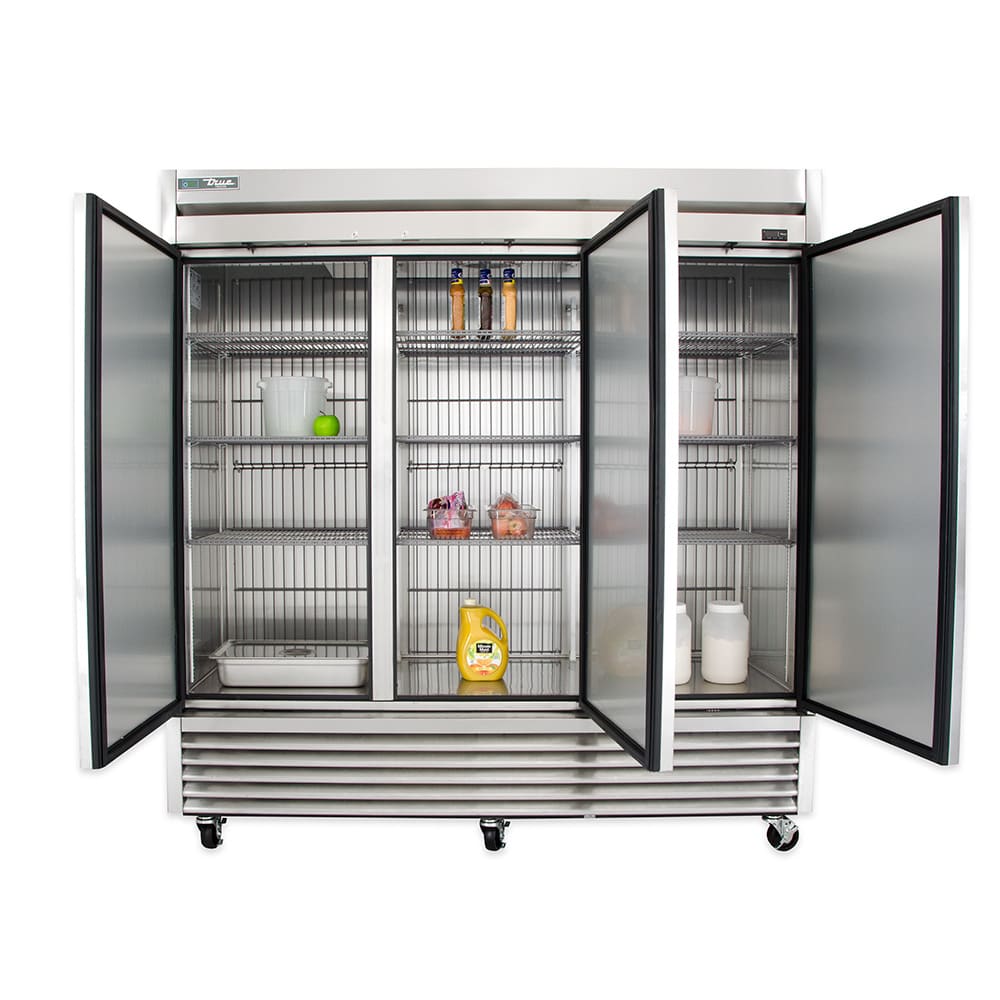

SHELVING:

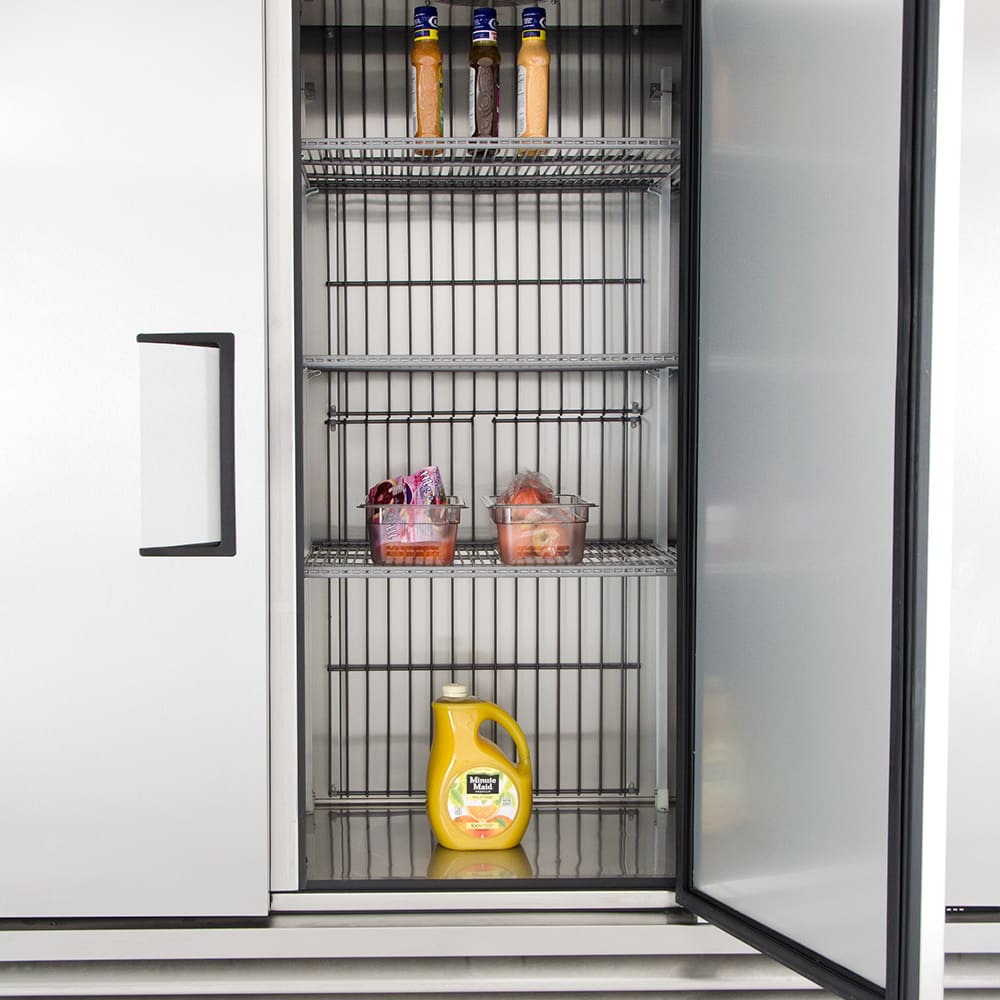

• Adjustable vinyl coated wire shelves (3 per section). Shelves capable of supporting up to 250 lbs.

• Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

LIGHTING:

• Incandescent interior lighting. Light(s) activated by rocker switch mounted above door(s).

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection to appropriate outlet (see diagram below and NEMA listing . A cord and plug set to be included.

• A sole use circuit is required.



OPTIONAL ACCESSORIES:  (At Extra Cost - Lead Time May Apply)

• Available with 6" stainless steel or optional seismic legs.

• Additional shelves available.

• Remote condensers available for T-49F & T-72F.

• T-72F available with three right or three left hinges - no charge.

• Novelty baskets available for T-49F & 72F.
