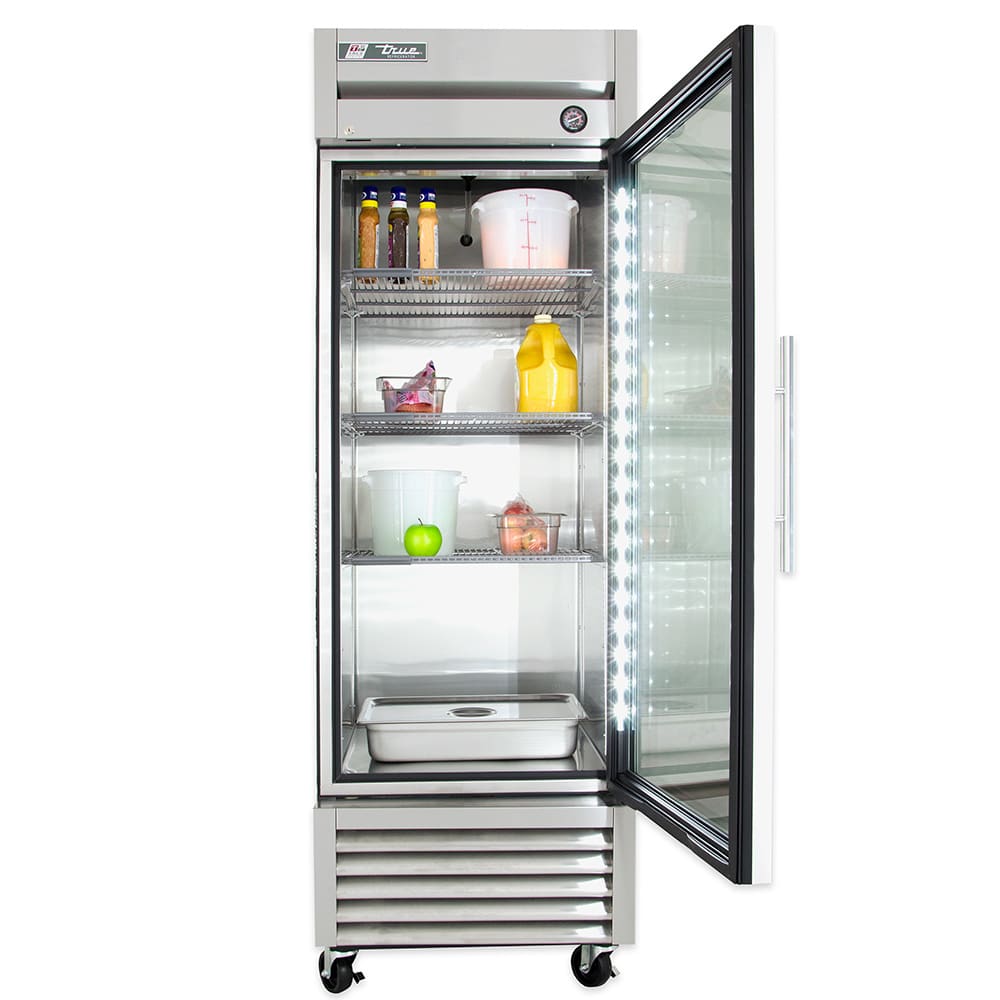

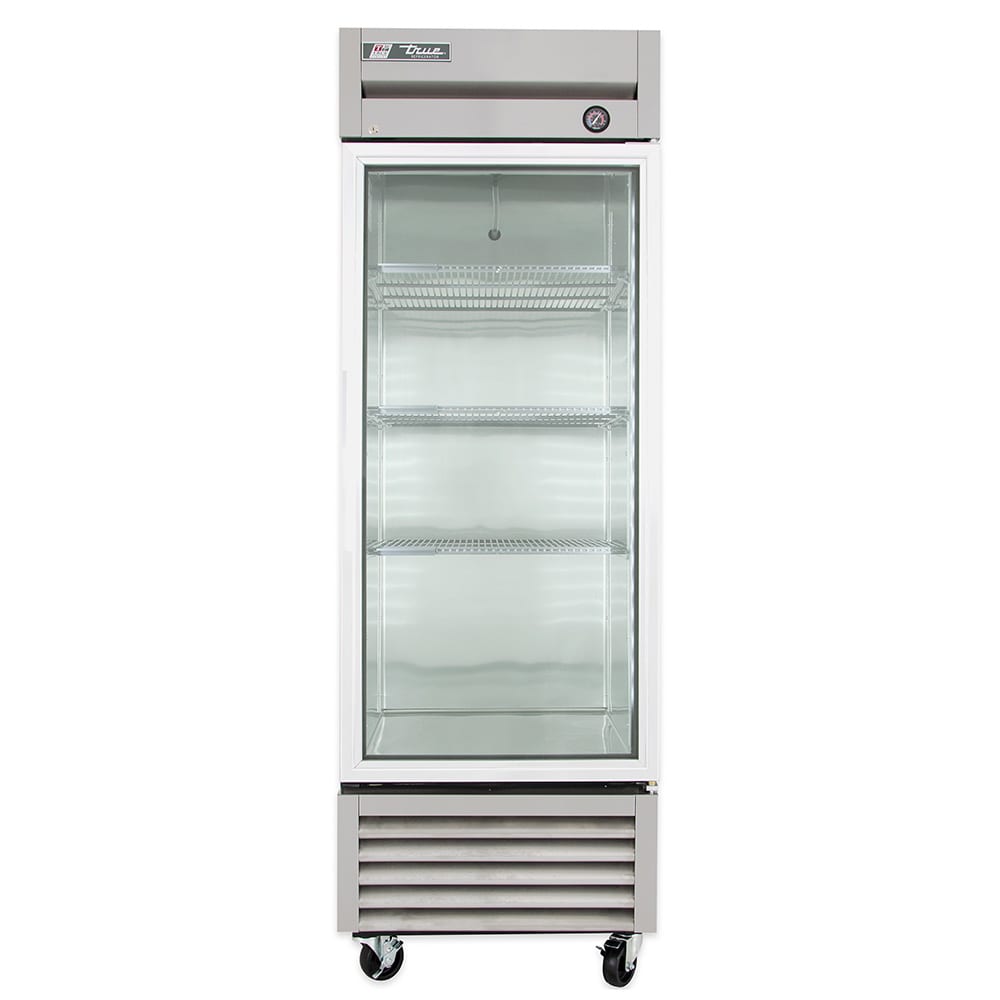

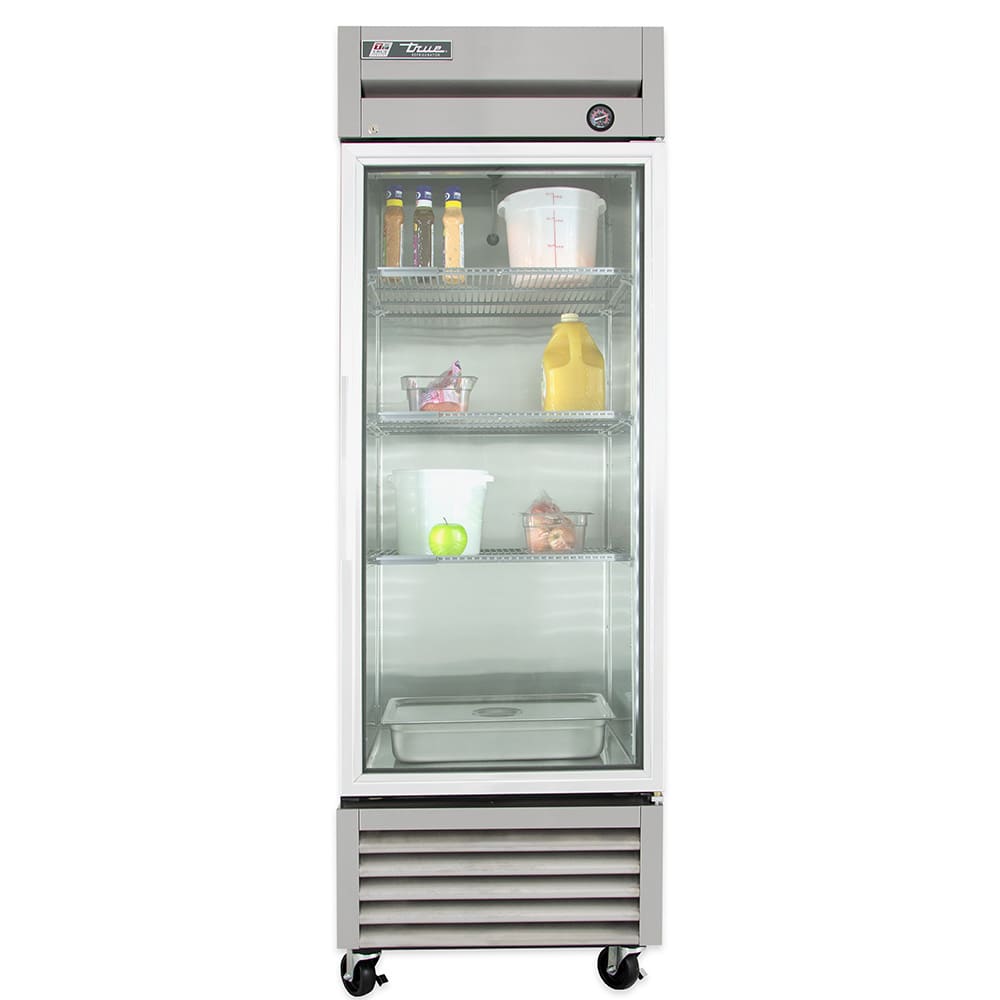

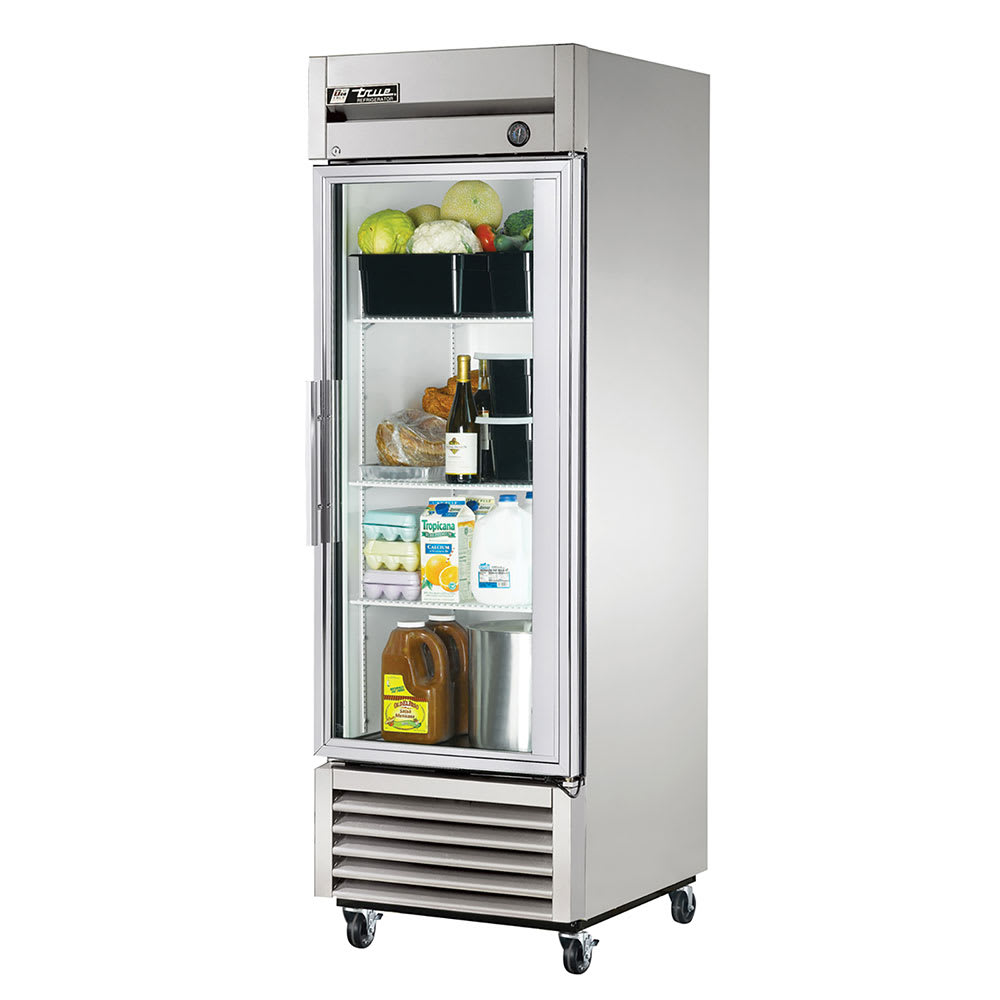

True T-23G-HC~FGD01 27" One Section Reach In Refrigerator, (1) Right Hinge Glass Door, 115v

The True T-23G-HC~FGD01 one-section refrigerator has three PVC-coated wire shelves that adjust to accommodate different product types. Its interior liner is made of aluminum, and it has a stainless steel floor with coved corners to facilitate cleaning by preventing food debris from getting stuck. Its double-pane glass door enables customers or staff to see into the cabinet without letting cold air out, while a self-closing design adds convenience and prevents warm air from getting sucked into the refrigerator.

The exterior display on the True T-23G-HC~FGD01 reach-in refrigerator provides an interior temperature readout, which ranges from 33 to 38 degrees Fahrenheit. A consistent volume of air is moved throughout the cabinet with evaporator and condenser fan motors, while the refrigeration system is bottom mounted, so the compressor operates in one of the kitchen’s coolest areas. This also elevates the floor to a convenient height that eliminates bending when staff members reach for items.

This unit's condenser fan motor operates in an opposite direction for 20 seconds upon start up, removing buildup of damaging dirt and debris on the condensing coil. With less collection, the coil can operate more efficiently and keep items cool. However, users should continue to incorporate genenral maintenance.

Product Details

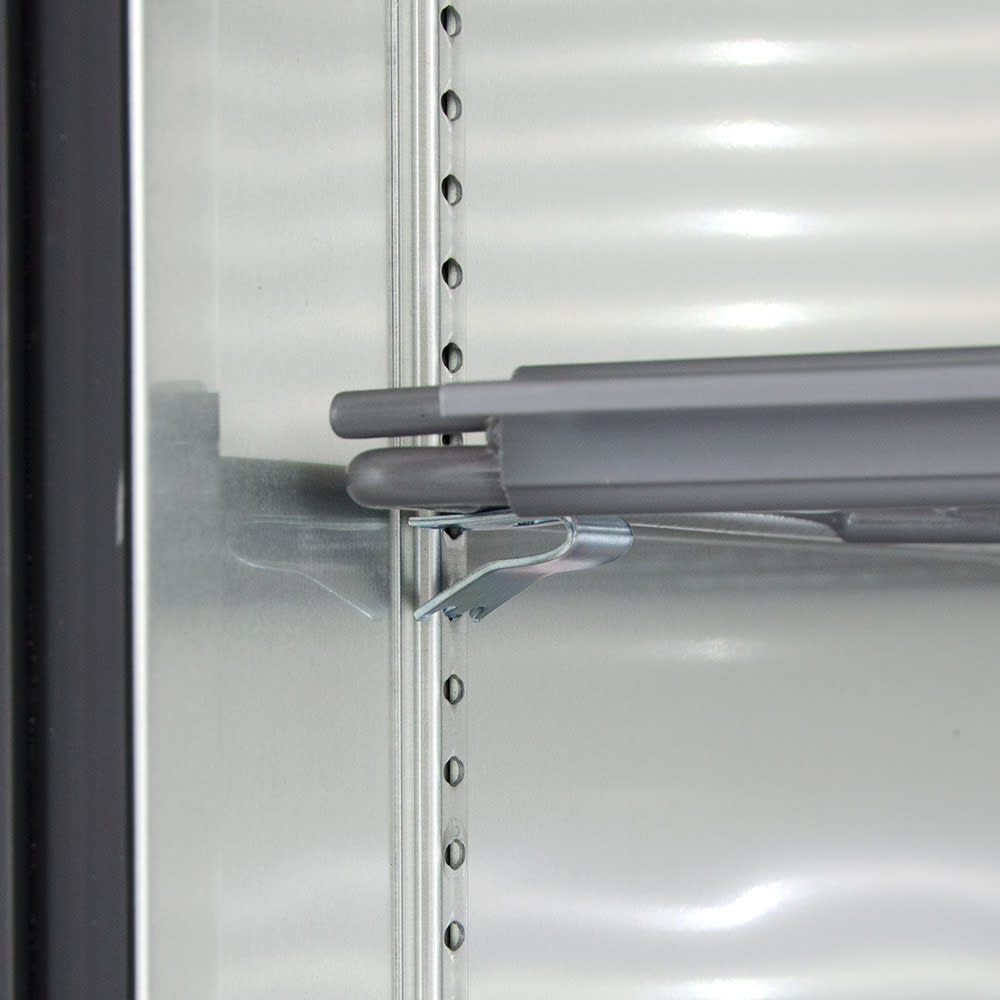

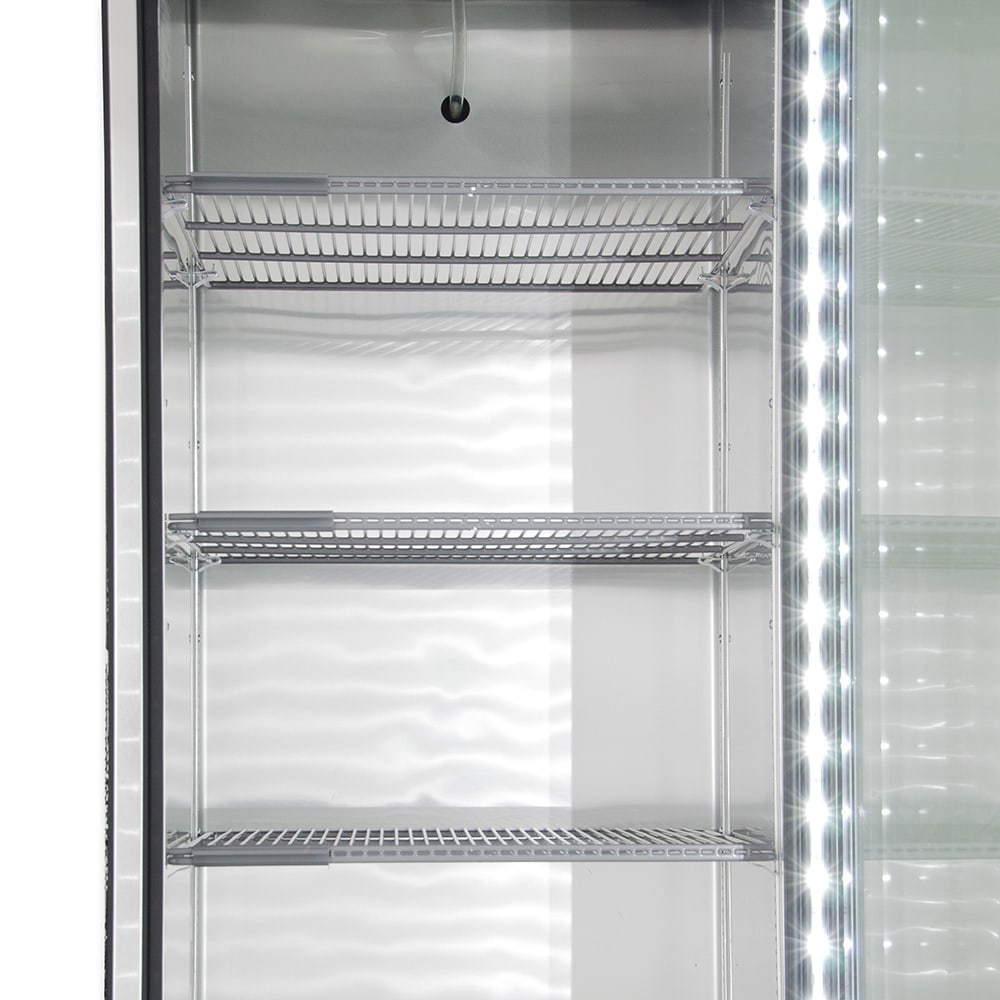

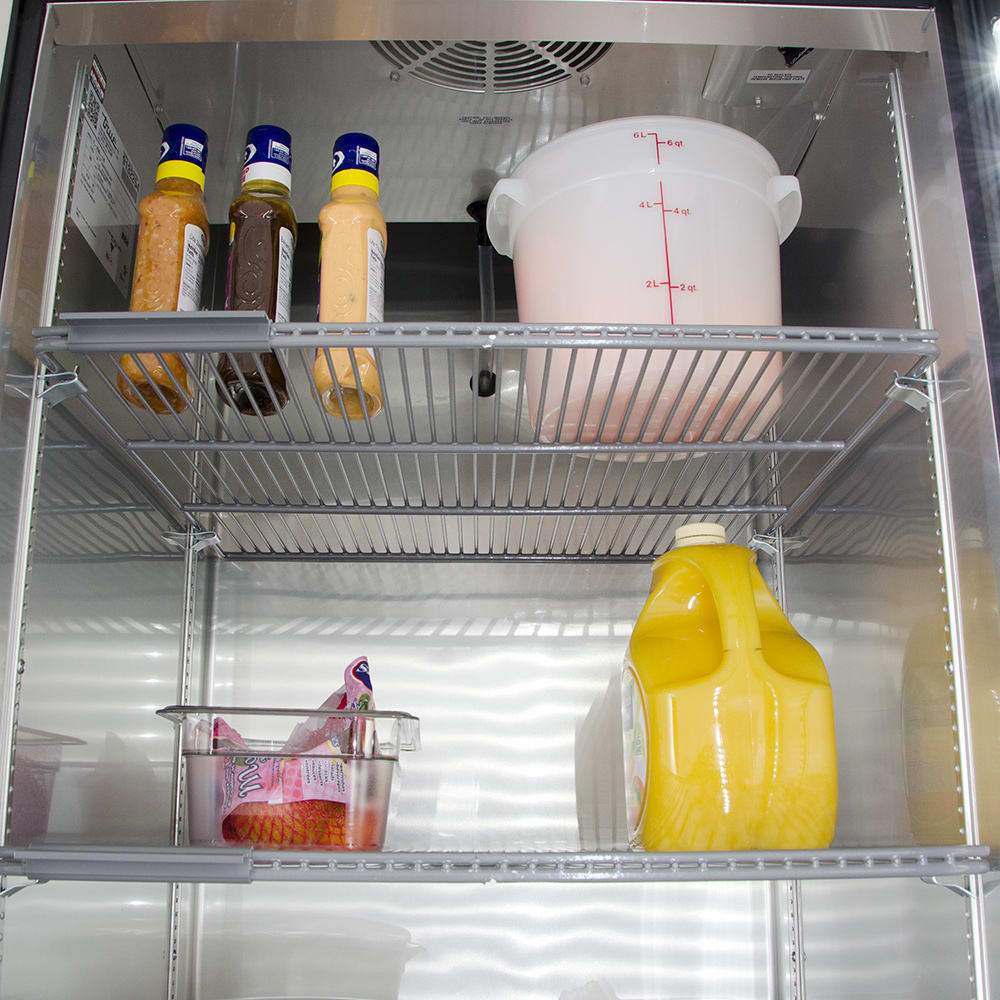

• 3 adjustable, PVC-coated wire shelves
• LED lighting shines on stored product
• Interior aluminum liner is corrosion resistant and strong
• Coved corners on the stainless steel floor do not trap food debris
• Stainless steel front resists dents, scratches, and rust
• Anodized aluminum sides, top, and rear resist stains
• Foamed-in-place polyurethane insulation adds structural strength
• Front set of the 4-in. castors locks
• Double-pane glass door provides product visibility
• Positive-seal, self-closing door with a torsion-type closure system
• 15-in. door handle
• 1-piece magnetic gaskets are removable without tools

Bottom-mount Refrigeration System

• Temperature range: 33-38 degrees F
• Exterior temperature display
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant
• Electronically commutated evaporator and condenser fan motors move a consistent amount of air around the cabinet
• Condensing coil cleaned with condenser fan motor's reverse blowing technology
• Evaporator is coated in epoxy to resist corrosion
• Bottom-mounted compressor operates in the coolest area of the kitchen
• Condenser coil is accessible when maintenance is required

Dimensions & Utilities

• Shelves: 22⁷⁄₈ in. W x 23¹⁄₄ in. D
• Overall: 27 in. W x 31¹⁄₄ in. D x 83³⁄₈ in. H
• 2.2 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration T-23G-HC~FGD01 within the 48 contiguous states.

From The Manufacturer

Refrigerator, reach-in, one-section, framed glass door version 01, (1) glass door, (3) PVC coated adjustable wire shelves, LED interior lighting, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.2 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration T-23G-HC~FGD01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
