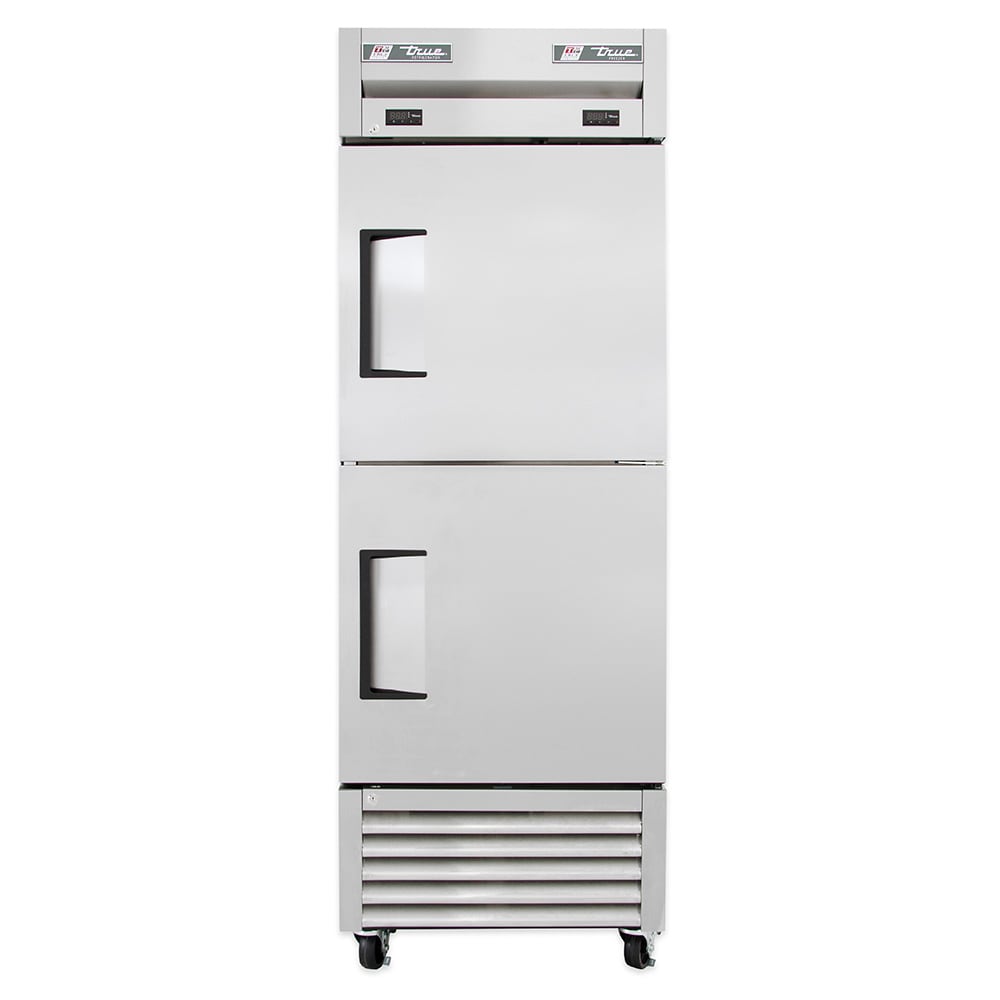

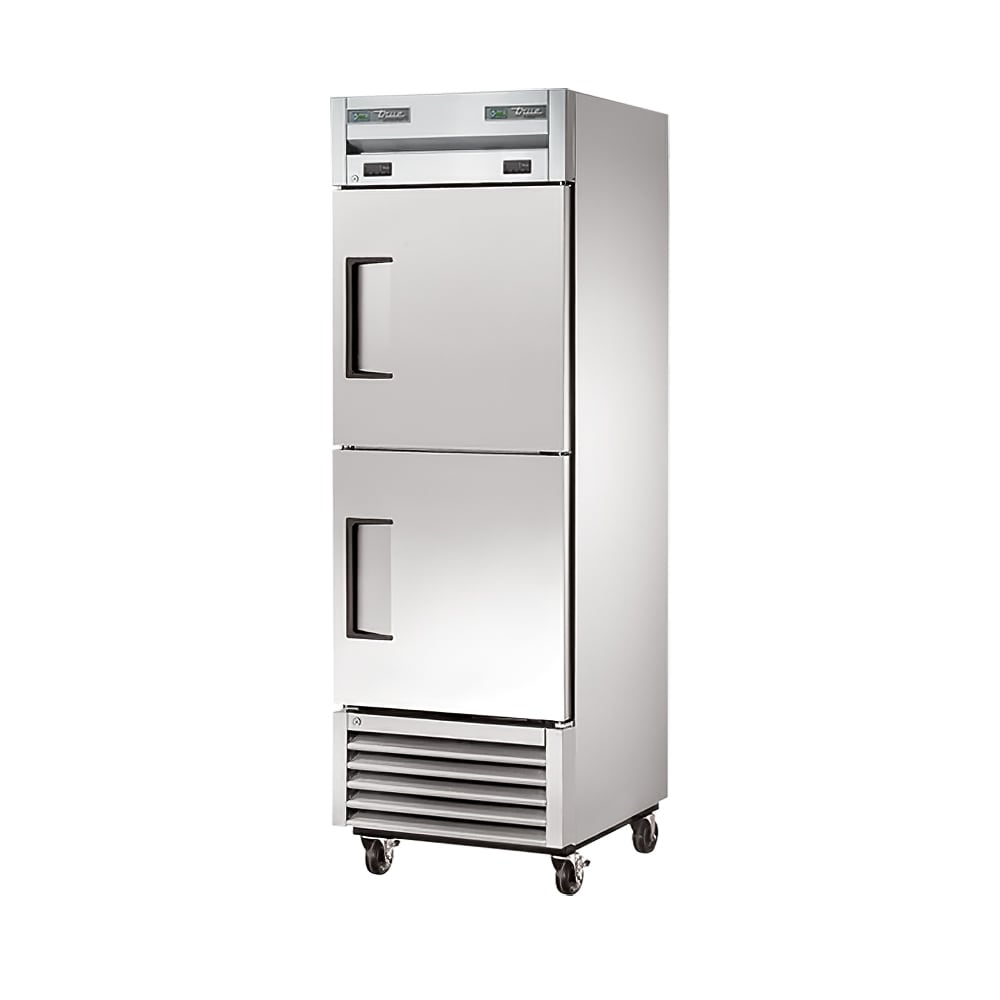

True T-23DT 27" One Section Commercial Refrigerator Freezer - Solid Doors, Bottom Compressor, 115v

KaTom #: 598-T23DT • MPN: T-23DT
free-shipping

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $4,923.92

True Refrigeration T-23DT Description

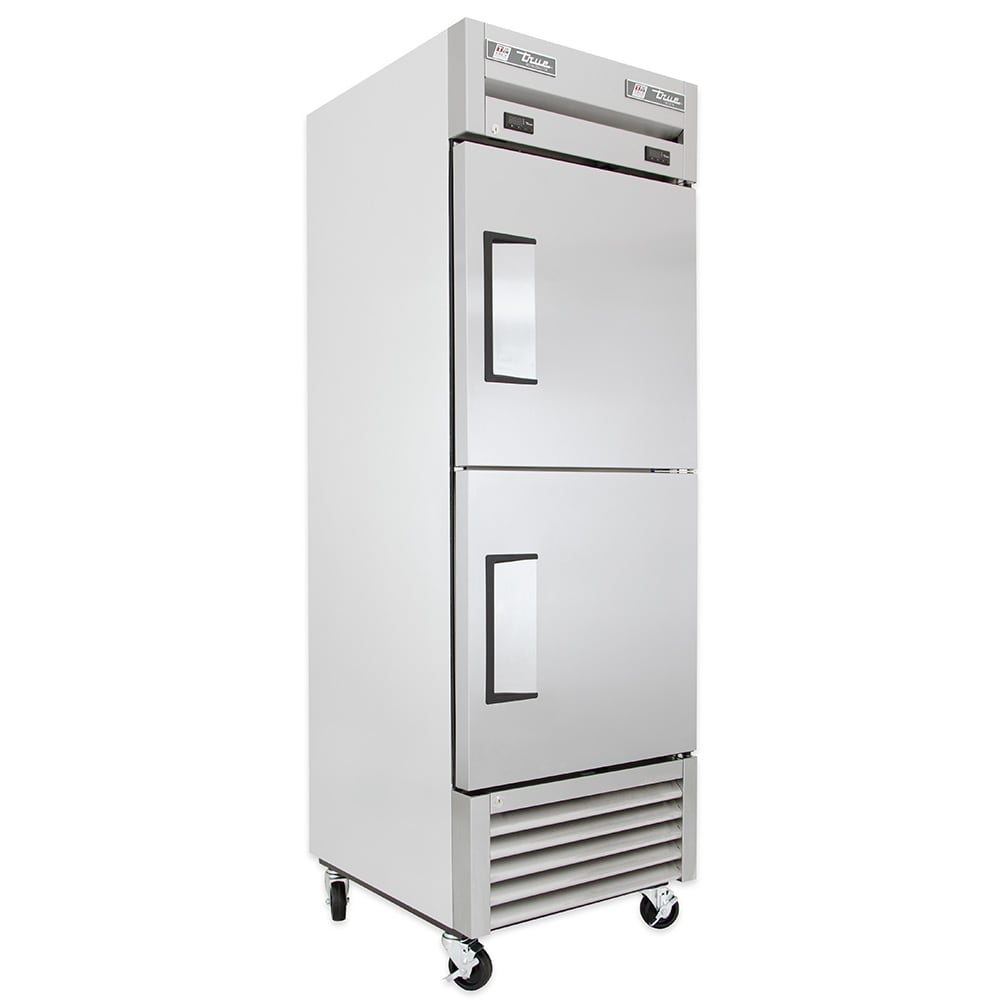

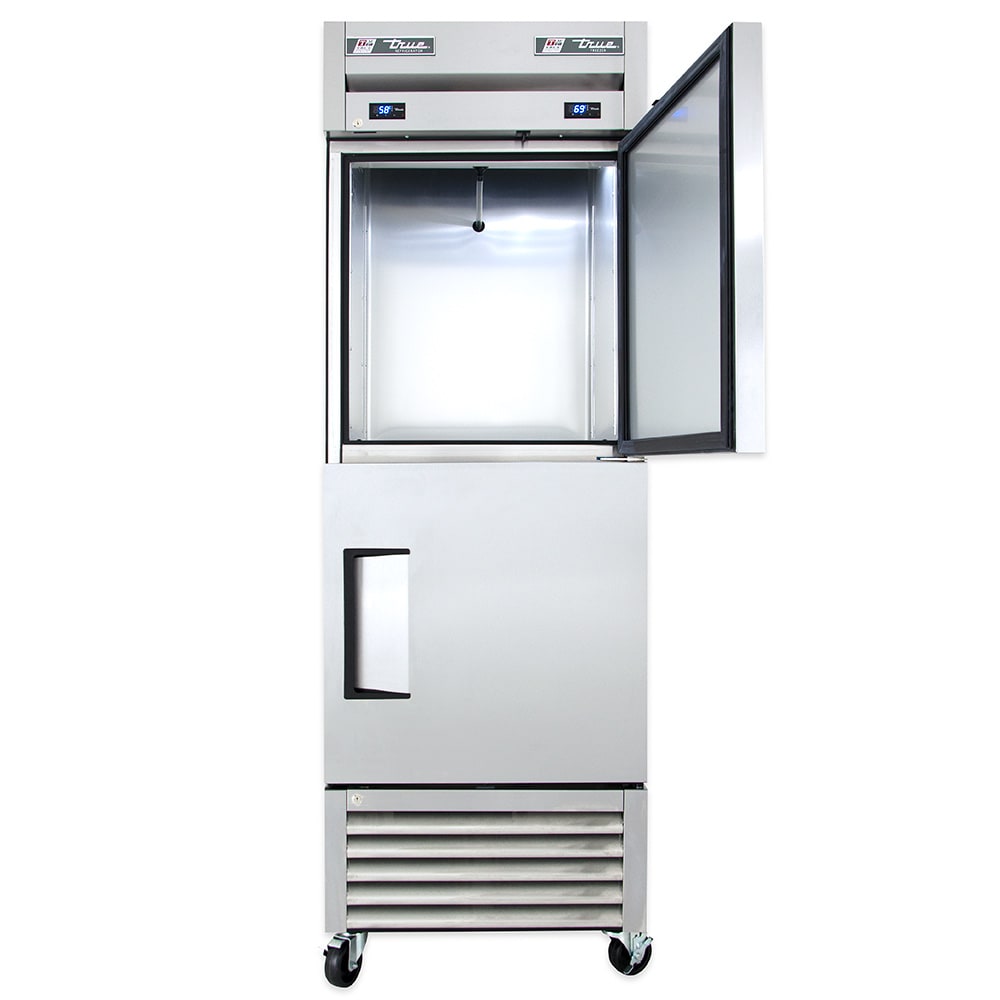

This True T-23 DT dual temperature refrigerator/freezer combines two pieces of equipment into one low-profile 27-inch-wide footprint. The top section is a refrigerator that maintains temperatures between 33-38 degrees Fahrenheit. The lower section is a freezer that maintains a steady -10 degrees Fahrenheit. Each of those compartments is cooled with a self-contained capillary tube system that takes advantage of large evaporator and condenser coils to provide quick temperature recover.

Each section of the True T-23 DT dual temperature refrigerator/freezer is lined with a clear-coated aluminum liner. The floor of each is made of stainless steel with coved corners, and the entire unit is NSF 7 compliant for holding open foods. Each evaporator coil is coated in epoxy so it will never rust, even in the presence of acidic foods.

Product Details

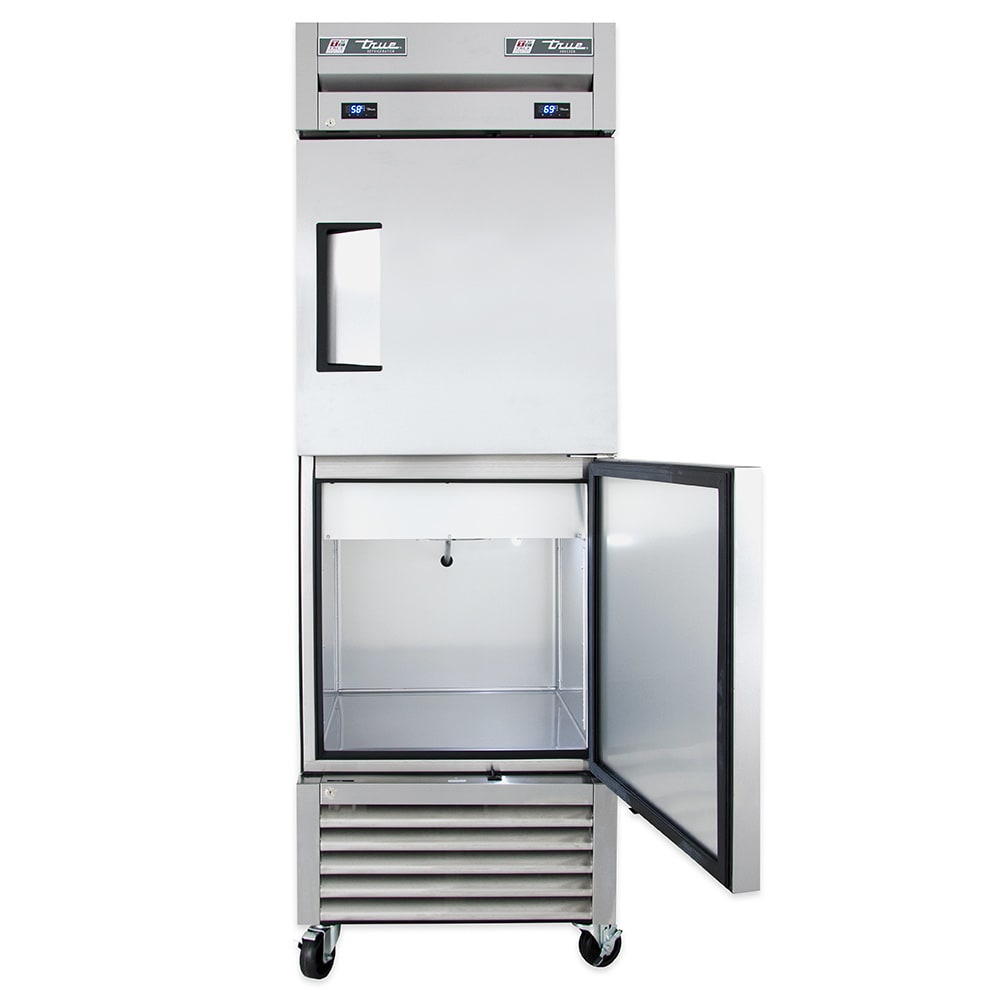

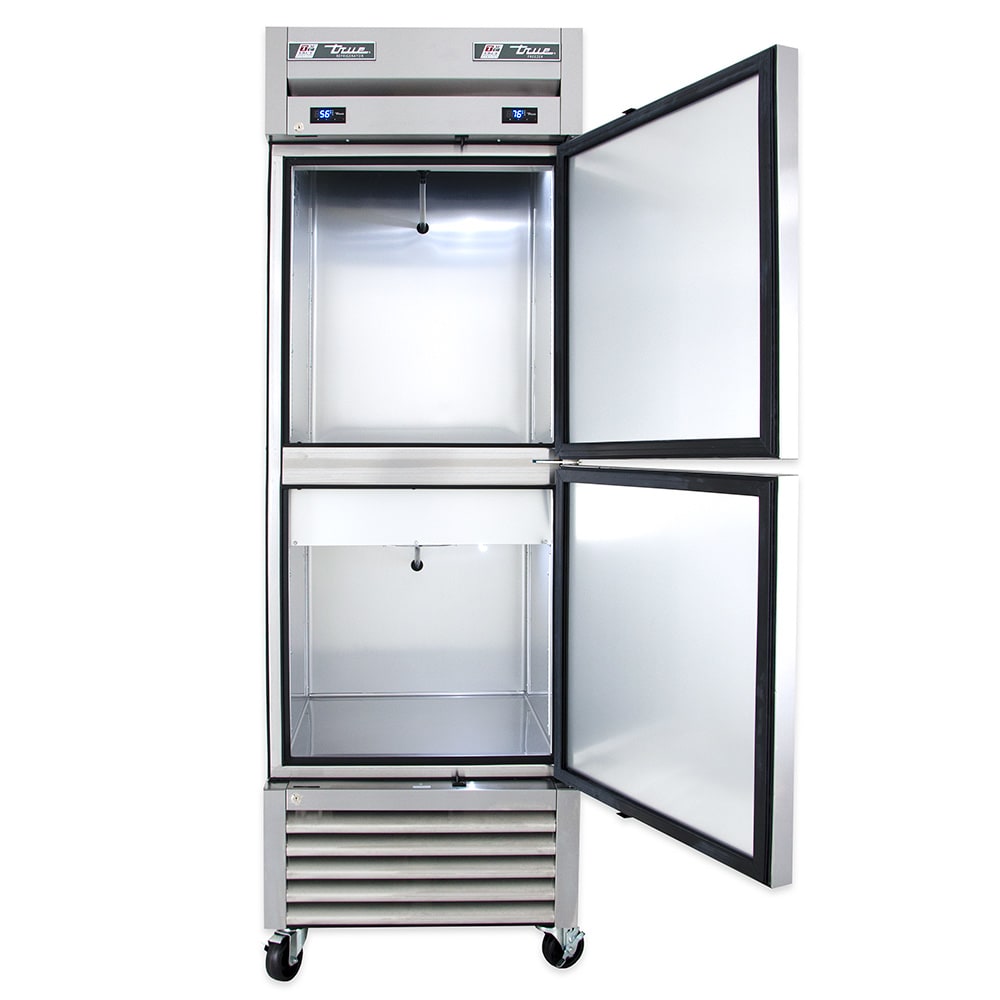

  • Dual temperature unit with refrigerator top section and freezer bottom section
  • Two self-contained capillary tube systems work to maintain each section's temperatures: 33-38 degrees F for the refrigerator section and -10 degrees F for the freezer section
  • Each refrigeration system uses 134A refrigerant, large condenser and compressor coils, and powerful compressors to provide quick and accurate temperature recovery

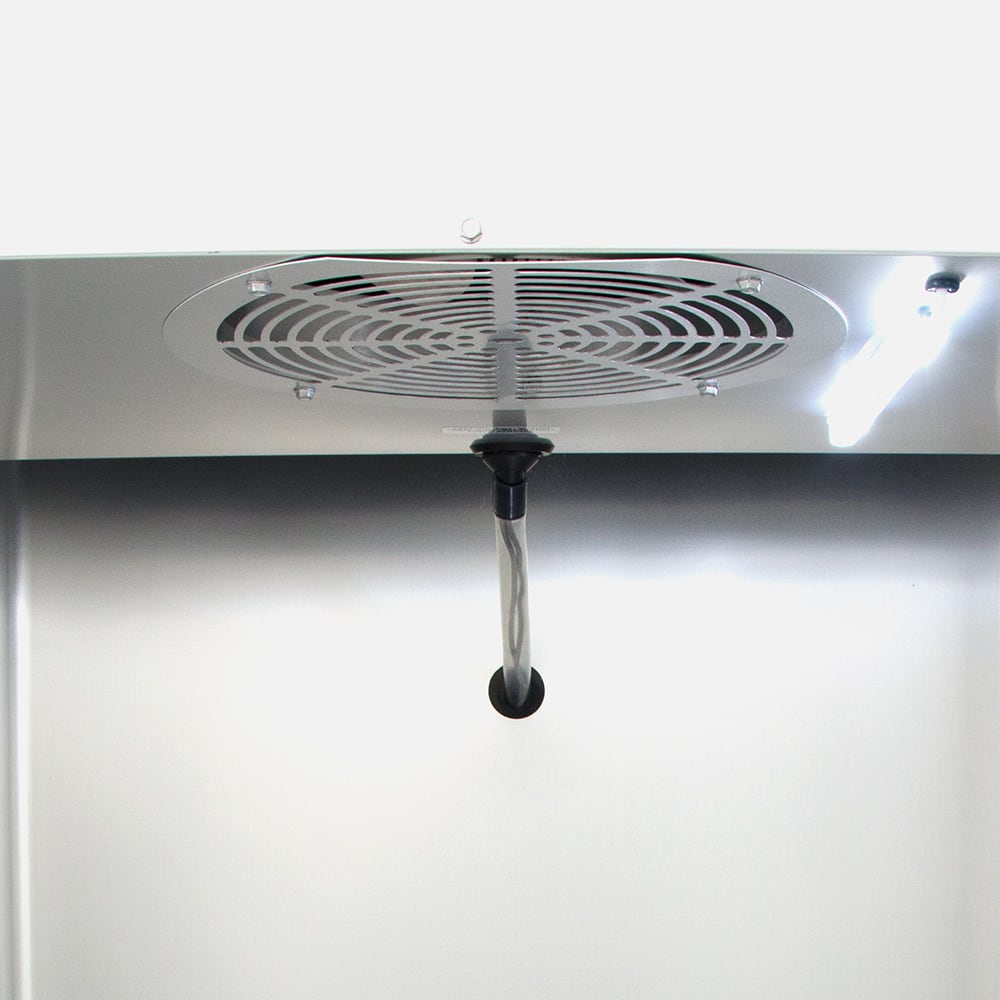

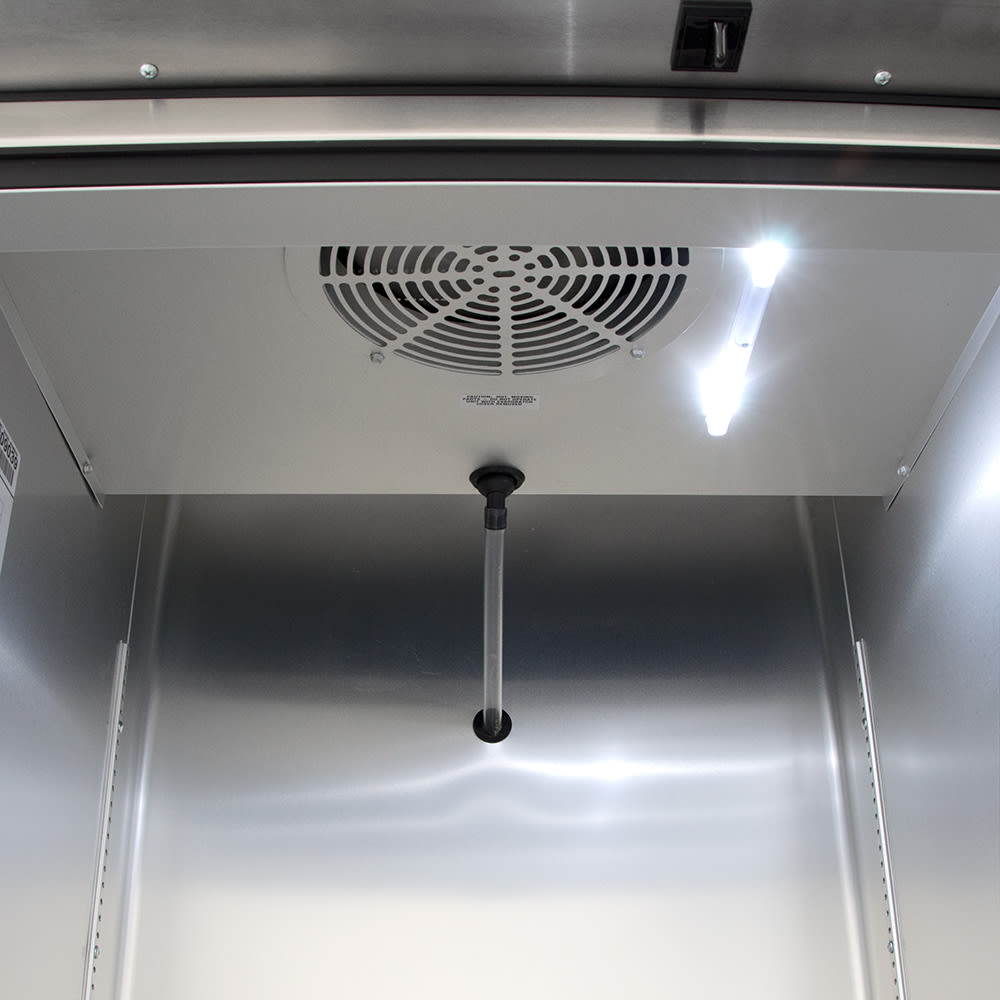

  • Large evaporator fans powered by cast iron motors push air in high volumes at low velocities through the cabinet to keep compartments cooled evenly
  • Freezer defrosts automatically with a time-initiated, temperature-terminated system

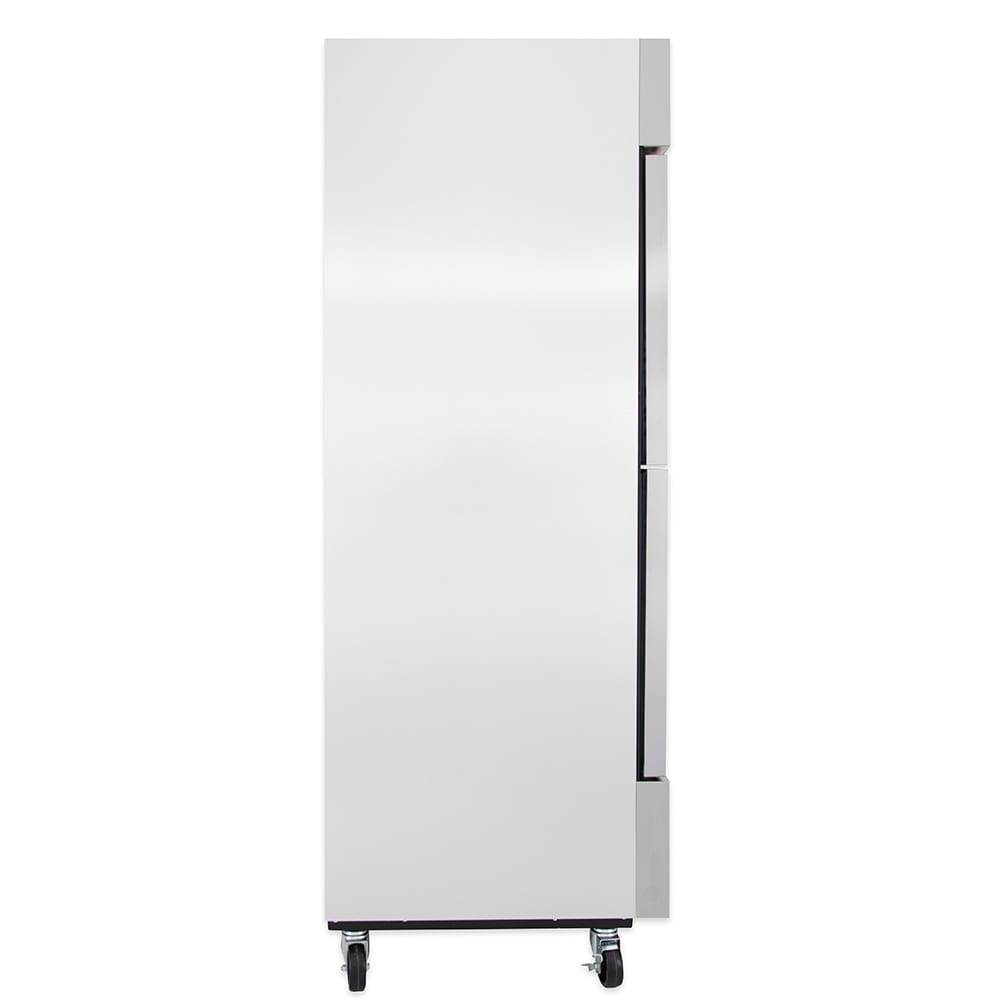

  • Exterior is built with a stainless steel front for durability and corrosion resistance

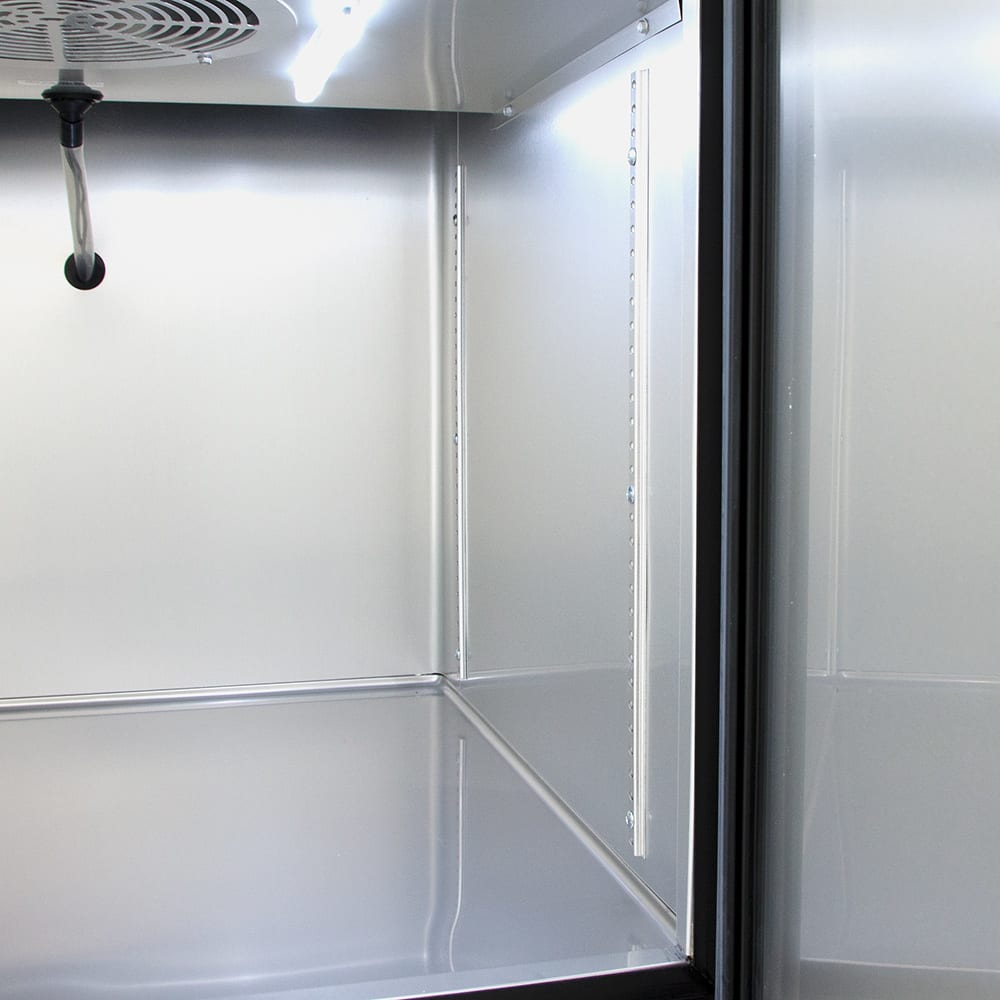

  • Cabinet interior is lined with NSF-approved, clear-coated aluminum for easy sanitation

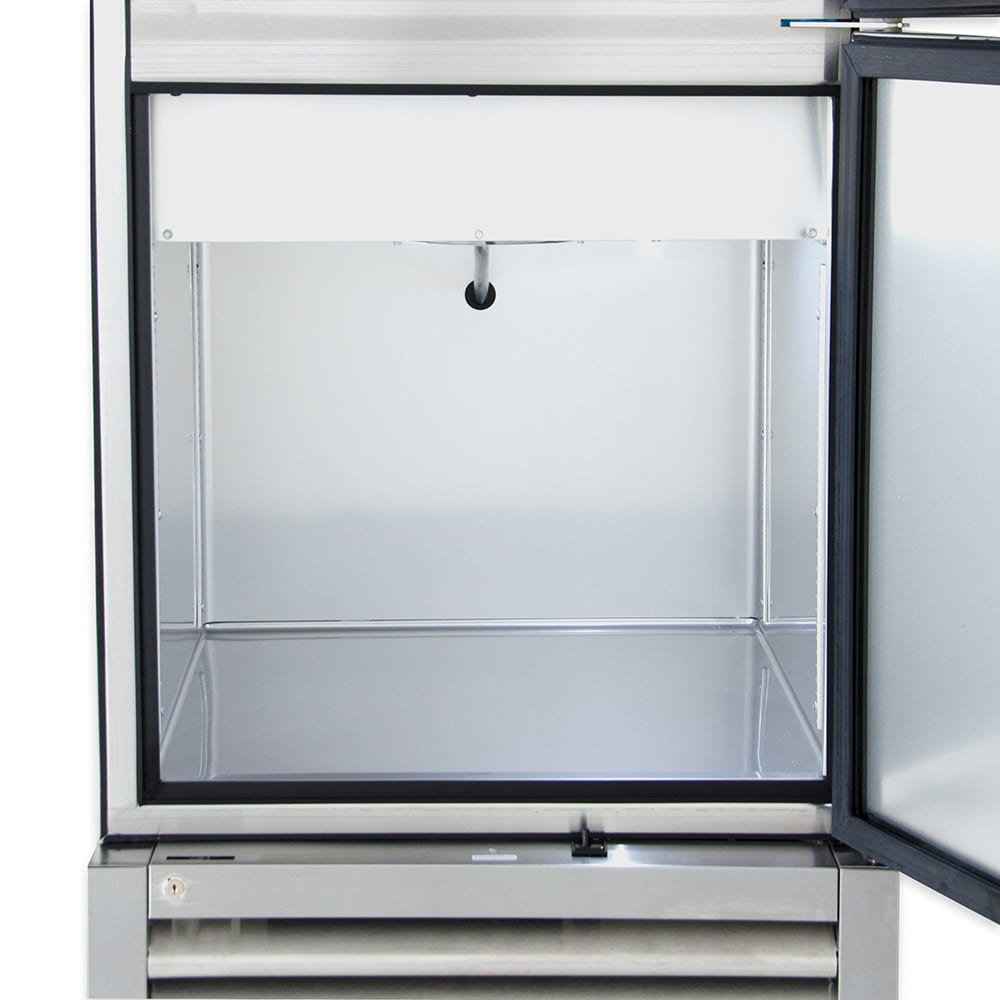

  • Floor is made of stainless steel with coved corners for easy spill cleanup
  • Cabinet is insulated with foamed-in-place Ecomate polyurethane
  • Black, powder-coated steel frame is welded for durability

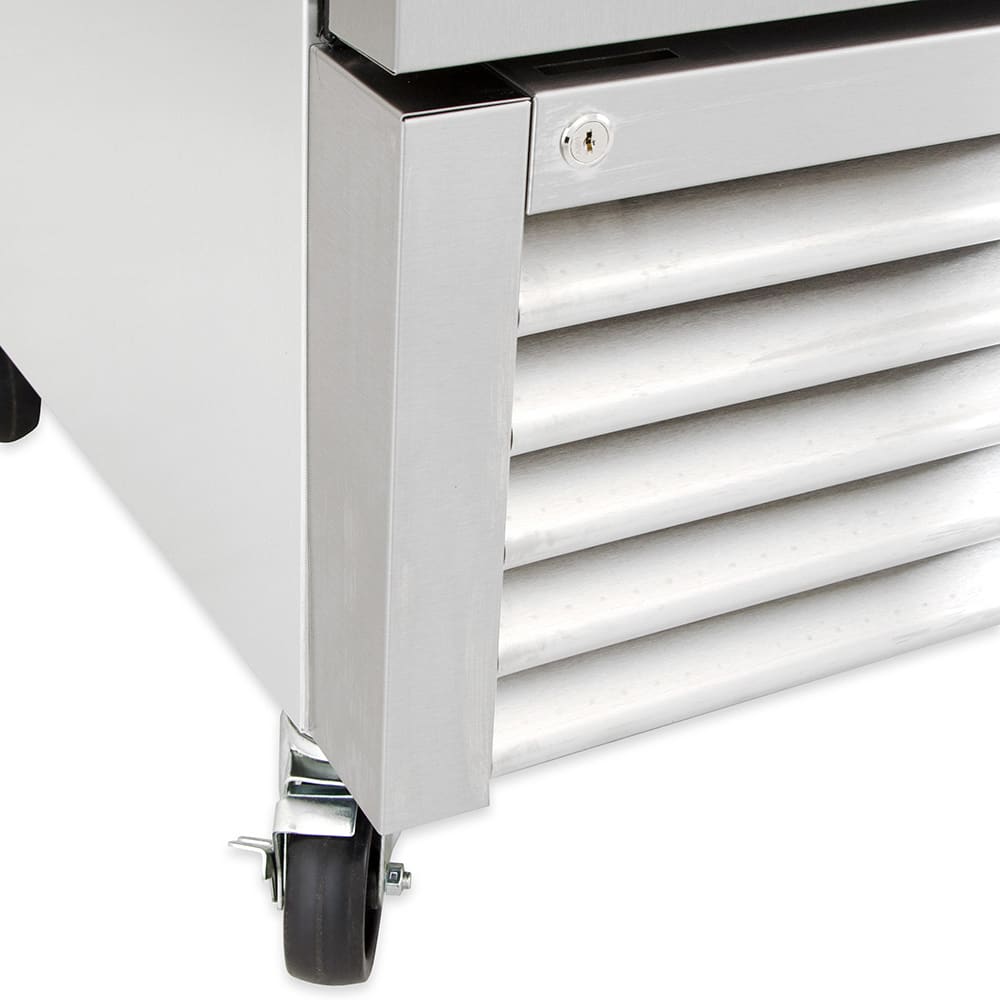

  • 4-in. stem castors are fitted to frame rail; front pair lock

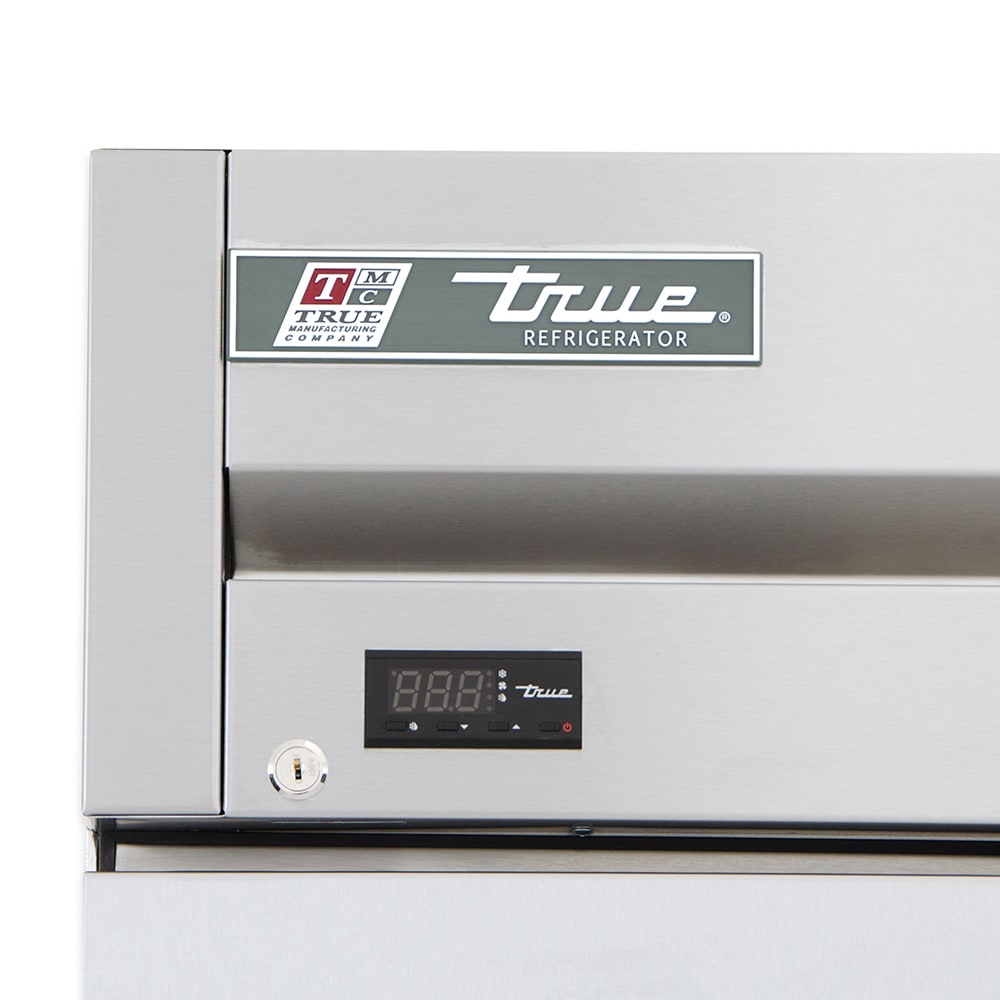

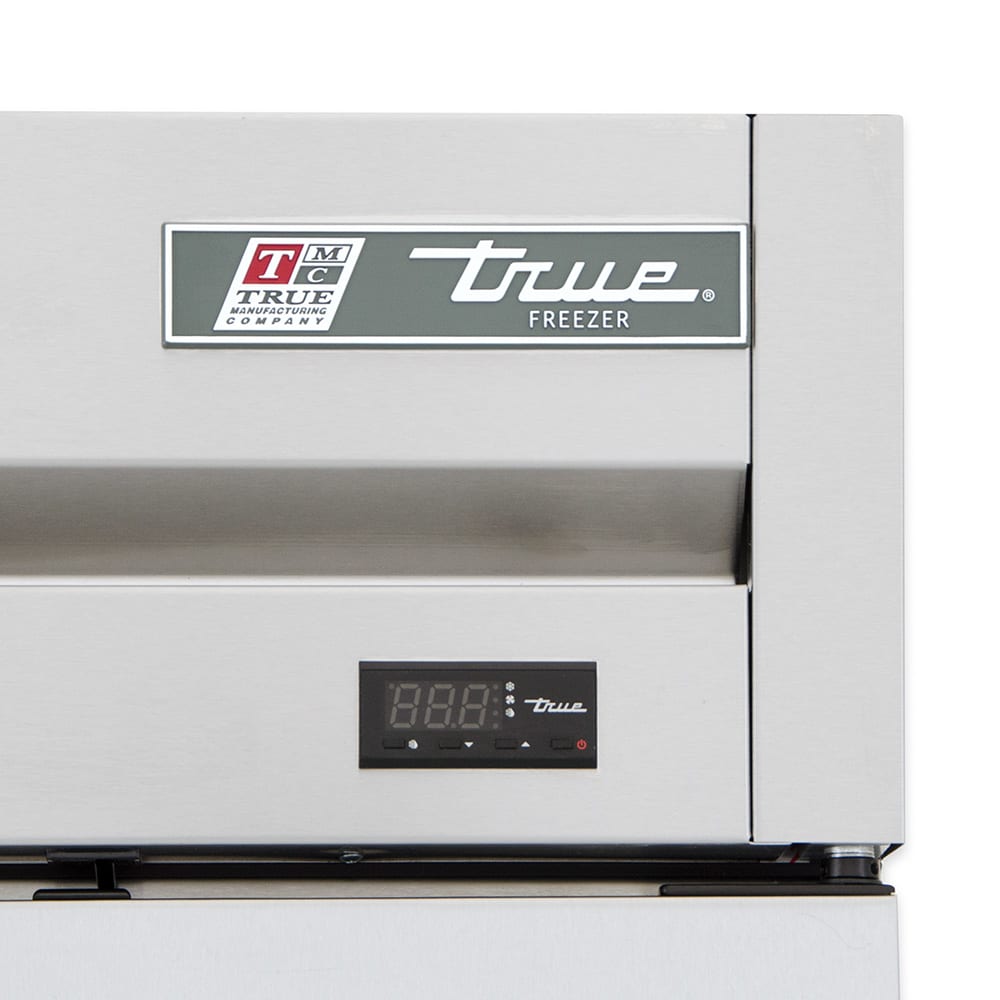

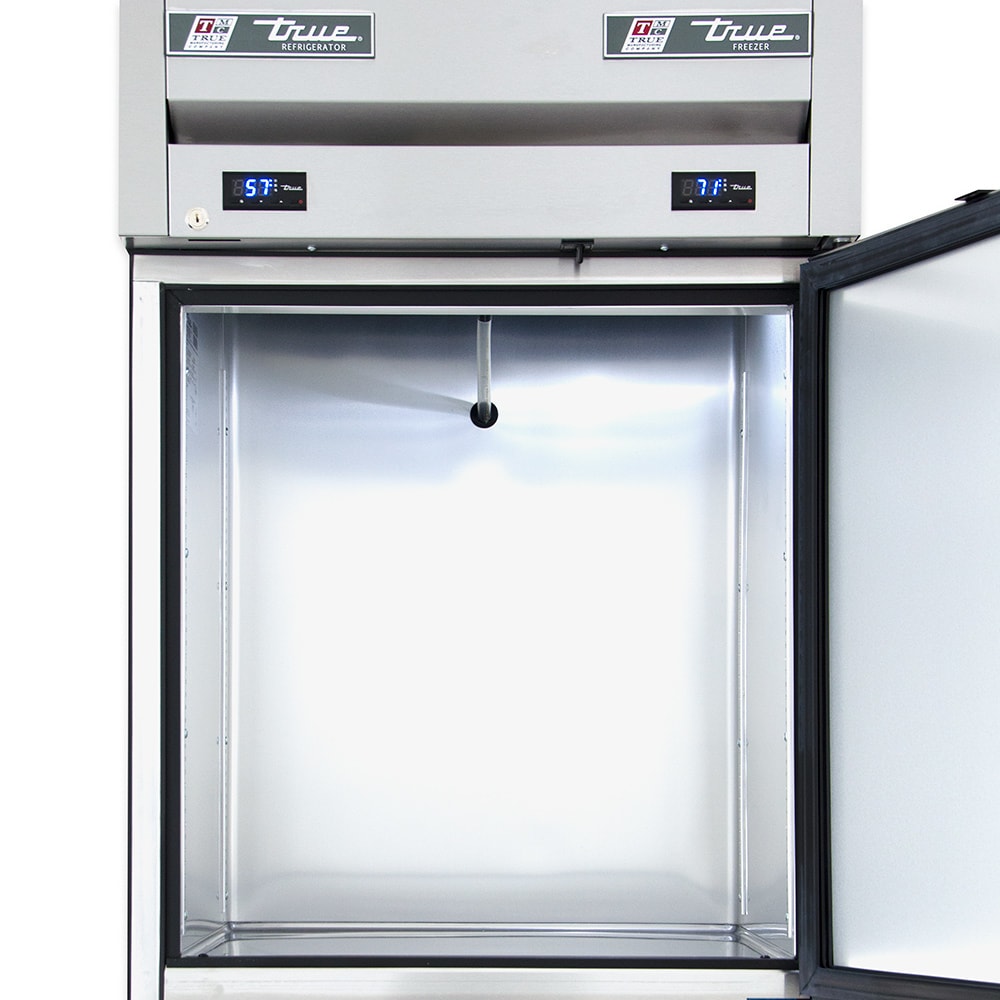

  • Exterior temperature displays indicate the holding temperature of each section
  • Freezer frame and door are fitted with low-wattage heater to prevent condensation
  • Evaporators are coated in epoxy so they don't rust
  • Unit is NSF-7 compliant to hold open food products

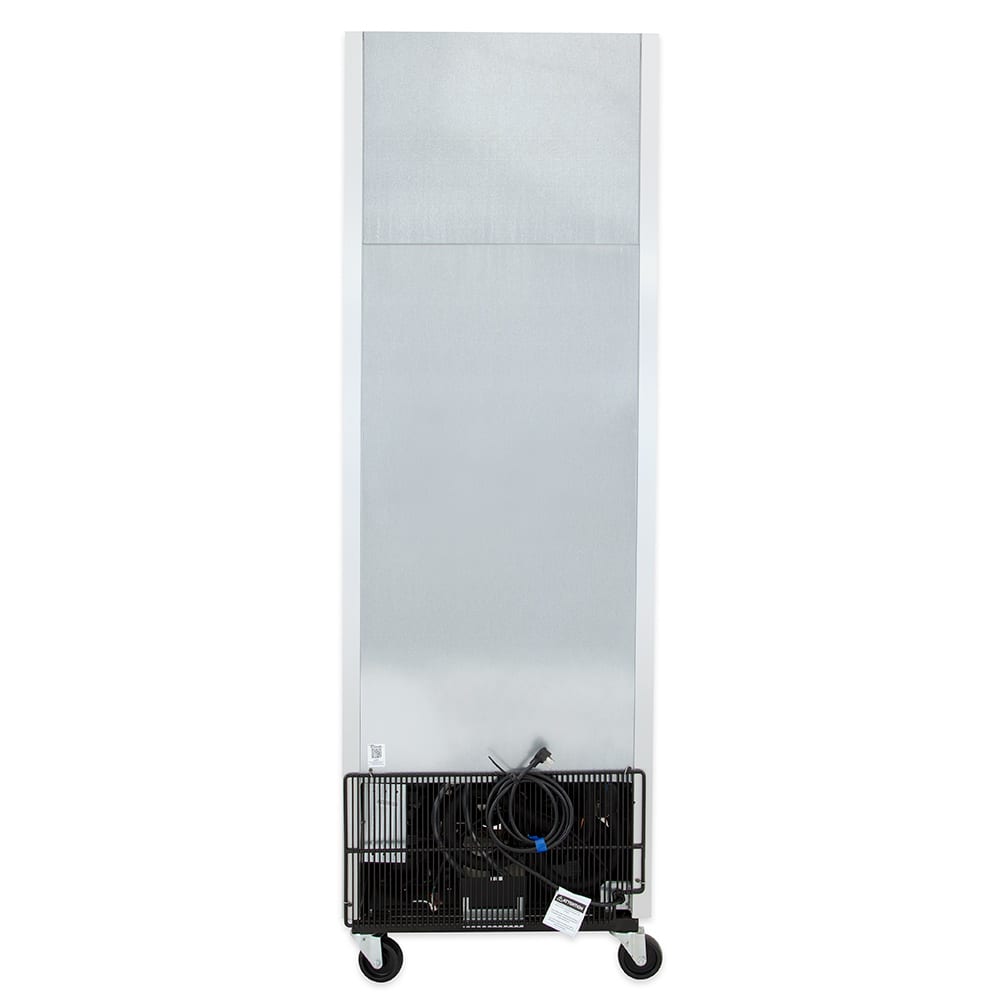

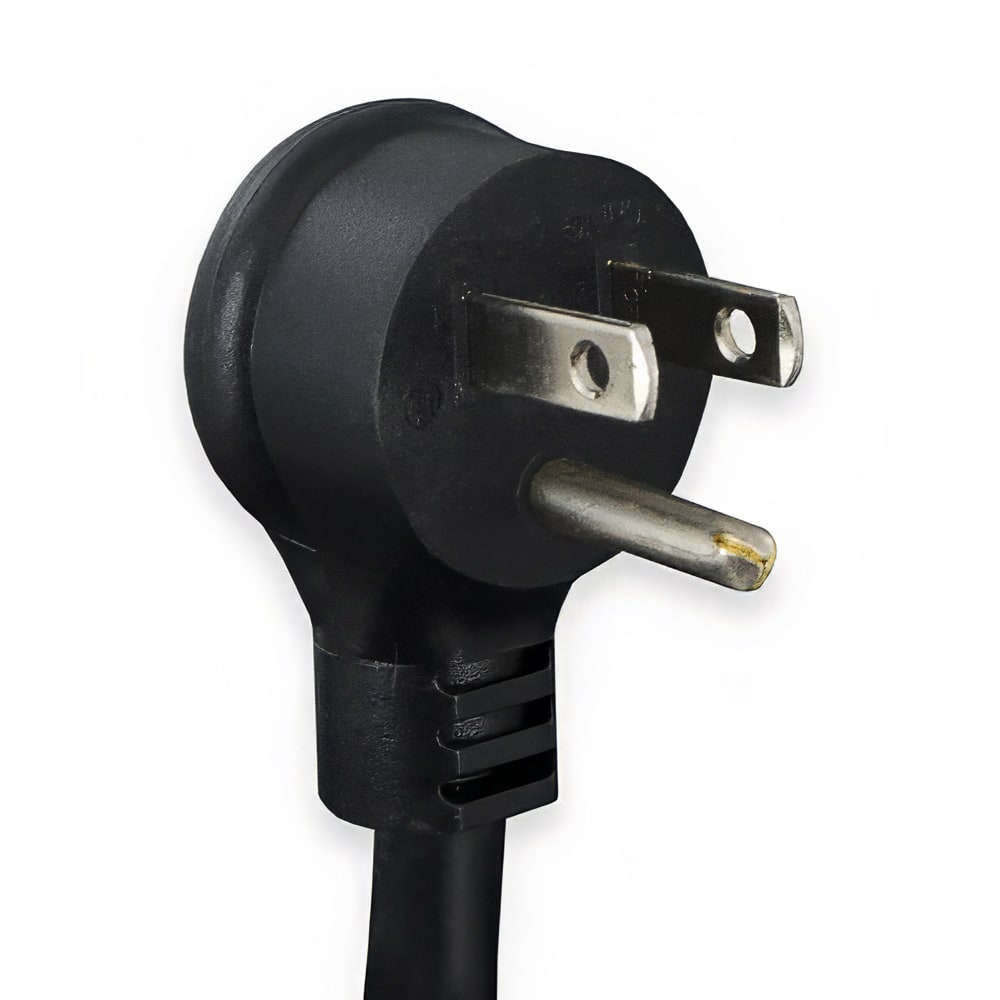

  • 120 V/60 Hz/1 ph, 6.3 A, NEMA 5-15 plug and 9-ft cord included
  • Overall Dimensions: 27 in. W x 2912 in. D x 7838 in. H
  • cULus and CE Listed; NSF Certified

Durable, Self-Closing Doors

  • Door exterior is made with stainless steel
  • Aluminum liner is made of the same clear-coated aluminum as cabinet liner
  • Torsion-type closure system prevents doors from being inadvertently left open
  • Door locks protect contents while equipment is left unattended

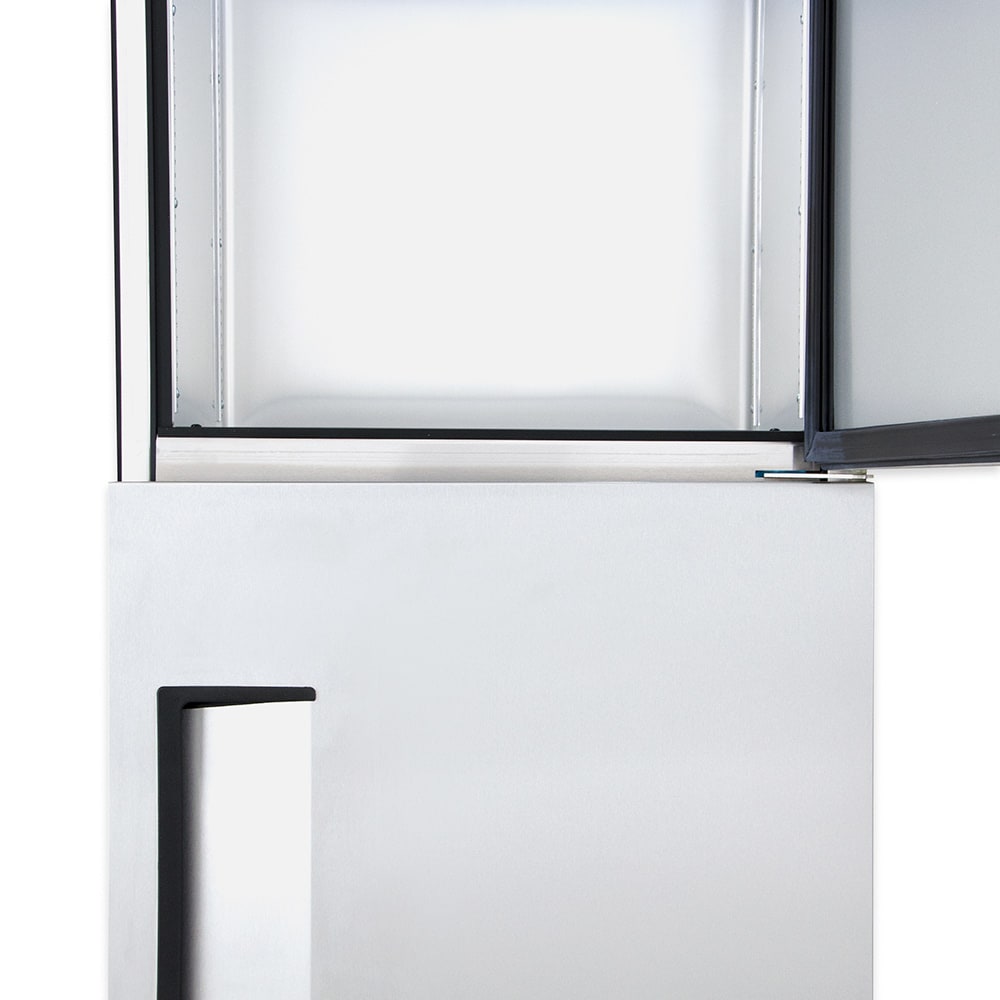

  • Recessed door handle measures 12-in. long and is foamed in place with a sheet metal interlock to guarantee permanent attachment

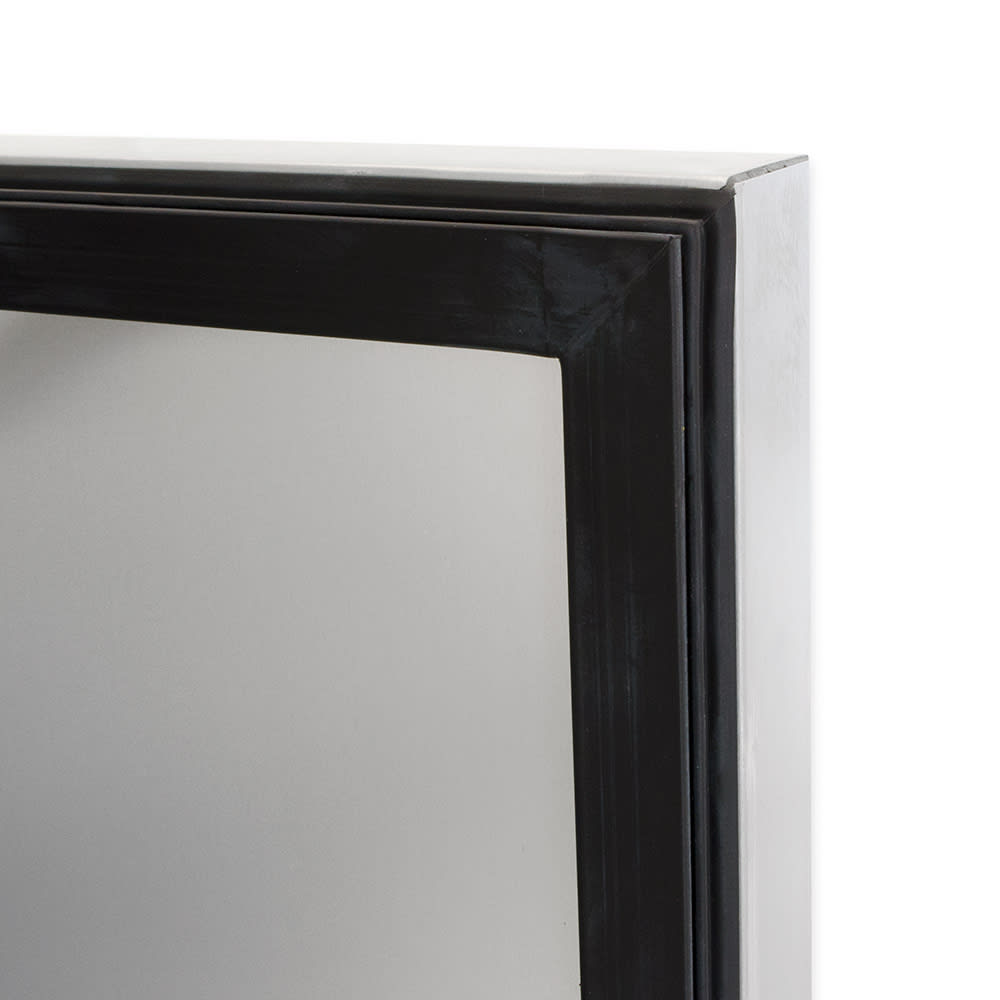

  • Magnetic door gaskets are constructed of one piece and can be removed without tools so they're easy to clean

Accessible, Customizable Storage

  • 3 gray PVC-coated shelves are included

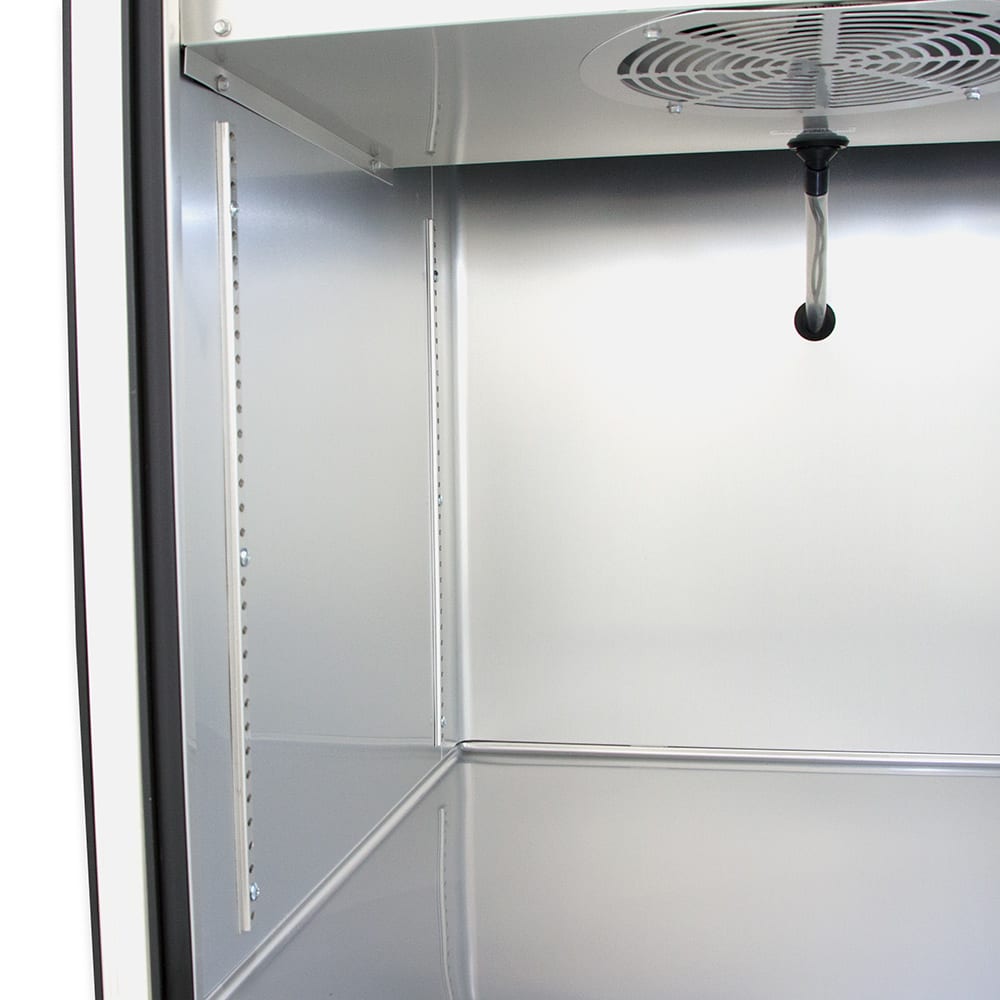

  • Shelves are adjustable on support pilasters in 12-in. increments
  • Pilasters are made of the same clear-coated aluminum as interior liner
  • One safety-shielded incandescent light is fitted in each section to illuminate interior contents

Product Updates

In January 2015, True began shipping this product with a clear-coated aluminum interior and gray, PVC-coated shelves. The company will continue to offer white PVC-coated shelves to customers who need replacements for several years. For more information, call KaTom at 1-800-541-8683.

Refrigerator/Freezer, Reach-in, one-section, (2) stainless steel half doors, stainless steel front, aluminum sides, aluminum interior with stainless steel floor, (3) adjustable PVC-coated wire shelves, interior lighting, 4" castors, refrigerator 1/10 HP, freezer 1/3 HP, 115v/60/1, 6.3 amps, NEMA 5-15P, 9' cord, MADE IN USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

True Refrigeration T-23DT Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Also Known As T23DT, TRUT23DT, 890T23DT, 675-201, T-23DT, TRUE T-23DT
Compressor Location Bottom Mount
Cubic Feet 19
Door Design Half
Door Type Solid
Interior Material Aluminum
Sections 1
Shelving Type Wire
Specialty Options Half Doors
Supports Casters
Thermometer Type Digital
Voltage 115/60/1
Warranty 3 year parts & labor; 5 year compressor
Width (in) 27
Weight 335.00
True T-23DT Certifications
  • UL
  • NSF
