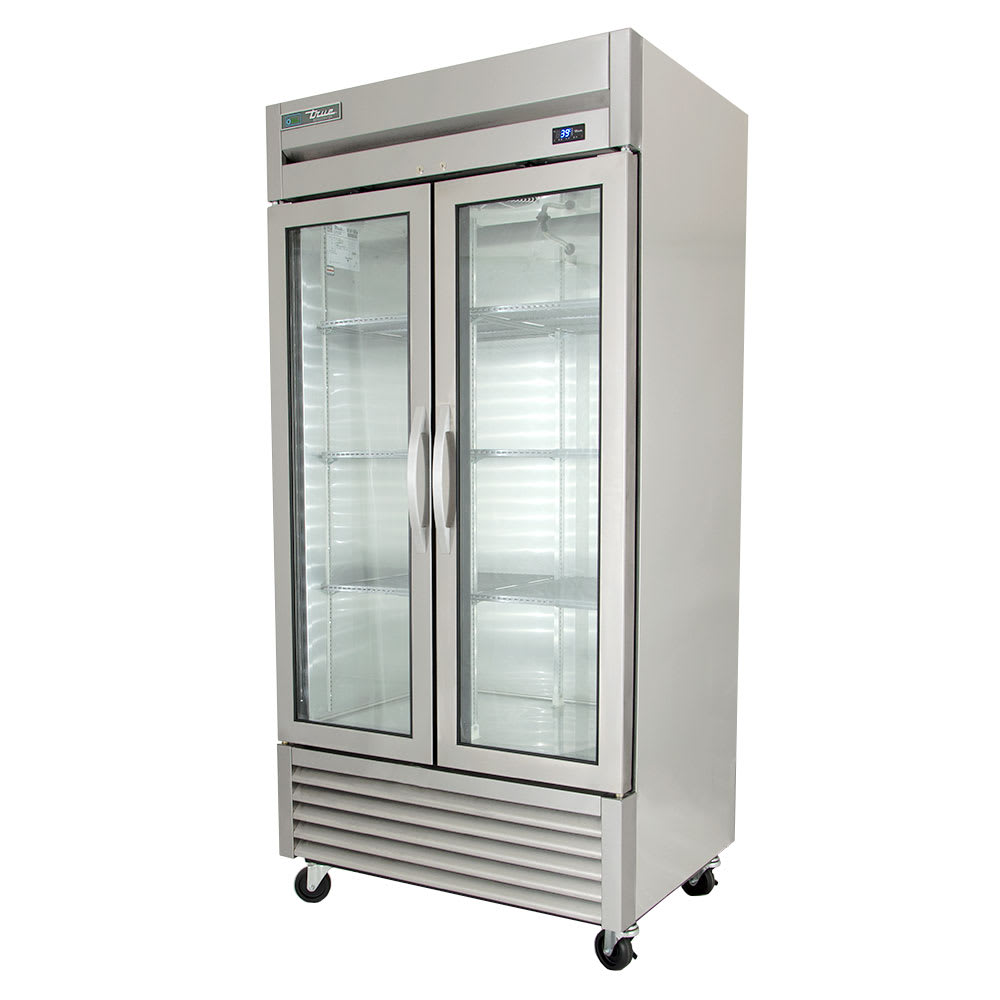

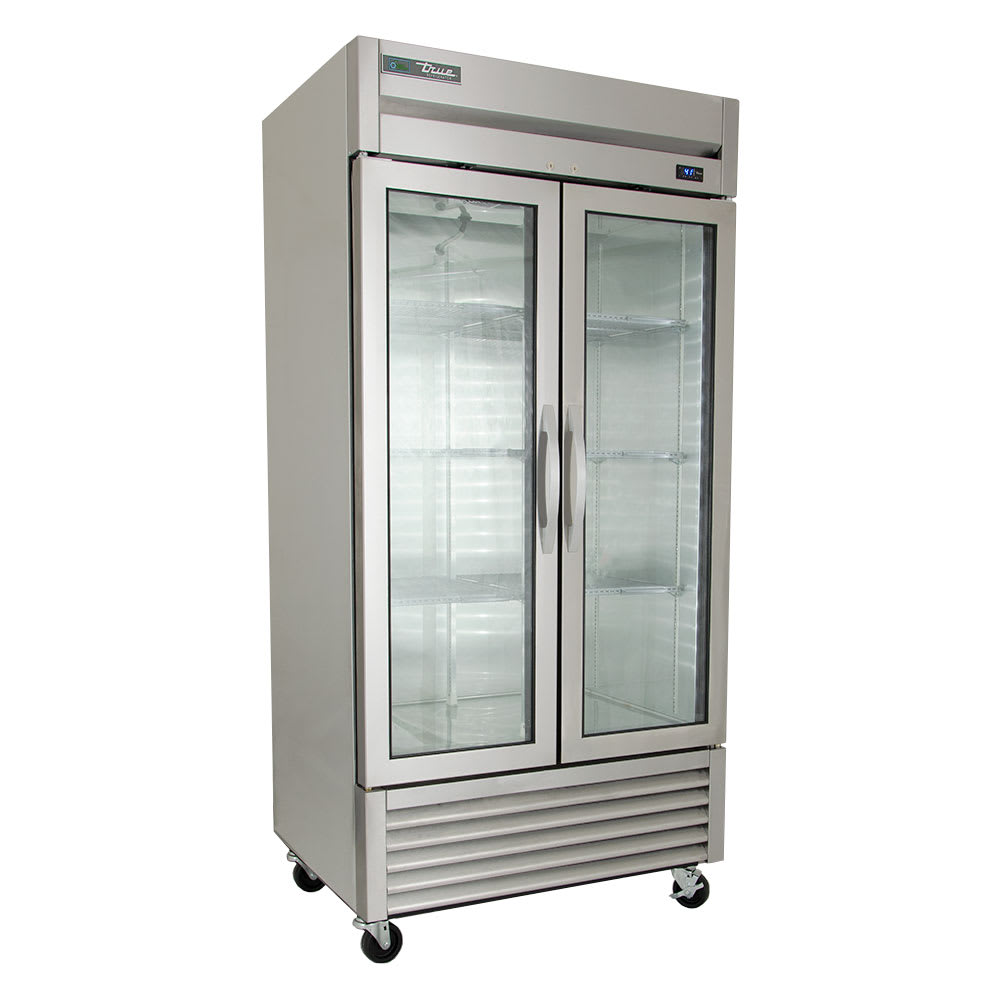

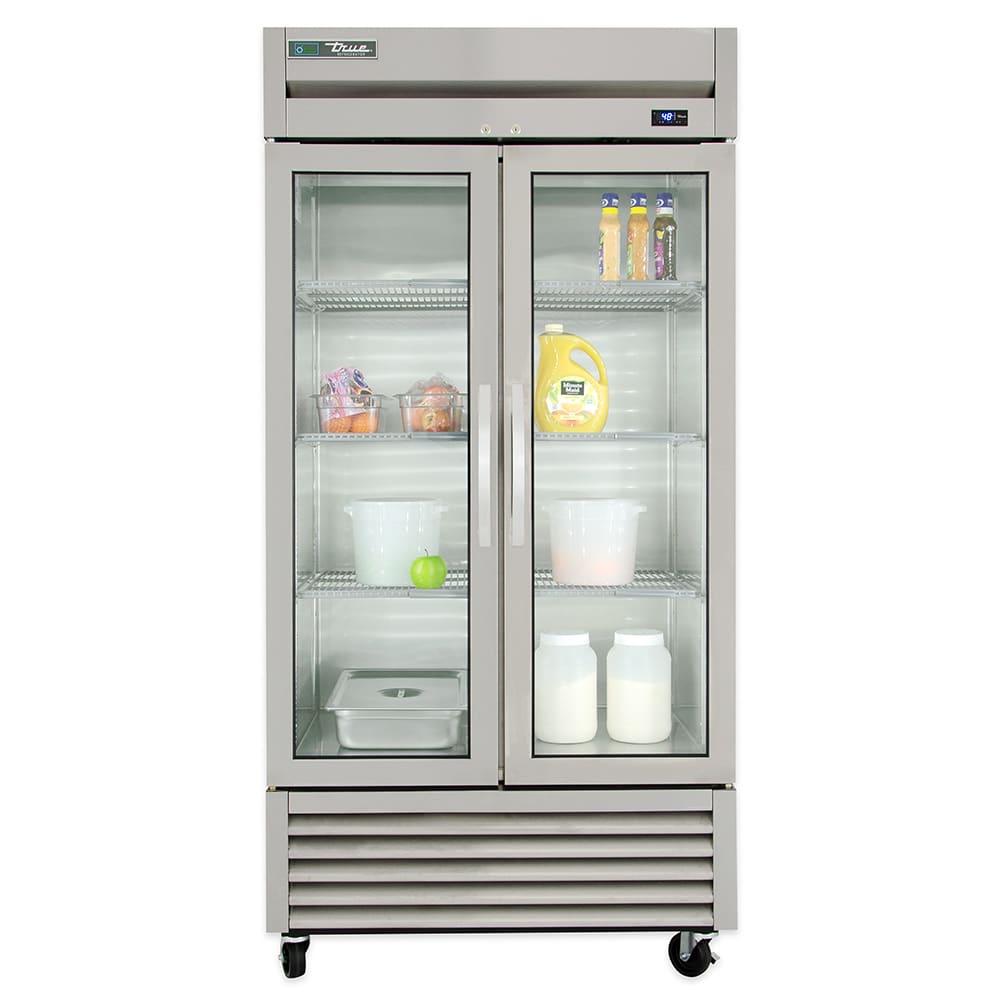

True T-35G-HC~FGD01 39 3/5" Two Section Reach In Refrigerator, (2) Left/Right Hinge Glass Doors, 115v

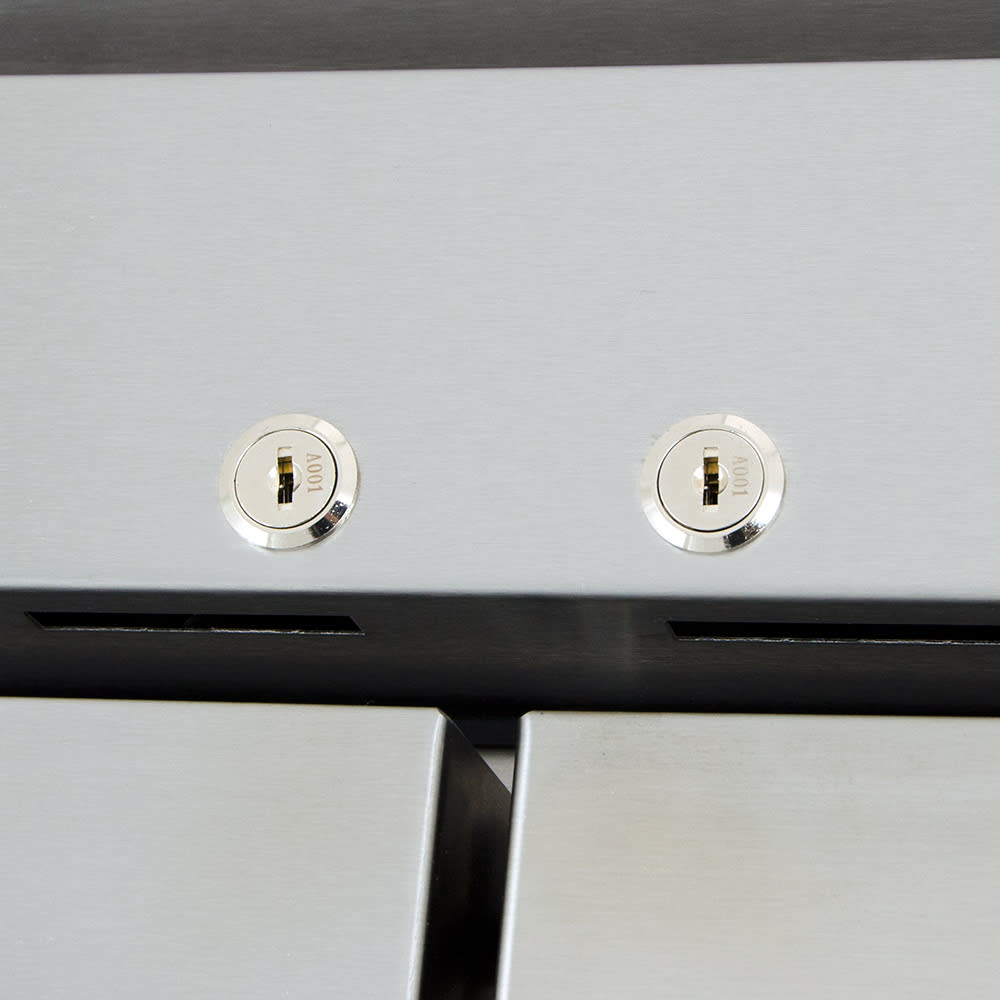

The True T-35G-HC~FGD01 two-section reach-in refrigerator has a durable exterior made of stainless steel and anodized aluminum. To ease cleaning, the interior has a stainless steel floor with coved corners, and the cabinet has foamed-in-place polyurethane insulation to help with cold air retention, as well as stability. Two double-pane thermal glass doors provide visibility into the cabinet, while locks come standard to prevent unauthorized access and protect products.

LED interior lights highlight product, and this unit has six adjustable, PVC-coated wire shelves that accommodate varying product sizes. Quick temperature recovery is achieved with a low-velocity, high-volume airflow created by the evaporator fan motor and blades. Temperatures in this refrigerator can be set between 33 and 38 degrees Fahrenheit.

Upon compressor start up, this unit's condensing fan motor blows in a reverse direction for 20 seconds, attempting to reduce collection of dirt and dust on the condensing coil. This mechanism helps with daily operation, elongates coil lifespan, and improve efficiency, but it should not replace general maintenance practices. The True T-35G-HC~FGD01 two-section reach-in refrigerator has a bottom-mounted refrigeration system that is located in one of the coolest areas of the kitchen, ideal for hot kitchens or locations where the unit will be installed near hot equipment.

Product Details

• Bottom-mounted refrigeration system simplifies servicing
• Temperature holding range: 33-38 degree F

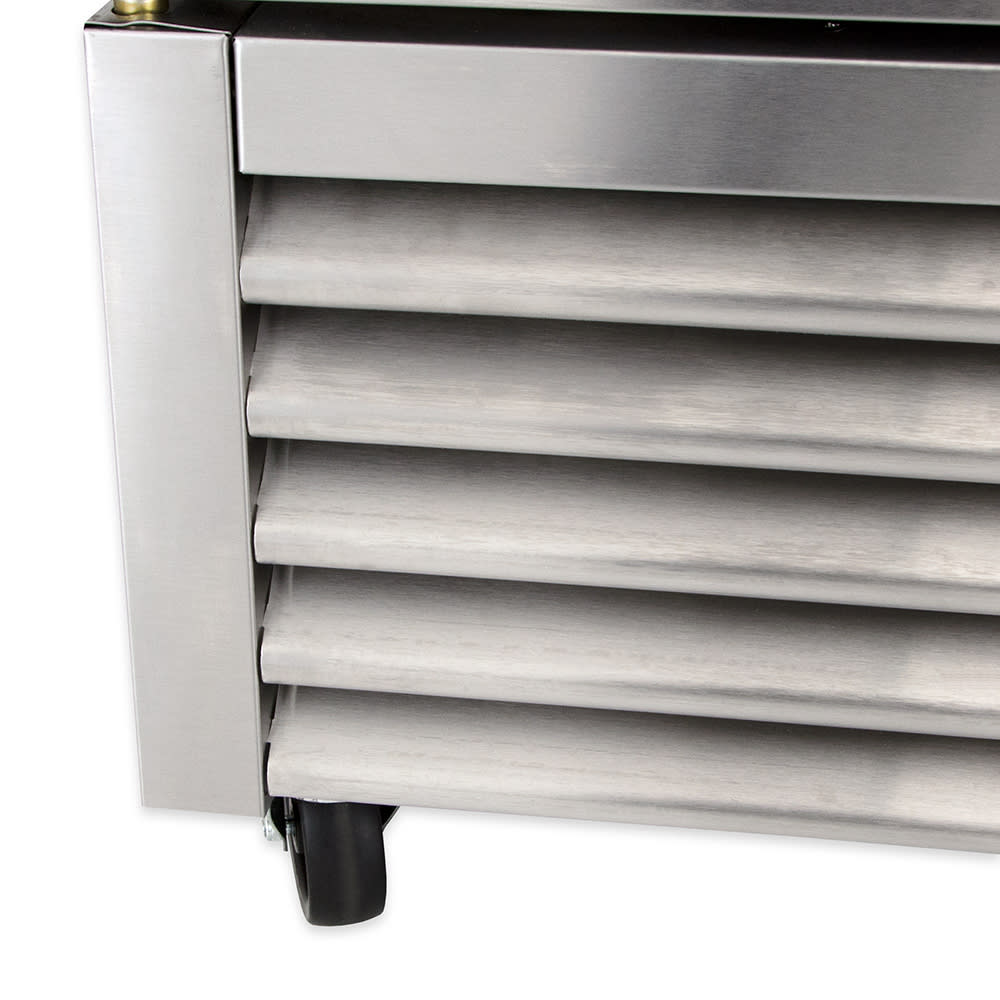

• Condenser coil is accessible for cleaning
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant to maintain cool temperatures

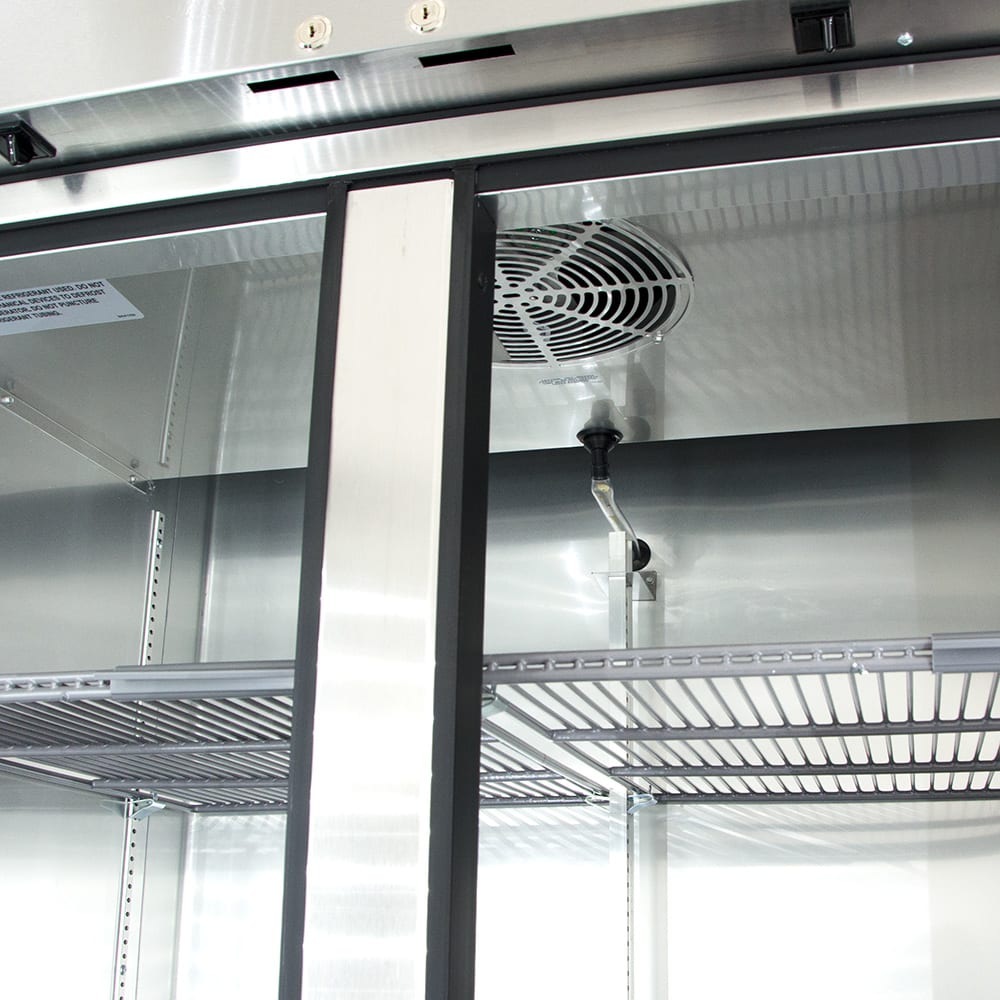

• Cast-iron, self-lubricating evaporator fan motor and blades create a low-velocity, high-volume airflow for faster temperature recovery times
• Reverse condensing fan motor blows in a reverse direction for 20 seconds when compressor is turned on

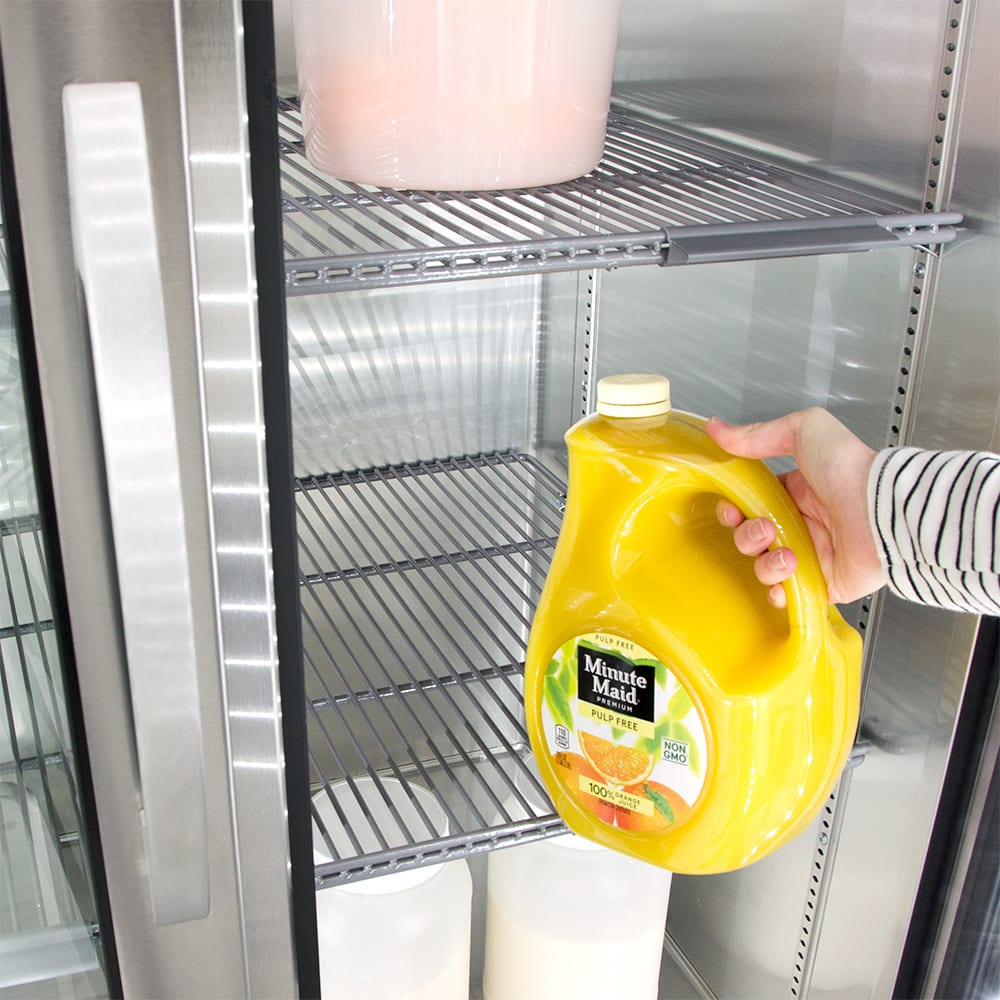

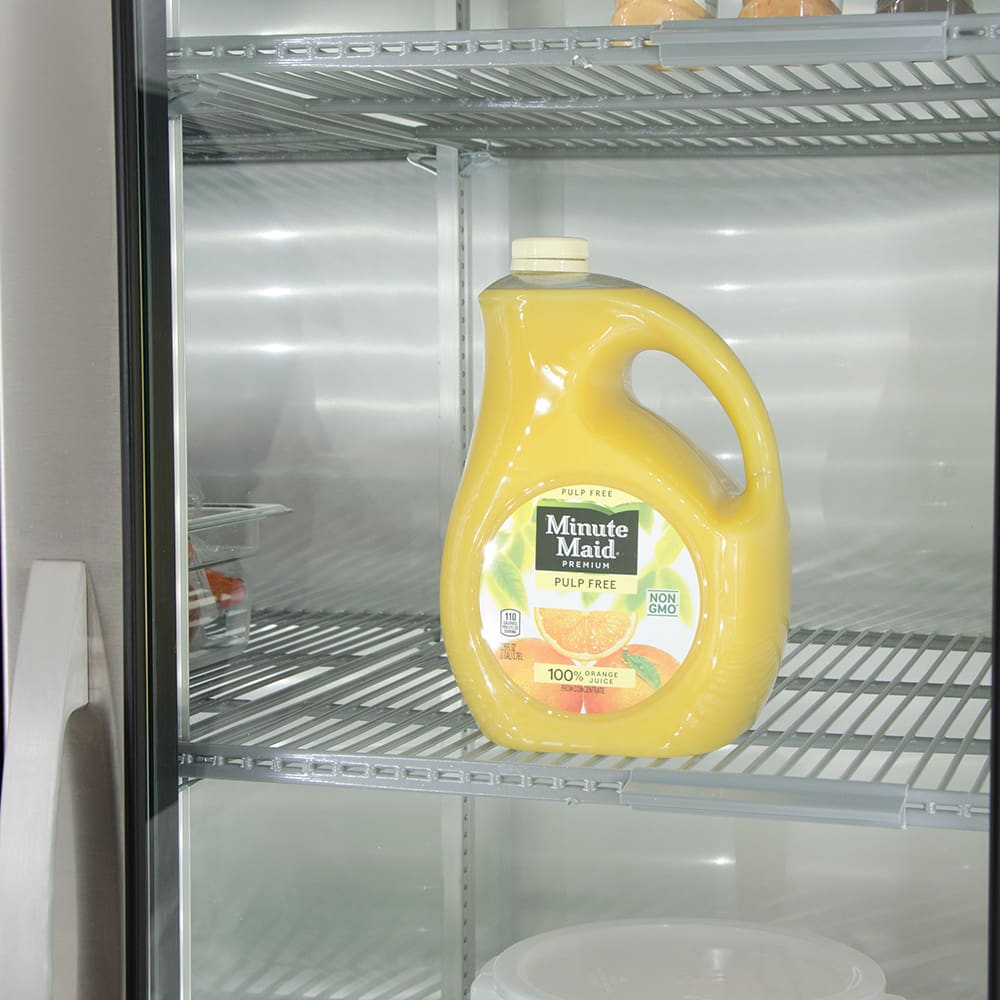

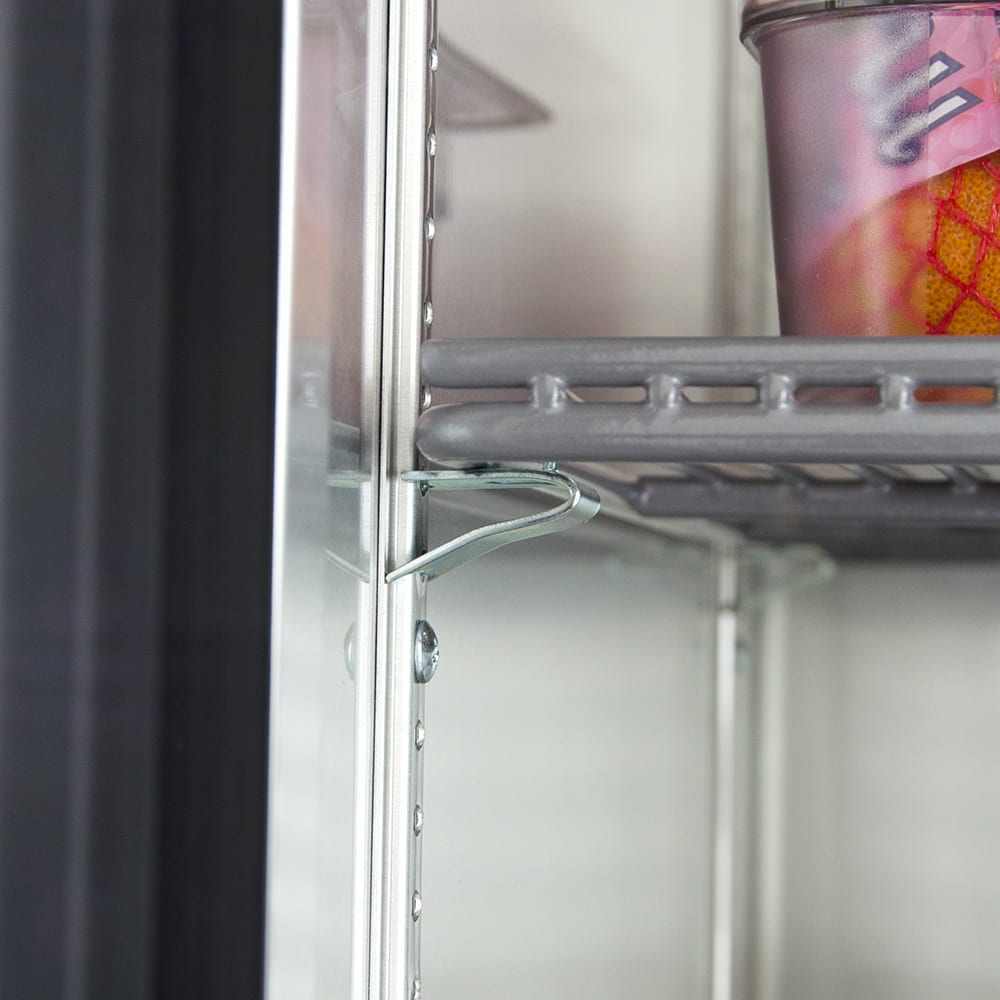

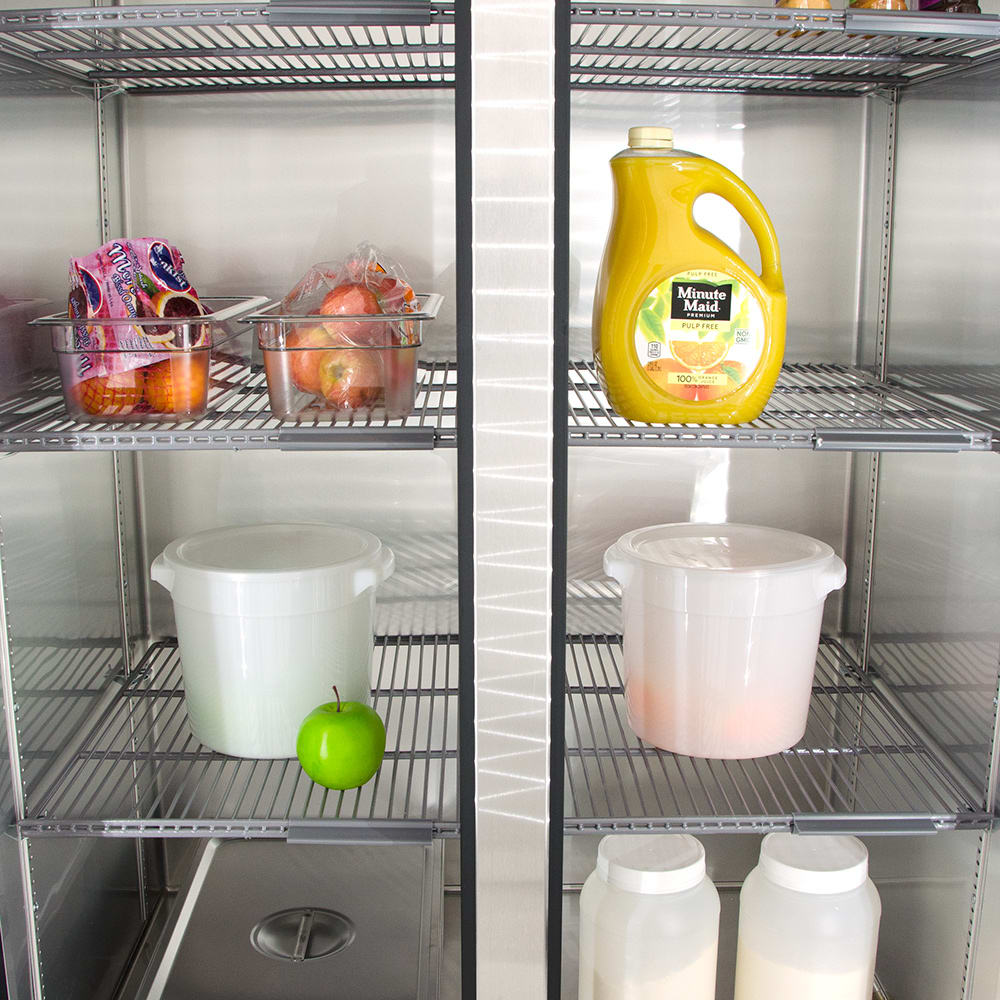

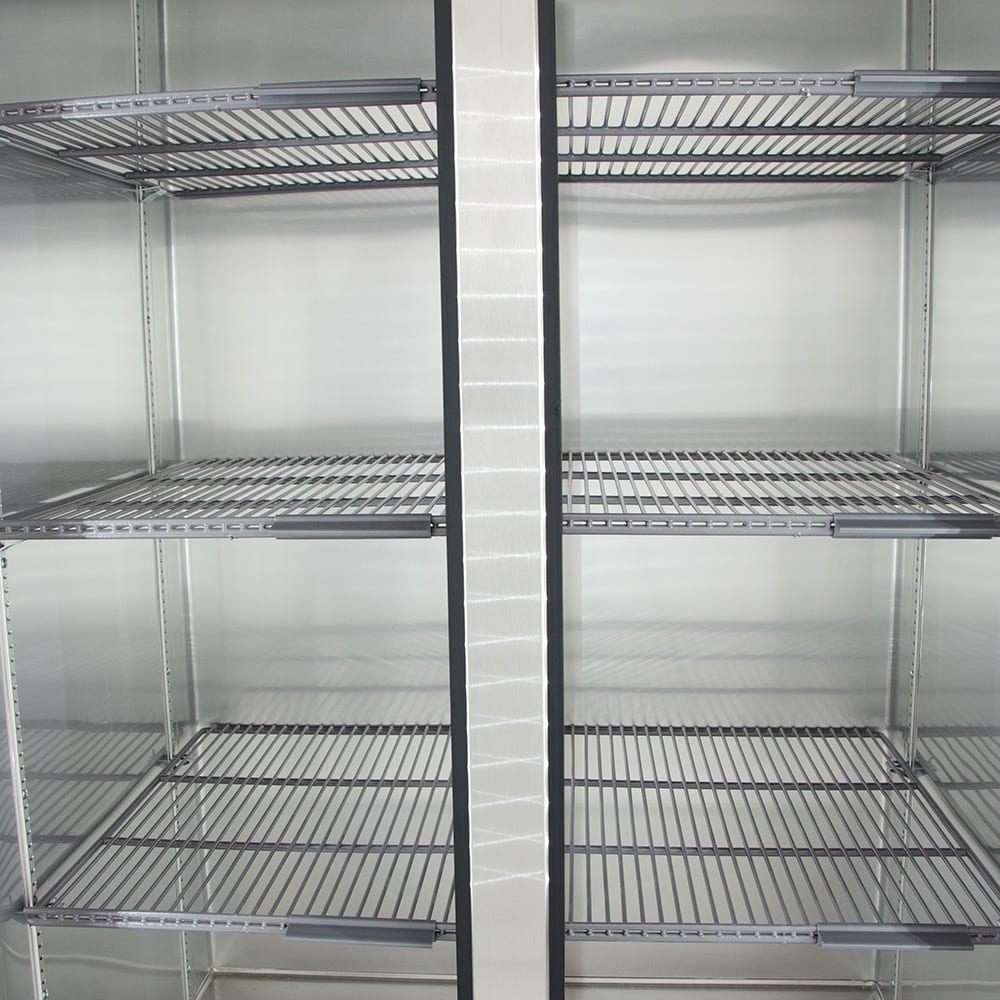

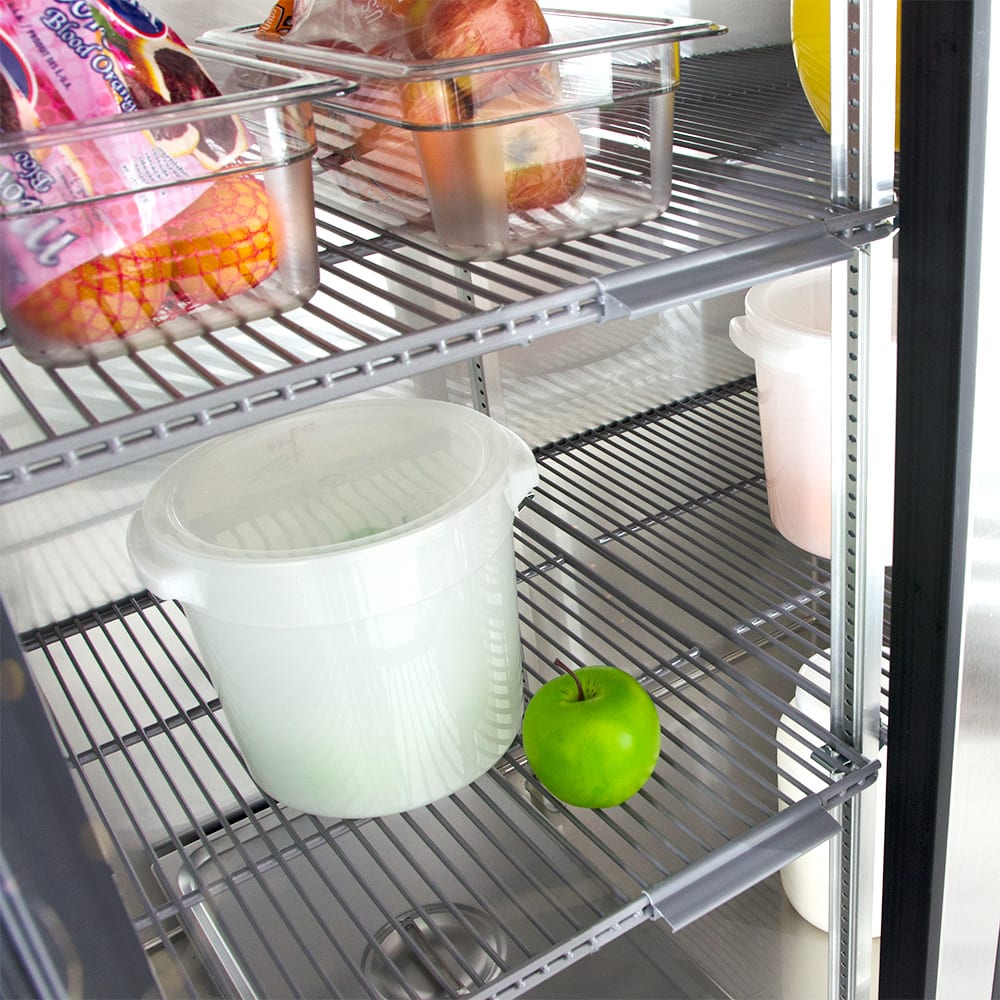

• 6 PVC-coated shelves are adjustable to accommodate different product sizes

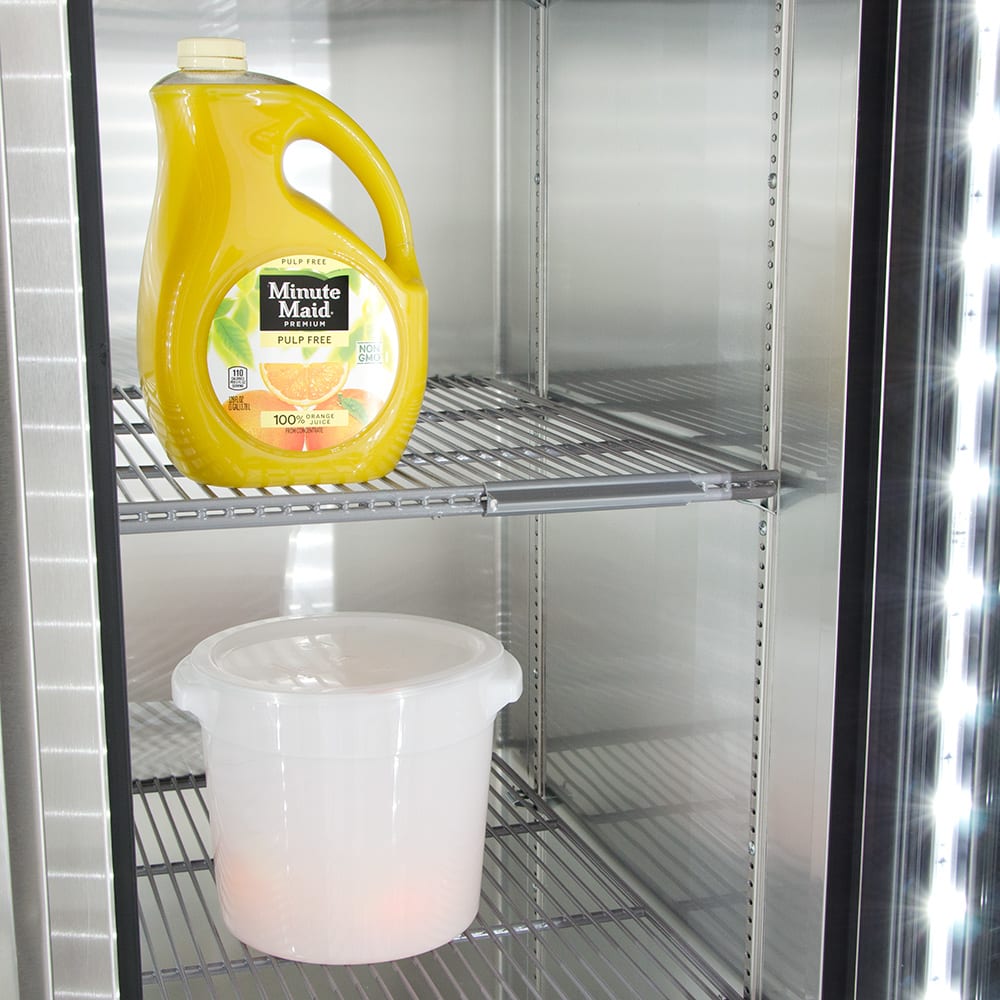

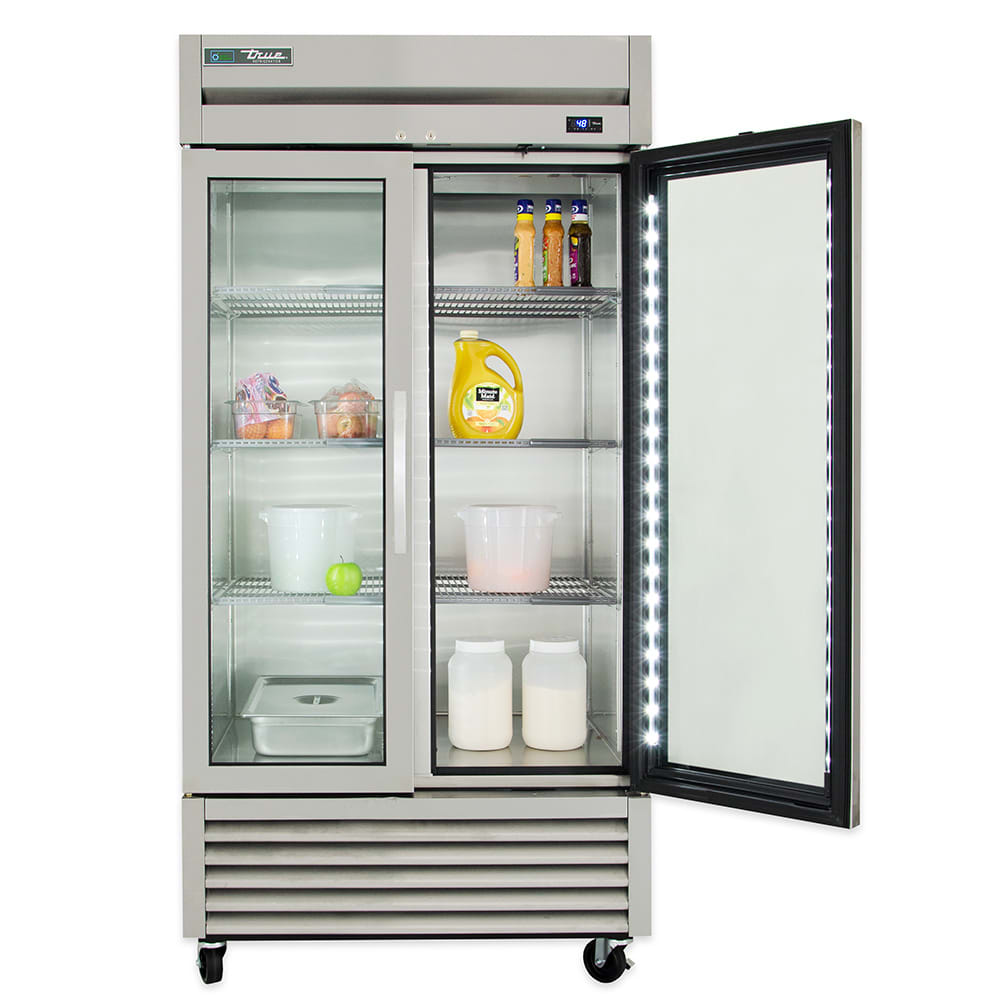

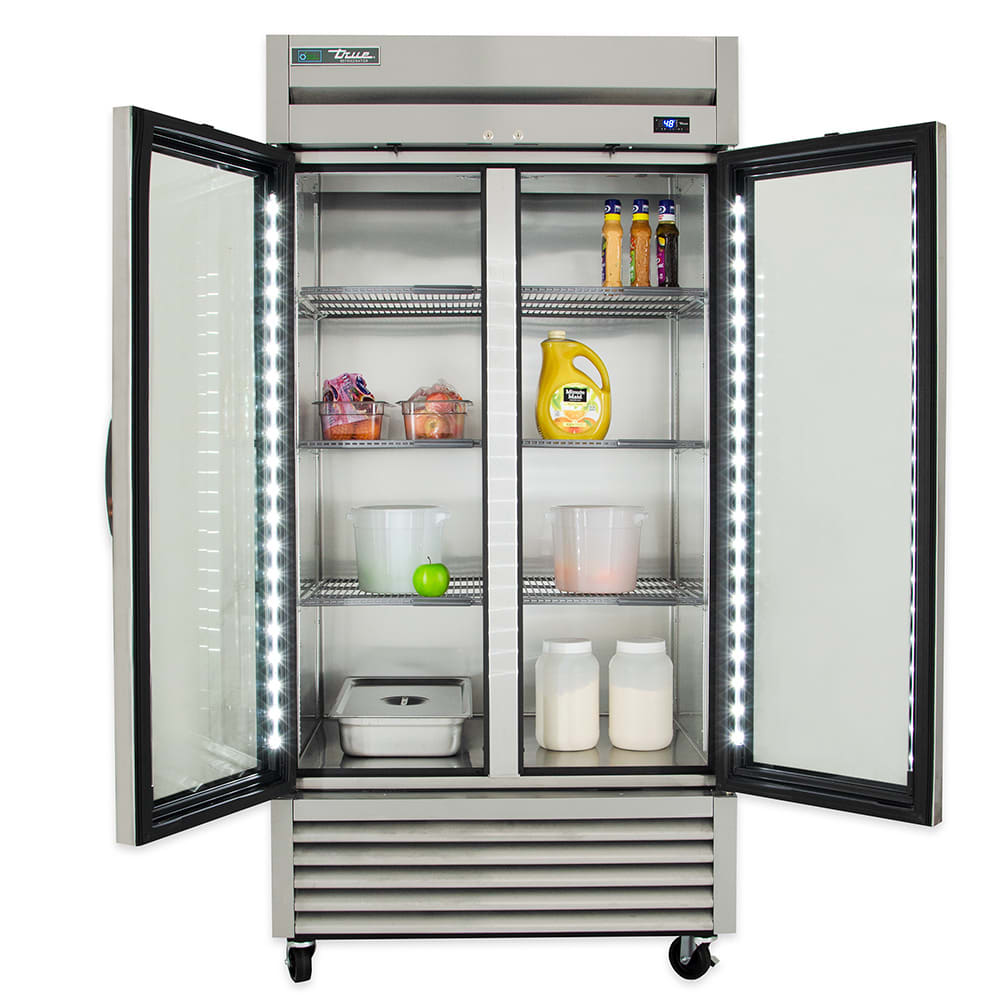

• LED interior lighting ensures employees can see inside the cabinet

Cabinet Construction

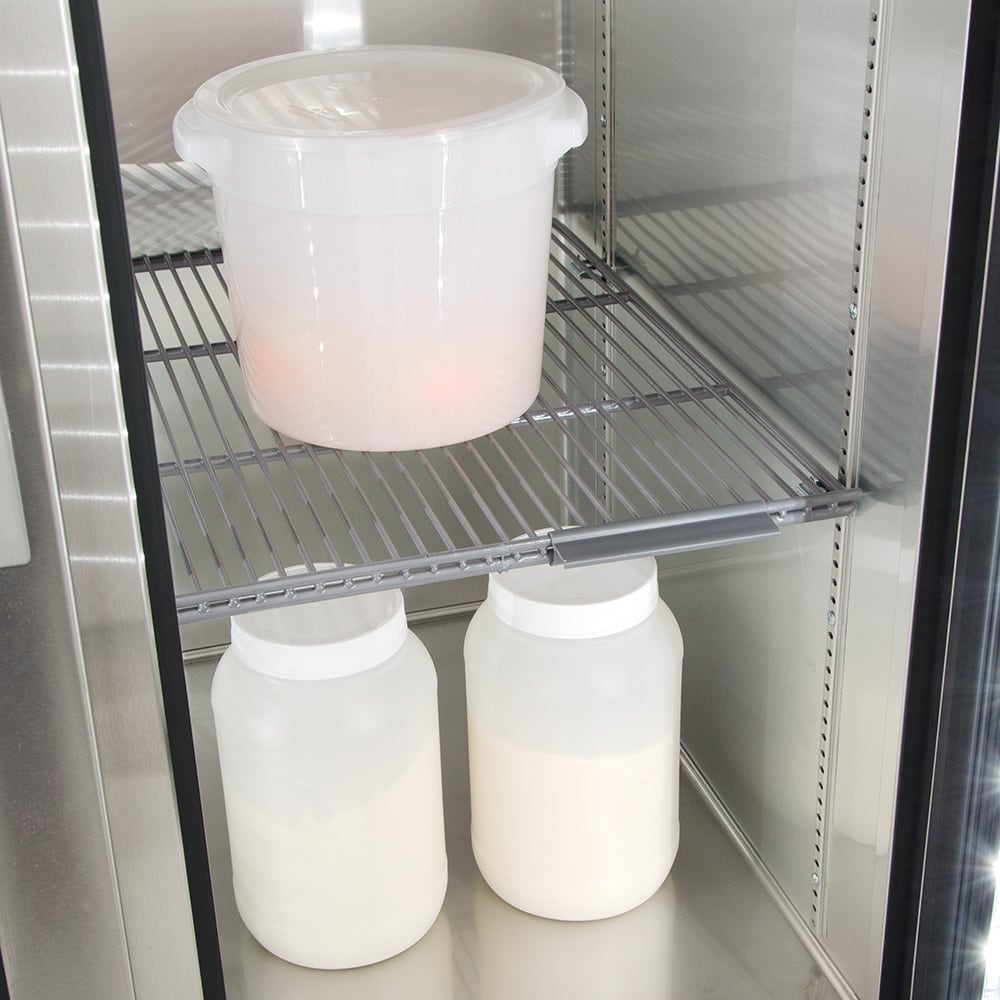

• Clear-coated aluminum interior liner with stainless steel floor that has coved corners for cleaning
• Foamed-in-place polyurethane insulation
• Heavy duty steel frame rail is black powder coated for corrosion resistance
• Stainless steel exterior is durable, resisting dents and scratches

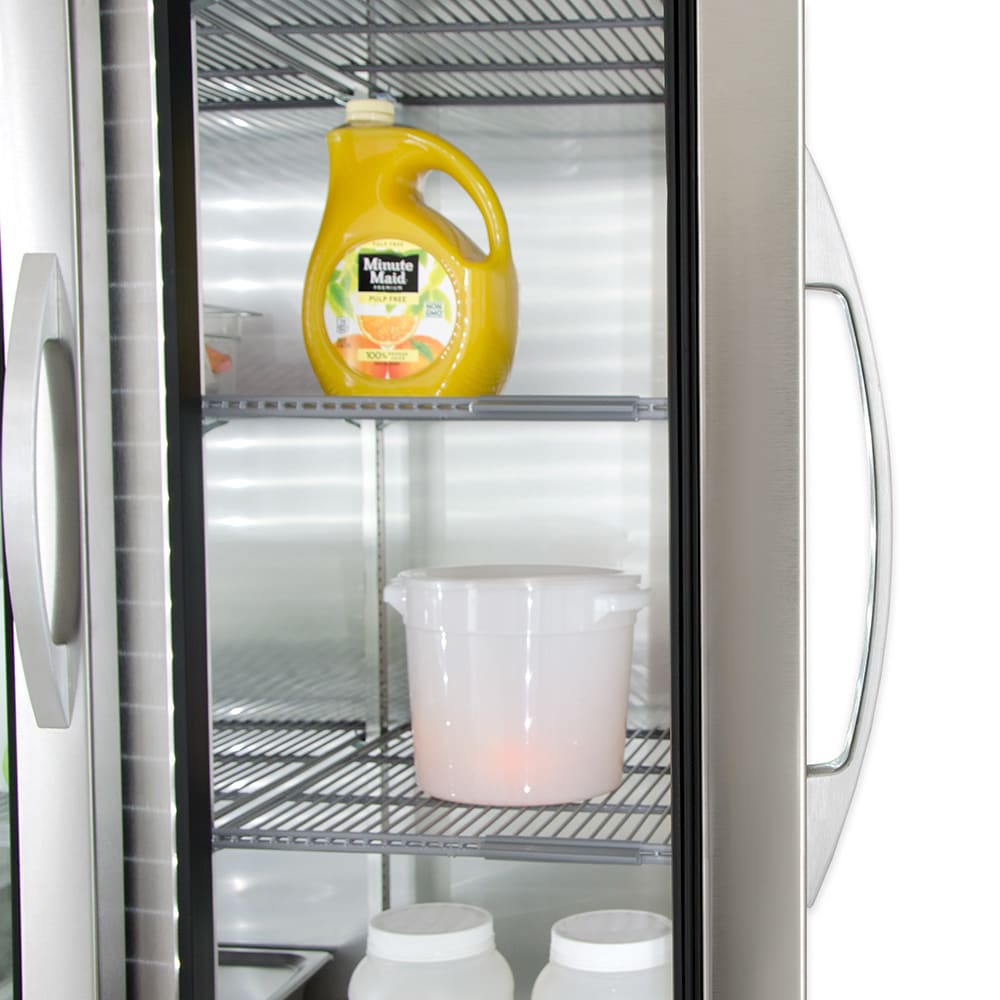

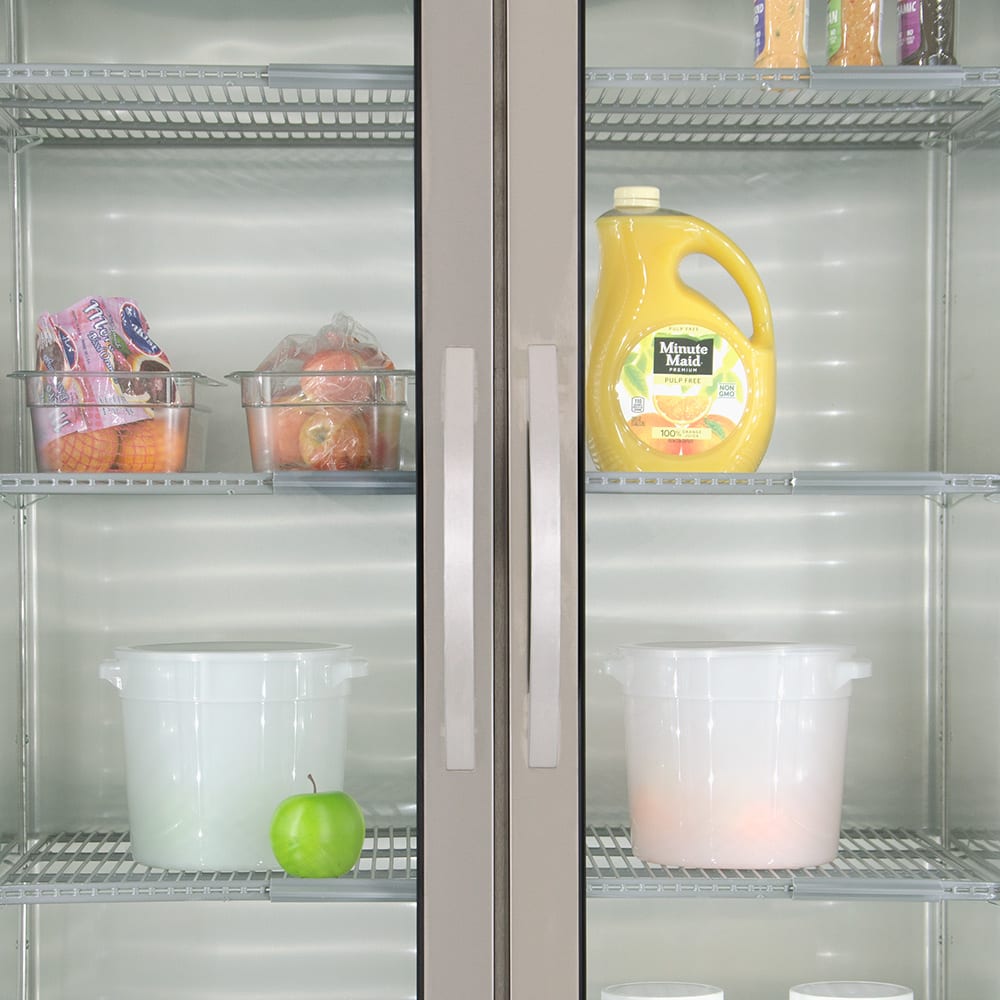

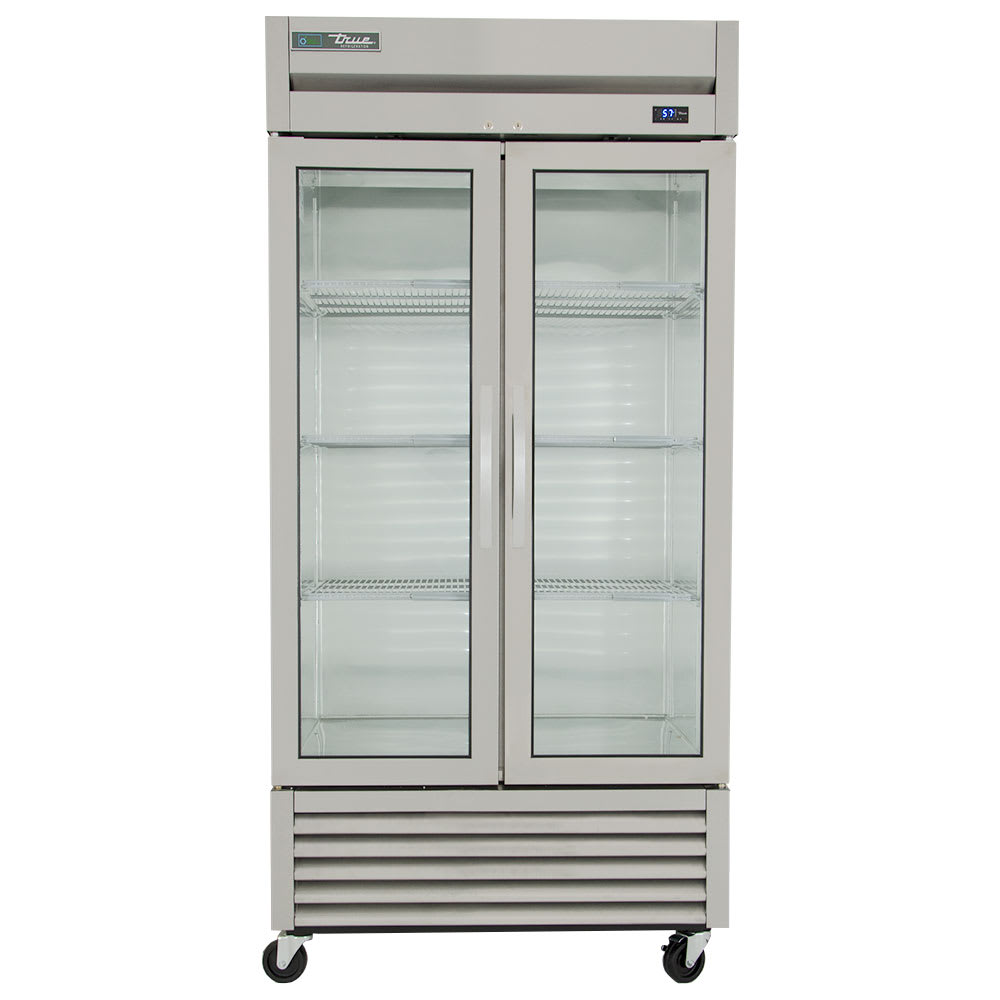

• 2 glass doors provide product visibility
• Self-closing doors have a positive seal with lifetime-guaranteed hinges

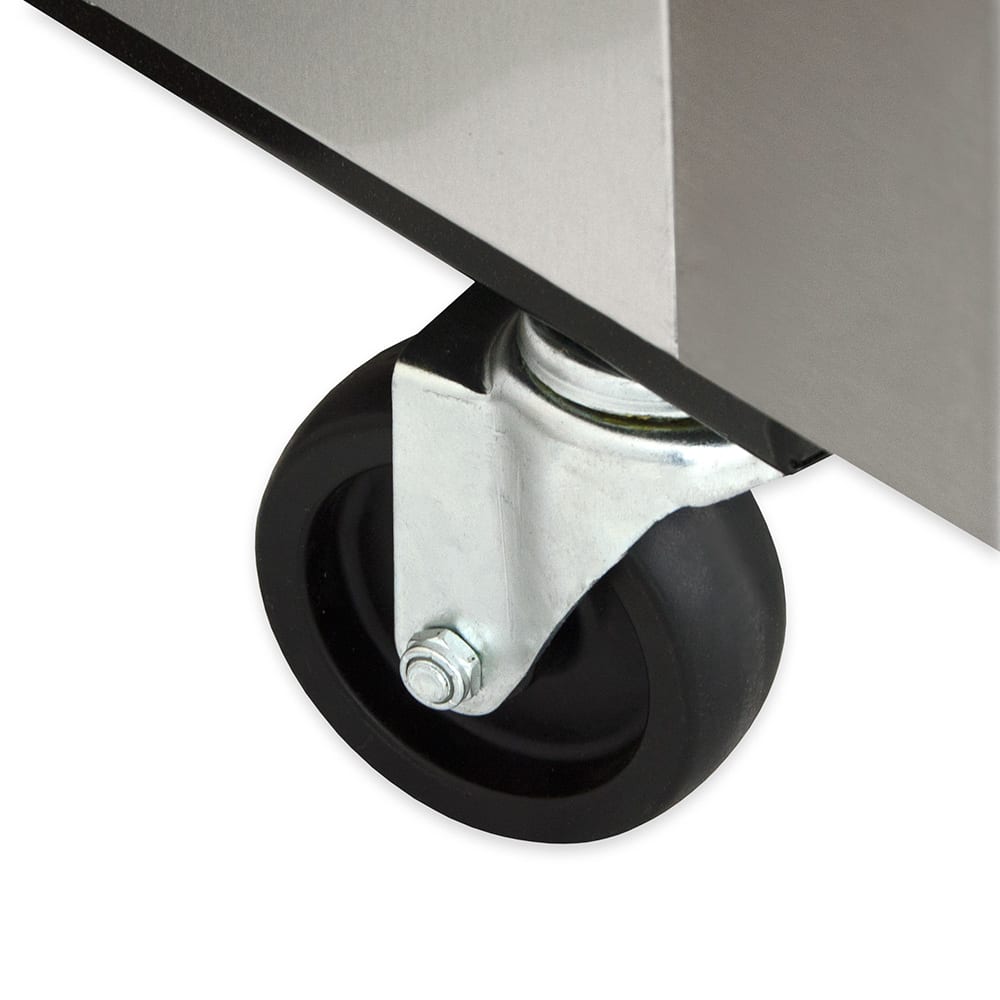

• 4-in.-diameter castors have locks on the front
• 15-in. extruded aluminum door handles

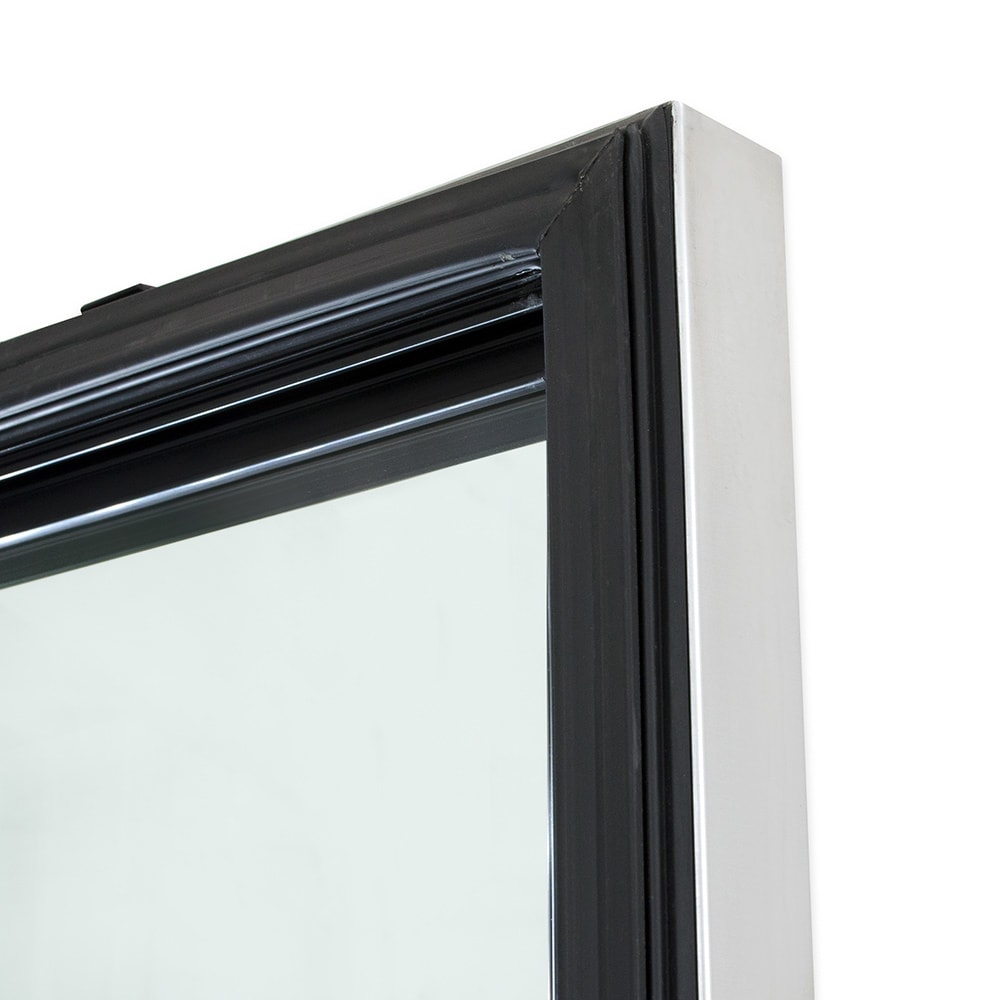

• Magnetic door gaskets help prevent cold air leaks

Dimensions & Utilities

• Shelves: 17¹⁄₂ in. W x 22³⁄₈ in. D
• Overall: 39⁵⁄₈ in. W x 31³⁄₄ in. D x 83³⁄₈ in. H
• 5.6 A, ¹⁄₃ HP

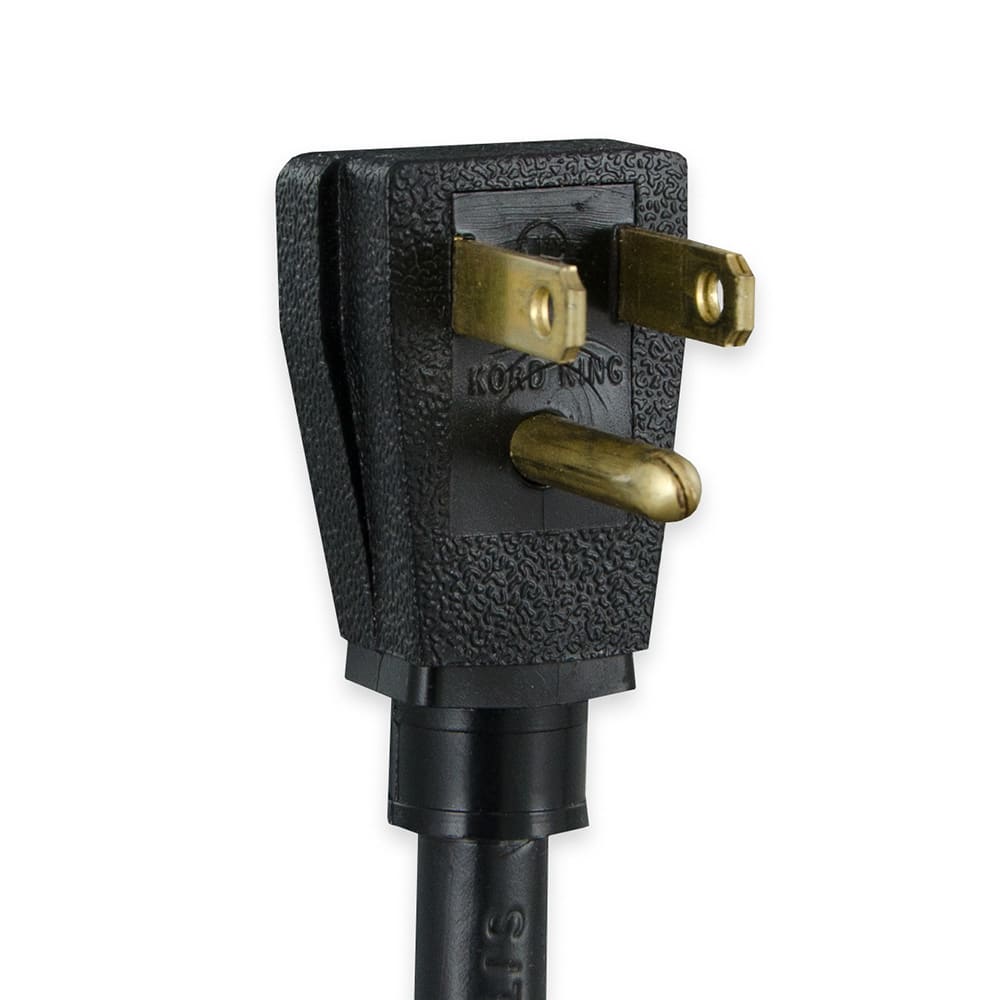

• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration T-35G-HC~FGD01 within the 48 contiguous states.

From The Manufacturer

Refrigerator, reach-in, two-section, framed glass door version 01, (2) glass doors, (6) PVC coated adjustable wire shelves, LED interior lighting, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 5.6 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration T-35G-HC~FGD01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
