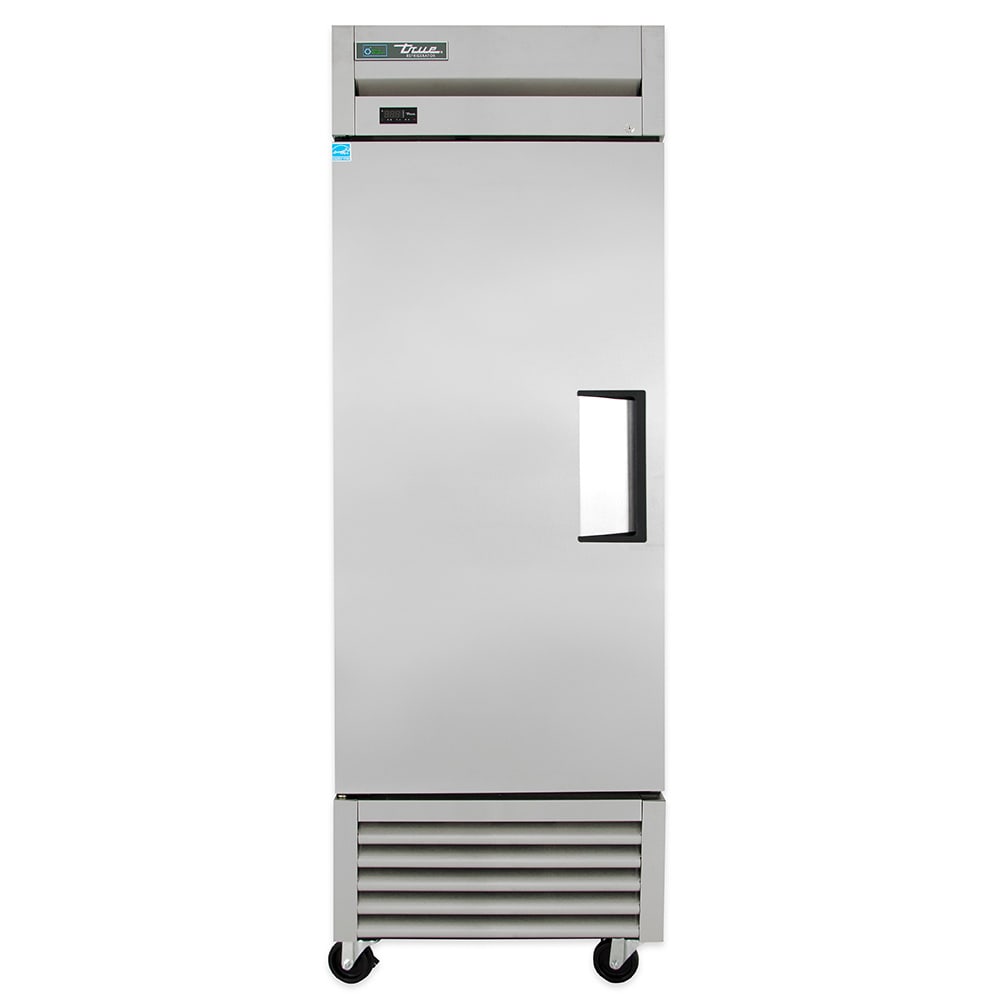

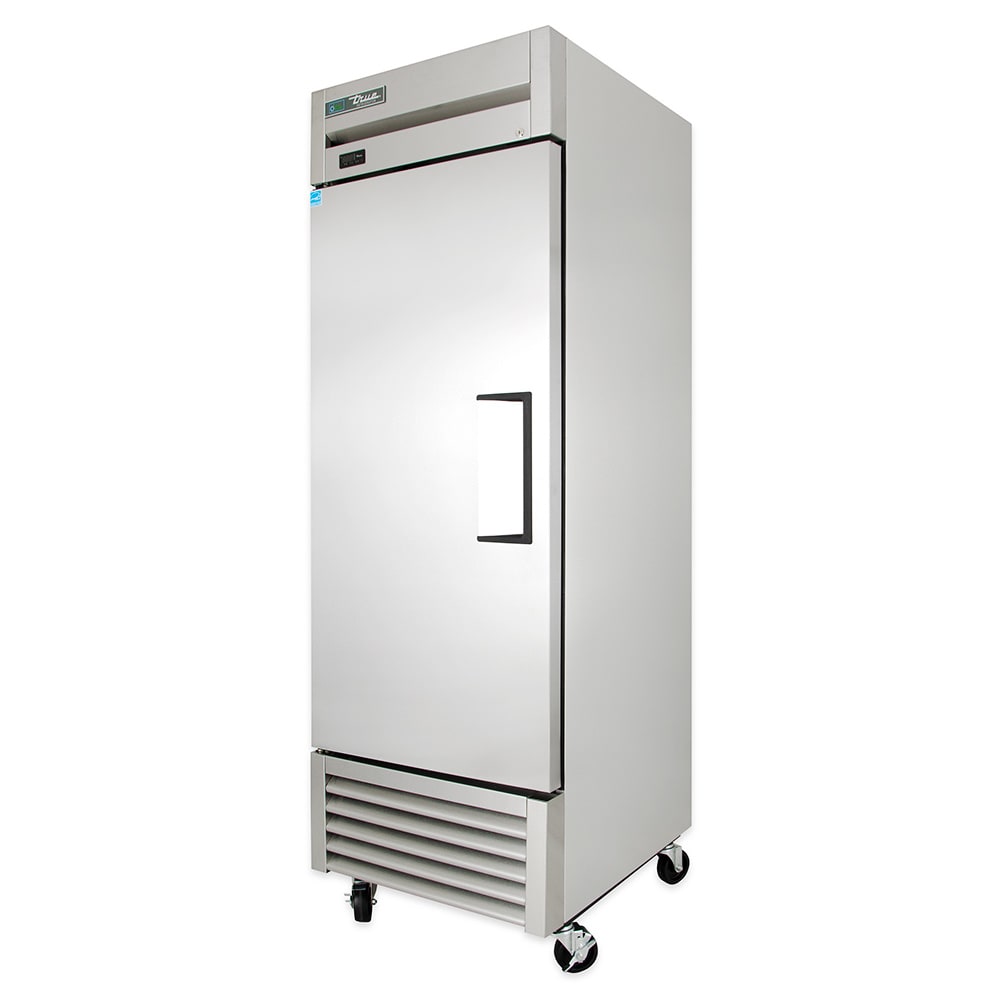

True T-23-HC 27" One Section Reach In Refrigerator, (1) Left Hinge Solid Door, 115v

The True T-23-HC LH reach-in refrigerator has a self-contained refrigeration system, maintaining temperatures from 33 to 38 degrees Fahrenheit, and a capillary tube system to send R290 hydrocarbon refrigerant around the cabinet. Large evaporator fan blades consistently move air around for even temperatures, which are displayed on the exterior. Since the system is mounted on the bottom,it can be accessed for maintenance.

Though it doesn't replace preventative maintenance, the reverse condensing fan motor helps remove dirt and dust buildup on the condensing coil. By blowing its fan in a reverse direction for 20 sesconds when the unit is turned on, the coil can maintain a more clean surface over time, improving operation and efficiency.

The exterior and interior are made of stainless steel and aluminum, and the floor has coved corners that simplify cleaning up spilled product. Polyurethane insulation traps cold air, while the gasket around the door frame prevents cold air leaks. A stainless steel door has a 12-inch recessed handle that is permanently attached to the door with a sheet metal interlock. For product holding, the True T-23-HC LH one-section refrigerator comes with three PVC-coated shelves.

Product Details

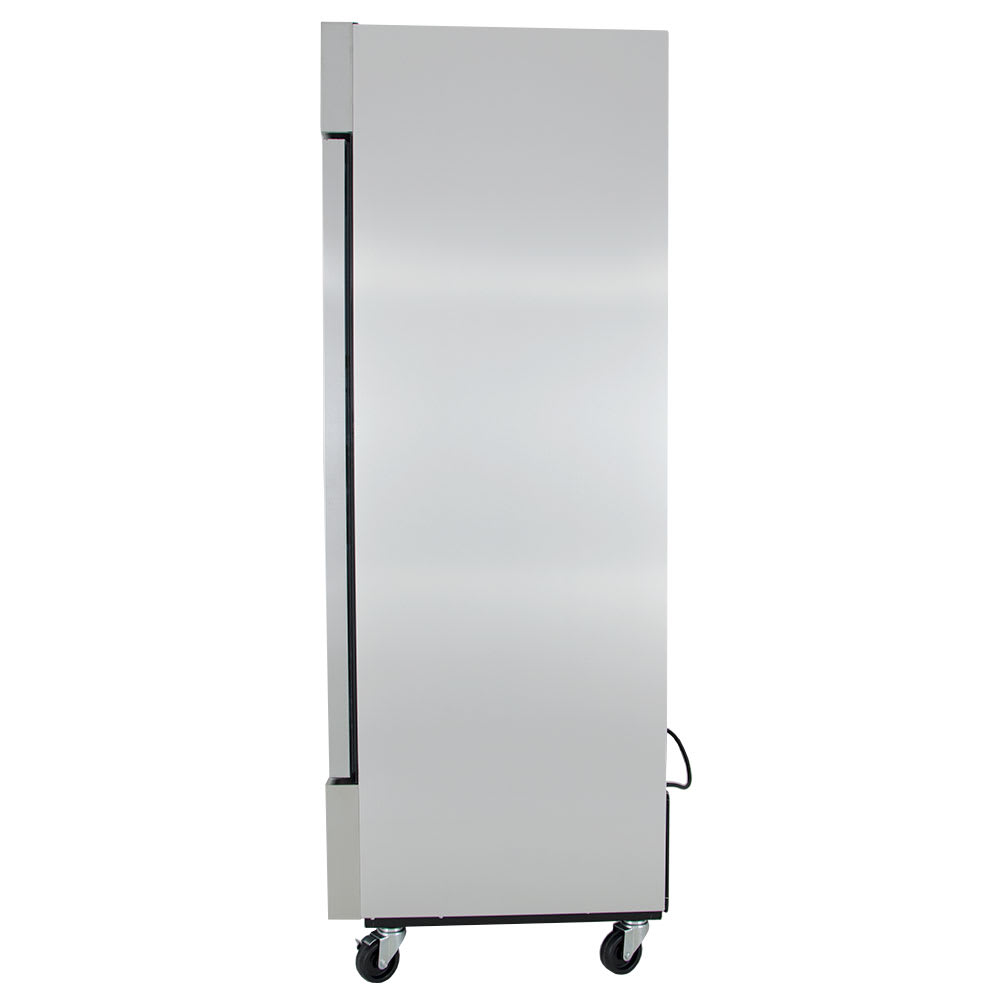

• Stainless steel front and aluminum sides

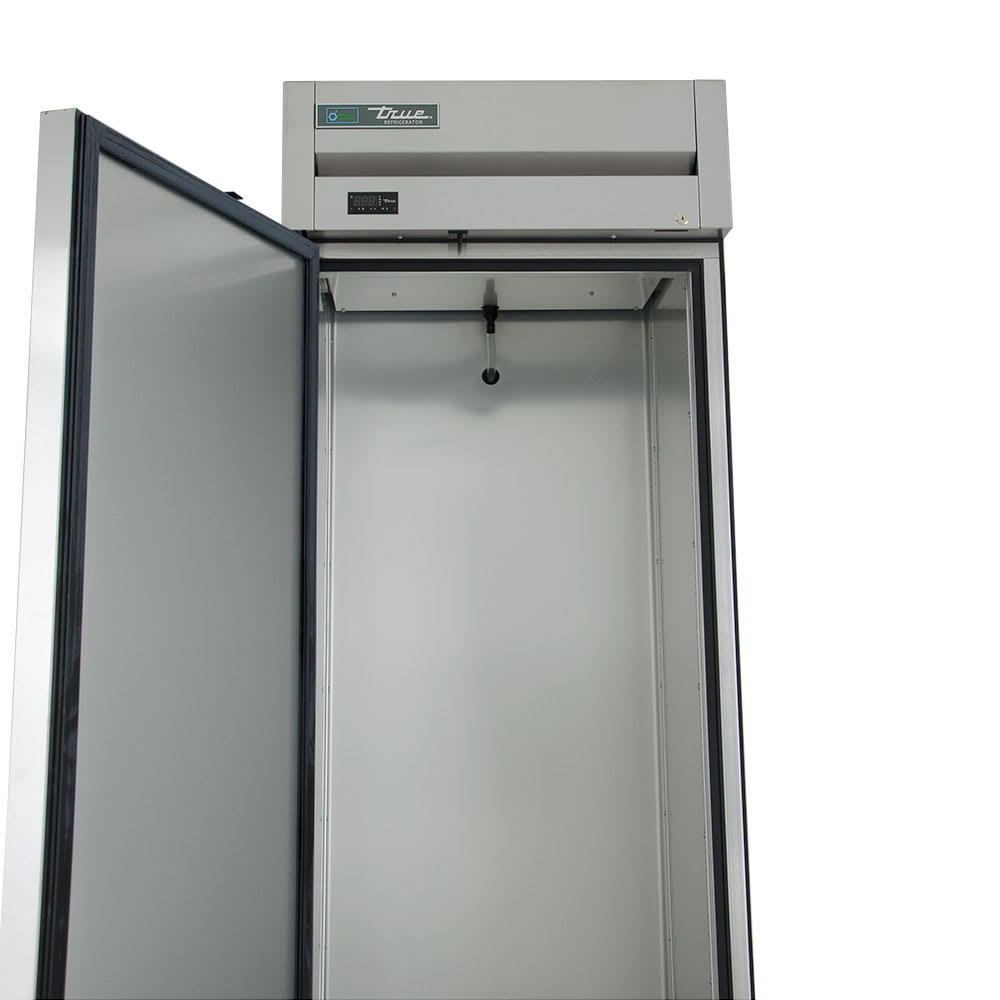

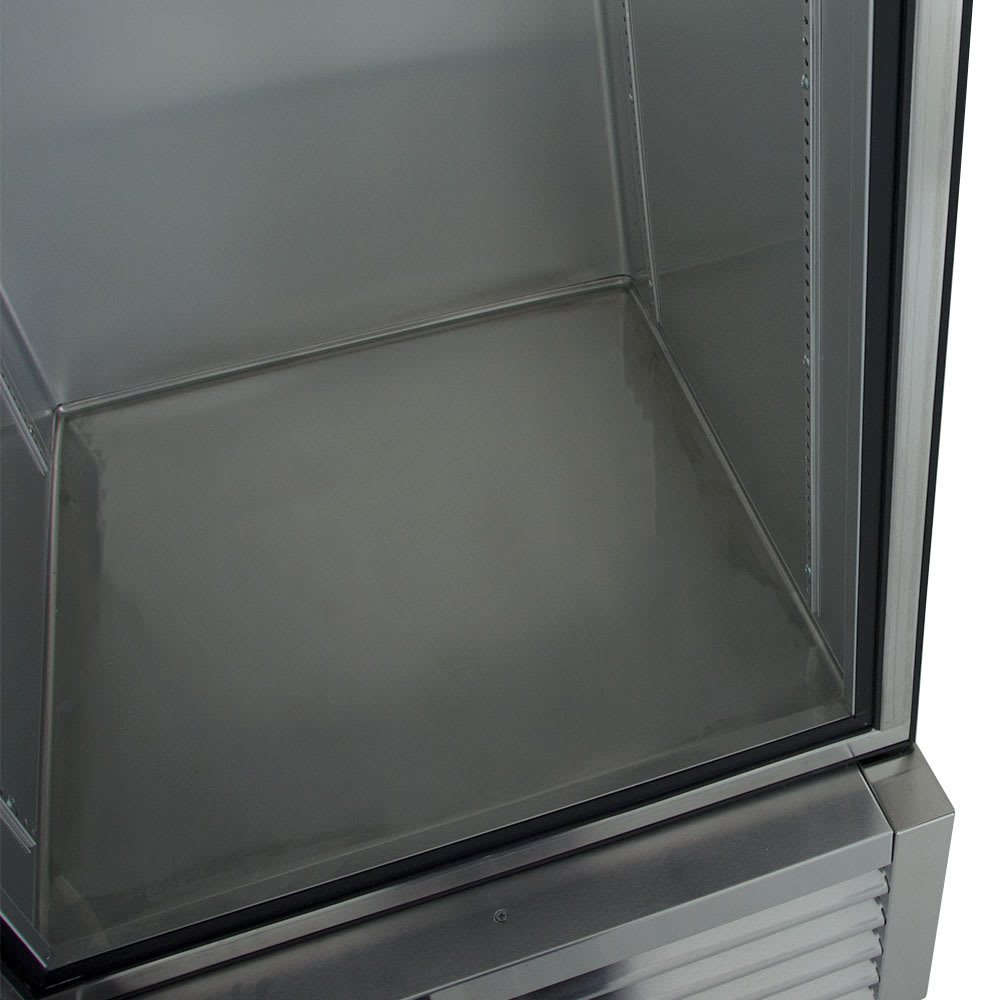

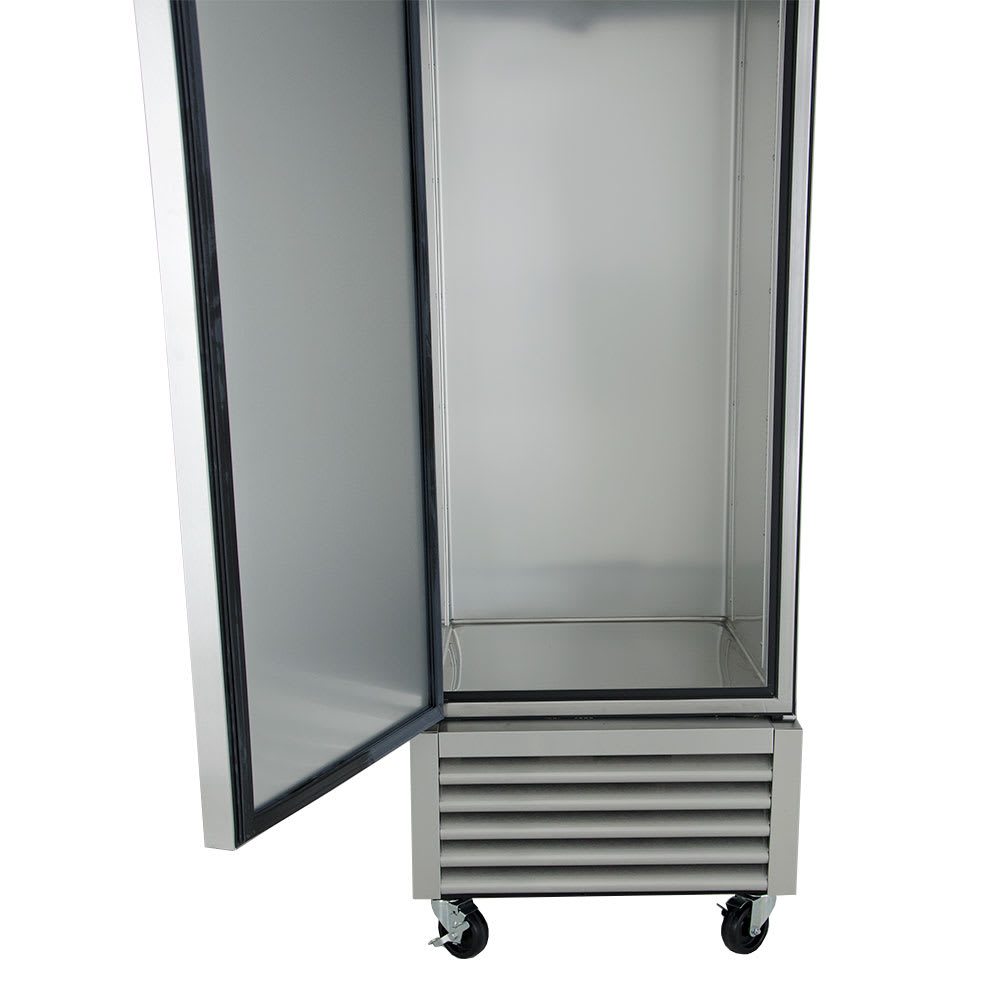

• Interior is lined with clear-coat aluminum and has coved corners on its stainless steel floor
• Polyurethane insulation traps cold air
• Welded steel frame rail is powder-coated for corrosion resistance

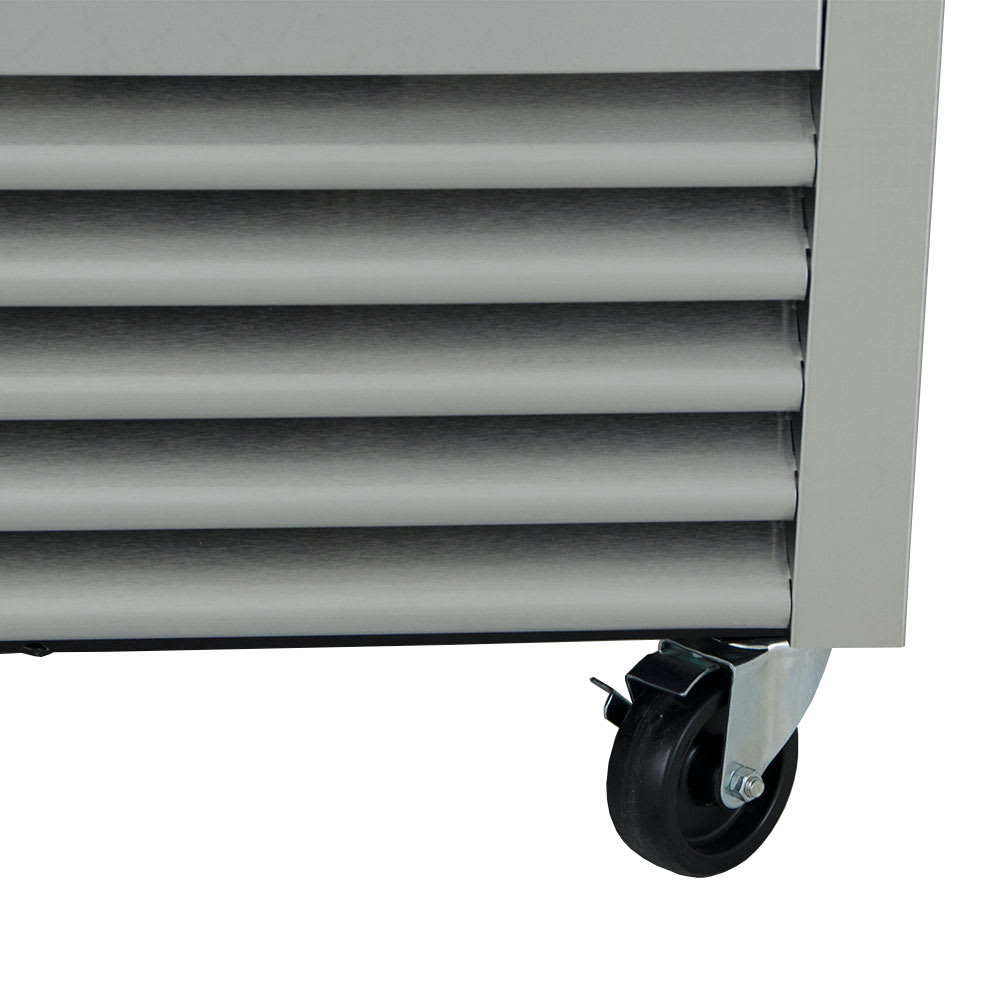

• 4-in.-diameter stem castors provide mobility
• Stainless steel door has an aluminum interior liner

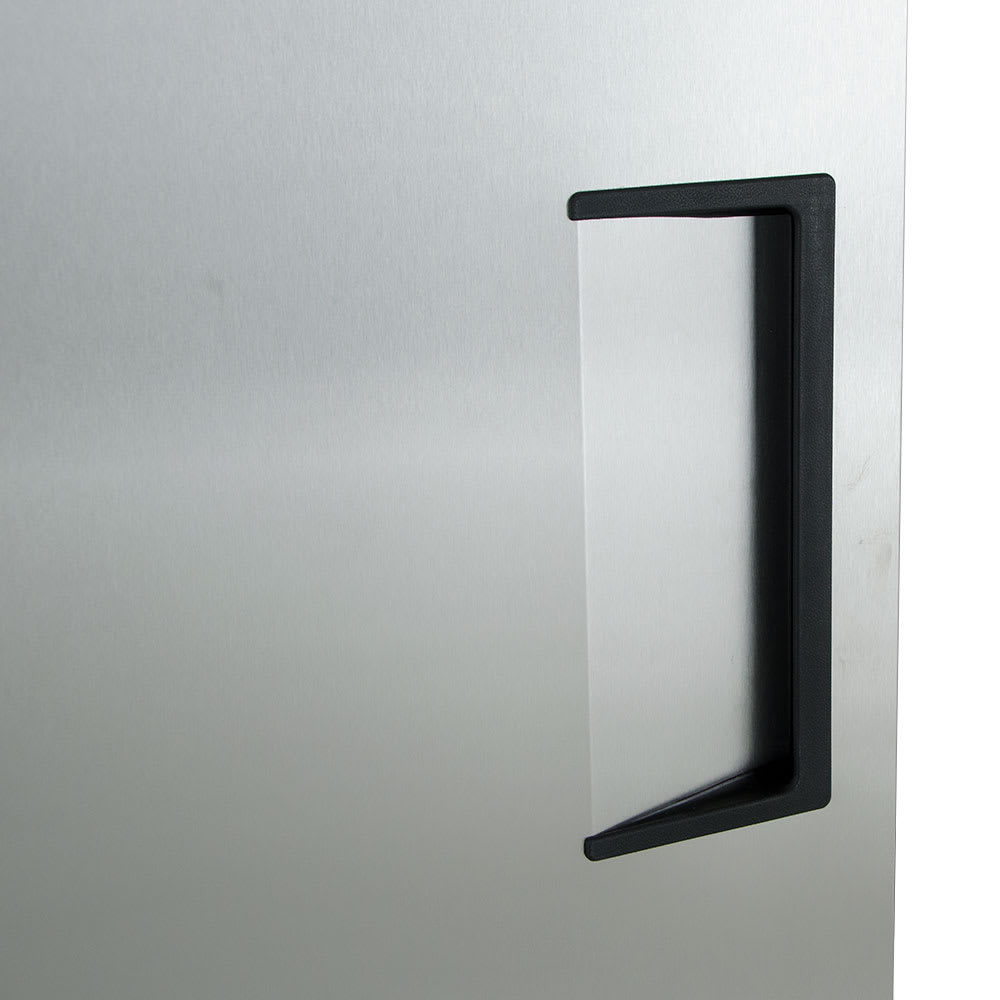

• Recessed, 12-in. door handle is permanently attached to the door by a sheet metal interlock

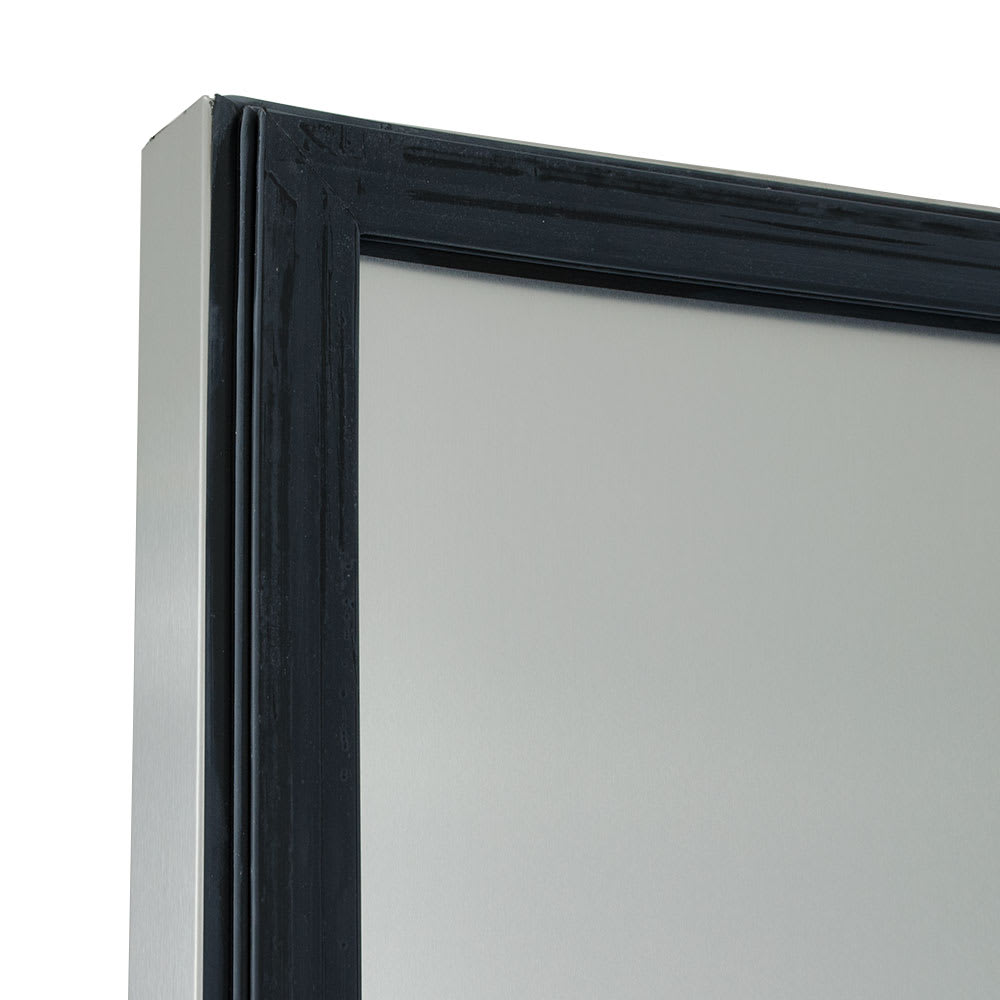

• Magnetic door gasket is removable without tools
• 3 PVC-coated shelves are adjustable in ¹⁄₂-in. increments
• Safety-shielded lights illuminate the interior

Self-contained Refrigeration System

• Temperature range: 33-38 degrees F
• Exterior temperature display simplifies monitoring
• Uses R290 hydrocarbon refrigerant
• Self-contained capillary tube system quickly recovers temperatures
• Large condenser and evaporator coils help maintain consistent temperatures
• Evaporator fan with large blades moves a high air volume through the cabinet to keep temperatures even
• Buildup on condensing coil is removed with reverse condensing fan mechanism

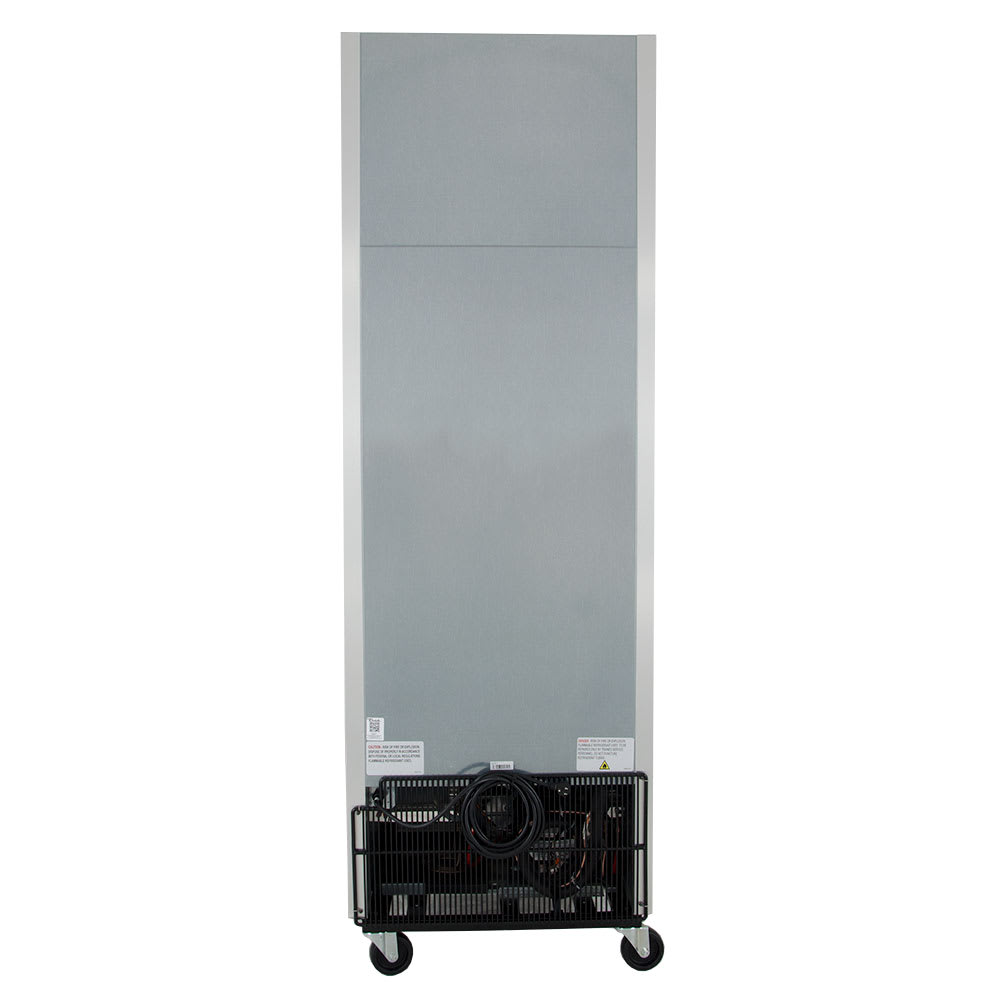

• Bottom-mounted condensing unit creates a no-stoop lower shelf
• Epoxy-coated evaporator resists corrosion

Dimensions & Utilities

• Shelves: 22⁷⁄₈ in. W x 23¹⁄₄ in. D
• Overall: 27 in. W x 29¹⁄₂ in. D x 83³⁄₈ in. H
• 2.2 A, ¹⁄₄ HP

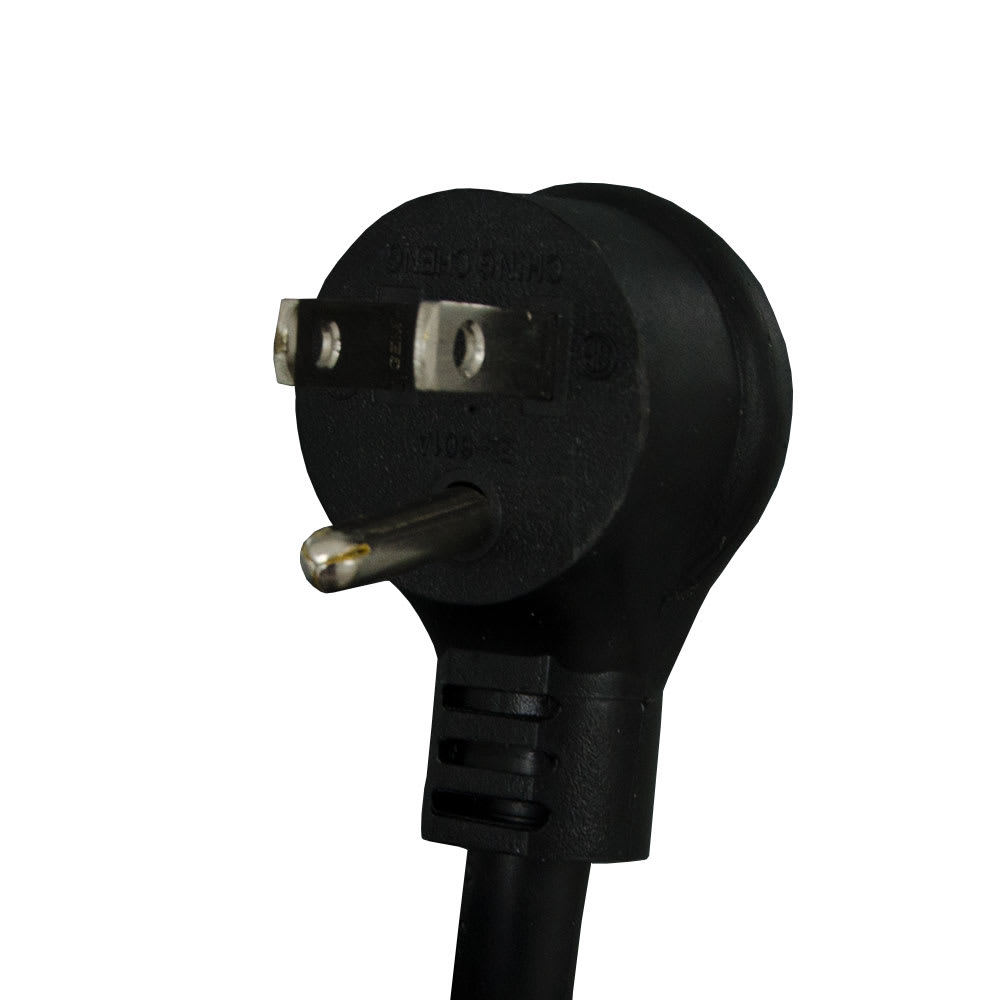

• 115 V/60 Hz/1 ph, 9-ft. cord and NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration T-23-HC within the 48 contiguous states.

From The Manufacturer

Refrigerator, reach-in, one-section, (1) solid door, (3) PVC coated adjustable wire shelves, interior lighting, stainless steel door, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.2 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration T-23-HC Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
