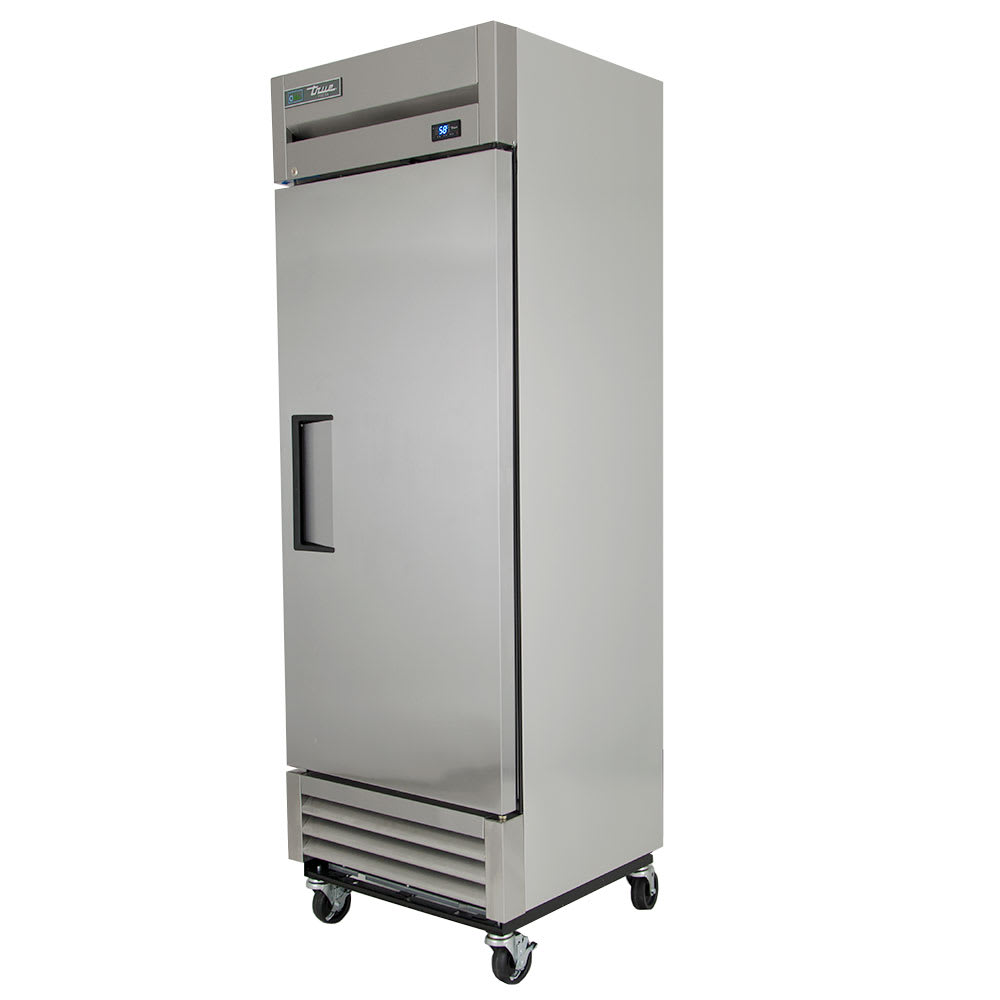

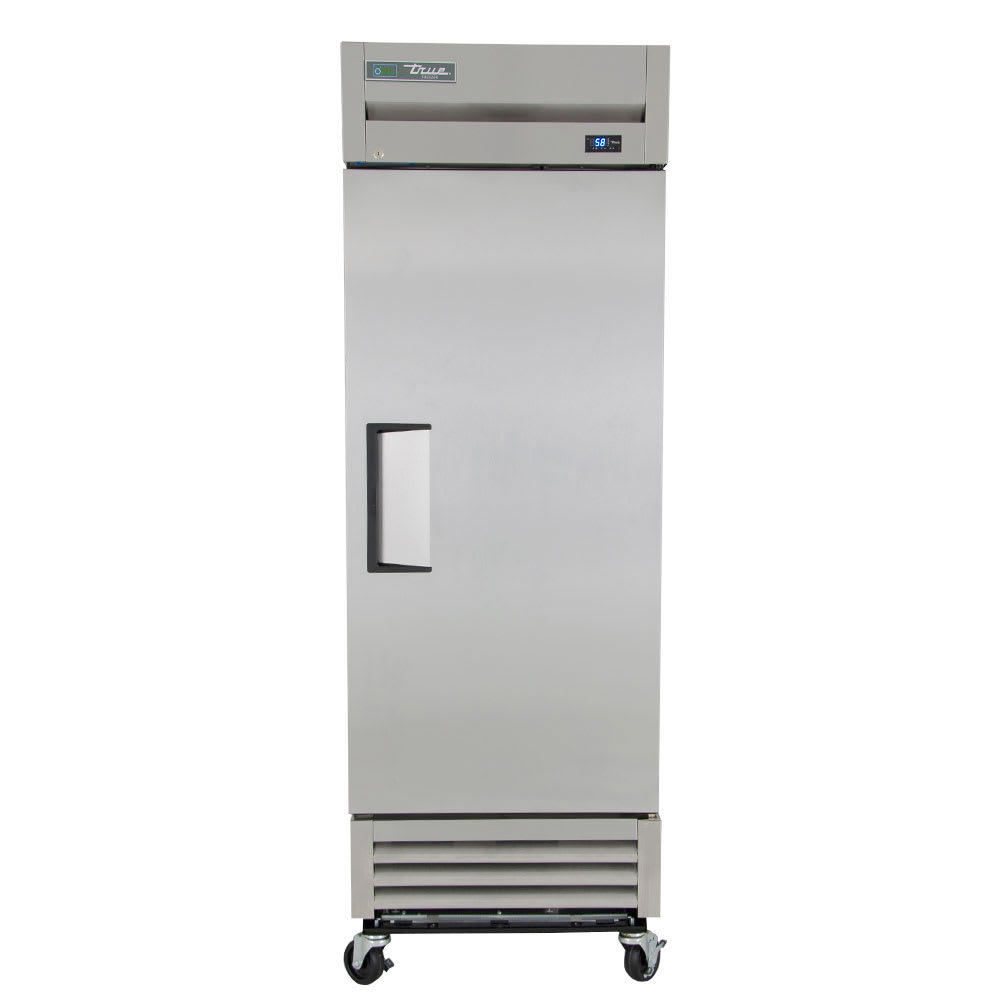

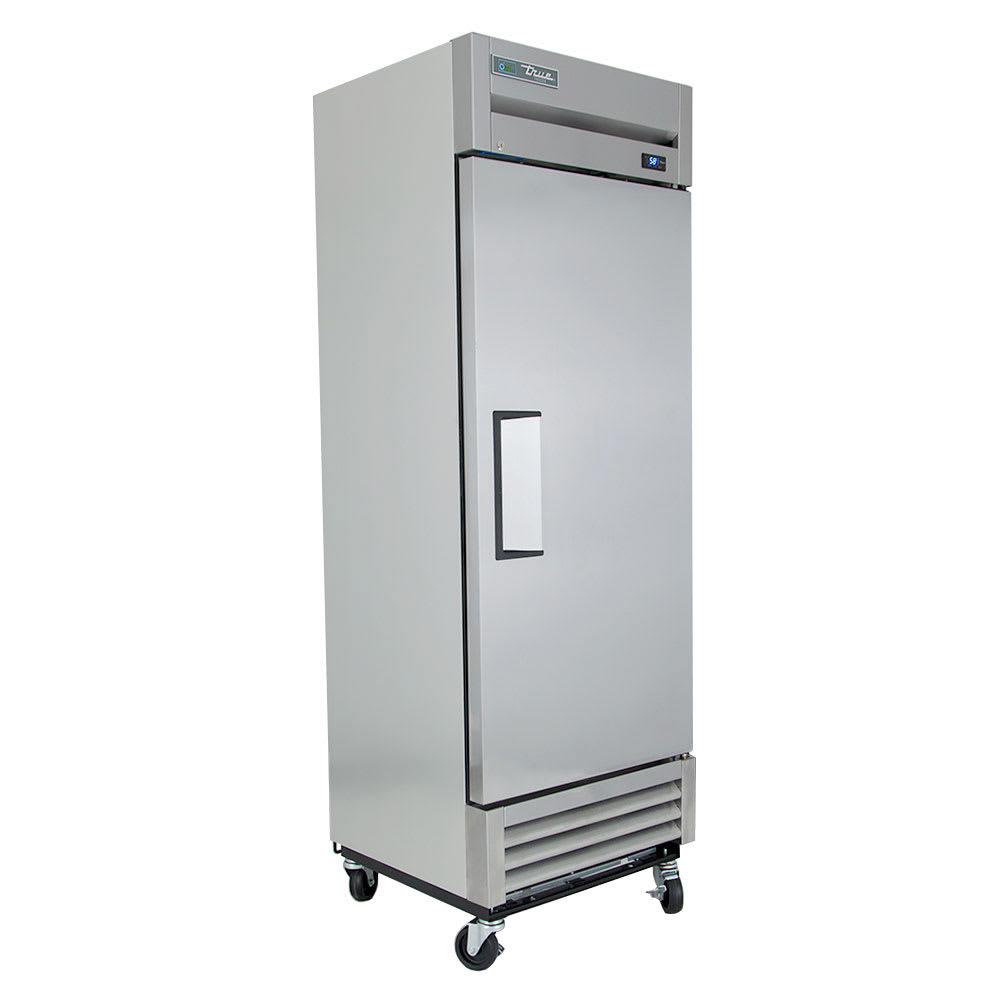

True T-19FZ-HC 27" T Series One Section Reach In Freezer, (1) Right Hinge Solid Door, 115v

The True T-19FZ-HC reach-in freezer maintains a temperature of 0 degrees Fahrenheit, and staff members can monitor it with an external display. The temperature stays cool with R290 hydrocarbon refrigerant that runs through a capillary tube system. To protect the evaporator, an epoxy coating is applied to it. Evaporator and condenser fans move air consistently to reduce heat. Since the condensing unit is mounted on the bottom, it is in the coolest area of the kitchen.

Blowing debris, dust, and dirt off the condenser coil, the fan motor reverses for 20 seconds when it starts up. Because the coil is so integral to overall system function, cleaning it regularly and automatically ensures operation is efficient and reliable. Also reducing the system's energy consumption, this self-cleaning helps to maintain the coldest possible storage temperature. Although the reversing motor lengthens the life of the unit, it won't eliminate routine preventative maintenance recommendations.

With a stainless steel floor and aluminum liner, the interior of the True T-19FZ-HC reach-in freezer is resistant to scratches, dents, and corrosion. Polyurethane insulation is foamed in place to provide structure and retain cold air. A black, powder-coated frame rail also adds stability and is mounted with castors for mobility. Inside the cabinet, product sits on three adjustable shelves that are coated in PVC for corrosion resistance. The stainless steel door has a recessed handle and lock.

Product Details

• Door and front are made of stainless steel to resist corrosion

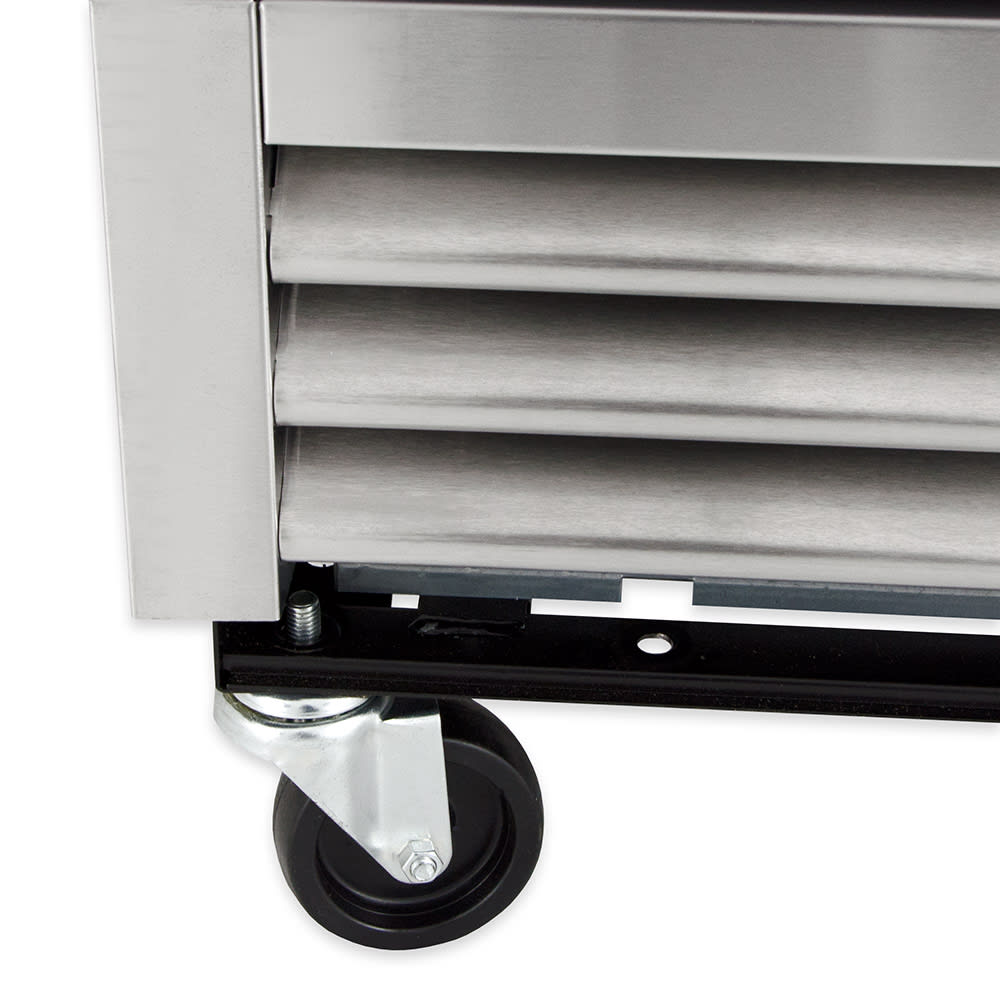

• 2¹⁄₂-in.-dia. castors provide mobility
• Self-closing door keeps cold air in the cabinet

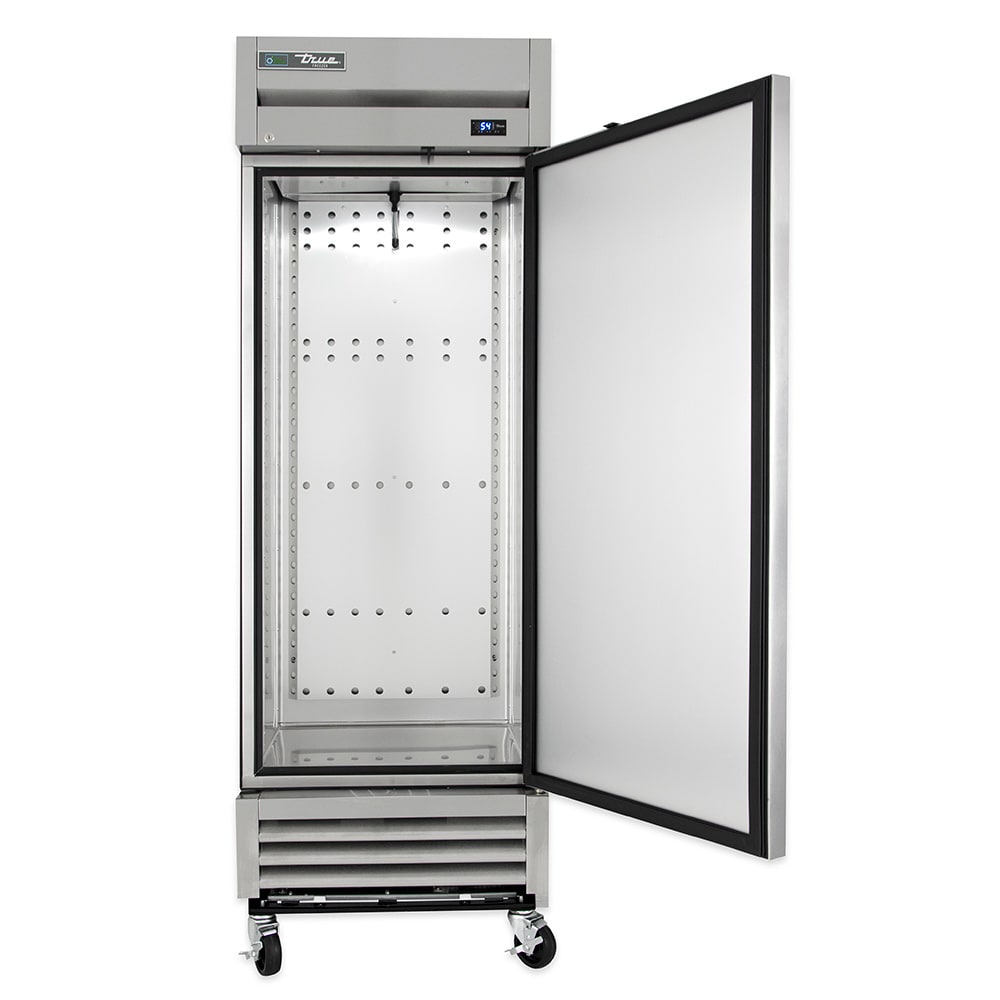

• Right-hinged door opens on the left

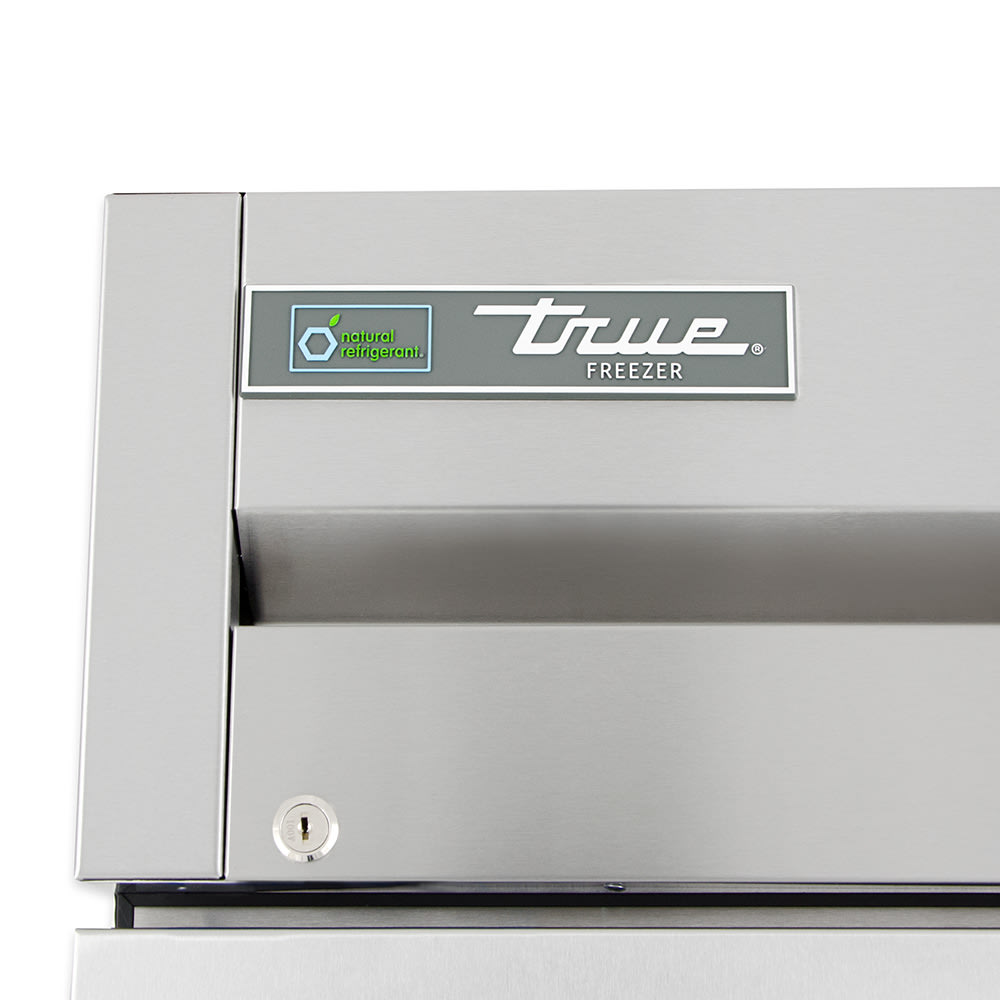

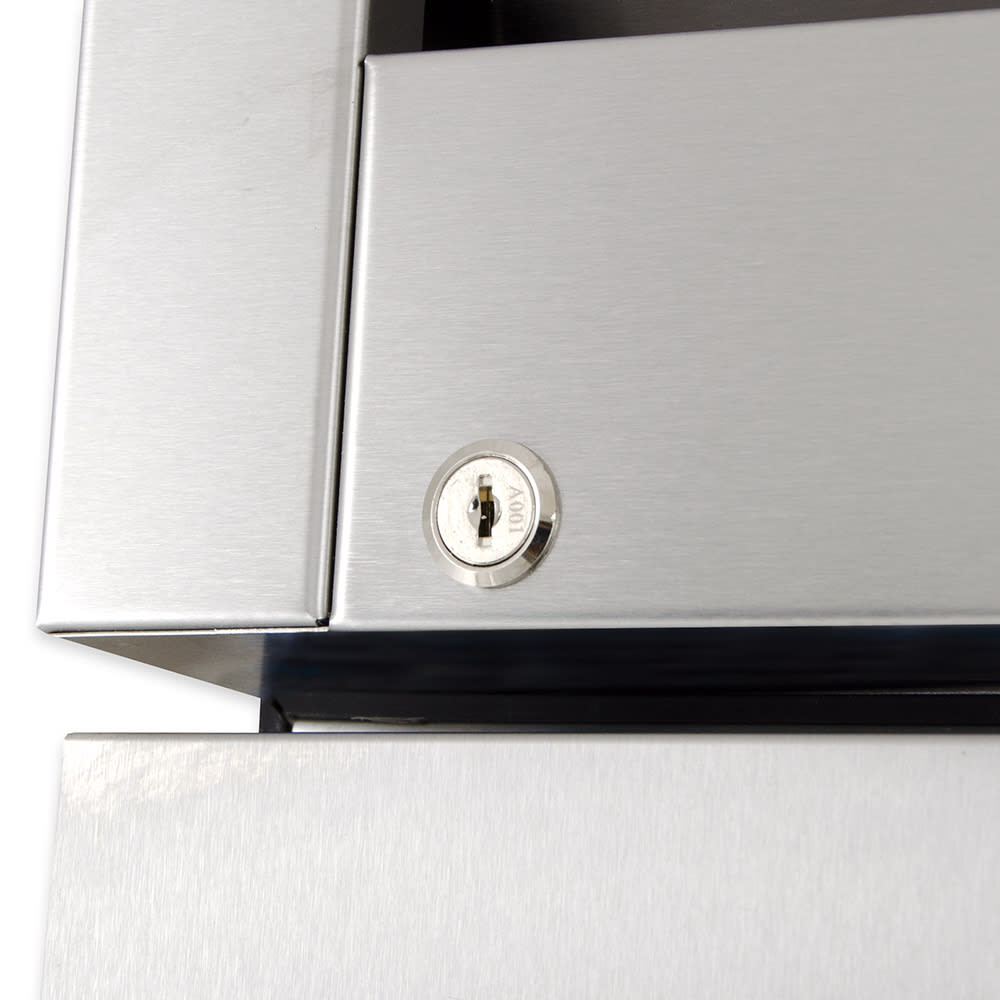

• Door lock restricts product access

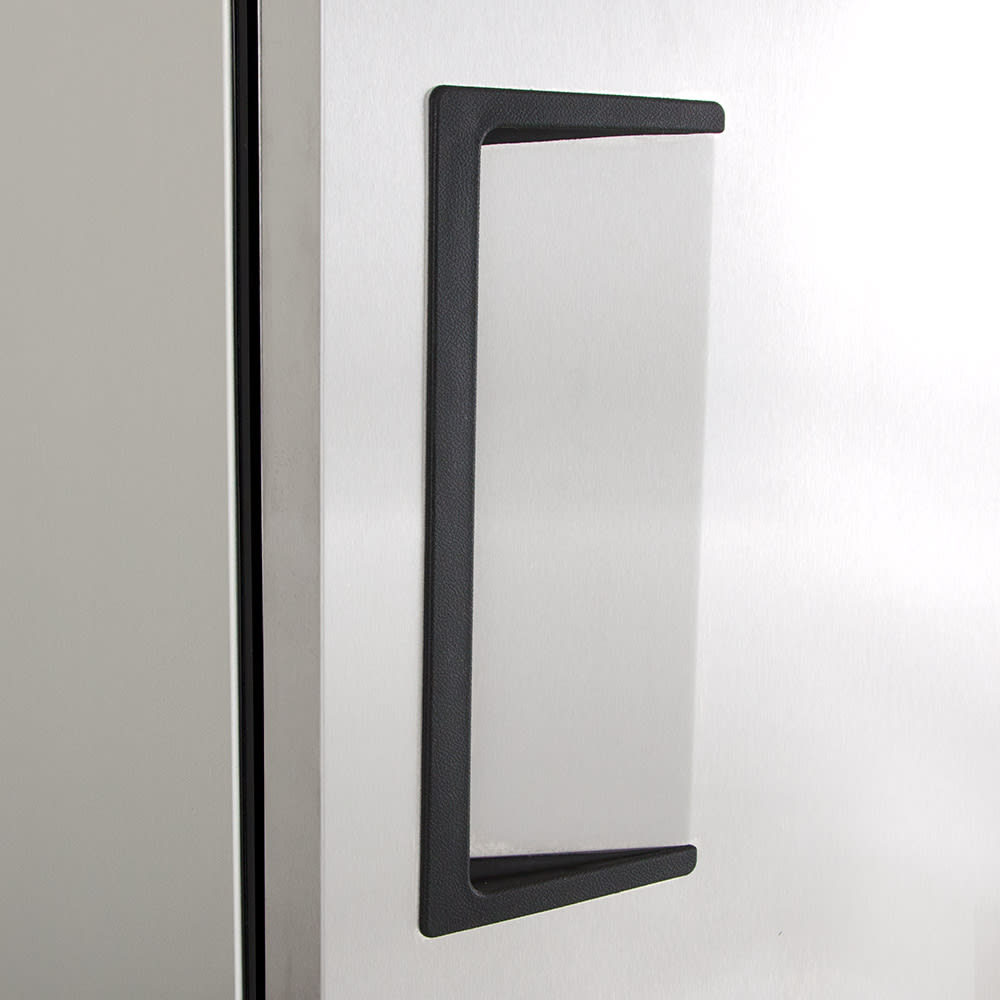

• Recessed door handle prevents injury

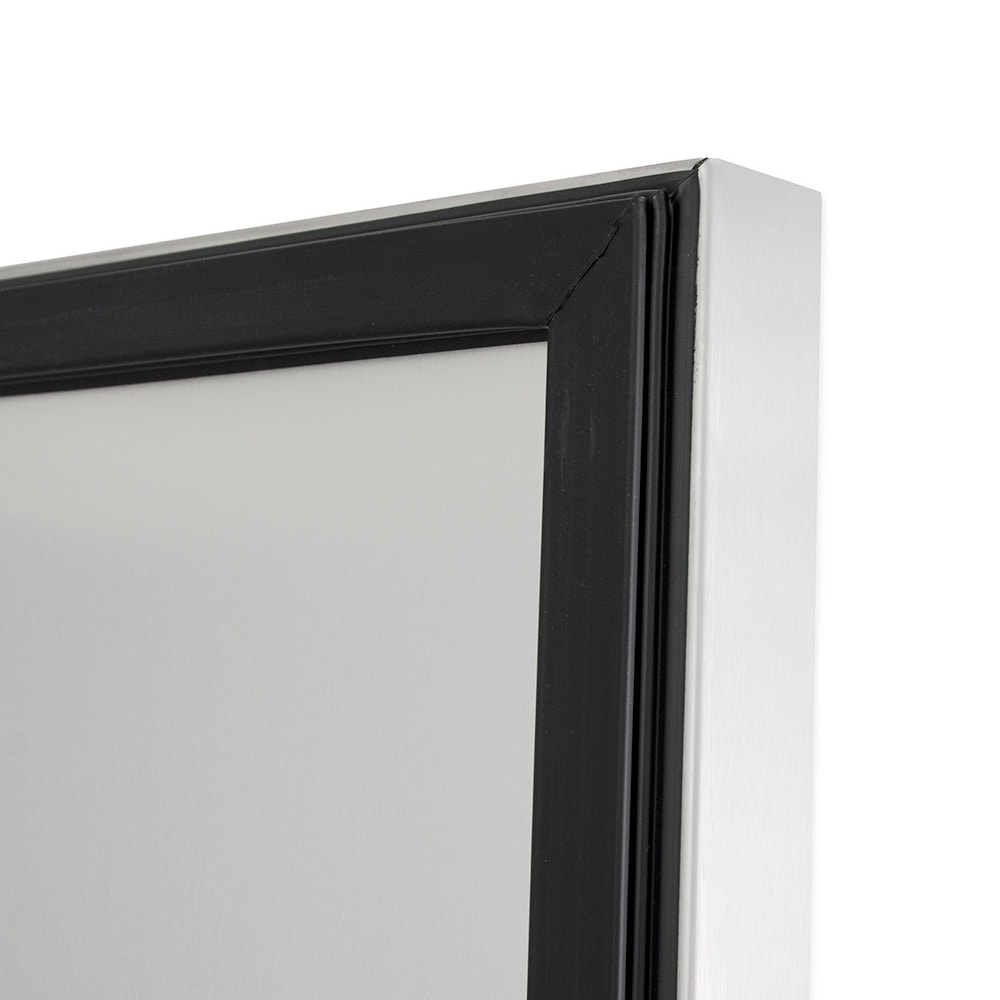

• Removable magnetic door gasket is easy to clean and replace
• Foamed-in-place polyurethane insulation keeps cold air inside cabinet
• Large or small products fit in the unit since the 3 PVC-coated shelves are adjustable in ¹⁄₂-in. increments
• Visibility is created in the cabinet by LED interior lights

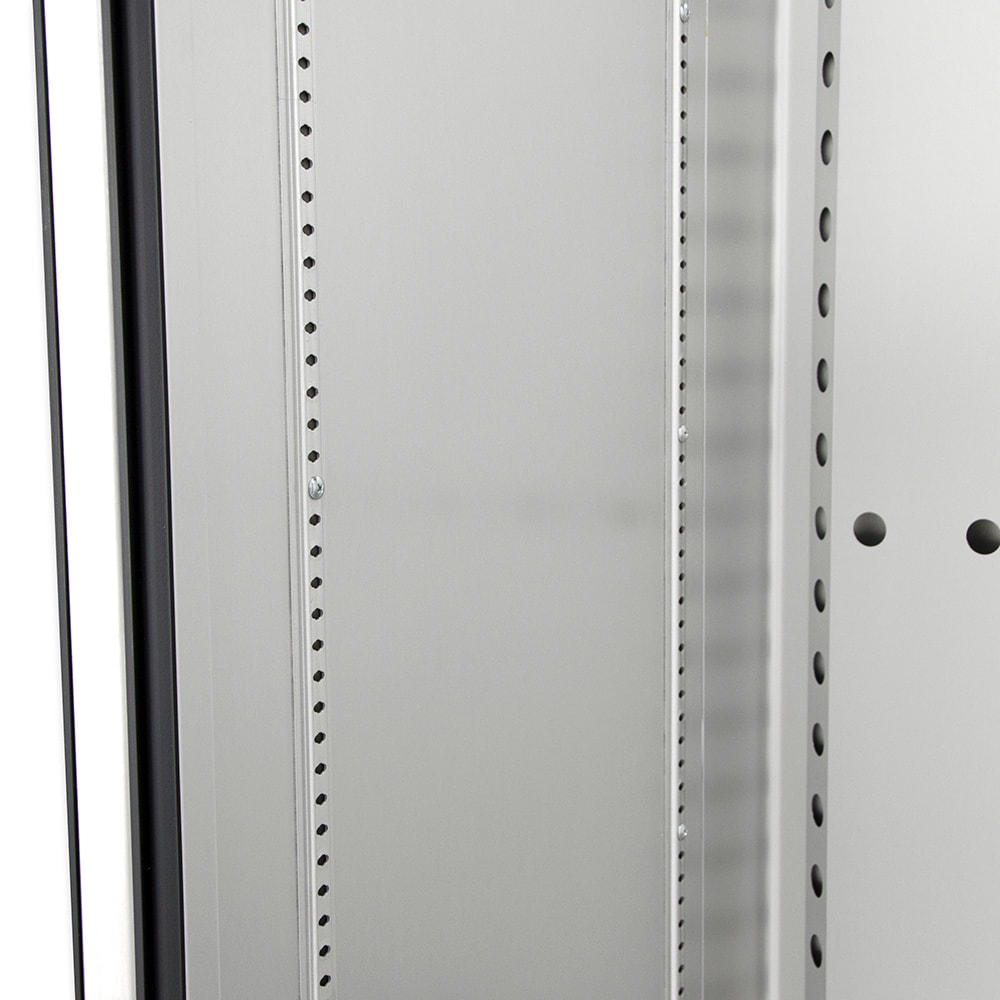

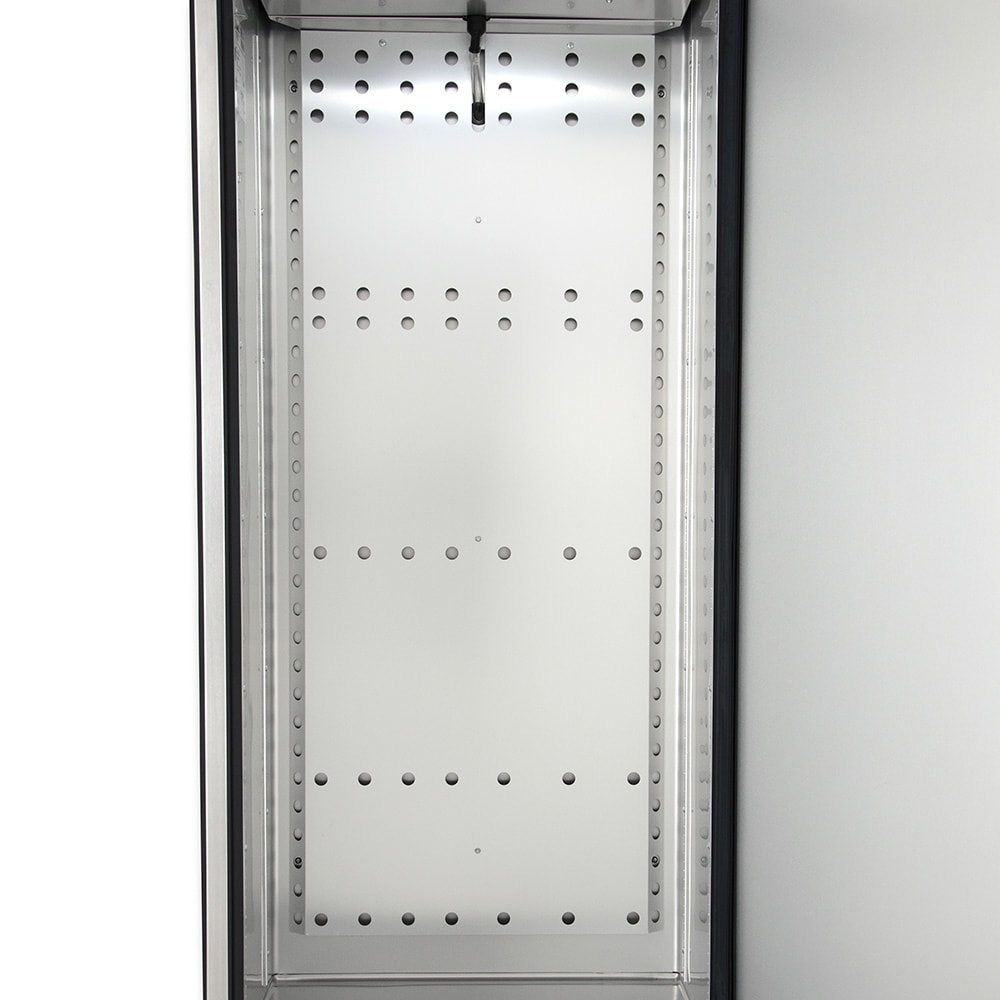

• Corrosion-resistant aluminum interior liner
• Easy-to-clean stainless steel interior floor
• Structure is added by the black powder-coated frame

Product Features

Self-contained Refrigeration System

• R290 hydrocarbon refrigerant runs through a capillary tube system to maintain cool temperatures
• Maintains 0 degrees F

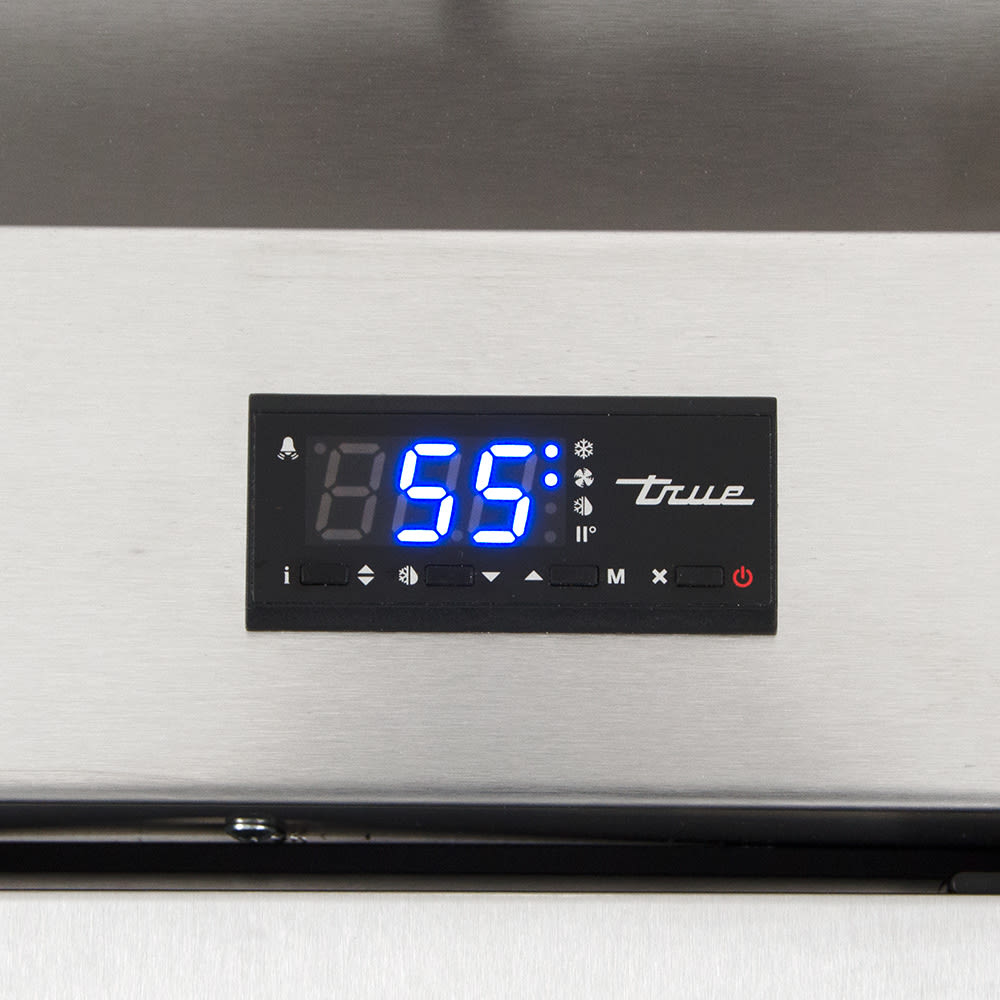

• External temperature display

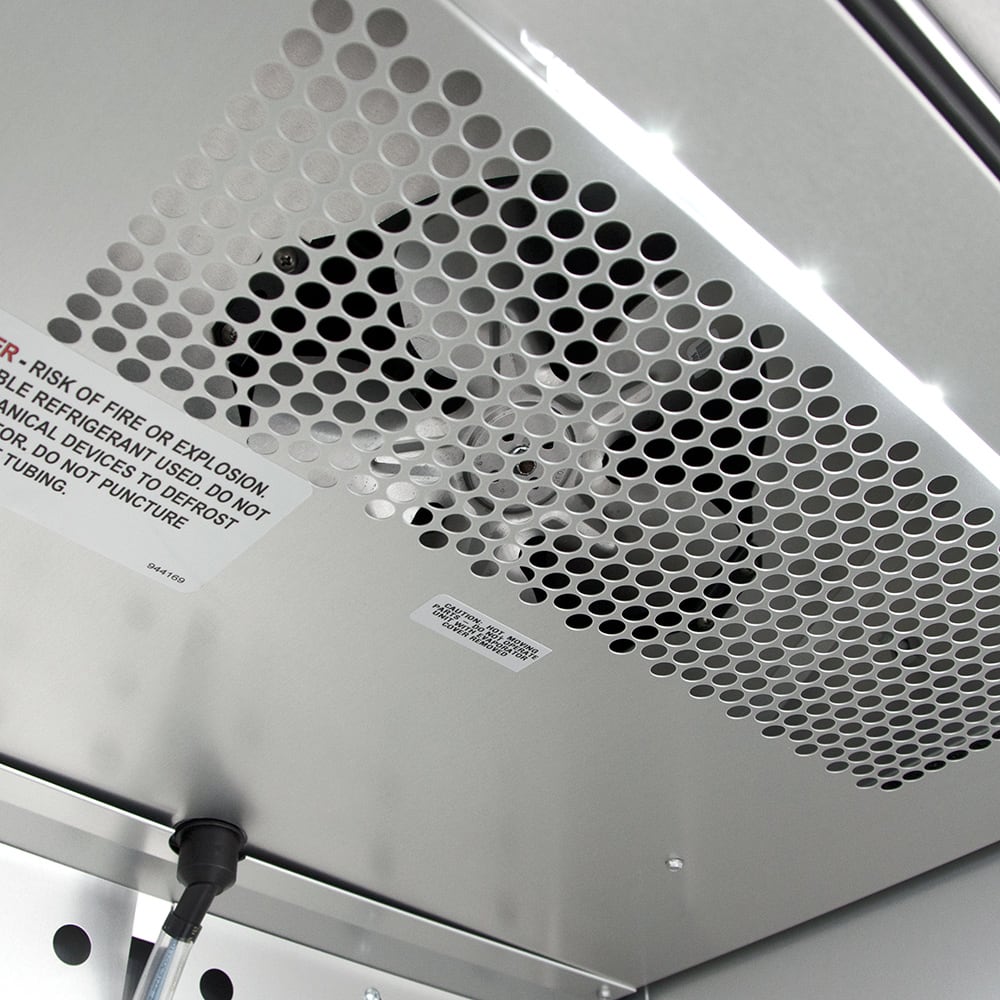

• Consistent volume of air is moved by the evaporator and condenser fans
• Fan motor reverses to blow dust off condenser coil

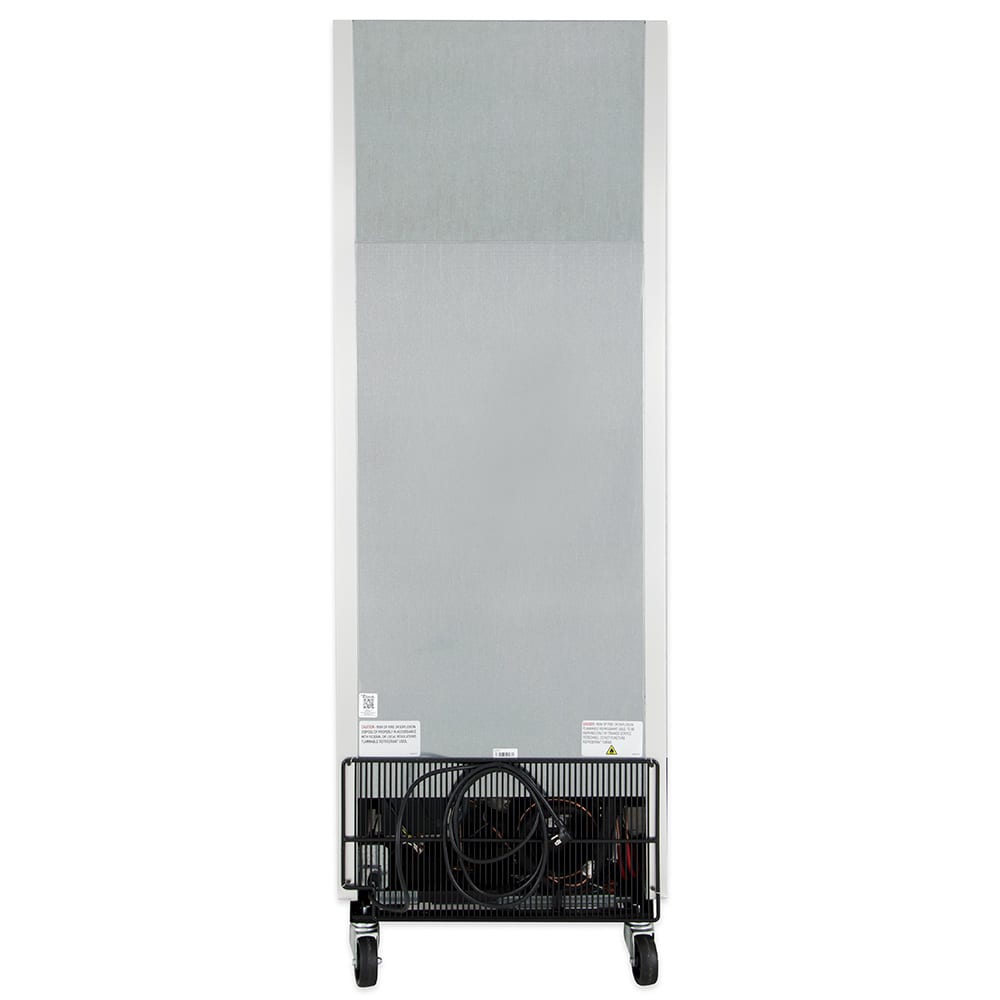

• Bottom-mounted condensing unit
• Epoxy-coated evaporator is resistant to corrosion

Dimensions & Utilities

• Shelves: 22⁷⁄₈ in. W x 18¹⁄₄ in. D
• Overall: 27 in. W x 24¹⁄₂ in. D x 78¹⁄₂ in. H
• 3.7 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration T-19FZ-HC within the 48 contiguous states.

From The Manufacturer

Freezer, reach-in, one-section, 0°F, (1) solid door, (3) PVC coated adjustable wire shelves, interior lighting, stainless steel door, stainless steel front, aluminum sides, aluminum interior with stainless steel floor, 2-1/2" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 3.7 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration T-19FZ-HC Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
