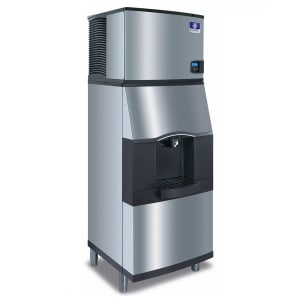

Manitowoc Ice IYT0450A 30" Indigo NXT™ Half Cube Ice Machine Head - 490 lb/24 hr, Air Cooled, 115v/1ph

The Manitowoc Ice IYT0450A Indigo NXT™ ice maker head features an easyTouch® screen to control operations, which include programming off-hour inactivity cycles, setting daily production quotas, or going after problems with troubleshooting diagnostics. Able to produce 490 pounds of half-dice ice in 24 hours, this ice machine head is ideal for small kitchen operations with a limited customer base. Its air-cooled condenser is more energy efficient and uses less water than a water-cooled unit.

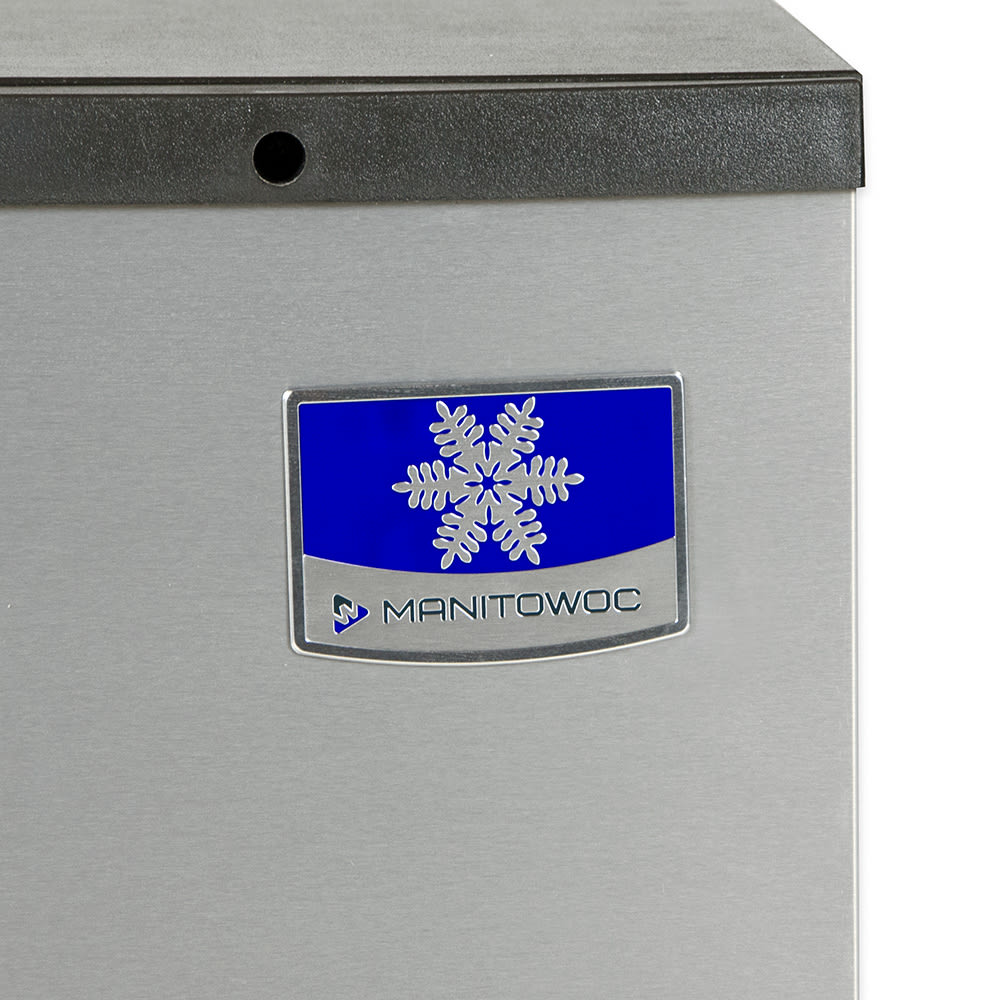

Because of its DuraTech® exterior, this Manitowoc Ice IYT0450A commercial ice machine head has corrosion defense surpassing stainless steel and smudge resistance against fingerprints and dirt. The unit makes cubes measuring ³⁄₈ inch by 1¹⁄₈ inches by ⁷⁄₈ inch, and to ensure cubes are the correct size, an acoustical ice sensing probe keeps track of ice cube thickness. Certain internal components are made with bacteria-slowing antimicrobial protection and are removable to streamline cleaning.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• 490-lb. maximum daily ice production
• 378-lb. AHRI-certified daily ice production
• Air-cooled system

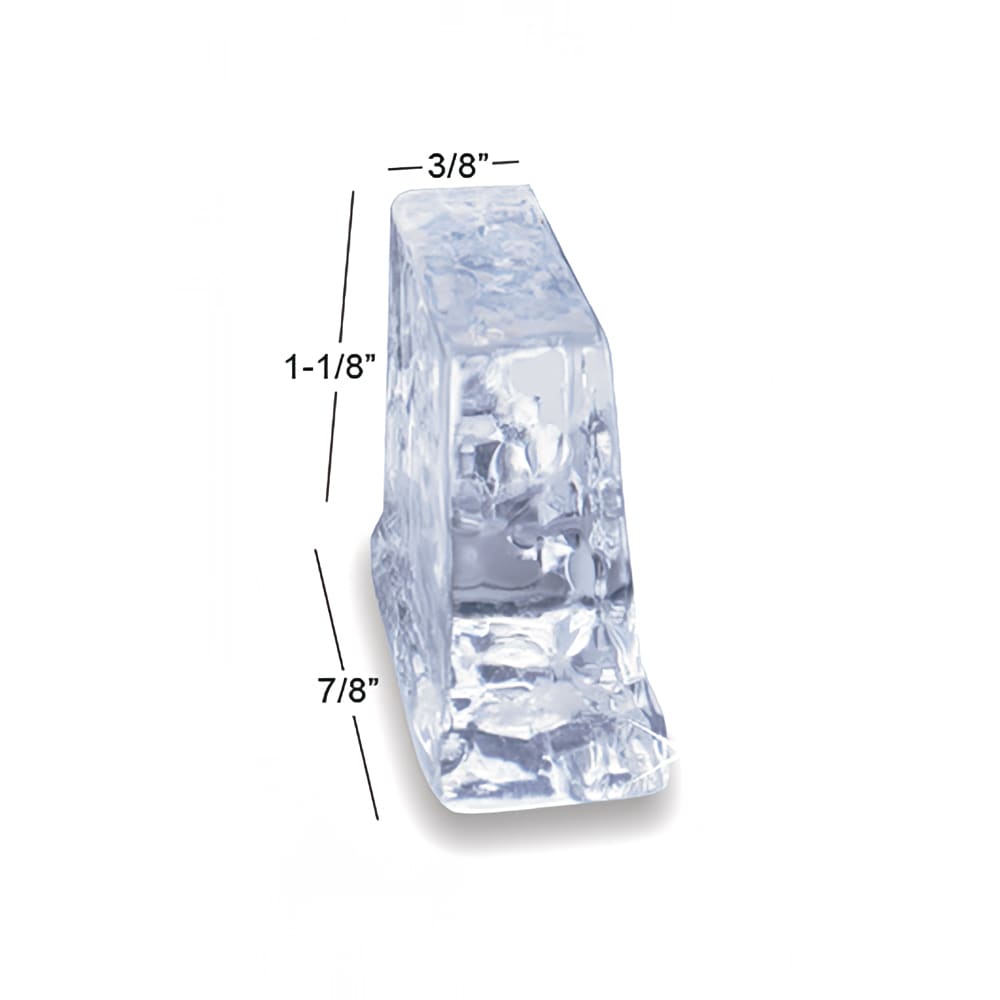

• Produces half-dice ice that measures ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.

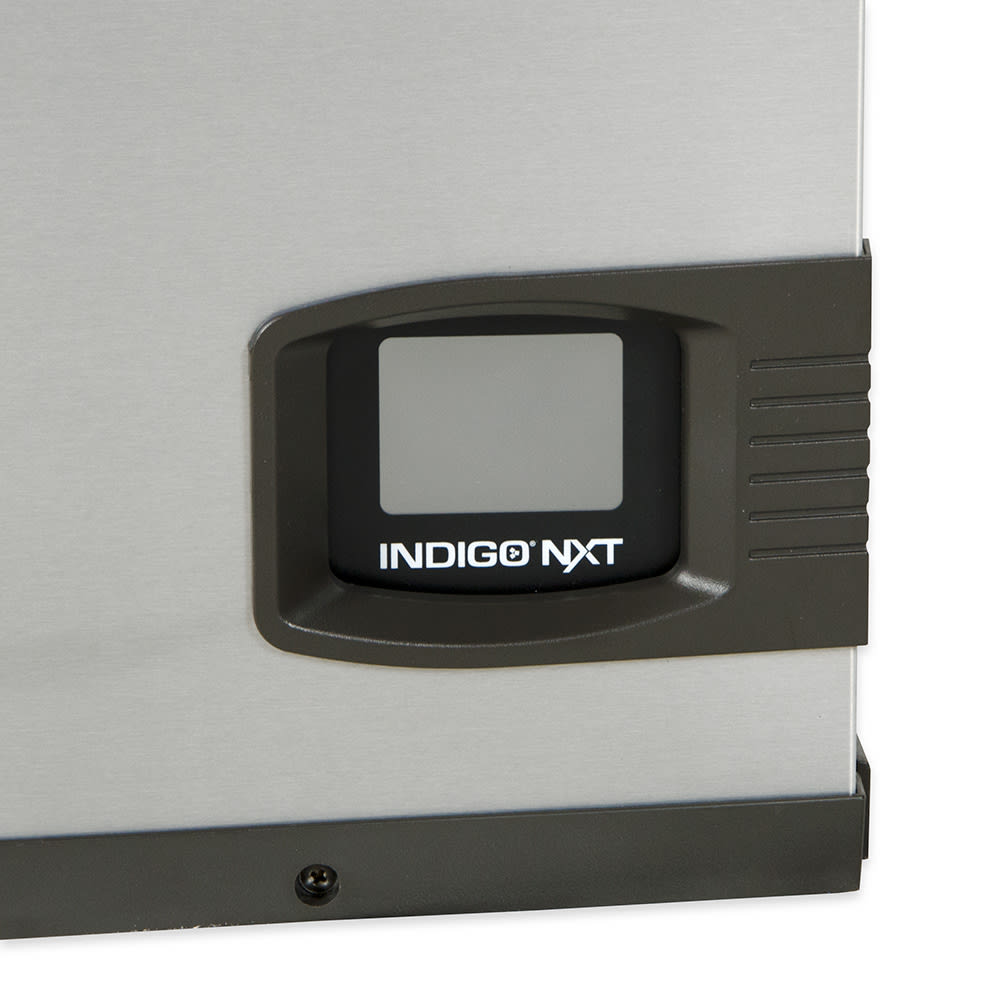

• EasyTouch touch screen has intuitive icon-based operation
• DuraTech exterior prevents corrosion and smudges from dirt or fingers
• Acoustical ice sensing probe measures ice cube thickness for consistency in most water conditions
• Water trough, distribution tube, curtain, water probe, and water pump are all removable for swift cleaning
• Intelligent diagnostics solve maintenance issues
• Ice bin is not included
• Uses R410A refrigerant
• Ambient temperature range: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F

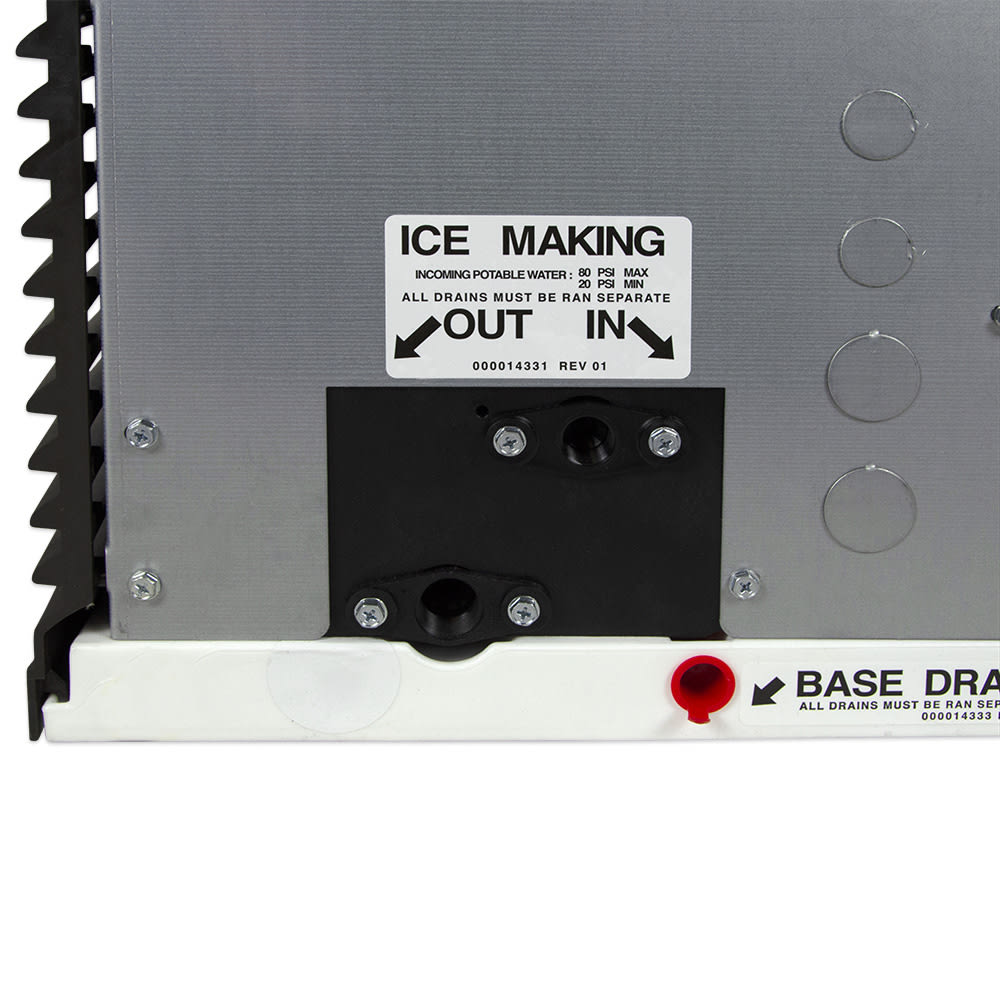

• Incoming water pressure: 20-80 PSI
• 3,800 average BTU; 6,000 peak BTU
• Cord and plug not included

Dimensions & Utilities

• 30 in. W x 24 in. D x 21¹⁄₂ in. H
• 11.9 A
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT0450A within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 490 lb/24 hours at 70°/50° (378 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice IYT0450A Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
