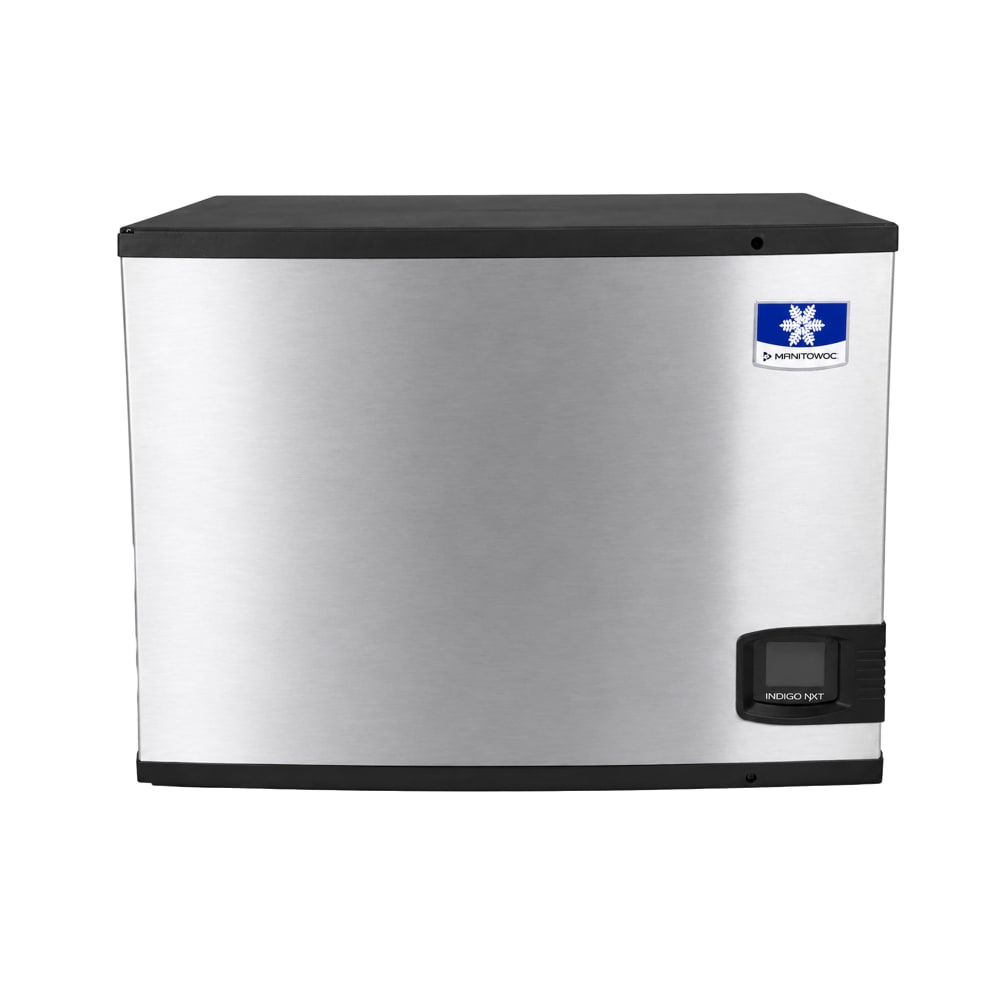

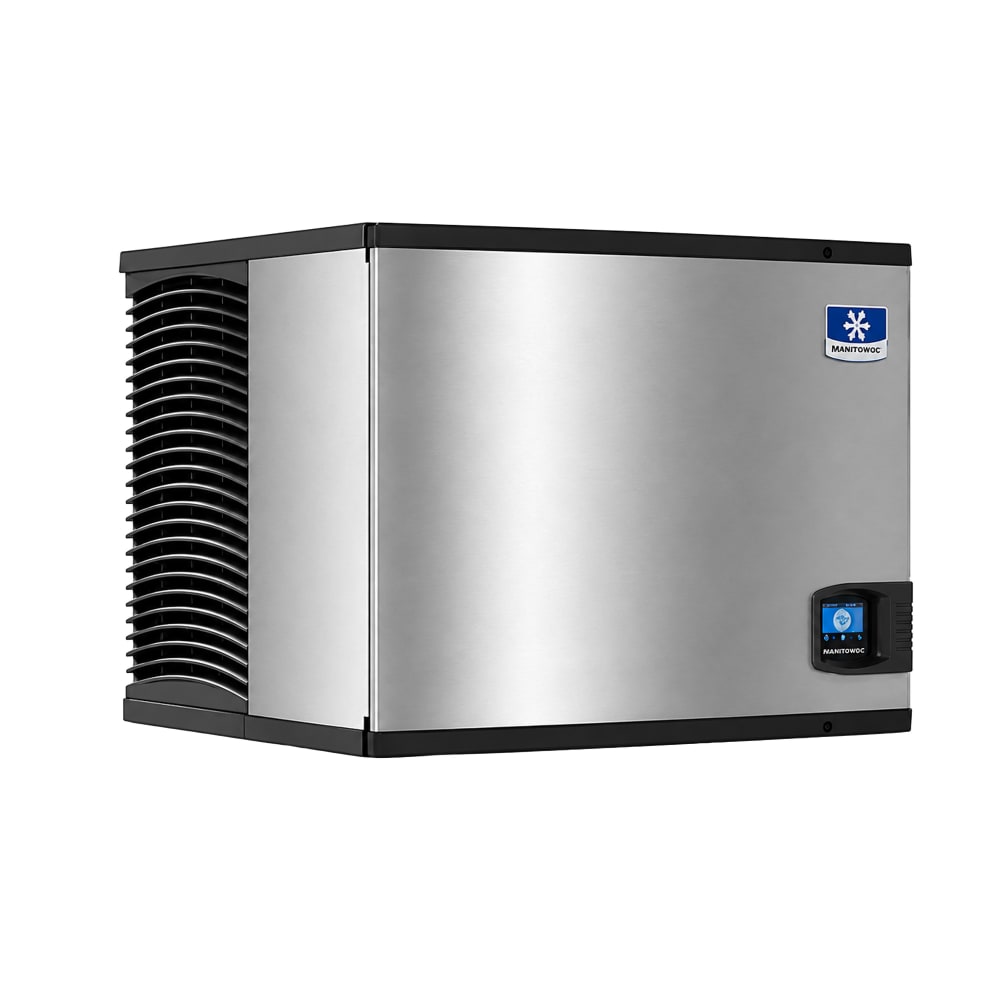

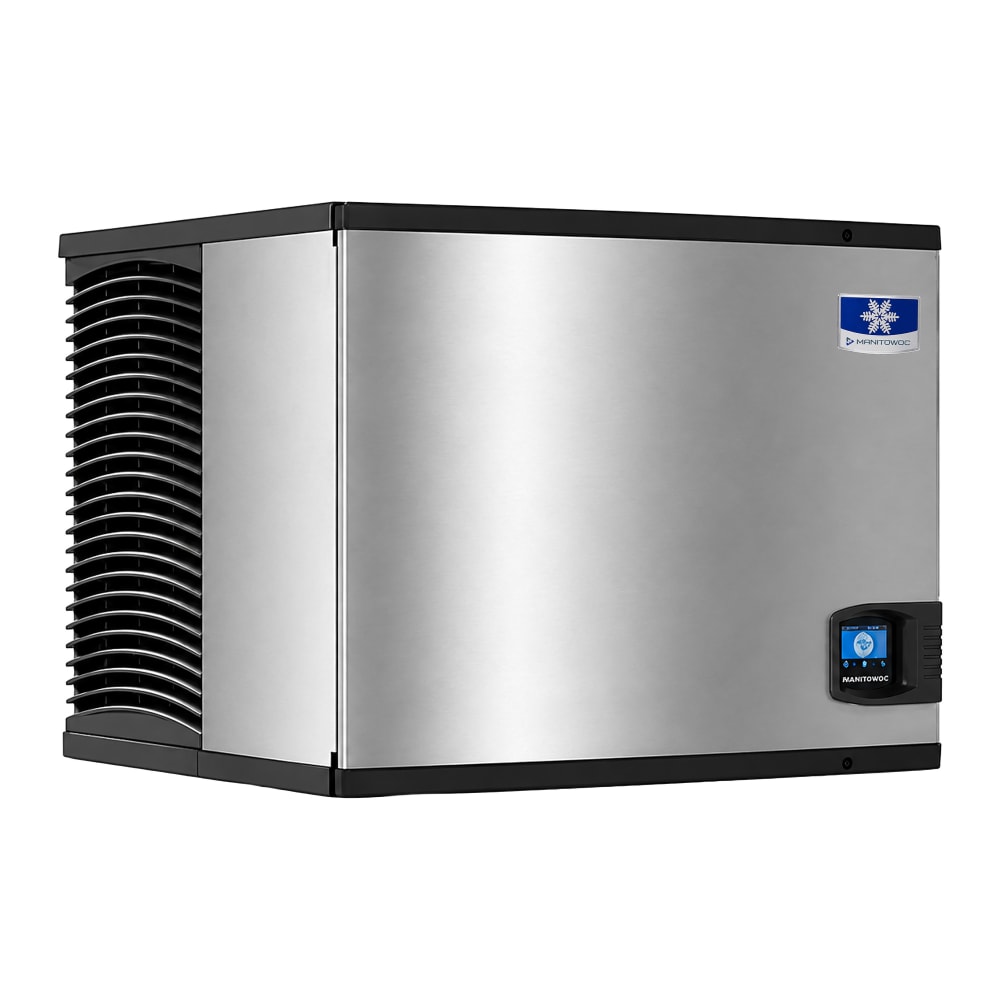

Manitowoc Ice IDT0500A 30" Indigo NXT™ Full Cube Ice Machine Head - 520 lb/24 hr, Air Cooled, 115v

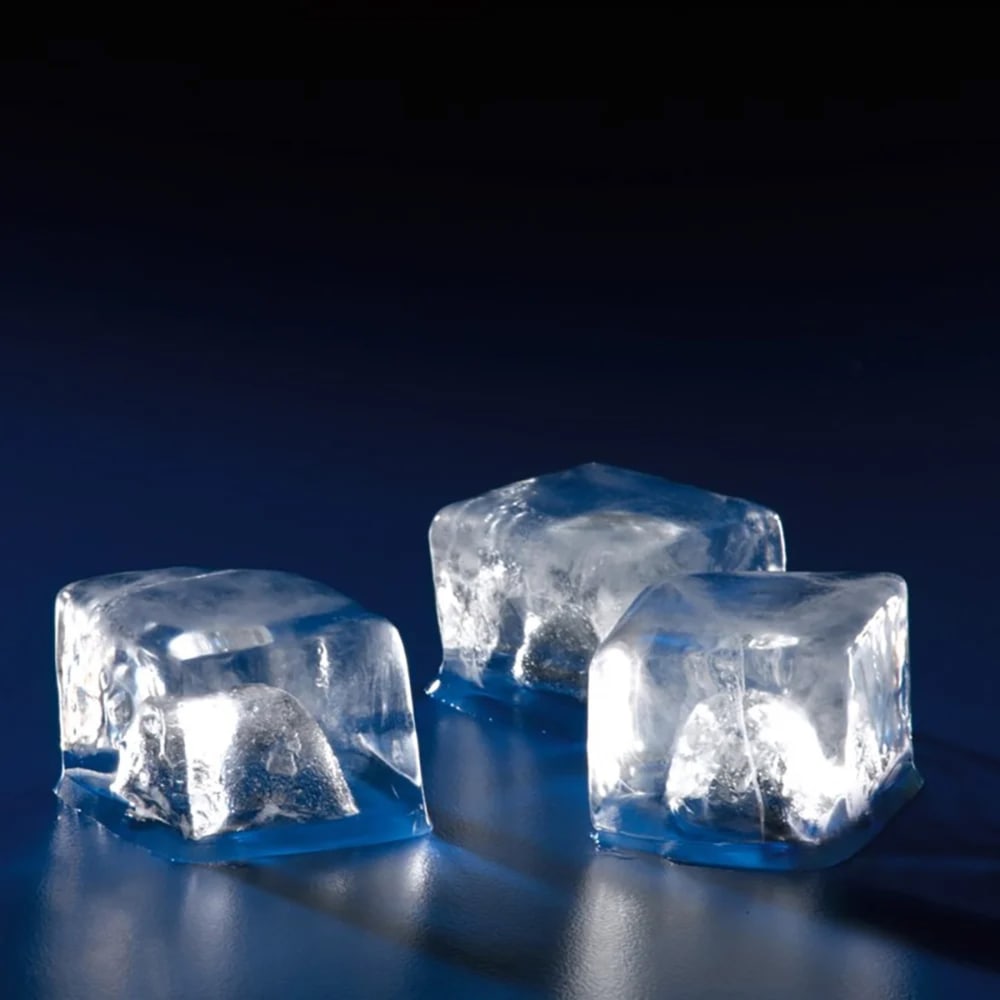

Making as much as 520 pounds of ice in 24 hours, the Manitowoc Ice IDT0500A Indigo NXT™ ice maker fits into medium-volume applications. The amount it makes depends on the ambient air and incoming water temperatures, with higher levels resulting in less ice production. Perfect for soft drinks and bagged applications, the unit makes full-cube ice.

The acoustical sensing probe in the Manitowoc Ice IDT0500A full cube ice machine head uses sound waves to detect ice thickness before dropping. With its touchscreen display, this unit can be programmed to turn off at certain times of the day or to produce a specific volume of ice. The removable components as well as the stainless steel, DuraTech® coated exterior are easy to clean, with AlphaSan® technology preventing bacteria buildup on the inside.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 520-lb. maximum daily ice production
• 400-lb. AHRI-certified daily ice production

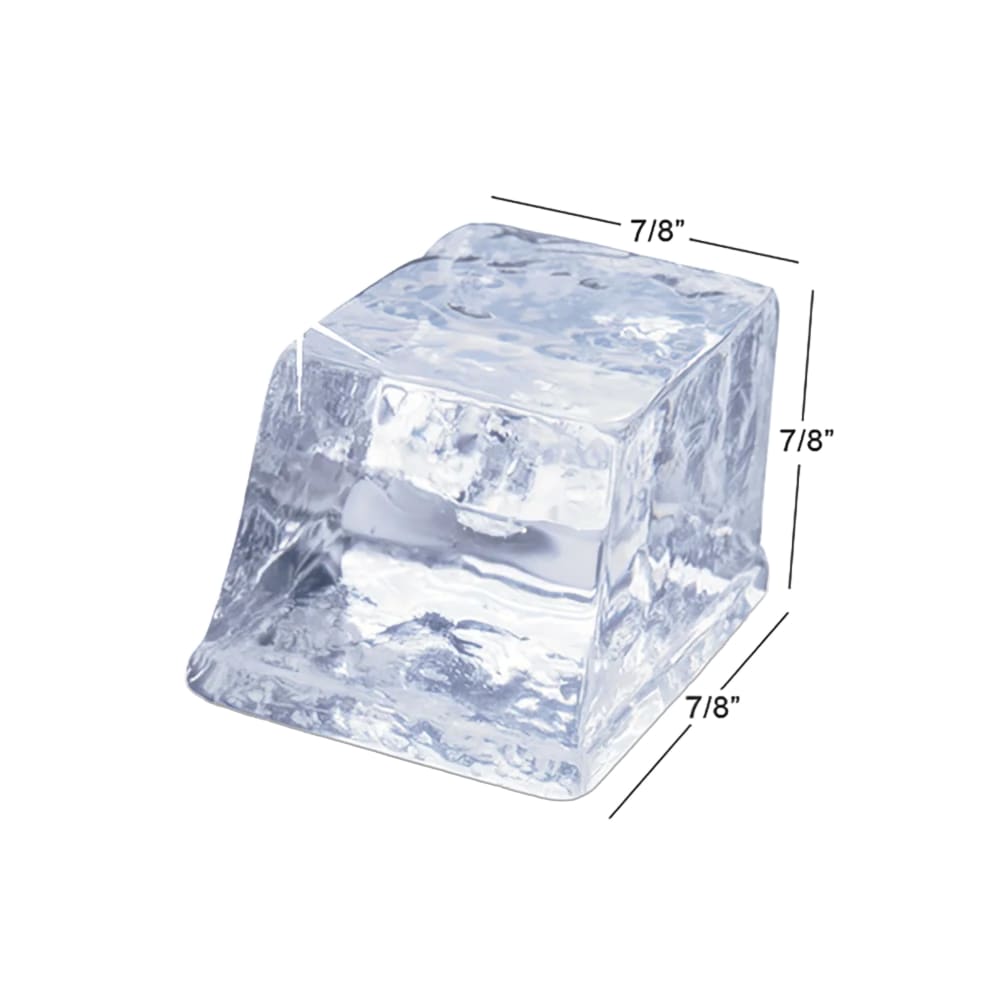

• Dice ice size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.

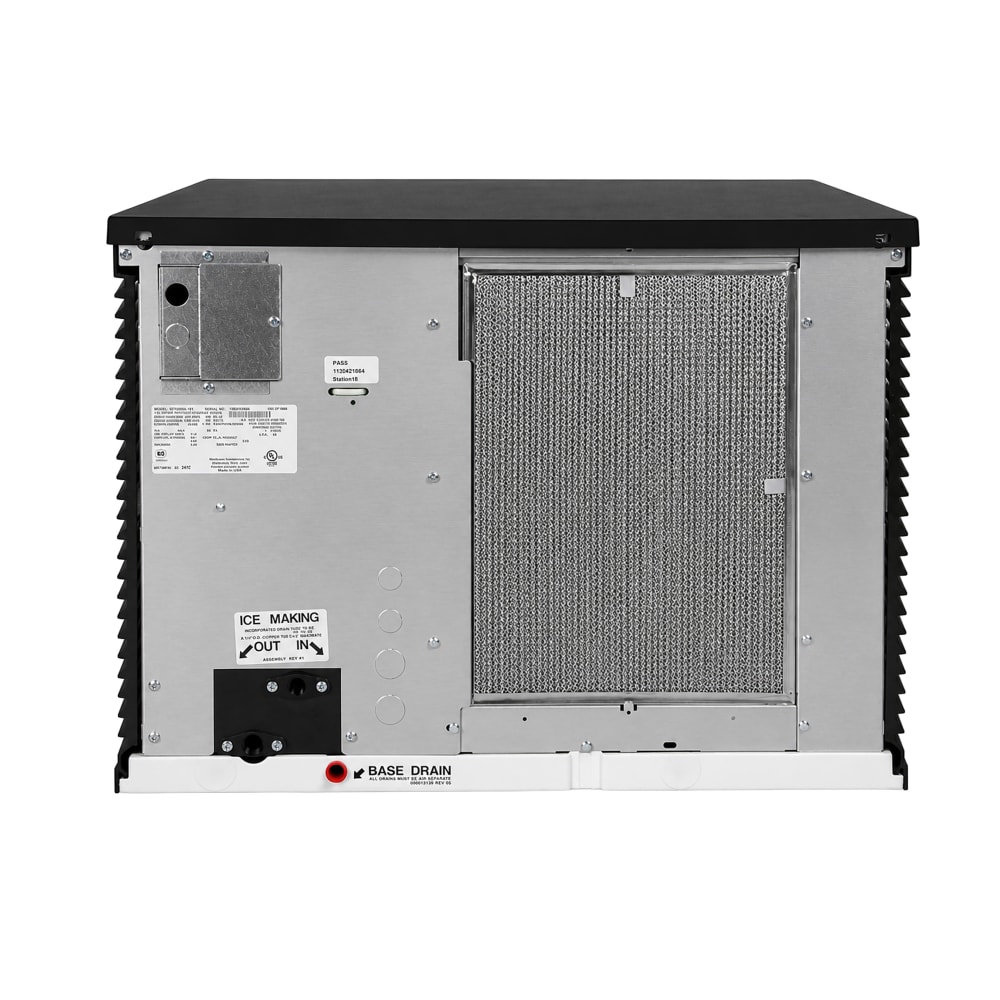

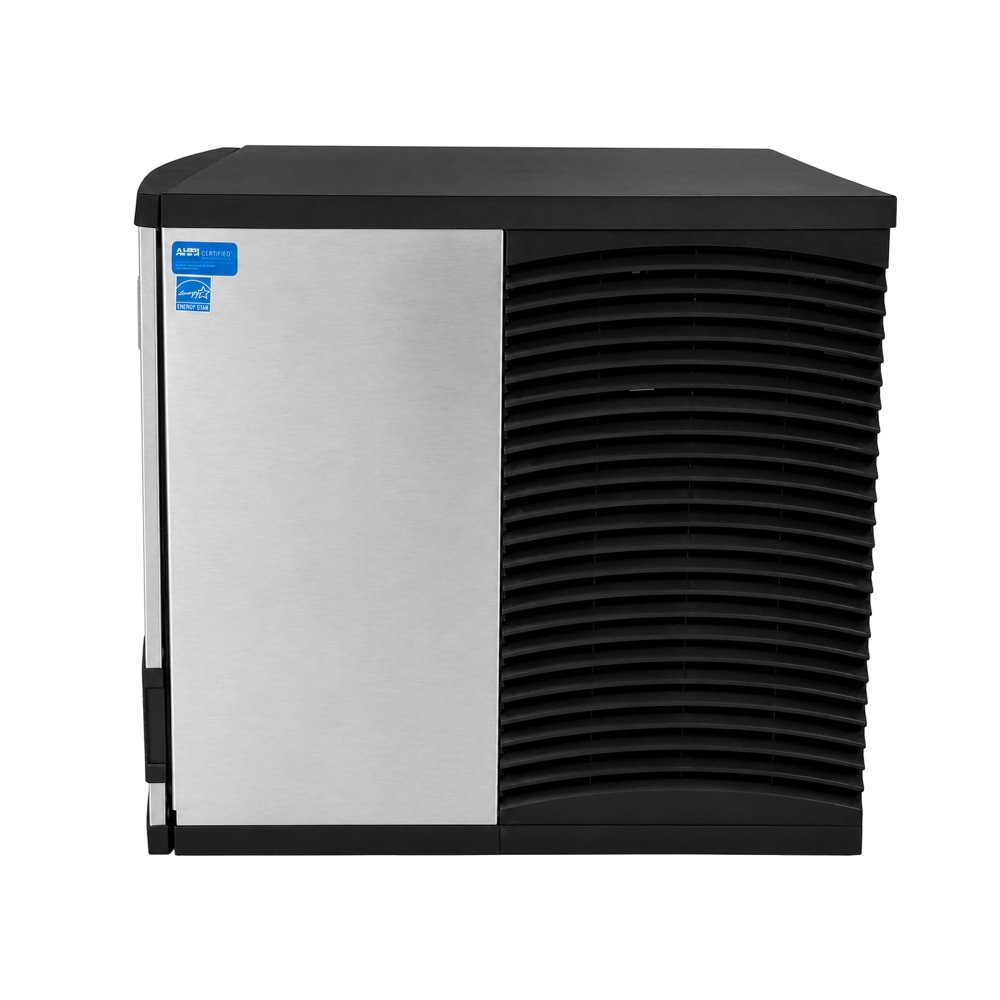

• Air-cooled, self-contained condenser
• Uses R410A refrigerant
• DuraTech-coated stainless steel resists fingerprints
• Antimicrobial slows internal bacteria buildup
• Self-diagnosing and preventative maintenance
• Removable water trough, distribution tube, curtain, probe, and pump
• Programmable by time and volume
• Operated by exterior touchscreen
• Hinged door swings open to reveal internal components
• Detects ice thickness with soundwaves before dropping
• 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F

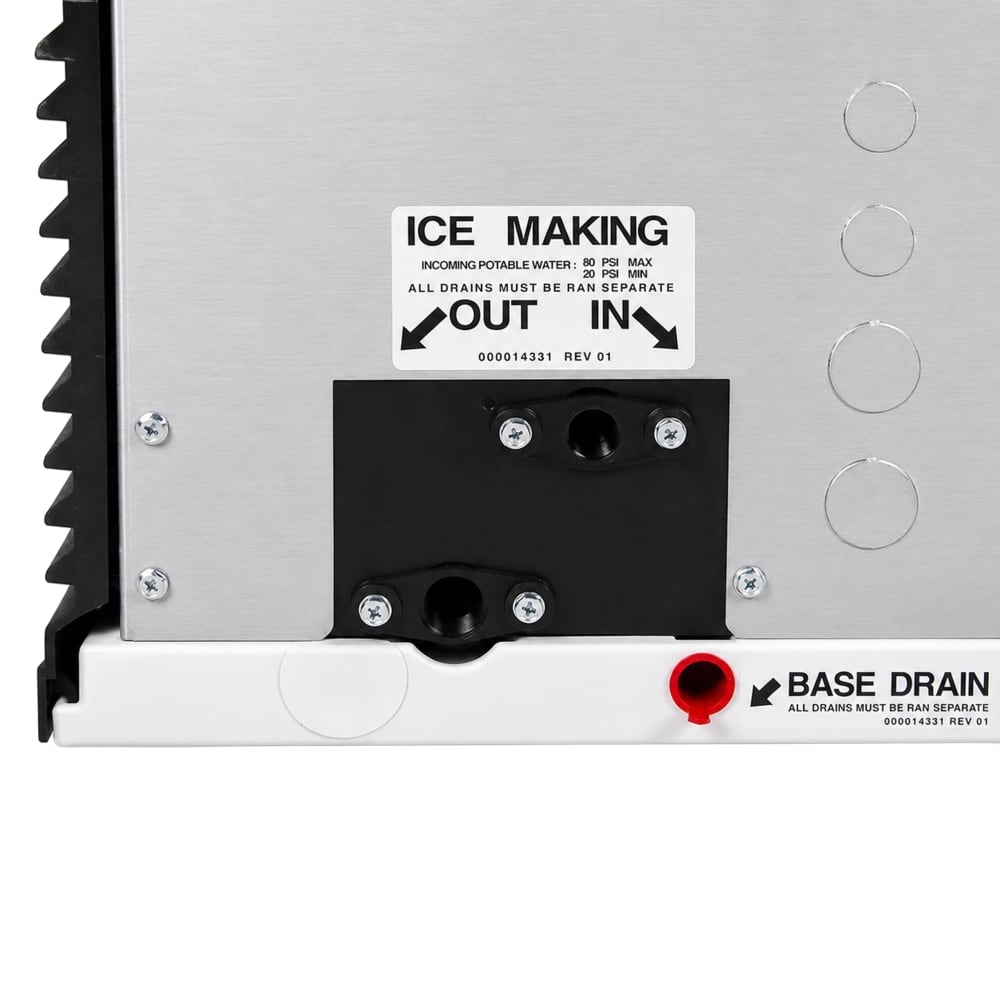

• Ideal incoming water pressure: 20-80 PSIG
• Ice storage bin or dispenser is sold separately

Product Features

Dimensions & Utilities

• 30 in. W x 24 in. D x 21.5 in. H
• 11.5 A, 5.25 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 520 lb./24 hours at 70°/50° (400 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Warranty, 5-year Compressor Parts

Manitowoc Ice IDT0500A Specifications

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure

Certifications
