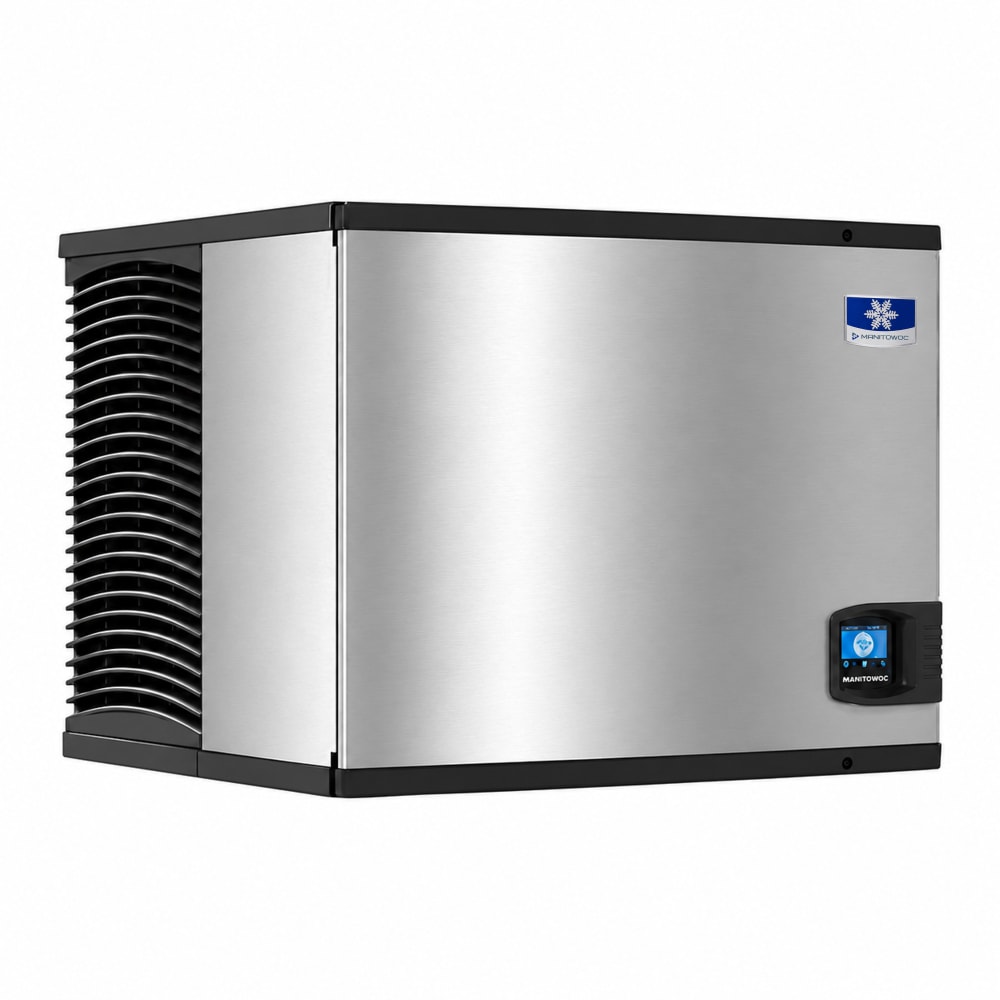

Manitowoc Ice IDP0500W 30" Indigo NXT™ Full Cube Ice Machine Head - 496 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
$4,771.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Manitowoc Ice IDP0500W Description
Over the course of a day, the Manitowoc Ice IDP0500W 161 Indigo NXT™ ice machine head can make 596 pounds, but this amount is only possible if ambient air and incoming water temperatures are at an ideal level. It makes dice-size ice, which is often called full-cube ice; these cubes are used in drinks in bars and restaurants. The unit has a water-cooled condenser, so it requires a large amount of water to operate.
The Manitowoc Ice IDP0500W 161 ice machine head has a water-cooled, self-contained condenser and makes full-size ice cubes. To keep the unit in working condition, self-diagnostics and preventative maintenance run 24 hours a day, and multiple components can be removed for cleaning. Additionally, the stainless steel exterior is coated with DuraTech® to prevent smudges and fingerprints, and the interior uses AlphaSan® antimicrobial to prevent bacteria formation. This unit detects ice density with soundwaves to assure a they are the correct size every time before dropping.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 496-lb. maximum ice production in 24 hrs.
- Dice ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Stainless steel clear coated with smudge-resistant DuraTech
- AlphaSan antimicrobial prevents internal bacteria growth
- R290 refrigerant
- For cleaning, water-trough, tube, curtain, probe, and pump are removable
- Acoustical ice sensing probe detects ice thickness
- All-day preventative maintenance and diagnostics
- Internal components accessed by hinged door
- Programmable by time or ice volume
- Icon-based touchscreen controls
- Self-contained water-cooled condenser
- 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
- 30 in. W x 24 in. D x 21.5 in. H
- 10.8 A, 4.41 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDP0500W within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Manitowoc Ice IDP0500W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 496 |
| Also Known As | IDT0500W |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 21.5 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 163.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice ID0503W161
Compare to Similar Items
| Attributes |
Manitowoc Ice IDP0500W Manitowoc Ice IDP0500W 30" Indigo NXT™ Full Cube Ice Machine Head - 496 lb/24 hr, Water Cooled, 115v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $4,771.00 / Each | $4,047.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | Typically ships in 4 - 8 Business Days |
| 24 Hr. Production (lb) | 496 | 507 |
| Ice Type | Full Cube | Full Cube |
| Compressor Type | Water Cooled | Water Cooled |
| Width (in) | 30 | 30 |
| Rating | Best | Best |
| Voltage | 115 | 115 |
| Series | Indigo NXT™ | Prodigy ELITE® |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
The certified output is 400 lbs. at 90°F/70°F.
Yes. It requires condenser cooling water.
The AlphaSan® protection limits bacterial growth.
Yes. It schedules production by time or volume.
Yes. It continuously monitors operating status.
It uses an acoustical sensing probe.
The DuraTech™ coating resists smudges and fingerprints.
It can produce up to 496 lb. of ice per 24 hours.
It makes full-cube ice.
It measures 30 in. W x 24 in. D x 21 1/2 in. H.
It uses a water-cooled condensing system.
It requires 115 V electrical service.
It uses single-phase power.
It uses R290 refrigerant.
It requires a hardwired electrical connection.
Its listed certifications include AHRI, cULus Listed, CE, and NSF.
Its exterior is made of stainless steel.
It requires a 3/8-in. water inlet connection.
No, this ice machine head is sold without an ice bin.
It must be paired with a separately purchased ice bin or dispenser.
It must be paired with a separately purchased ice bin or dispenser.
It has a one-touch cleaning function.
Yes, it has an alert system.
