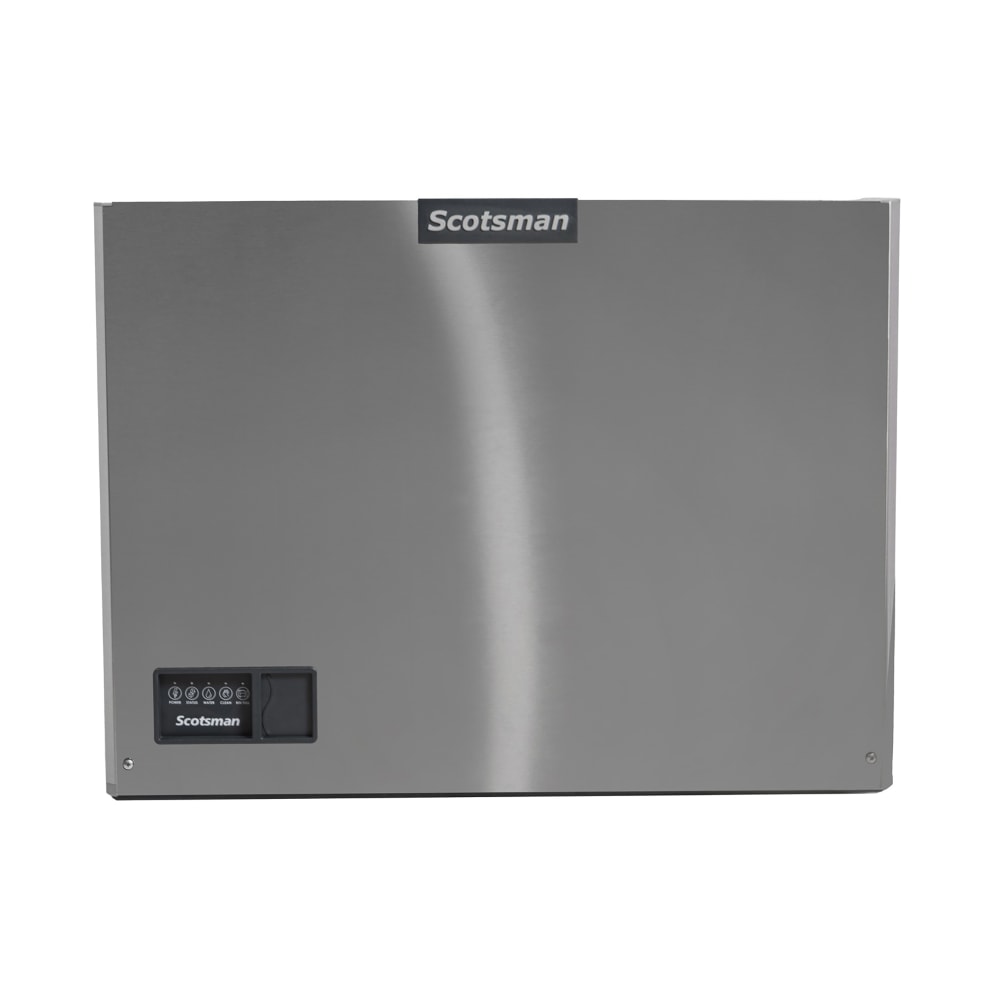

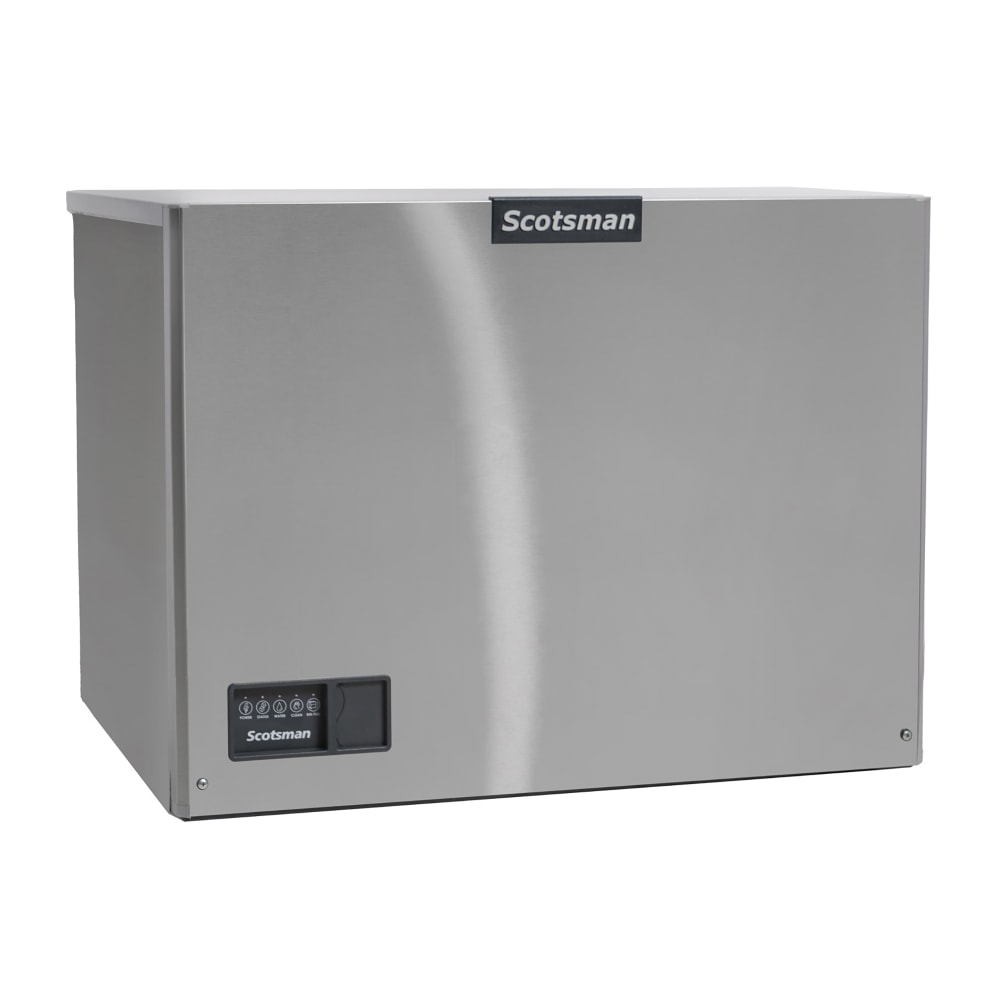

Scotsman MC0530MW-1 30" Prodigy ELITE® Full Cube Ice Machine Head - 500 lb/24 hr, Water Cooled, 115v/1ph

To streamline installation and service, the ice Scotsman MC0530MW-1 Prodigy ELITE® maker features a self-contained condenser and self-aligning front panel that provides access to key components. A harvest assist feature helps guide ice through the unit, while WaterSense adjustable purge control eliminates scale accumulation to optimize performance. Operators can scan the unit-specific QR code for up-to-date maintenance information, and AutoAlert™ lights provide operational updates. As this unit can be paired with a mobile app, operators can easily access its machine dashboard and controls as well as a step-by-step cleaning guide.

Inhibiting the growth of bacteria, mold, and mildew, the Scotsman MC0530MW-1 ice machine head is treated with AgION™ antimicrobial protection. Cooling with R-404A refrigerant, it produces a maximum of 500 pounds of medium cube ice per day in optimal conditions. When conditions are less than ideal, it produces as much as 400 pounds. For durability and corrosion resistance, this unit features a stainless steel finish.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Prodigy ELITE series
• 500-lb. maximum daily ice production
• 400-lb. AHR-certified daily ice production
• Produces medium cube ice

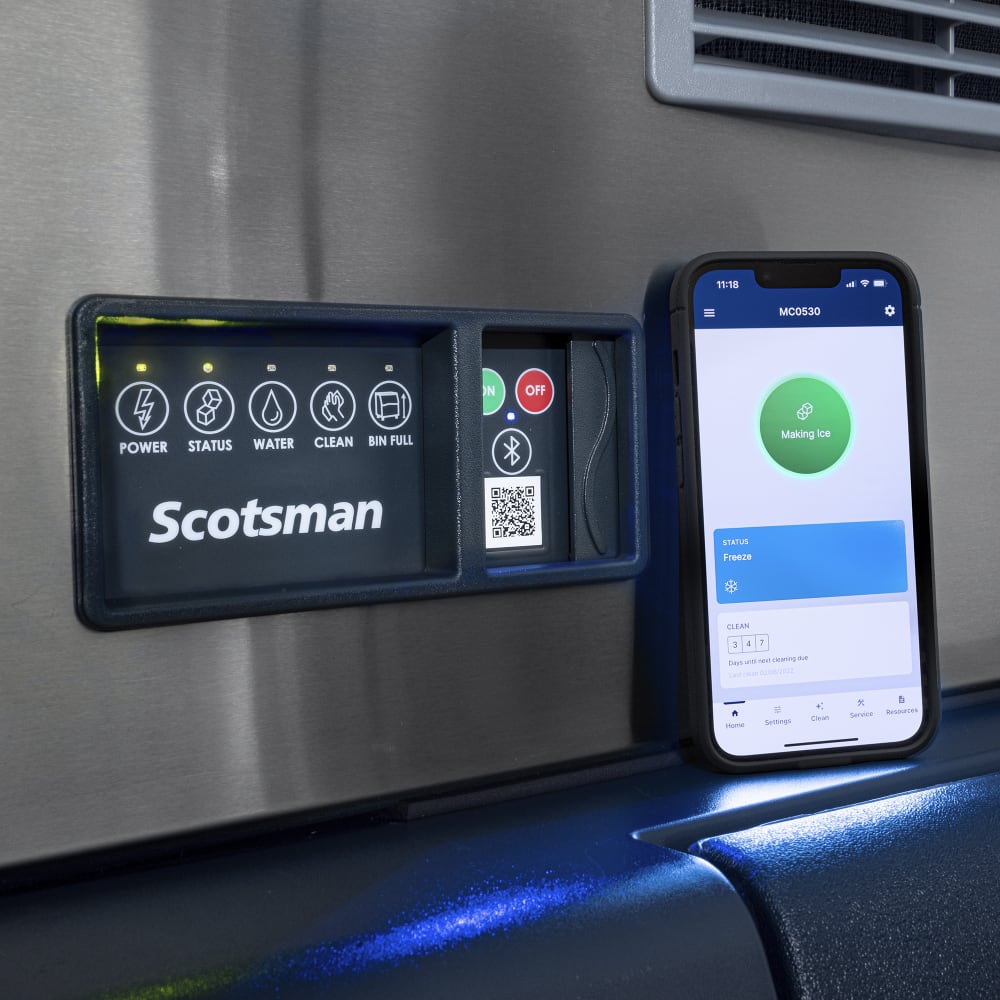

• Connects to mobile app via bluetooth for guided cleaning, settings adjustments, and diagnostics
• ICELINQ® mobile app compatible
• Individual ice cube dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. ⁷⁄₈ in.
• Durable stainless steel finish
• Operational updates provided by AutoAlert indicating lights
• Condenser is self-contained
• Water cooled
• Unit-specific QR code
• Front-located air filter
• 1-touch cleaning
• Self-aligning front panel ensures access to key components
• WaterSense adjustable control purges scale from unit
• Treated with AgION antimicrobial protection
• Harvest assist helps guide ice through unit
• Uses R-404A refrigerant
• Operating ambient temperature range: 50-100 degrees F
• Operating water temperature range: 40-000 degrees F
• Operating incoming water pressure: 20-80 PSIG
• 7,900-BTU transfer capacity

Dimensions & Utilities

• 30 in. W x 24 in. D x 23 in. H
• 13.5 A, 5 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Scotsman MC0530MW-1 within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 500 lb/24 hours at 70°/50° (410 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman MC0530MW-1 Specifications
