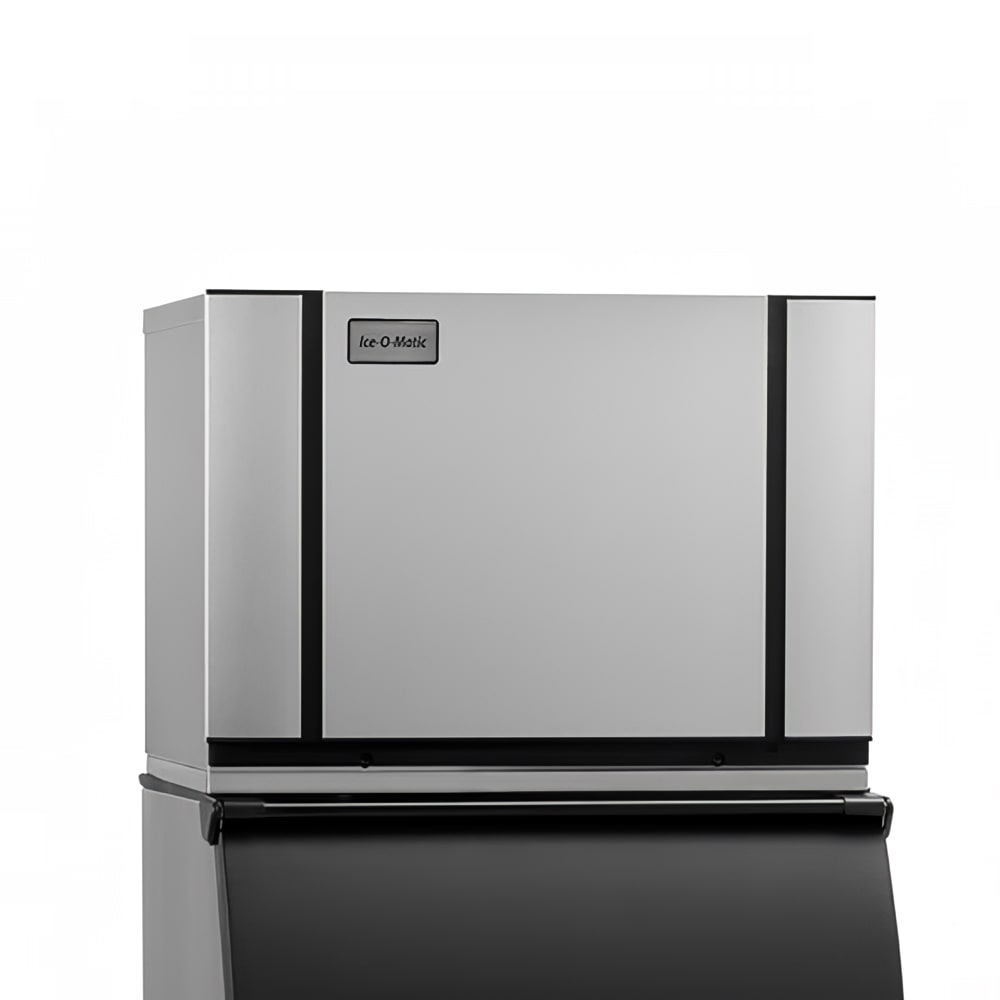

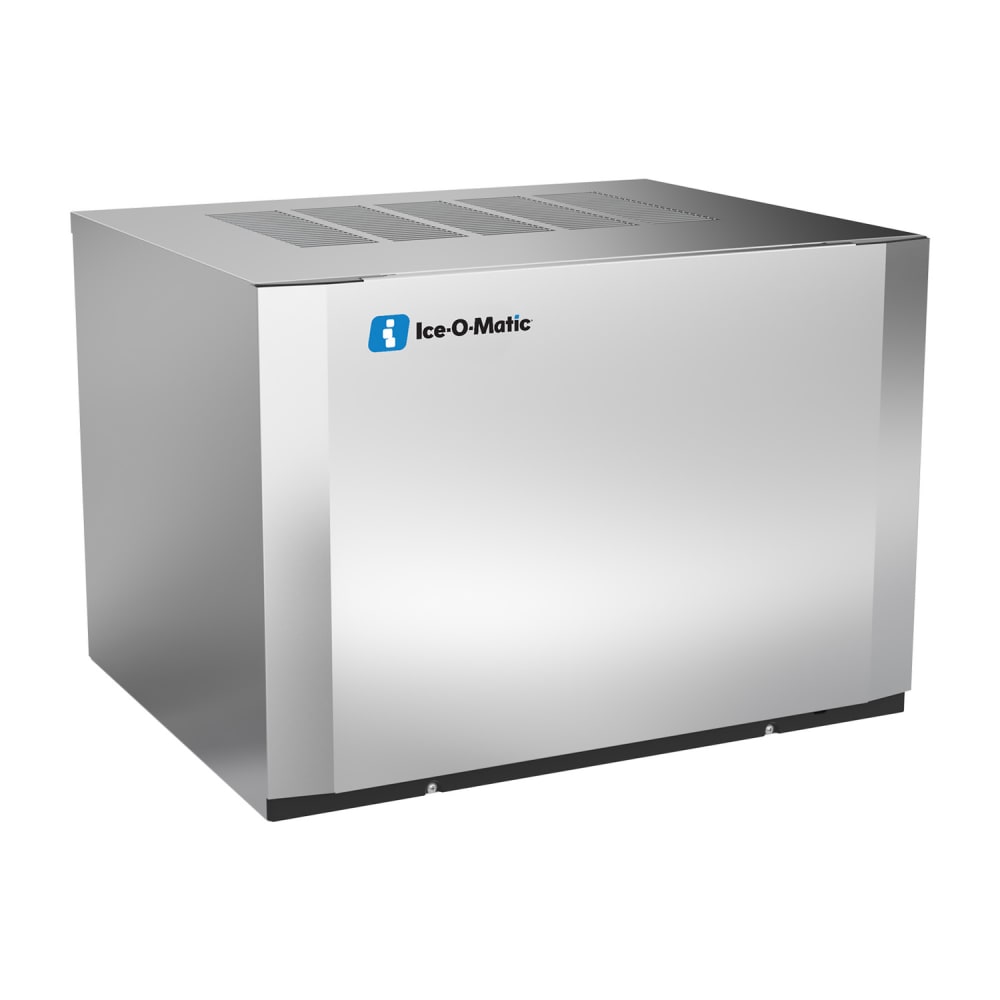

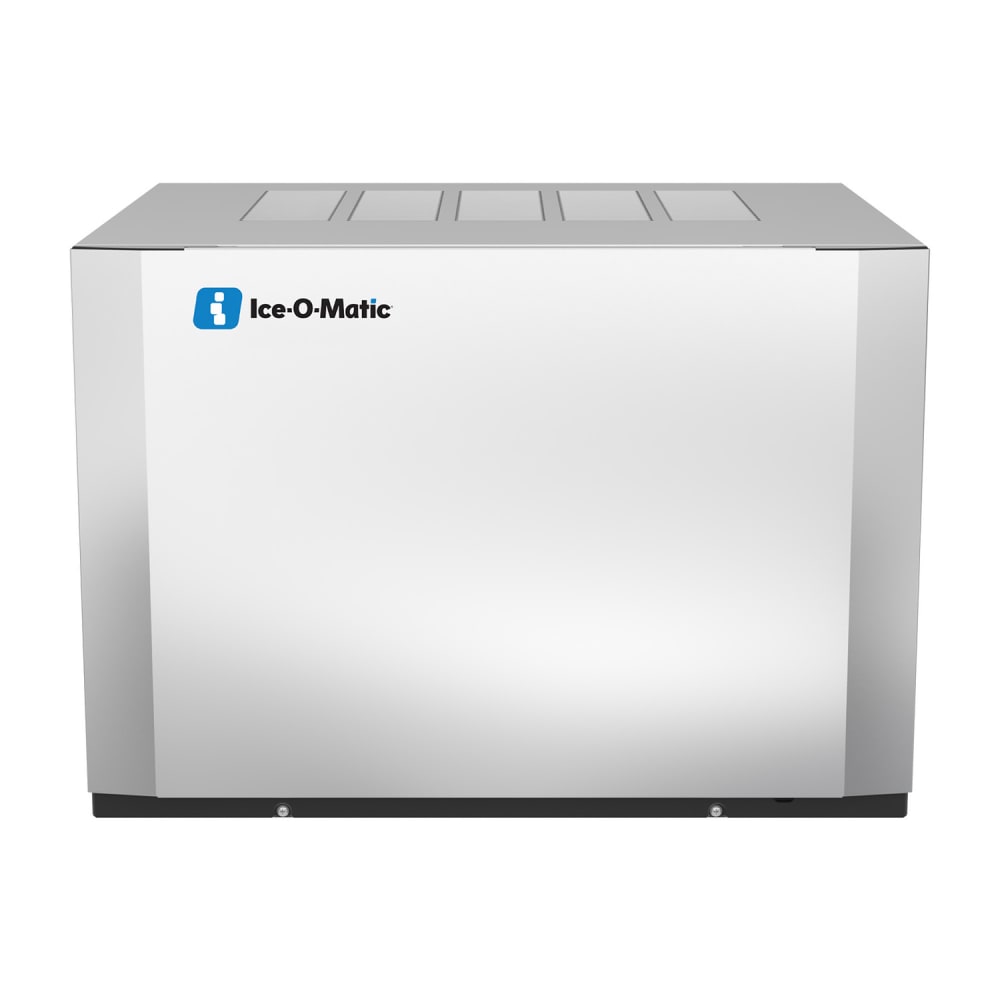

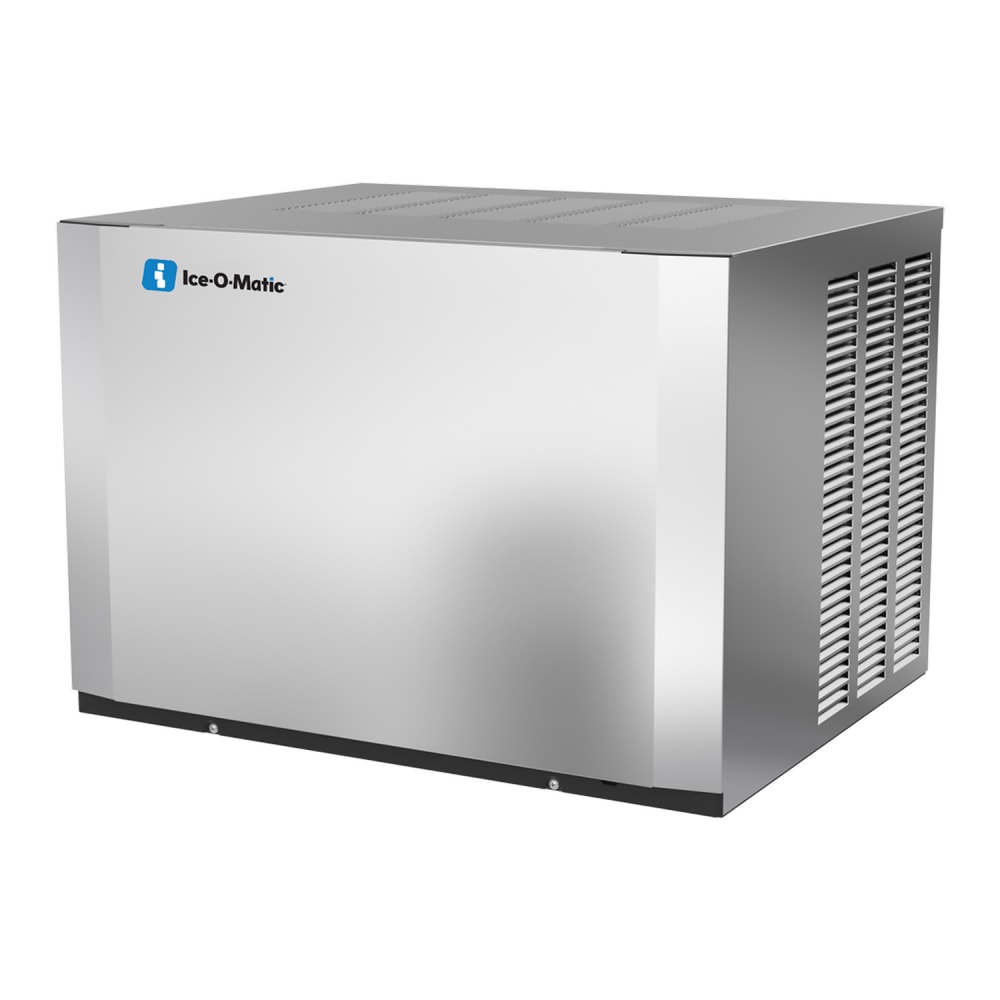

Ice-O-Matic CIM0530FA 30" Elevation Series™ Full Cube Ice Machine Head - 561 lb/24 hr, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM0530FA • MPN: CIM0530FA
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $2,611.70

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM0530FA Description


The Ice-O-Matic CIM0530FA Elevation™ modular cube ice maker dispenses full-cube ice that is perfect for soft drinks and cocktails, and for bagging and dispensing systems. Since this is a head-only unit, it must be paired with a bin or dispenser, which must be purchased separately. In operating temperatures of 70 degrees Fahrenheit, the unit can produce 520 pounds of ice. It is easy to install and service thanks to the Universal Smart Harness™ control board that uses a common configuration, universal components, and digital diagnostics. It has a dual exhaust system that can discharge air pulled over the compressor from either the top or side, which allows for it being installed next to walls or in areas with low ceilings.

Cleaning the unit is simple thanks to its one-touch descaling and sanitizing controls; an LED status display indicates when cleaning is necessary. The Ice-O-Matic CIM0530FA Elevation modular cube ice maker’s plastic food zone is formed without crevices, so it is easy to wipe down. The food zone surfaces are formed with Agion® silver ion antimicrobial protection, which helps prevent the growth of bacteria and fungus like mildew. Key components in the ice production area can also be removed for cleaning and are dishwasher safe.

Product Details

  • Dispenses full-cube ice that works well in soft drinks and cocktails
  • Cubes measure 78 in. x 78 in. x 78 in.
  • Estimated production capacity of 520 lbs. each day in 70 degree F temperatures
  • Dual exhaust system allows hot air to discharge from the side or top, which increases install location options
  • Air-cooled, self-contained condenser

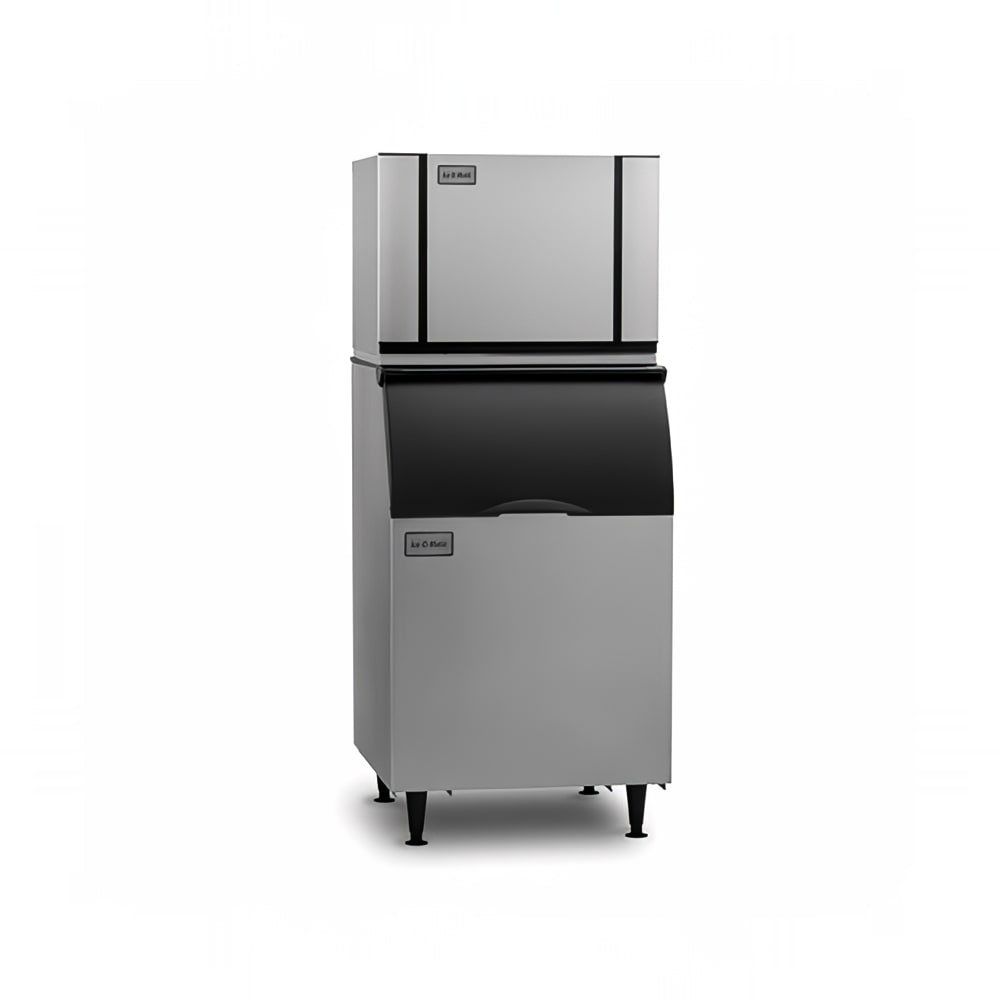

  • Must be paired with a bin or dispenser (sold separately)
  • Universal Smart Harness control board uses a common configuration, digital diagnostics, and universal components to simplify installation and service
  • Plastic parts are recyclable and BPA free
  • CE approved; cULus listed; NSF and ENERGY STAR certified

Product Features

Product Features

Easy to Clean

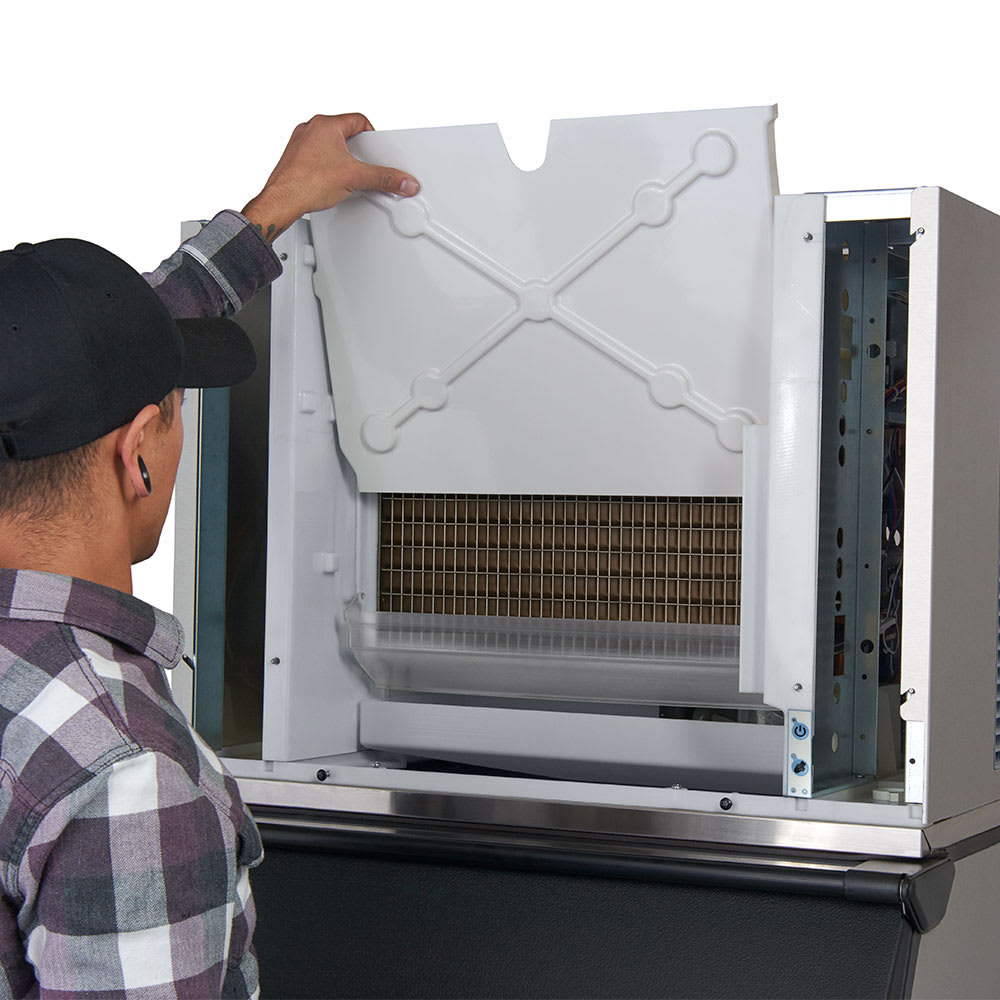

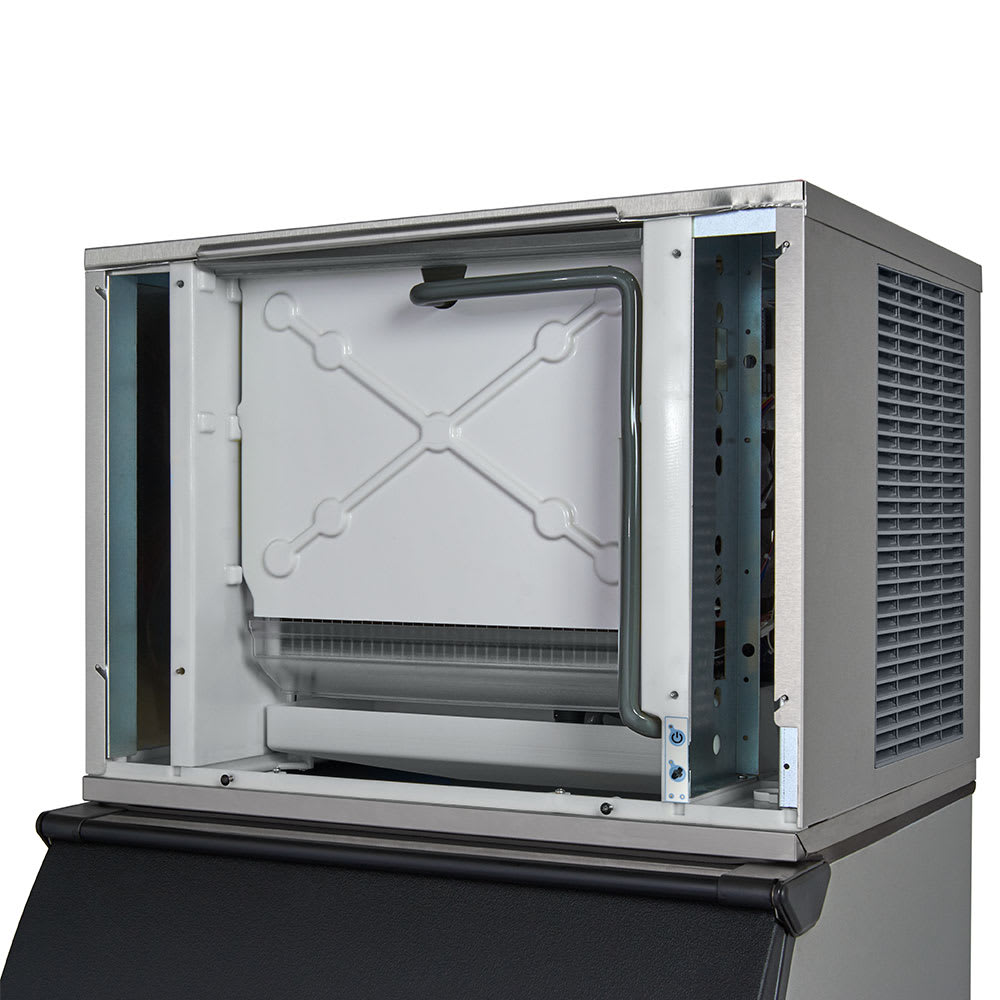

  • Plastic food zone is formed to eliminate cervices, so it's easier to clean

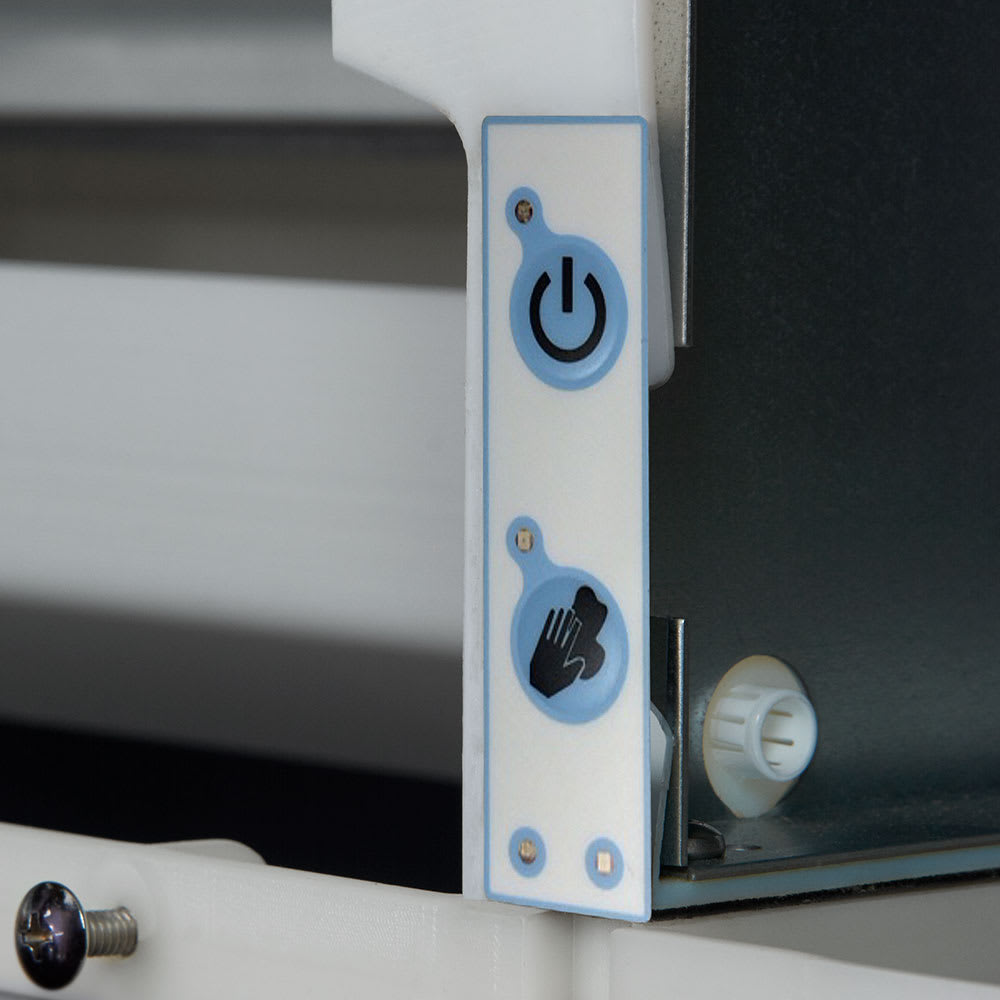

  • One-touch controls for descaling and sanitizing
  • Agion antimicrobial protection inhibits the growth of bacteria
  • LED status display indicates when cleaning is needed

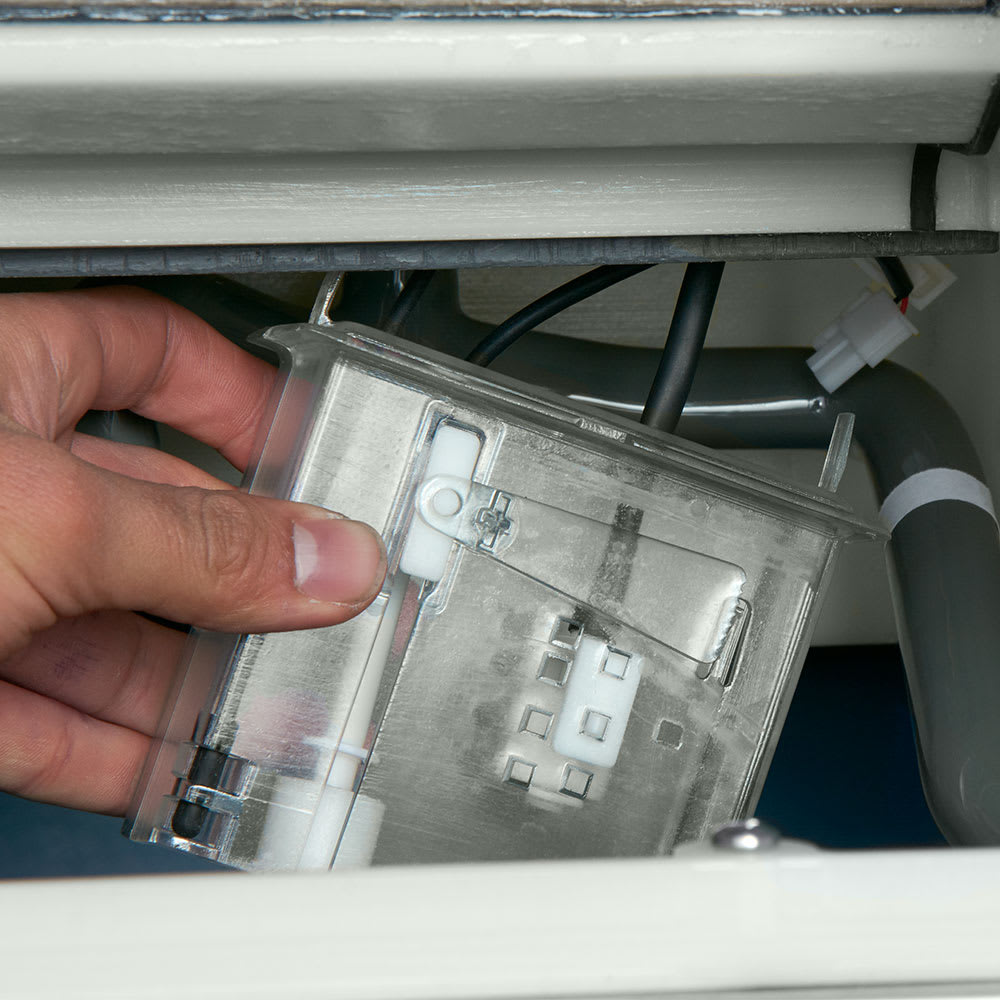

  • Dishwasher-safe components snap in and out for easy cleaning

Dimensions & Utilities

  • 3014 in. W x 2414 in. D x 2114 in. H
  • 17.8 A, 5.87 kW
  • 115 V/60 Hz/1 ph

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM0530FA Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
24 Hr. Production (lbs) 561
Ice Type Full Cube
Width (in) 30.25
Compressor Type Air Cooled
Depth (in) 24.25
Product Ice Machine Head
Product Type Ice Makers & Bins
Series Elevation Series™
Height (in) 21.25
Voltage 115
Phase 1
Made in USA Yes
Warranty 3-yr. Parts & Labor; 5-yr. Evaporator; 5-yr. Compressor Parts
Recommended Bins B25PP, B40PS, B55PS, B110PS, B700-30, B1000-48, B1300-48, B1325-60, B1600-60, CD40030, CD40130, IOD200, IOD250
Cold Water (in) 3/8
Indirect Waste Size (in) 3/4
Amps 17.8
Production Range (lbs/day) 100-999 lb
Width (in) Range 30 - 39
Special Features Agion® Antimicrobial
Special Features Dual Exhaust
Weight 160.00
Ice-O-Matic CIM0530FA Certifications
  • UL
  • NSF
  • Energy Star
