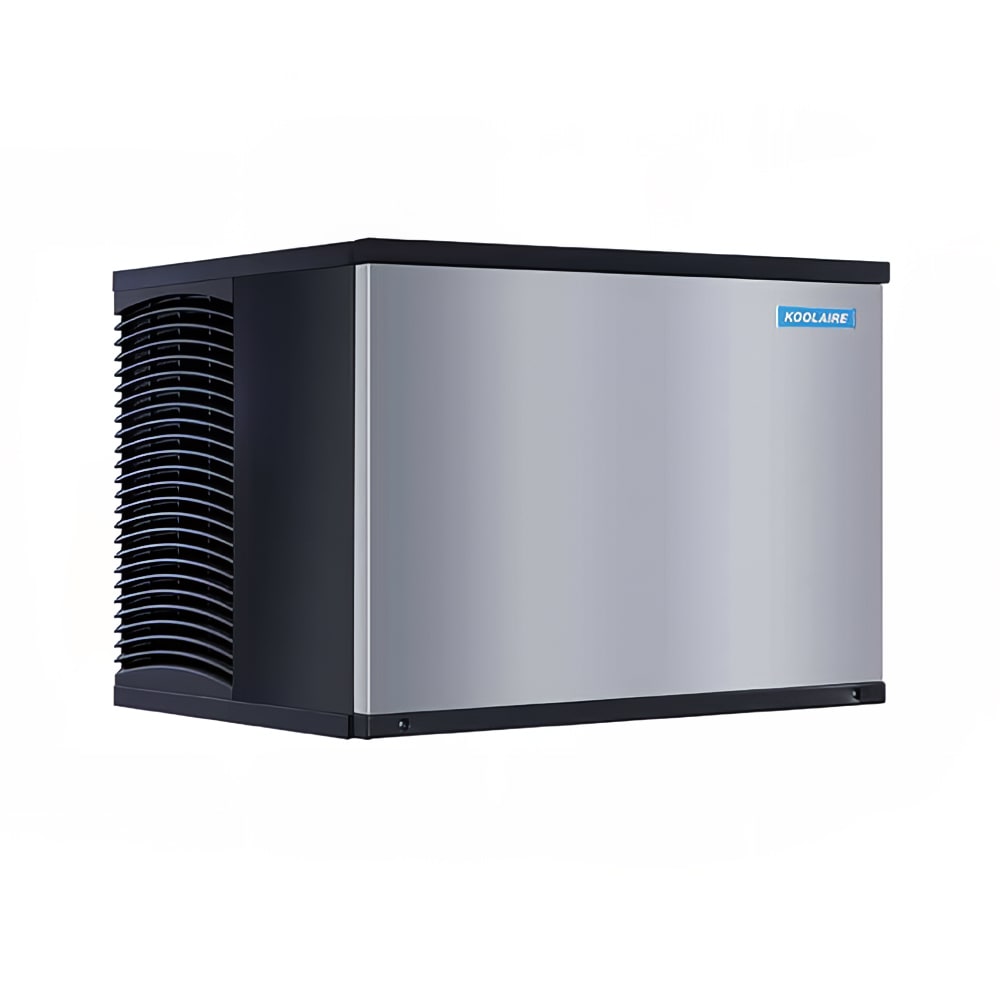

Koolaire KYT0500A 30" Ice Kube Half Cube Ice Machine Head - 550 lb/24 hr, Air Cooled, 115v/1ph

In suitable conditions, the Koolaire KYT-0500A ice machine head creates 550 pounds of ice in a day. Water flows through the distribution tube and is siphoned into the evaporator grid to form ice. This grid then shapes the water into half-cube ice, which has a narrow shape that can be packed into a glass more tightly than full-cubes. Because less liquid is required to fill a glass, this shape helps restaurants or bars save money on beverages. Frozen cubes drop from the grid and fall into a K-570 ice bin for storage.

The Koolaire KYT-0500A ice maker has a design that facilitates servicing. A water shield helps protect its dry parts from water, so less repairs are needed. Air-cooled condensers' fans are often easier to repair than water-cooled condensers' parts. When cleaning, the distribution tube, pump, and shield do not require tools for removal. Dirty spots show up clearly on the white plastic food in the food zone areas.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 550-lb. maximum daily ice production when the surrounding air is 70 degrees F and incoming water is 50 degrees F
• 425-lb. maximum daily ice production when the surrounding air is 70 degrees F and incoming water is 50 degrees F
• Produces half-size cubes
• Half-cube ice size: 0.375 in x 1.125 in. x 0.875 in.
• Air-cooled condenser
• Runs with R-410A refrigerant
• Staff can see debris and dirt on the white plastic food zone for cleaning
• Water is less likely to damage the internal parts due to the water shield
• Shield, pump, and distribution tube do not require tools for removal
• Exterior has the appearance of stainless steel
• Fingerprint-resistant finish
• Ice bin sold separately
• Ambient air temperature: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Water pressure: 20-80 PSI

Dimensions & Utilities

• Overall dimensions: 24 in. L x 30 in. W x 21.5 in. H
• 12.7 A, 5.3 kW
• 115 V/60 Hz/1 ph

*Free shipping on Koolaire KYT0500A within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30"W, production capacity up to 550 lb/24 hours at 70°/50° (425 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, R410a refrigerant, NSF, cULus, CE, ENERGY STAR® (replaces KY-0500A)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
