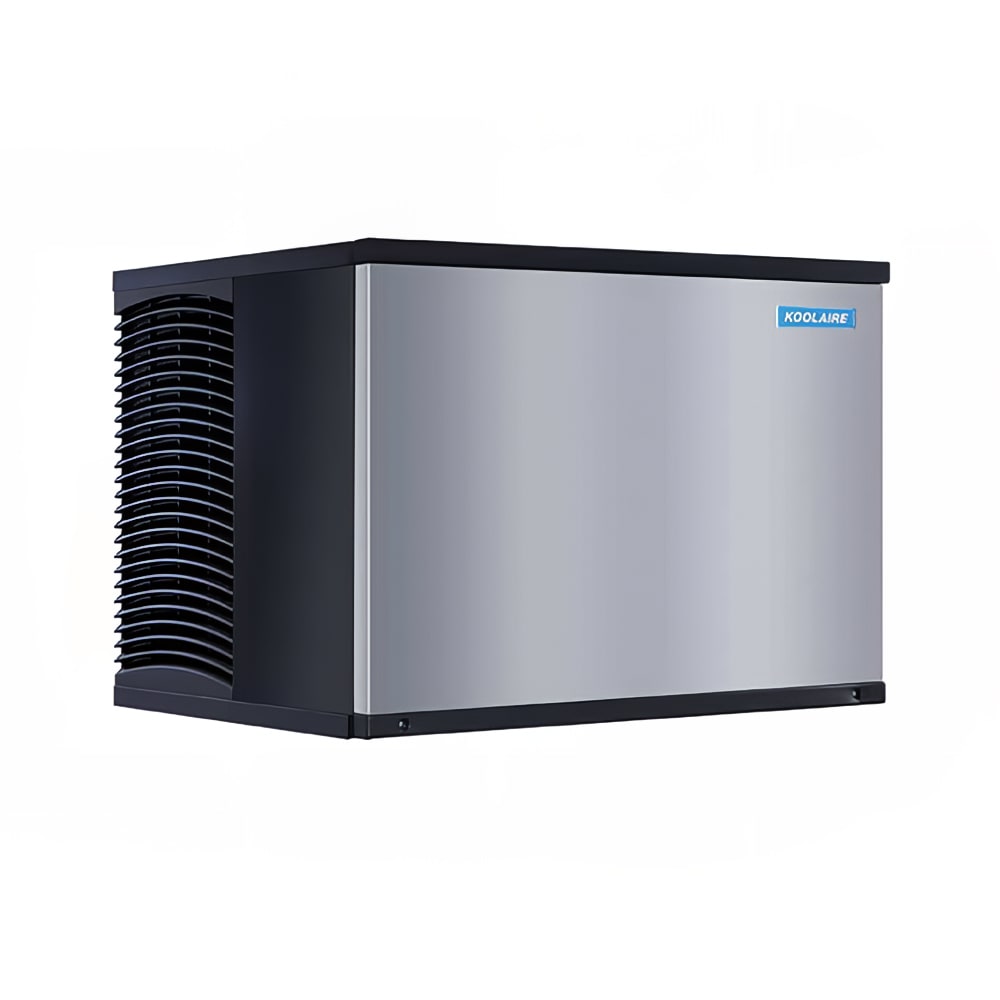

Koolaire KYT0400A 30" Ice Kube Half Cube Ice Machine Head - 450 lb/24 hr, Air Cooled, 115v/1ph

The Koolaire KYT-0400A ice machine head can produce 450 pounds of ice in a day, depending on air and water temperatures. Cubes are formed in the evaporator grid after water is poured in by the distribution tube, and a splashguard ensures that water does not contact surfaces that should remain dry. The grid forms half-size cubes that can be used in cold displays or beverages. Although they melt more quickly than full-size cubes, they fill more space in a glass. This machine can be combined with a Koolaire ice bin to catch and store ice as it is produced.

The Koolaire KYT-0400A ice maker has a smooth finish that looks like stainless steel and reduces smudging and fingerprints. Its condenser is air cooled, so it is less expensive to operate than a water-cooled condenser. When cleaning the unit, employees clearly can see dirt and scale buildup in areas that contact water since they stand out against the white plastic surfaces. Interior components such as the distribution tube and shield are removable for more thorough cleaning.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 450-lb. daily ice production capacity when the surrounding air is 70 degrees F and incoming water is 50 degrees F
• 350-lb. daily ice production capacity when the surrounding air is 90 degrees F and incoming water is 70 degrees F
• Creates half-size cubes
• Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Food zone has white plastic so staff can identify areas that need cleaning
• Shield helps protect the internal parts from excess water
• Shield, pump, and distribution tube are removable for cleanup
• Condenser is cooled by air
• Cools using R-410A refrigerant
• Smear- and smudge-resistant finish looks like stainless steel
• Ice bin sold separately
• Surrounding air temperature: 40-100 degrees F
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI

Dimensions & Utilities

• 24 in. W x 30 in. L x 21.5 in. H
• 12.1 A, 5.6 kW
• 115 V/60 Hz/1 ph

*Free shipping on Koolaire KYT0400A within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30"W, production capacity up to 450 lb/24 hours at 70°/50° (350 lb AHRI certification at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, R410a refrigerant, NSF, cULus, CE, ENERGY STAR® (replaces KY-0350A)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
