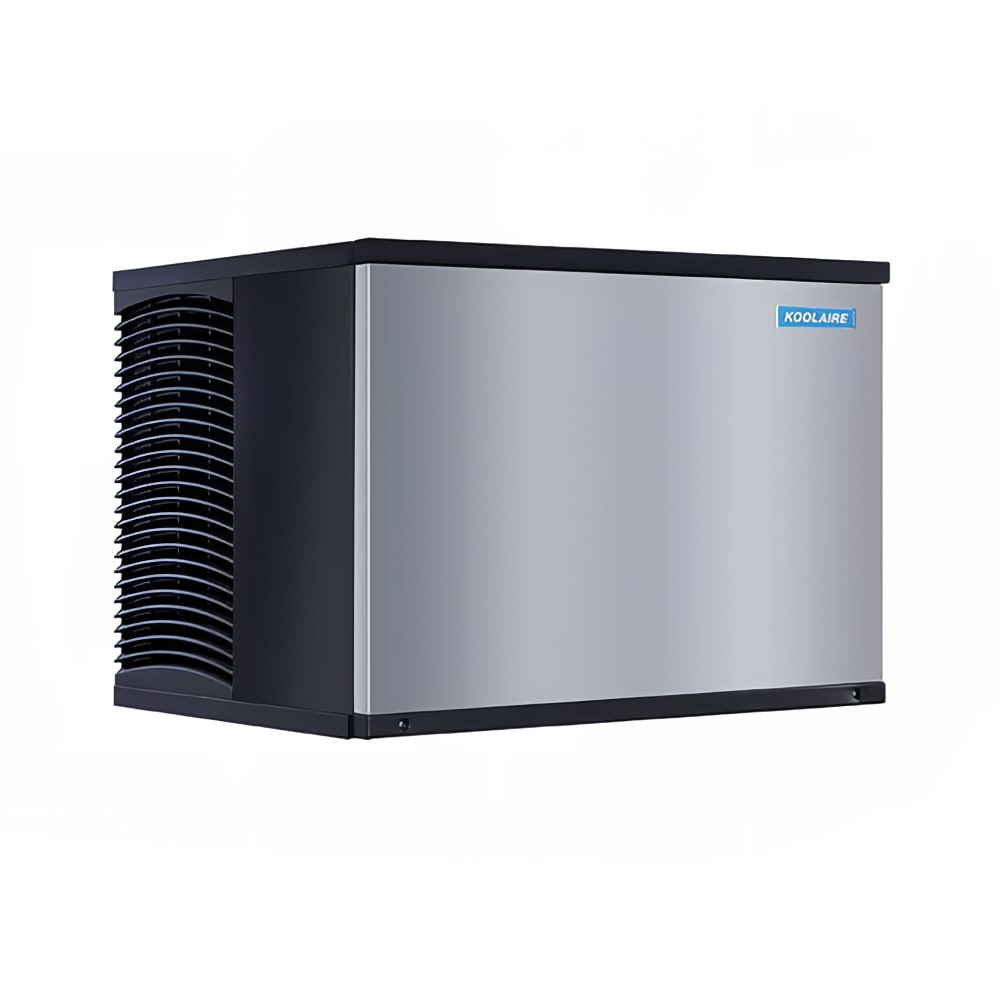

Koolaire KDT0400A 30" Full Cube Ice Machine Head - 440 lb/day, Air Cooled, 115v

The Koolaire KDT-0400A ice maker has a corrosion-resistant finish over its exterior, and its food zone has white plastic and removable parts that support cleaning. To access the food zone, two removable screens and the door can be moved aside. A bin or dispenser must be bought separately, and a deflector is required for operation when a bin is used. This unit can produce 440 pounds of ice in near-perfect conditions but will produce 345 pounds of ice within 24 hours in a standard kitchen. It creates full-cube ice, which is ideal for almost any application. This ice type melts slowly but does not cool liquid as quickly as half-cube ice.

For ice to be produced in this Koolaire KDT-0400A ice machine head, the toggle switch must be turned to its "ice" setting. Its water trough is emptied through water purge cycles, and a fan blows cold air over refrigerant lines to bring the temperature down and cool the evaporator. As the evaporator plate cools, water freezes in the individual cells to form cubes. These cubes are then released from the plate when warm refrigerant runs over the evaporator, melting the cubes’ surfaces until they fall off.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 440-lb. ice production capacity
• 345-lb. AHRI-certified ice production capacity
• Users can remove 2 screws and lift off the door to access the food zone
• White plastic food zone parts can be cleaned quickly
• Removable distribution tube, floats, pump, trough, and water shield
• Smudge-resistant exterior finish
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Uses R410A refrigerant
• Air recirculation is prevented by the air-cooled baffle
• Ice bin and dispenser sold separately
• Ice deflector is required when paired with an ice bin but not with a dispenser
• 3,800 average BTU; 6,000 maximum BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI
• Required top and sides clearance: 8 in.
• Required rear clearance: 5 in.

How It Works

• Water curtain must be closed and the toggle switch turned to "ice" to start
• Old water is removed from the trough with a water purge cycle
• Refrigerant lines are cooled by a fan blowing cold air, and they then cool the evaporator plate
• Evaporator plate brings the water temperature down until it freezes
• Water flow turns off when the ice thickness float switch is activated
• Ice sheet switches the harvest float sensor
• Evaporator plate is heated by refrigerant to release ice

Dimensions & Utilities

• 30 in. W x 24 in. D x 21.5 in. H
• 12.1 A, 6.1 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W, production capacity up to 440 lb/24 hours at 70°/50° (345 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R410a refrigerant, NSF, cULus, CE, (replaces KD-0350A)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
