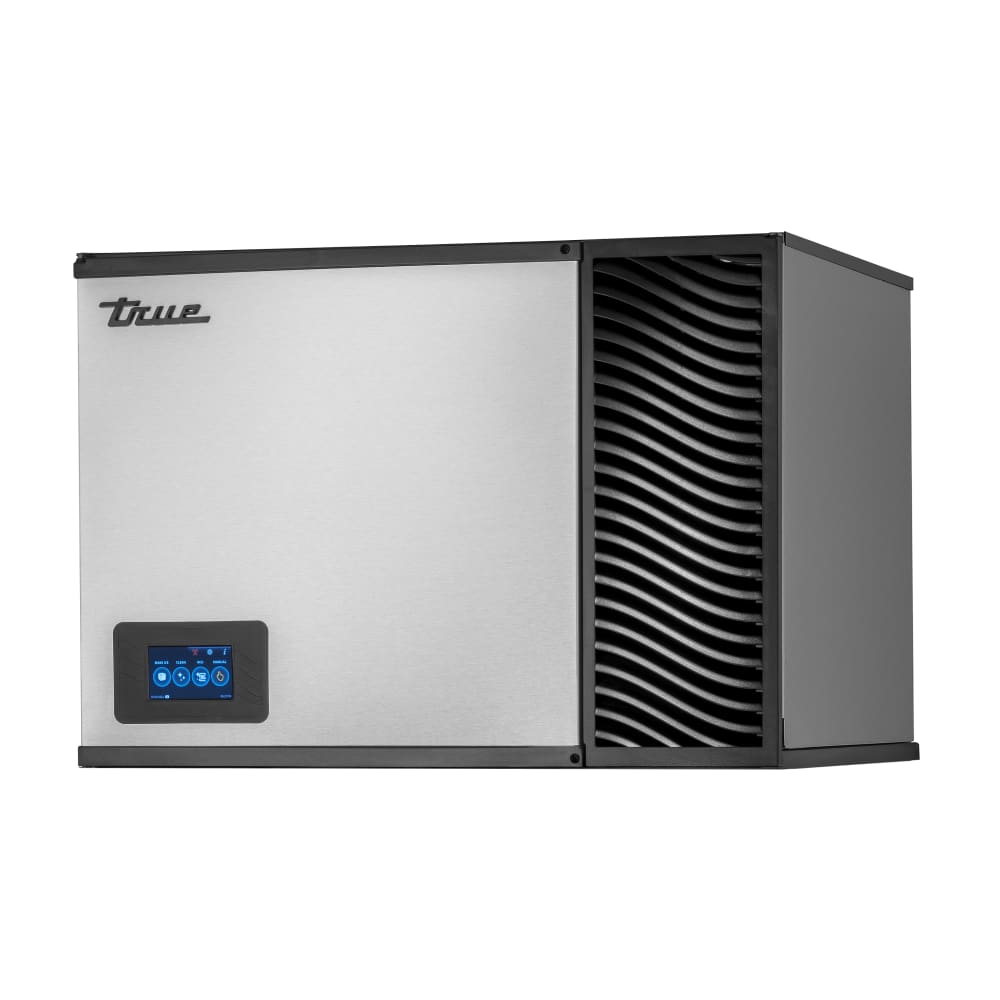

True TCIM-430-HA1-A 30" Half Cube Ice Machine Head - 447 lb/24 hr, Air Cooled, 115v/1ph

This True TCIM-422-HA1-A half-cube ice machine’s size measures 30¹/₅ inches wide by 24⁷/₁₀ inches deep by 22¹/₅ inches high and is meant to fit an ice-storage bin to streamline operation. The refrigeration system uses R290 hydrocarbon refrigerant, and this ice machine head can produce 447 pounds of ice in a 24-hour period. This system can operate between 35 and 110 degrees Fahrenheit, and users can adjust ice production rates by using the simple-to-use touchscreen. The evaporator of this refrigeration system is sealed and insulated, and RCU technology self-cleans the unit for additional ease of use.

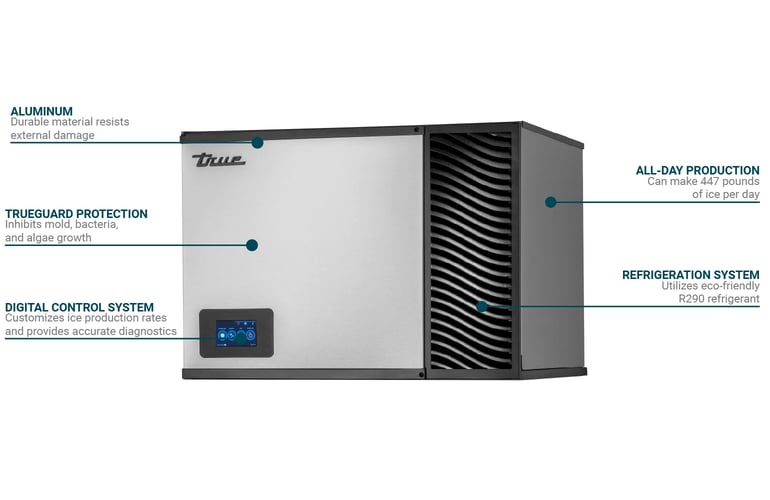

This True TCIM-422-HA1-A half-cube ice machine head is operated with a digital control system. This control system eases the unit’s overall operation with an instinctive diagnostic system and time-of-flight ice sensors to track ice levels. The control system’s display measures 4³/₁₀ inches so it’s comfortable to manage and see. During operation, an intuitive diagnostic system will notify operators by using alarms or visual push notifications of the unit’s conditions. The front and sides of this ice maker are made of aluminum, and the plastic interior and plastic pieces are embedded with TrueGuard antimicrobial.

Product Details

• 447-lb. production per day
• Aluminum exterior finish
• TrueGuard antimicrobial embedded plastic pieces
• Food zone pieces are removable
• Removable air filter
• RCU technology
• Head only (bin sold separately)

Touchscreen Details

• 4³/₁₀-in. display
• Simple touch action and 1-touch cleaning
• Instinctive diagnostic system
• Alarms and visual push notifications
• Ice production rate is programmable
• Time-of-flight ice sensors remove need for bin thermostats

Refrigeration System

• R290 hydrocarbon refrigerant
• Evaporator is sealed and insulated
• High- and low-pressure transducers track inputs and outputs
• Compact condenser
• Ultra-silent fan operation
• Wide operating range between 35 and 110 degrees F
• Water pressure range: 20-100 PSI

Dimensions & Utilities

• 30¹/₅ in. W x 24⁷/₁₀ in. D x 22¹/₅ in. H
• 104-127 V/60 Hz/1 ph

Product Features

*Free shipping on True Refrigeration TCIM-430-HA1-A within the 48 contiguous states.

From The Manufacturer

True Ice Series Ice Maker, cube style (half), self-contained, air-cooled condenser, 30"W x 24"D x 22"H, up to 447 lb. production/24 hr, TrueNcapsuL8 insulated & sealed evaporator, TrueGuard built-in Anti Microbial, advanced electronic control with 4.3" touch display, Ice level monitoring, Truetech aluminum exterior finish, R290 Hydrocarbon Refrigerant, UL EPH Classified, cULus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor Parts & Labor

True Refrigeration TCIM-430-HA1-A Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.

Documents

Spec Sheet

Service Manual

Installation Guide

Product Info

Brochure
