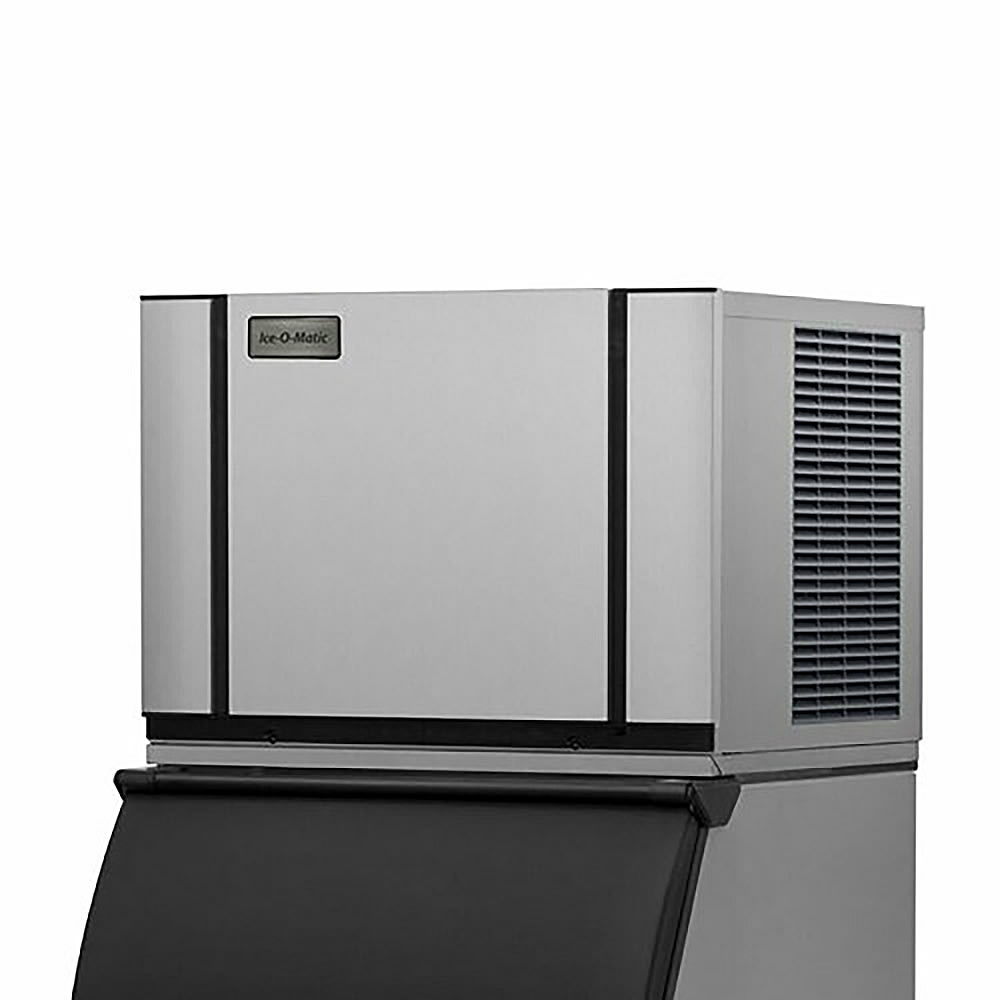

Ice-O-Matic CIM0430HA 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 435 lb/24 hr, Air Cooled, 115v/1ph

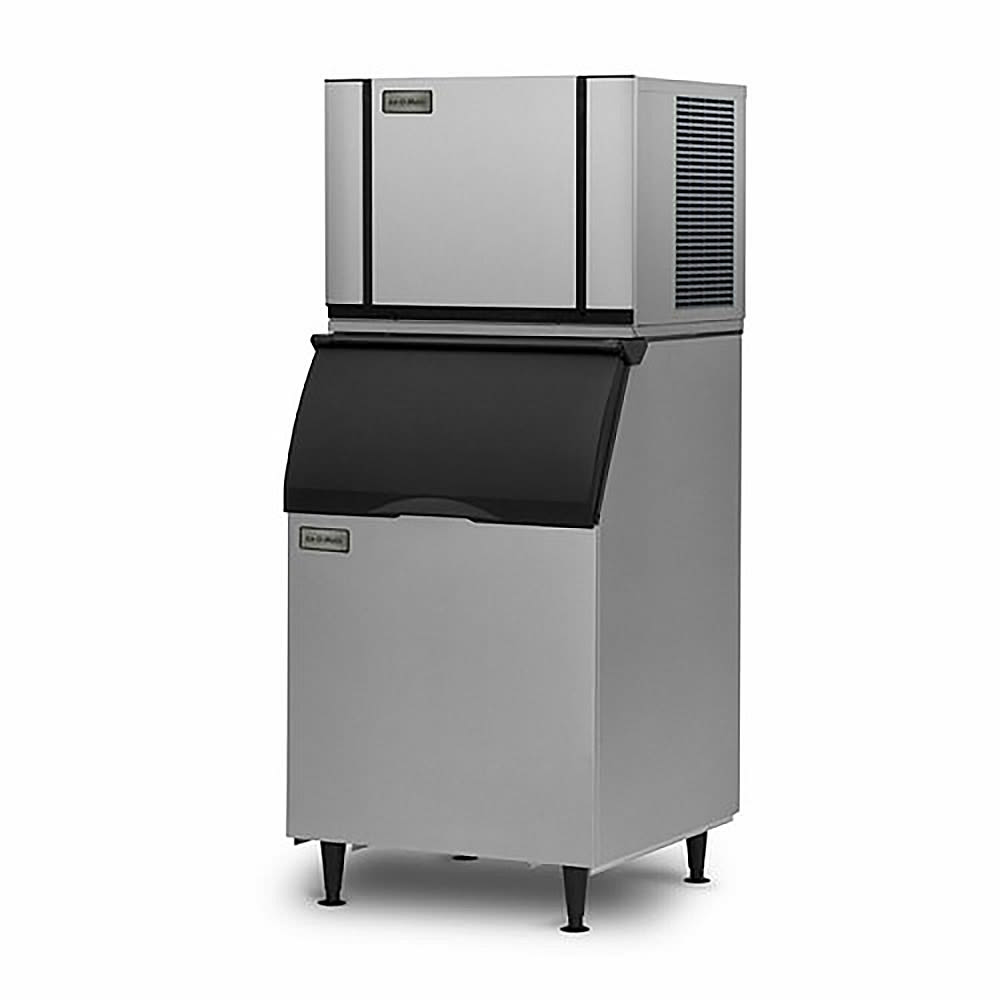

The Ice-O-Matic CIM0430HA Elevation™ modular cube ice maker produces up to 435 pounds of half-cube ice in a 24-hour period when the ambient air temperature is at 70 degrees Fahrenheit. Since the unit is designed with dual exhaust technology, it can discharge hot air from the top or side, which increases your installation options. The Universal Smart Harness™ control board simplifies installation and servicing with digital diagnostics, better access, and universal components.

The plastic food zone has Agion® antimicrobial protection built in to slow the growth of bacteria. This area has no crevices, so it can be easily wiped down, and has components that snap in and out of place so they can be cleaned and sanitized in commercial dishmachines. An LED status display indicates when the Ice-O-Matic CIM0430HA Elevation modular cube ice maker requires cleaning. To help employees clean the ice maker more efficiently, it includes one-touch controls for the descaling and sanitizing processes.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Produces up to 435 lbs. of ice in 24 hrs. at 70 degrees F and up to 320 lbs. of ice at 90 degrees F
• Makes half-cube ice measuring ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air-cooled, self-contained condenser uses R-404A refrigerant
• Dual exhaust increases installation options by discharging hot air from the side or top
• Digital diagnostics, universal components, and a common configuration provided by the Universal Smart Harness control board simplify installation and servicing
• Plastic parts are recyclable and BPA free
• 115 V/60 Hz/1 ph, 11 A, 5.43 kW, 5100 BTU
• Overall Dimensions: 30¹⁄₄ in. W x 24¹⁄₄ in. D x 21¹⁄₄ in. H
• CE and cULus listed; NSF and ENERGY STAR certified

Easy to Clean

• Agion antimicrobial protection reduces the risk of bacteria growth
• LED status display indicates when the unit needs to be cleaned

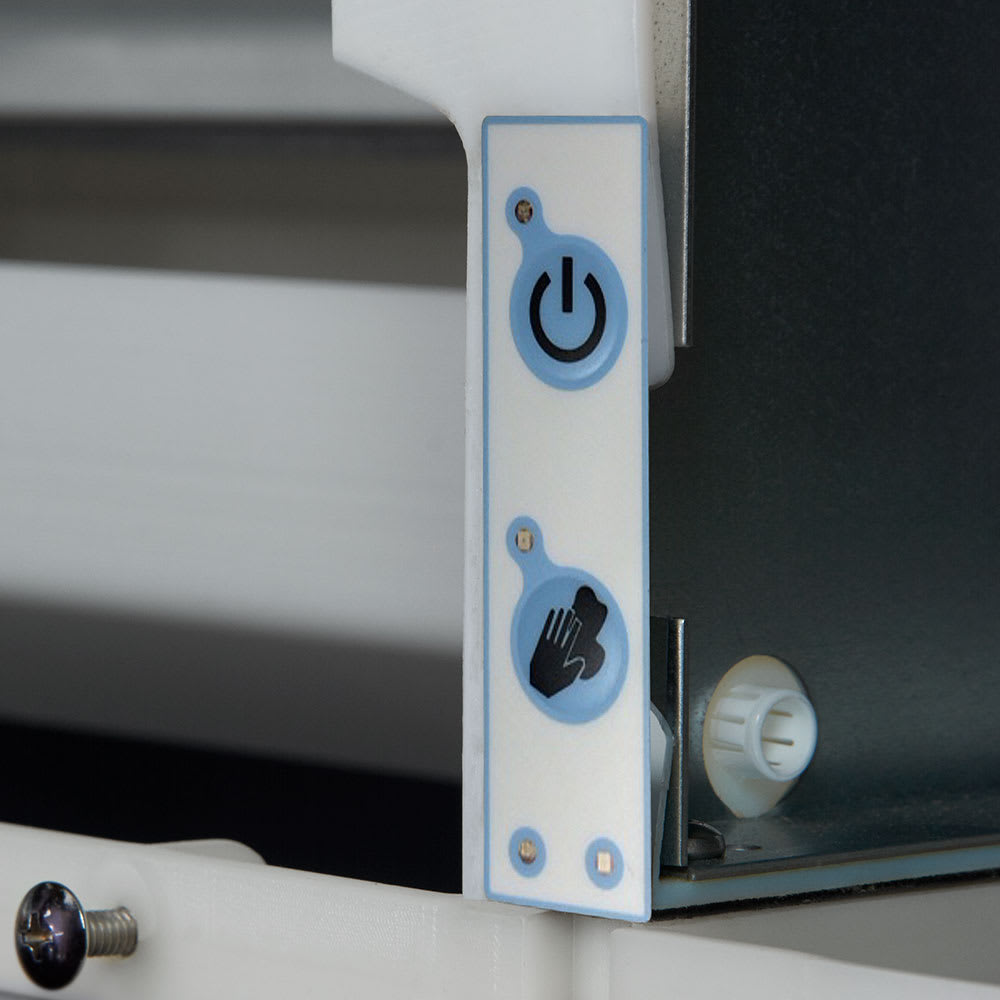

• One-touch controls for descaling and sanitizing simplify the cleaning process

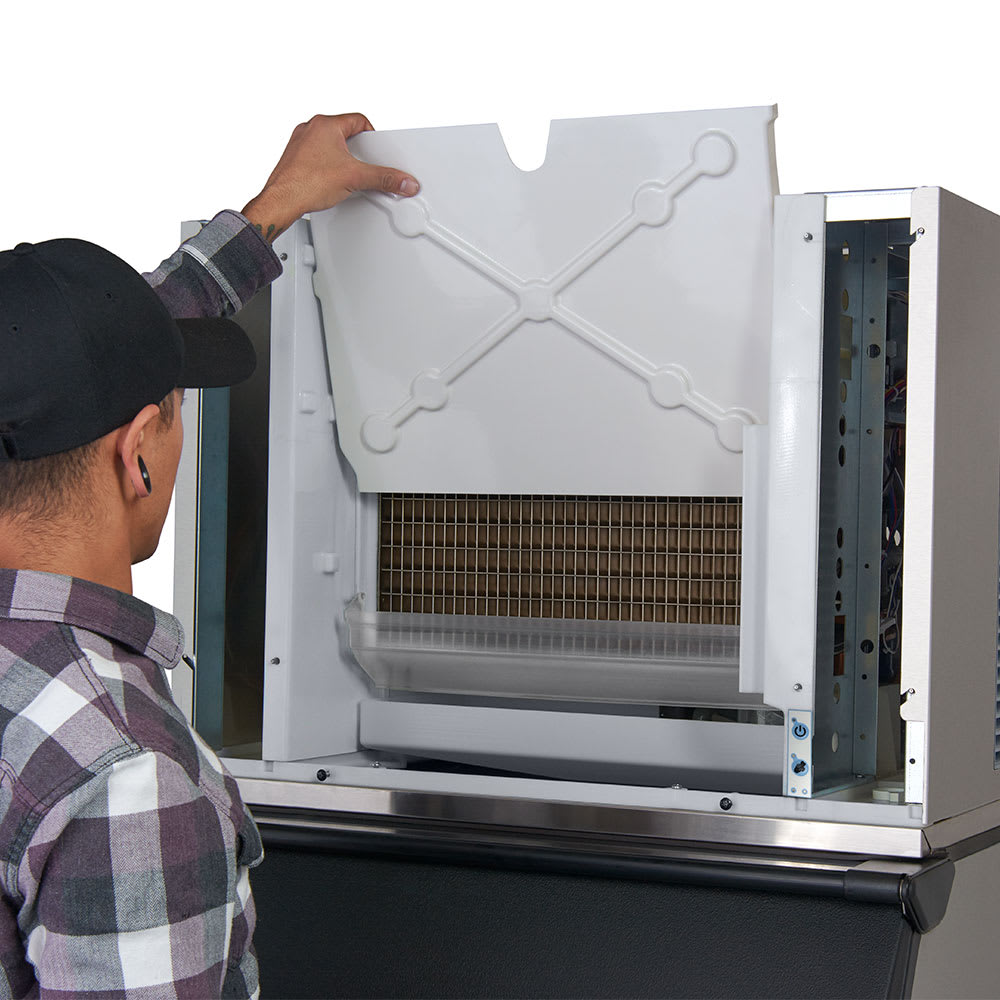

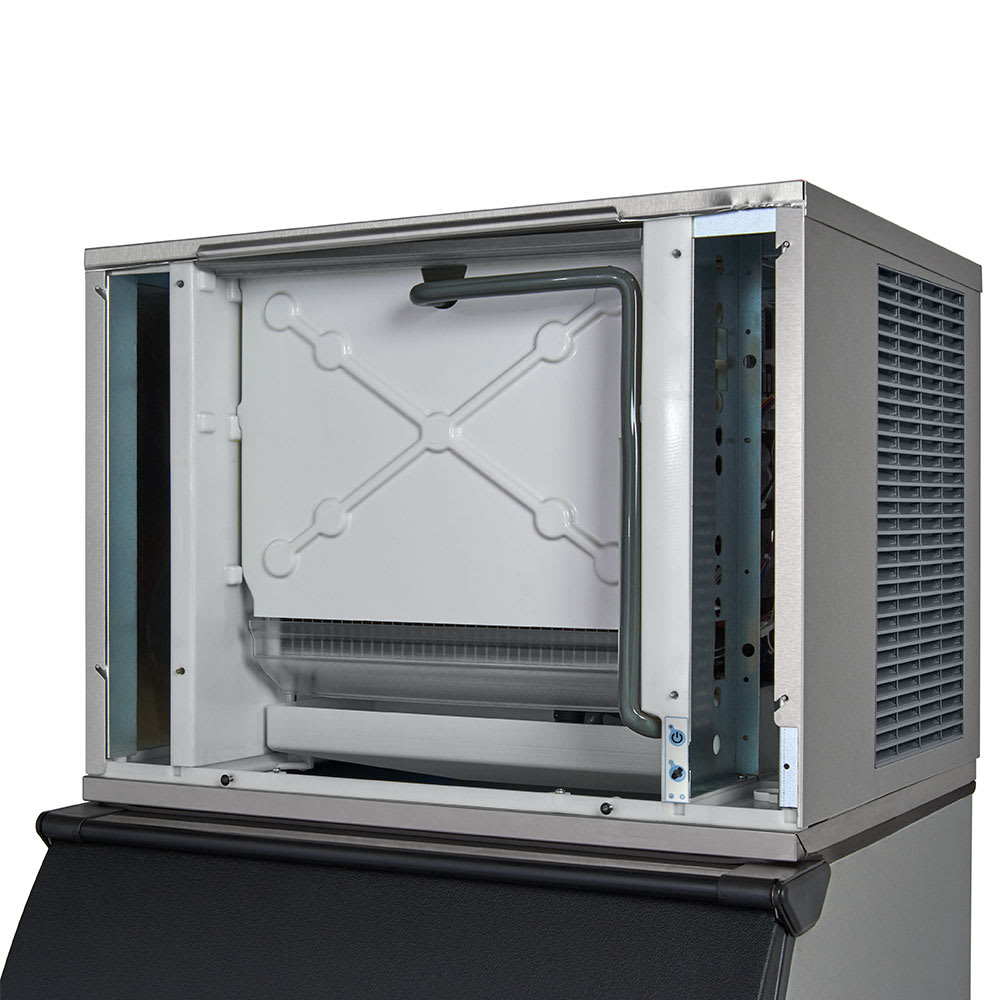

• Plastic food zone is easy to wipe clean since it lacks crevices
• Easily snap the dishwasher-safe components in and out

Product Features

*Free shipping on Ice-O-Matic CIM0430HA within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, ENERGY STAR®, BPA Free

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM0430HA Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
