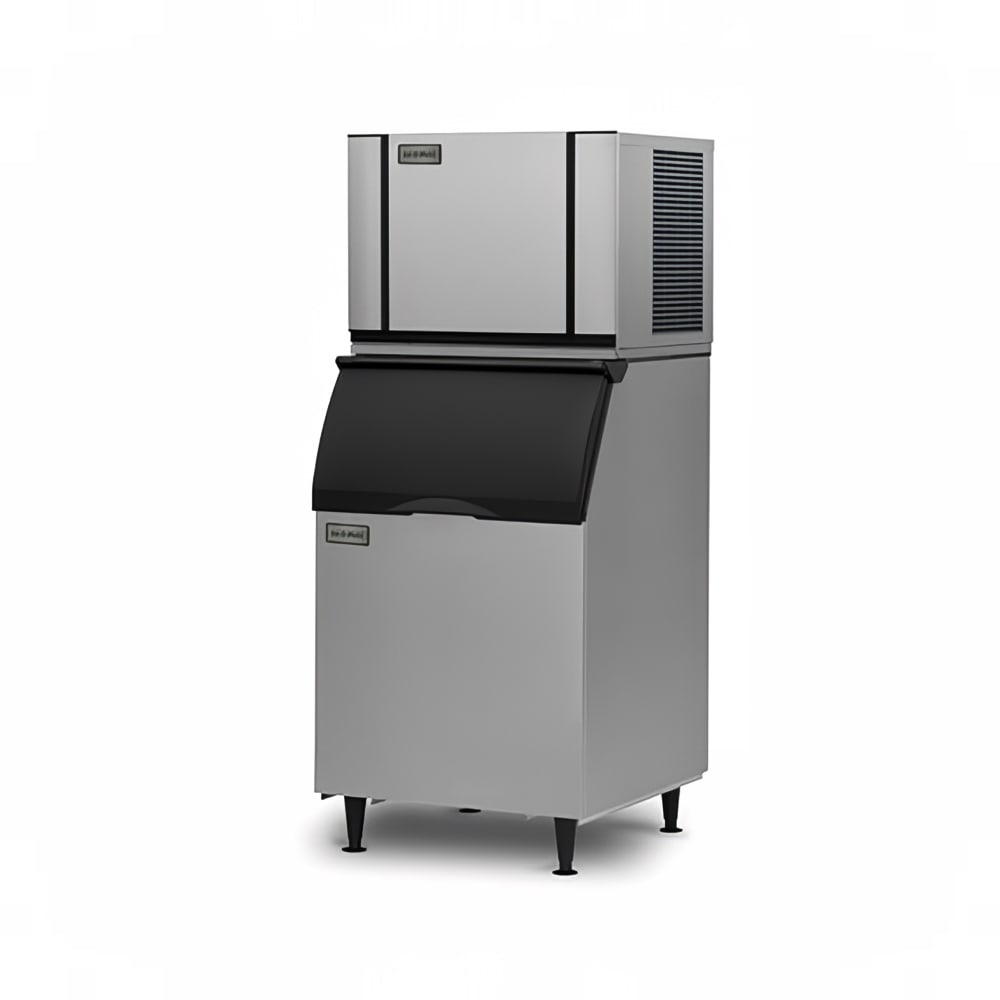

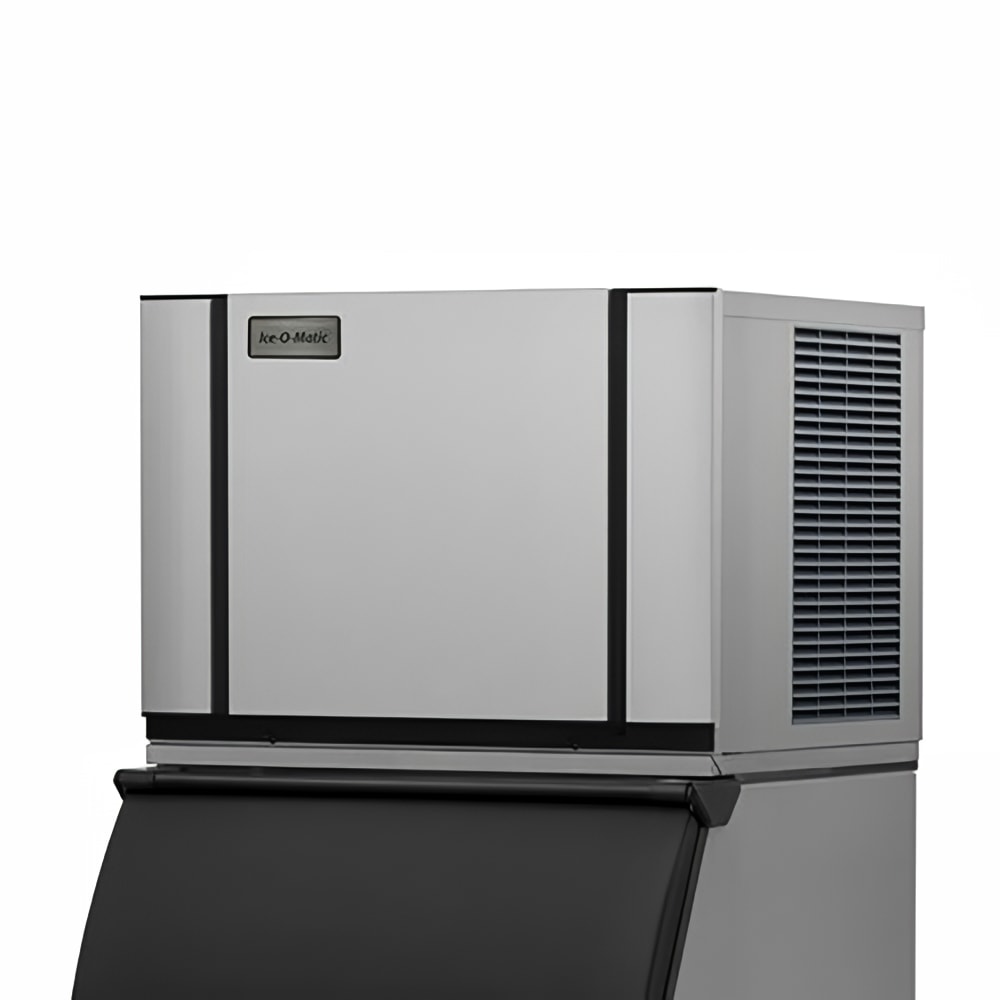

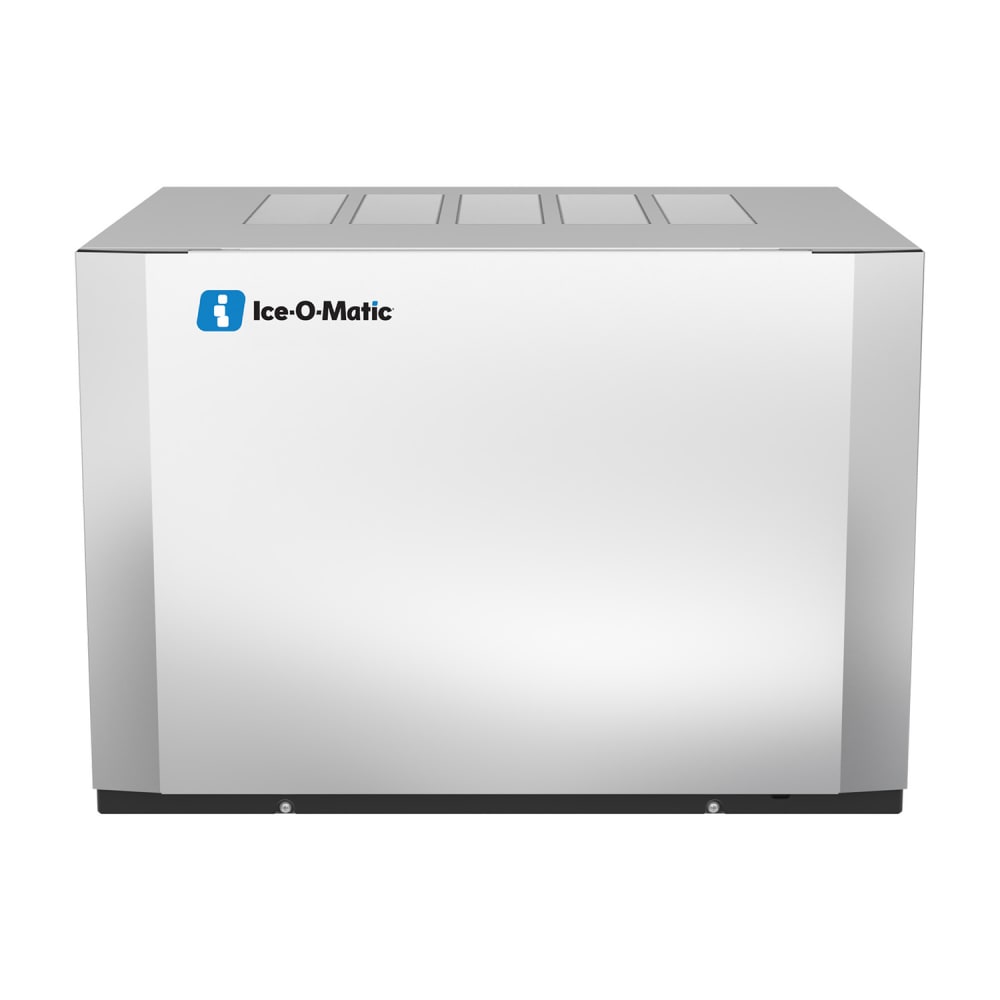

Ice-O-Matic CIM0430FA 30" Elevation Series™ Full Cube Ice Machine Head - 435 lb/24 hr, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM0430FA • MPN: CIM0430FA
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $2,517.00

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM0430FA Description

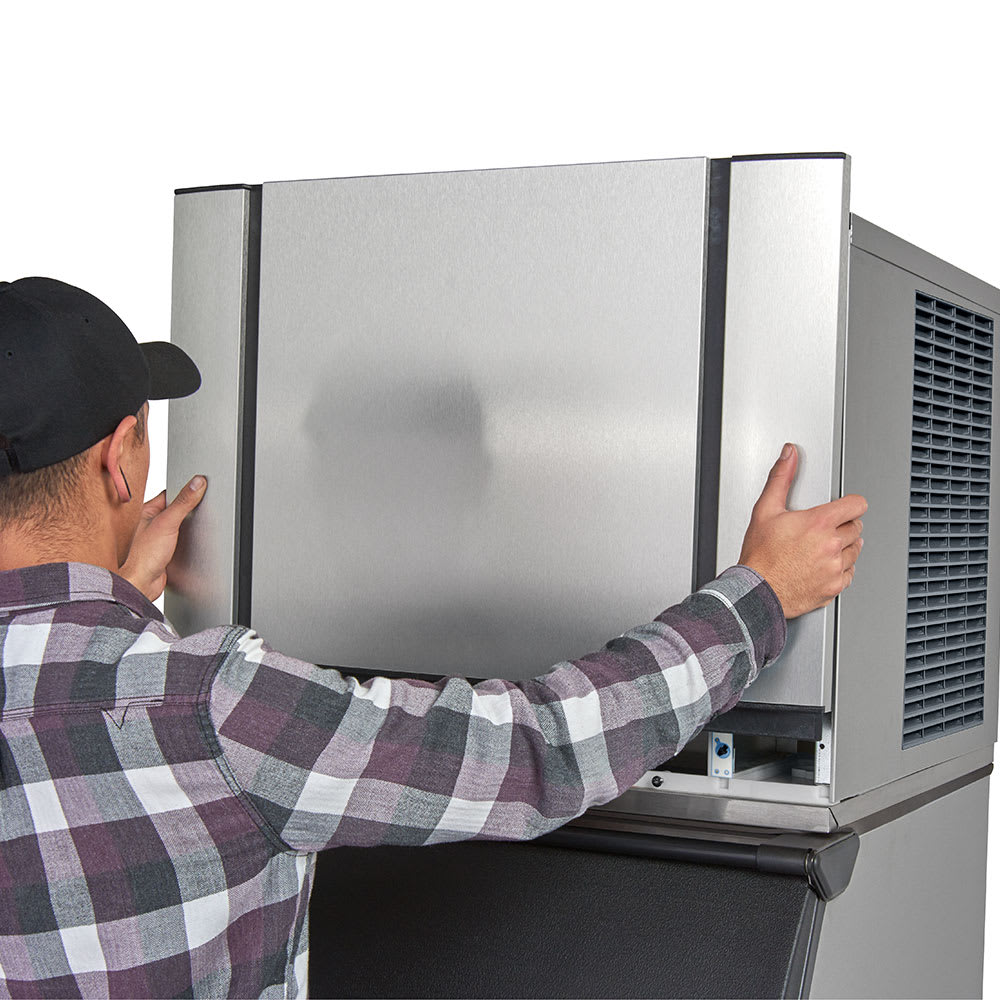

The Ice-O-Matic CIM0430FA Elevation™ modular cube ice maker uses a self-contained, air-cooled condenser and R-404A refrigerant to produce up to 500 pounds of full-cube ice each day. This type of ice measures 78 inch by 78 by 78 inch and is a popular choice for serving soft drinks and water. To increase your installation options, the hot air can be discharged from the top or side of the unit. This ice maker is designed to be easy to install and service because the Universal Smart Harness™ control board offers digital diagnostics, universal components, and better access.

The Agion® antimicrobial protection slows the growth of bacteria in the plastic food zone, which lacks crevices to allow employees to quickly wipe it down. Components in this area are also easy to remove for dishwasher cleanup since they snap in and out. When cleaning is required, an LED status display alerts the operator. This routine maintenance can be done more efficiently with one-touch controls for sanitizing and descaling the Ice-O-Matic CIM0430FA Elevation modular cube ice maker.

Product Details

  • Produces full-cube, 78 in. x 78 in. x 78 in. ice
  • Universal Smart Harness control board makes it easy to install and service the ice maker with universal components, digital diagnostics, and a common configuration
  • Dual exhaust design discharges hot air from the top or side to increase installation options
  • Uses a self-contained, air-cooled condenser
  • R-404A refrigerant efficiently cools temperatures
  • Plastic parts can be recycled and are BPA free
  • 115 V/60 Hz/1 ph, 11 A, 5.43 kW, 5100 BTU
  • Overall Dimensions: 3014 in. W x 2414 in. D x 2114 in. H
  • CE and cULus listed; NSF and ENERGY STAR certified

Easy to Clean

  • LED status display indicates required cleaning times

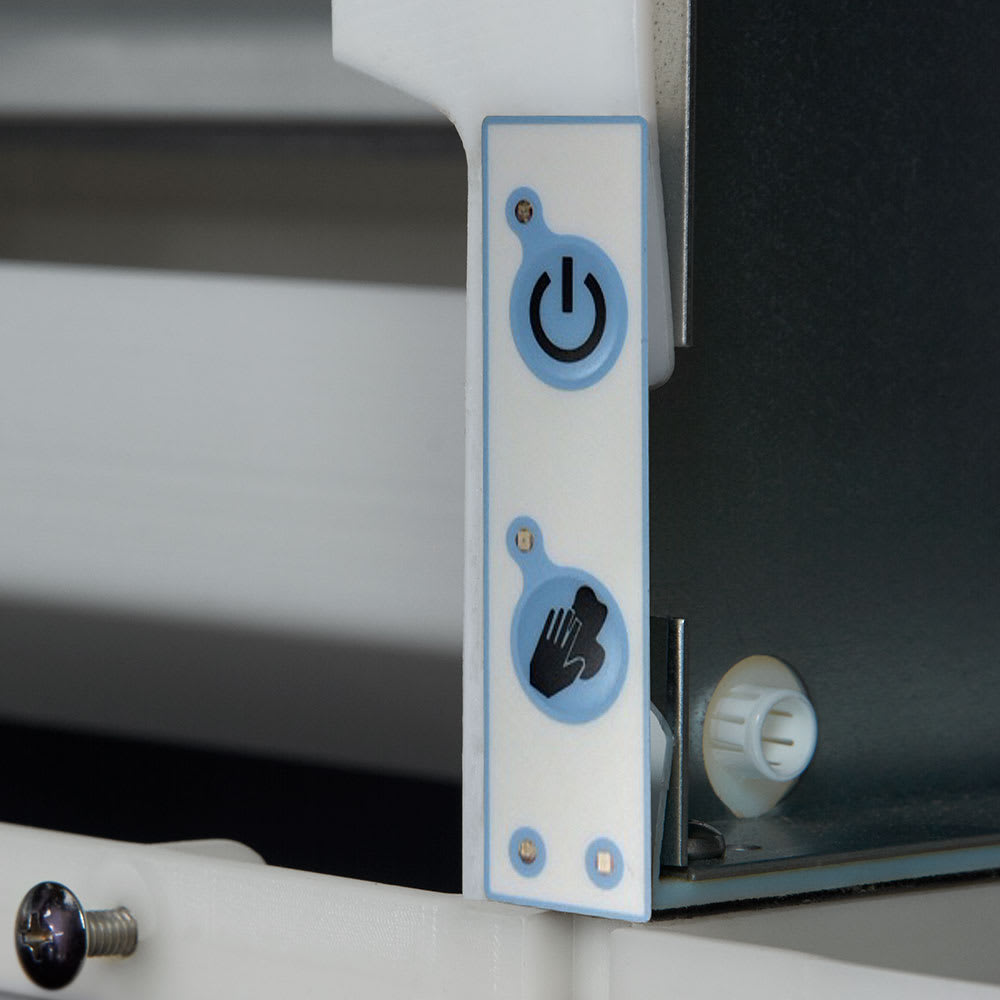

  • Sanitizing and descaling are easy with one-touch controls
  • Agion antimicrobial protection limits bacteria growth

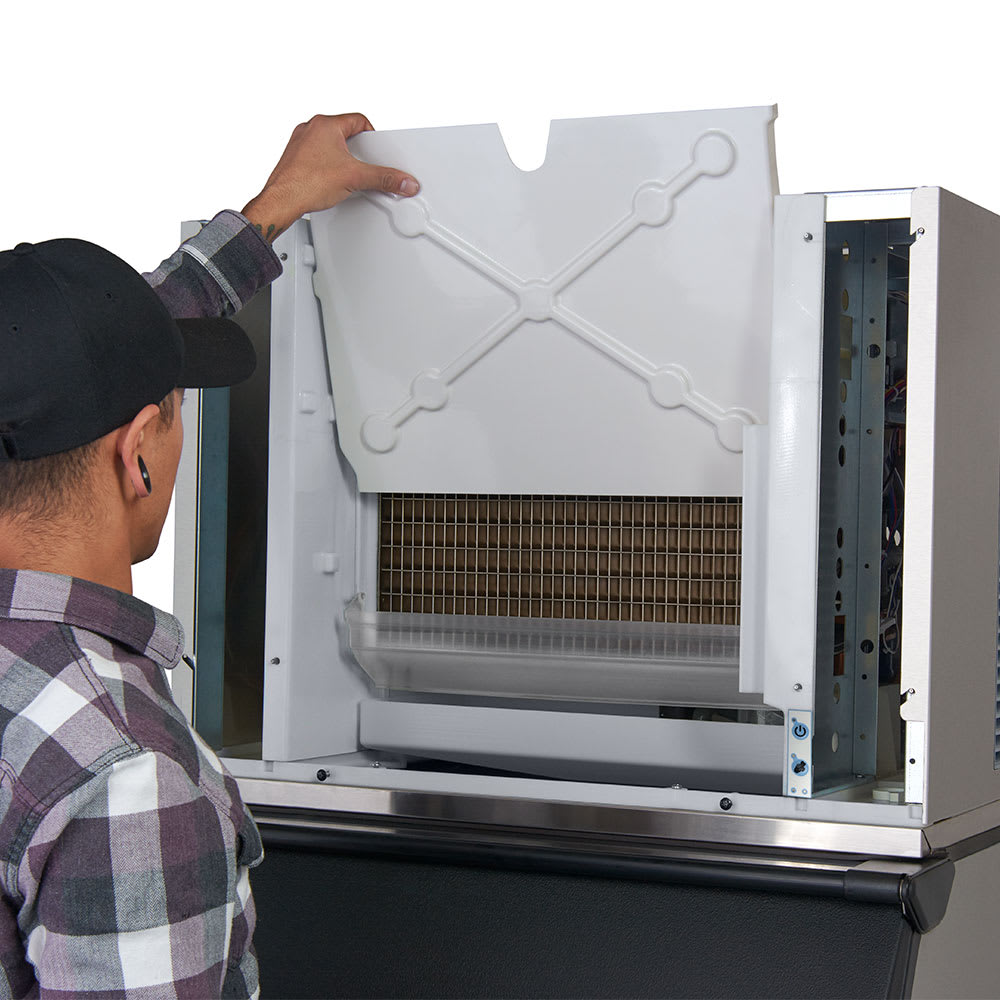

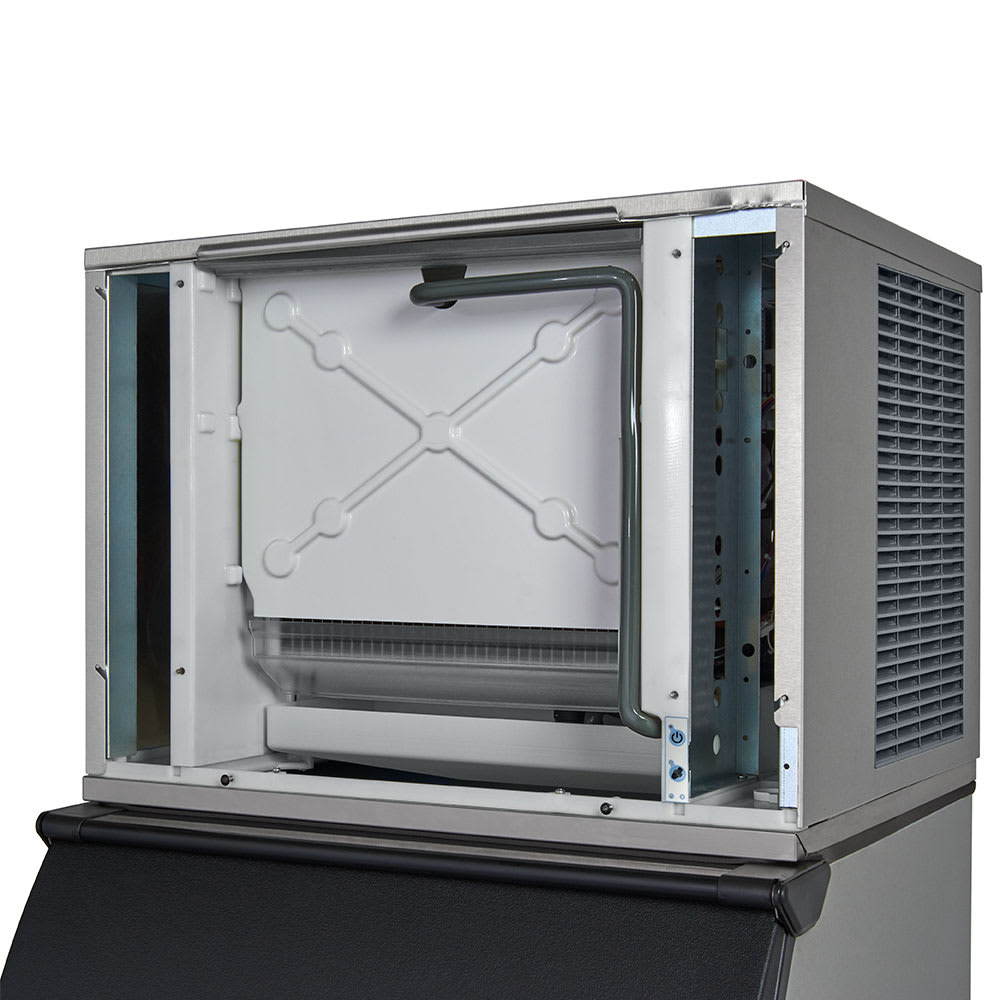

  • Food zone is made of plastic, free of crevices, and easy to wipe clean

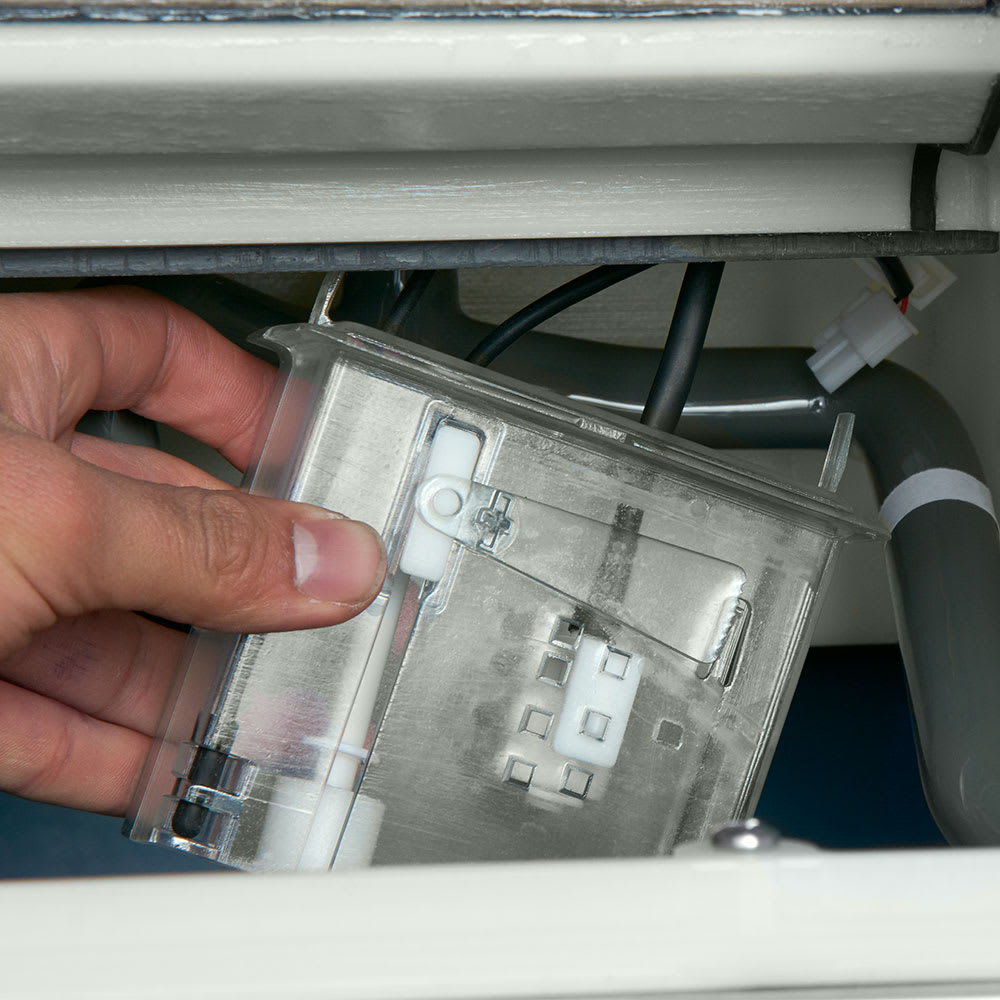

  • Components snap in and out so they can be cleaned in the dishwasher

Product Features

Product Features

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), full-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM0430FA Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
24 Hr. Production (lbs) 435
Ice Type Full Cube
Width (in) 30.25
Compressor Type Air Cooled
Depth (in) 24.25
Product Ice Machine Head
Product Type Ice Makers & Bins
Series Elevation Series™
Height (in) 21.25
Voltage 115
Hertz 60
Phase 1
Made in USA Yes
Warranty 3-yr. Parts & Labor; 5-yr. Evaporator; 5-yr. Compressor Parts
Recommended Bins B25PP, B40PS, B55PS, B110PS, B700-30, B1000-48, B1300-48, B1325-60, B1600-60, CD40030, CD40130, IOD200, IOD250
Cold Water (in) 3/8
Indirect Waste Size (in) 3/4
Amps 11
Width (in) Range 30-39
Production Range (per day) 100-999 lb
Special Features Agion® Antimicrobial
Special Features Dual Exhaust
Weight 155.00
Ice-O-Matic CIM0430FA Certifications
  • UL
  • NSF
  • Energy Star
