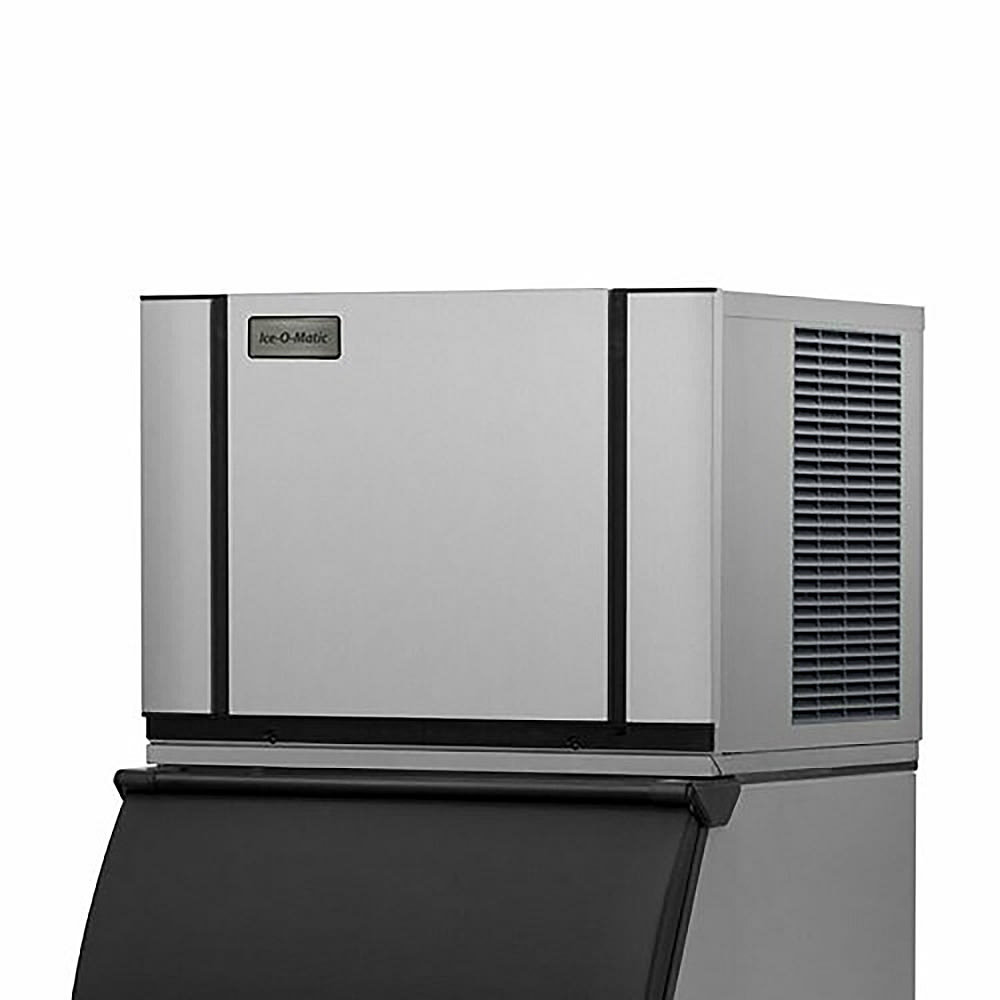

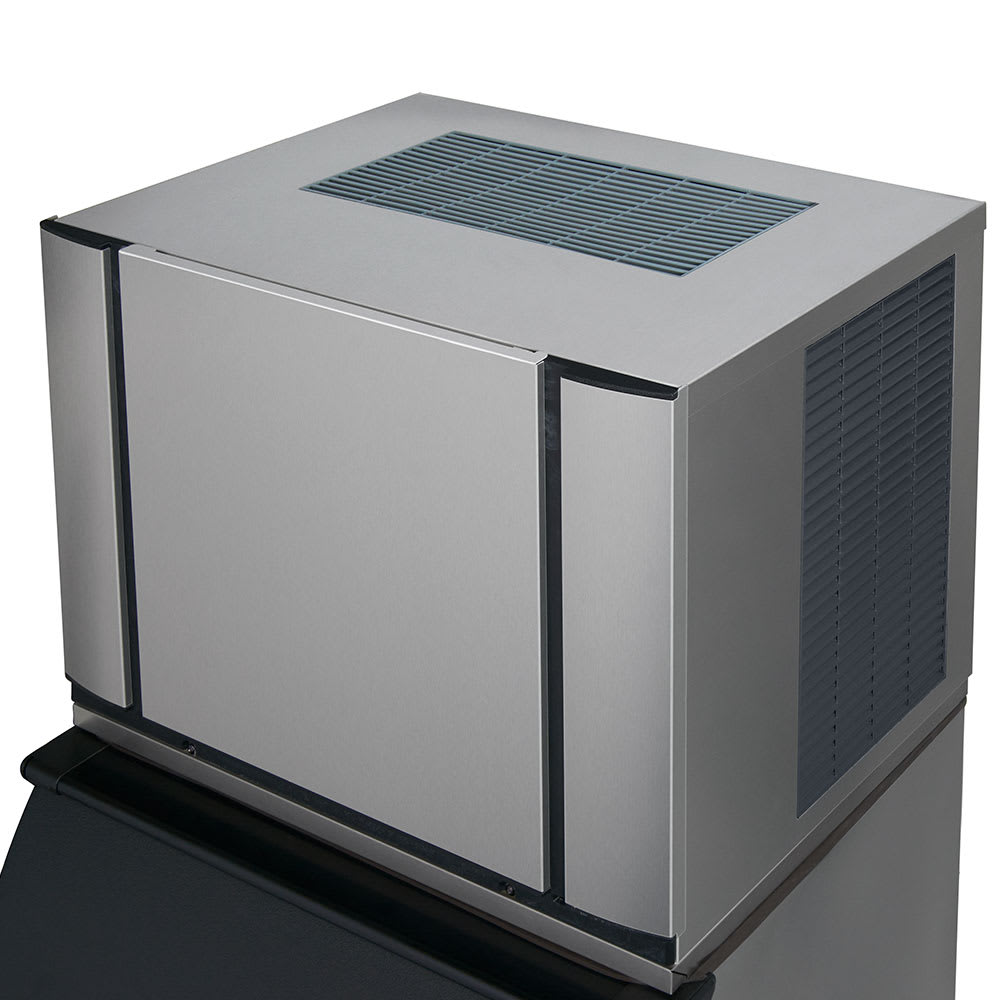

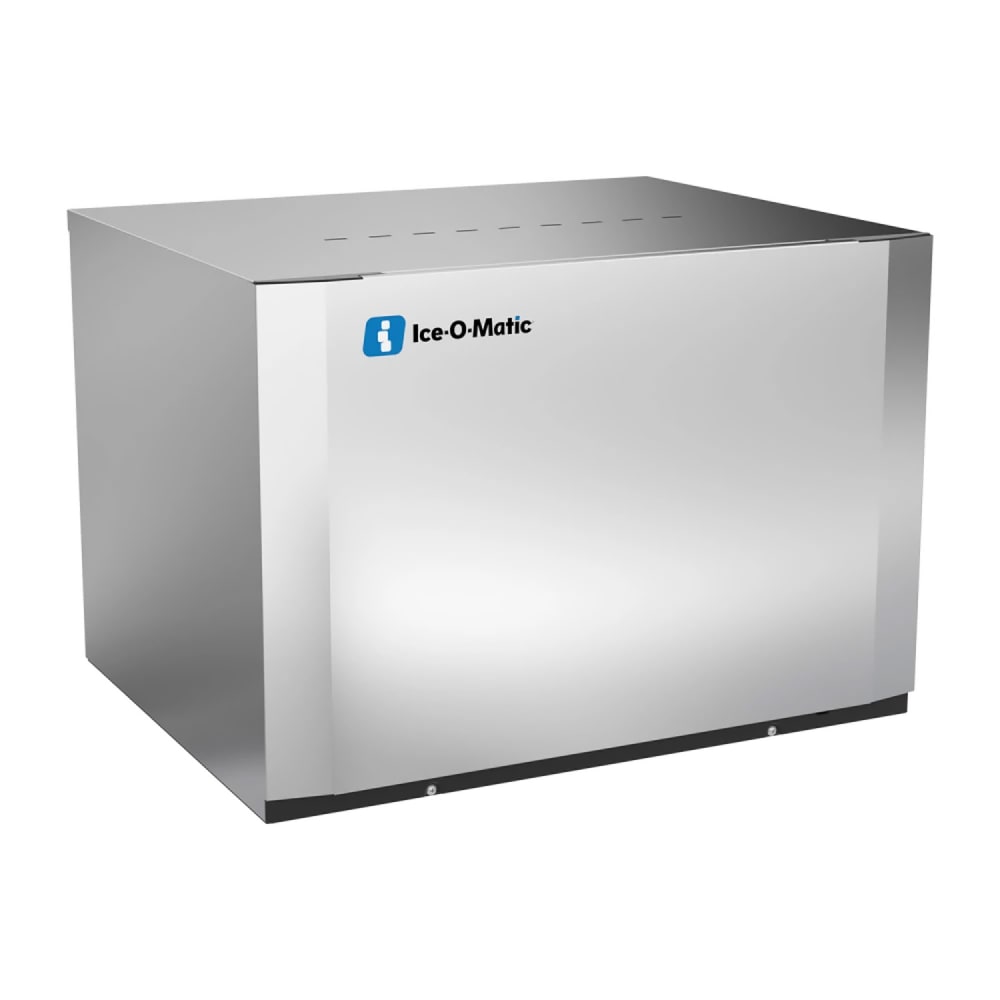

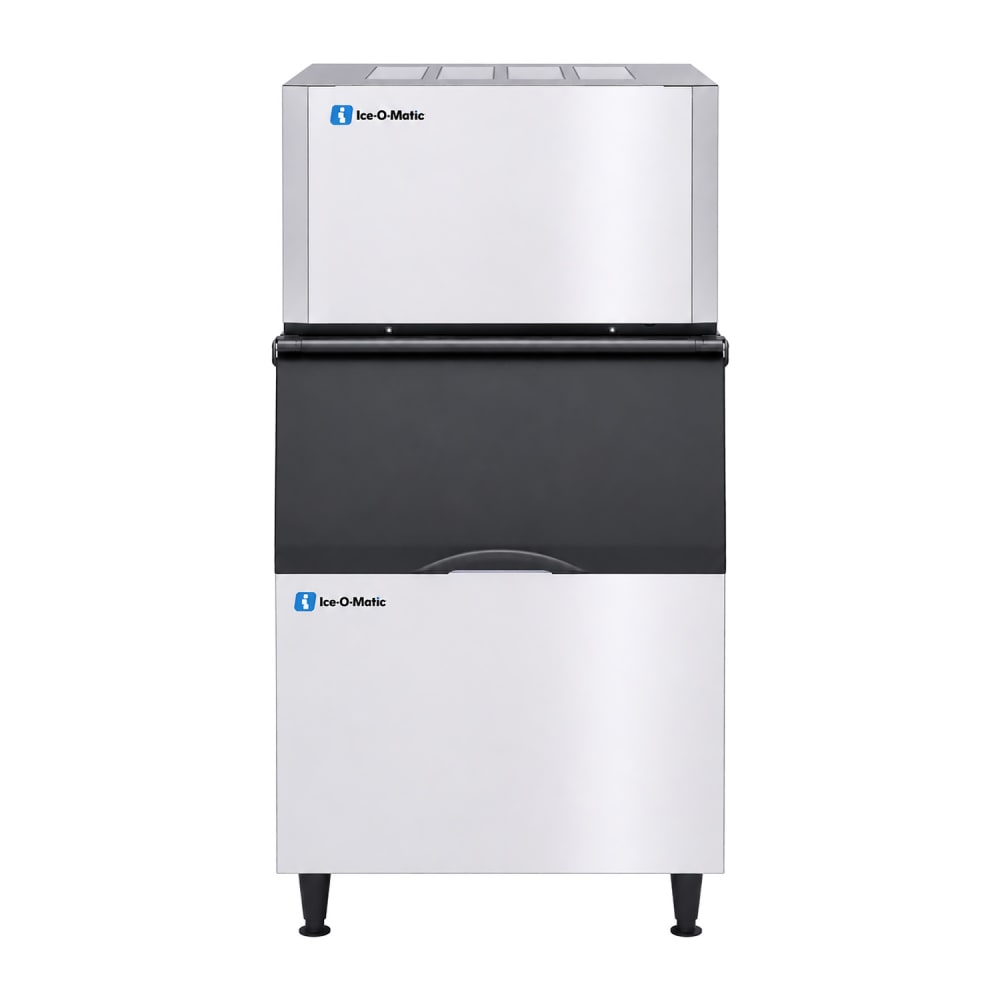

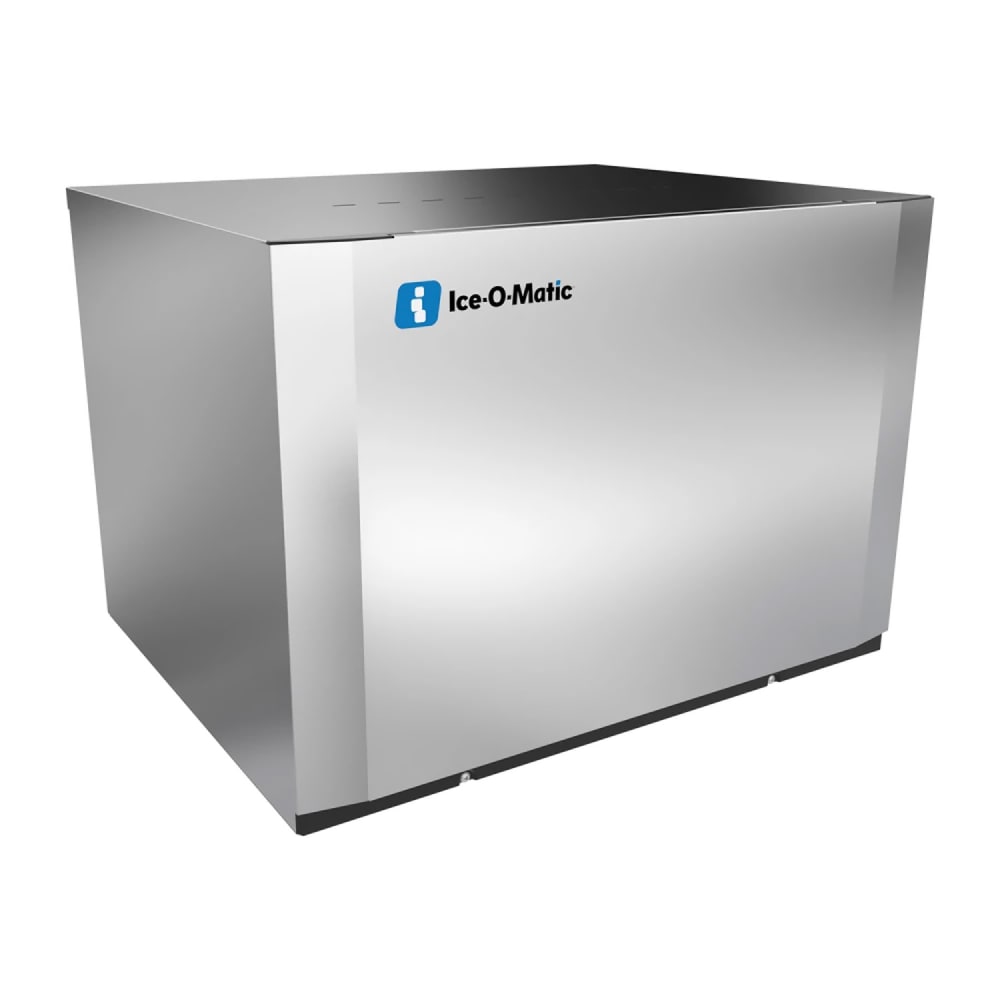

Ice-O-Matic CIM0430FW 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 460 lb/24 hr, Water Cooled, 115v/1ph

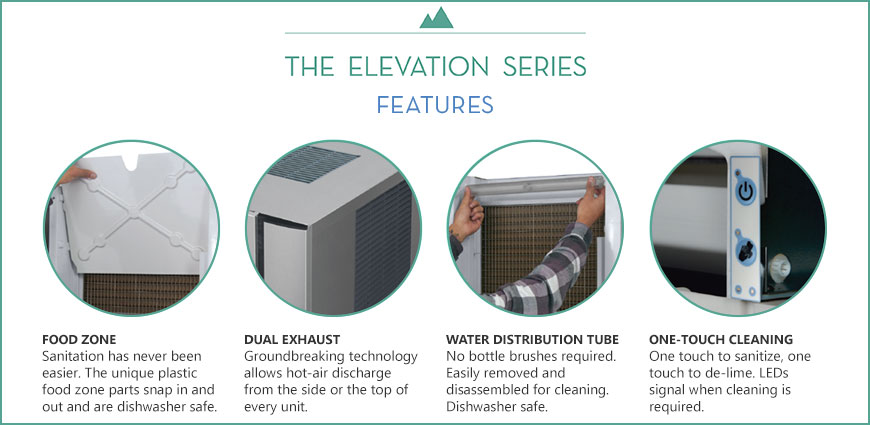

The Ice-O-Matic CIM0430FW full-cube ice machine head has a water-cooled condenser that is self-contained to streamline cleaning and reduce cross-contamination risks. It makes a maximum of 460 pounds of ice per day, though when conditions are less than ideal, it averages 380 pounds. To slow the growth of germs and bacteria, this unit has PURE ICE® antimicrobial protection, and users can perform sanitizing and descaling with the push of a button.

Enabling employee monitoring, the LED screen on the Ice-O-Matic CIM0430FW ice machine head provides status updates. The food zone is made of plastic to facilitate cleaning, and the components are removable for use in the dishwasher. This unit produces full-size ice cubes.

Product Details

• Part of the Elevation Series™
• 460-lb. daily ice production
• 380-lb. AHRI daily ice production at 70-90 degrees F
• Makes full-size cubes
• Full-size cube size: ⁷⁄₈ in. W x ⁷⁄₈ in. D x ⁷⁄₈ in. H
• Self-contained condenser is water cooled
• PURE ICE antimicrobial inhibits bacterial growth
• Status updates provided by LED display
• Single-touch sanitizing and descaling
• Dishwasher-safe food zone components
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 5,100-BTU heat transfer capacity

Dimensions & Utilities

• 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• 10.7 A, 4.75 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Ice-O-Matic CIM0430FW within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 460 lb production/24 hours at 70°/50° (380 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts
