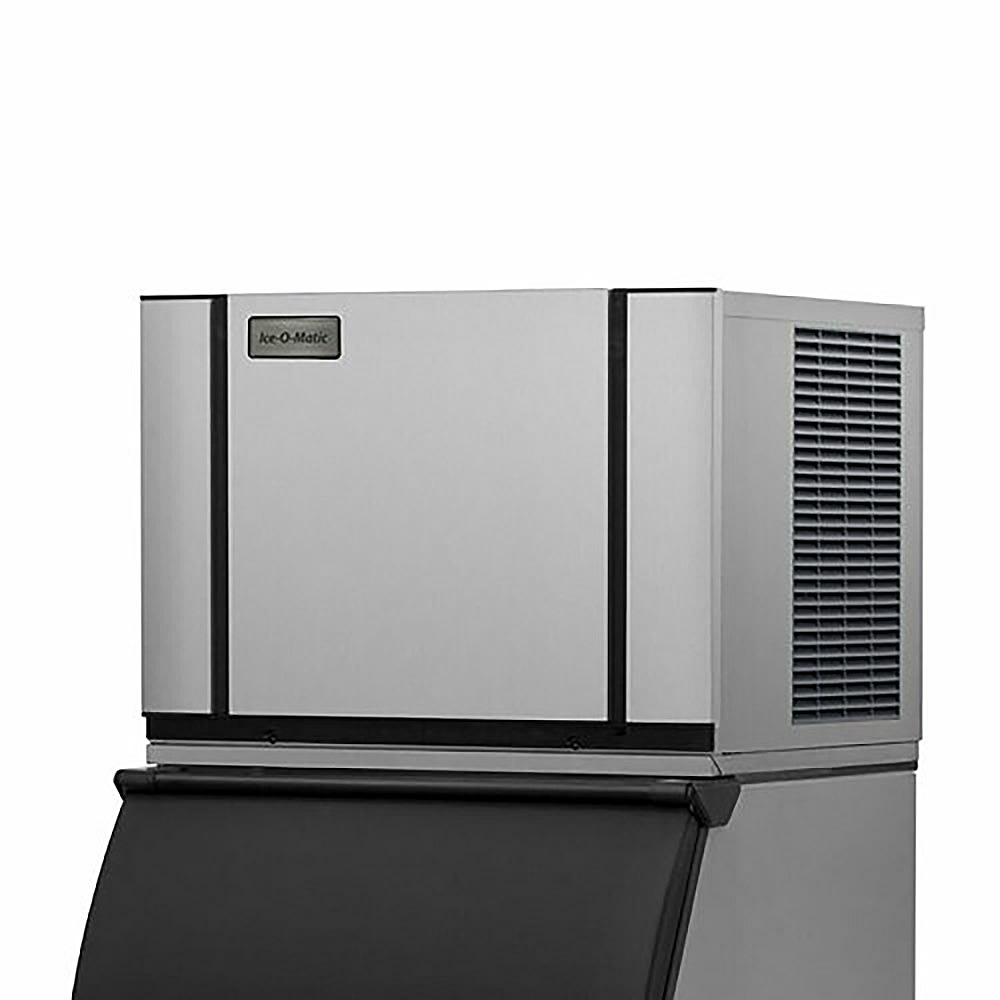

Ice-O-Matic CIM0430HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 460 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 2 - 3 weeks
$4,215.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0430HW90 Description
The Ice-O-Matic CIM0430HW90 half-cube ice machine can make a maximum of 460 pounds of ice daily, though if environmental conditions aren’t ideal, it makes closer to 380 pounds per day. Facilitating installation and reducing the risk of cross contamination, the condenser is water cooled and self-contained. Reducing the spread of bacteria in a high-traffic environment, PURE ICE® antimicrobial protection is built into the unit.

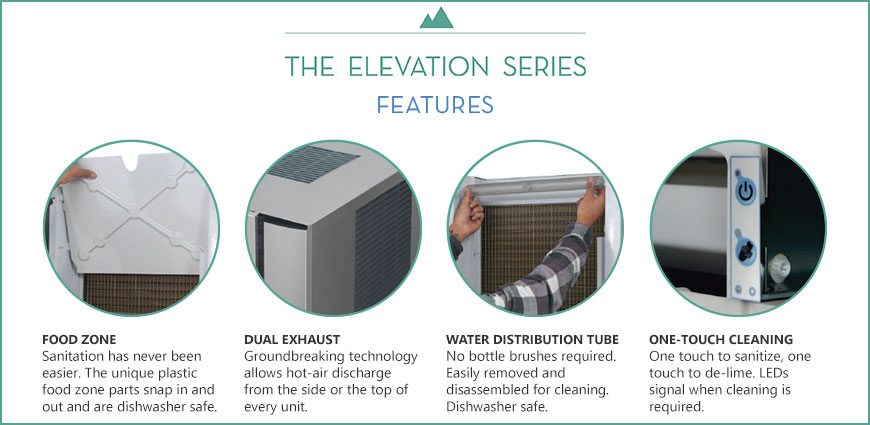

To facilitate cleaning, the Ice-O-Matic CIM0430HW90 ice machine head has a plastic food zone that can be wiped clean, while the interior components are removable for dishwasher cleaning. Controling descaling and sanitizing, users can start the process with the push of a button, and to make sure the unit is operating at peak efficiency, they can read status updates on the LED display.
- Part of the Elevation Series™
- 460-lb. daily ice production
- 380-lb. daily ice production at 70-90 degrees F
- Makes half-size cubes
- Half-size cube size: 3⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Water-cooled, self-contained condenser

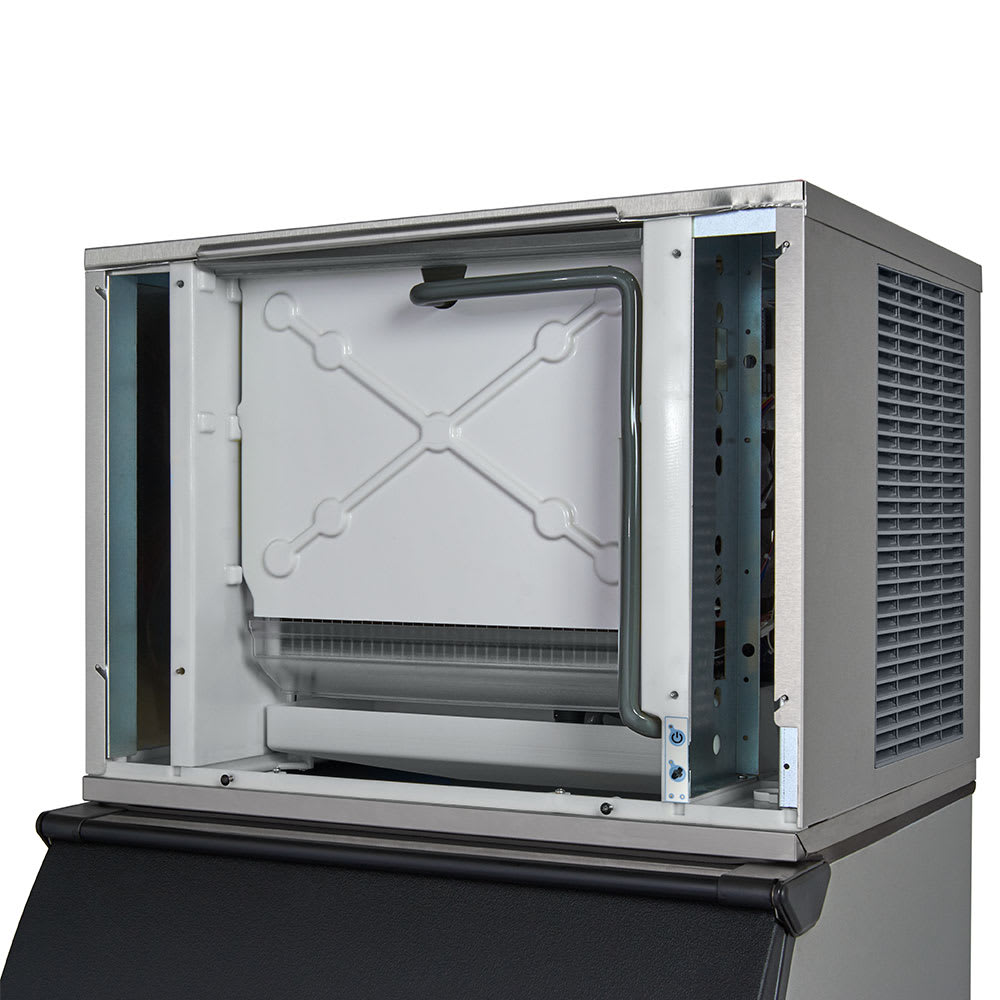

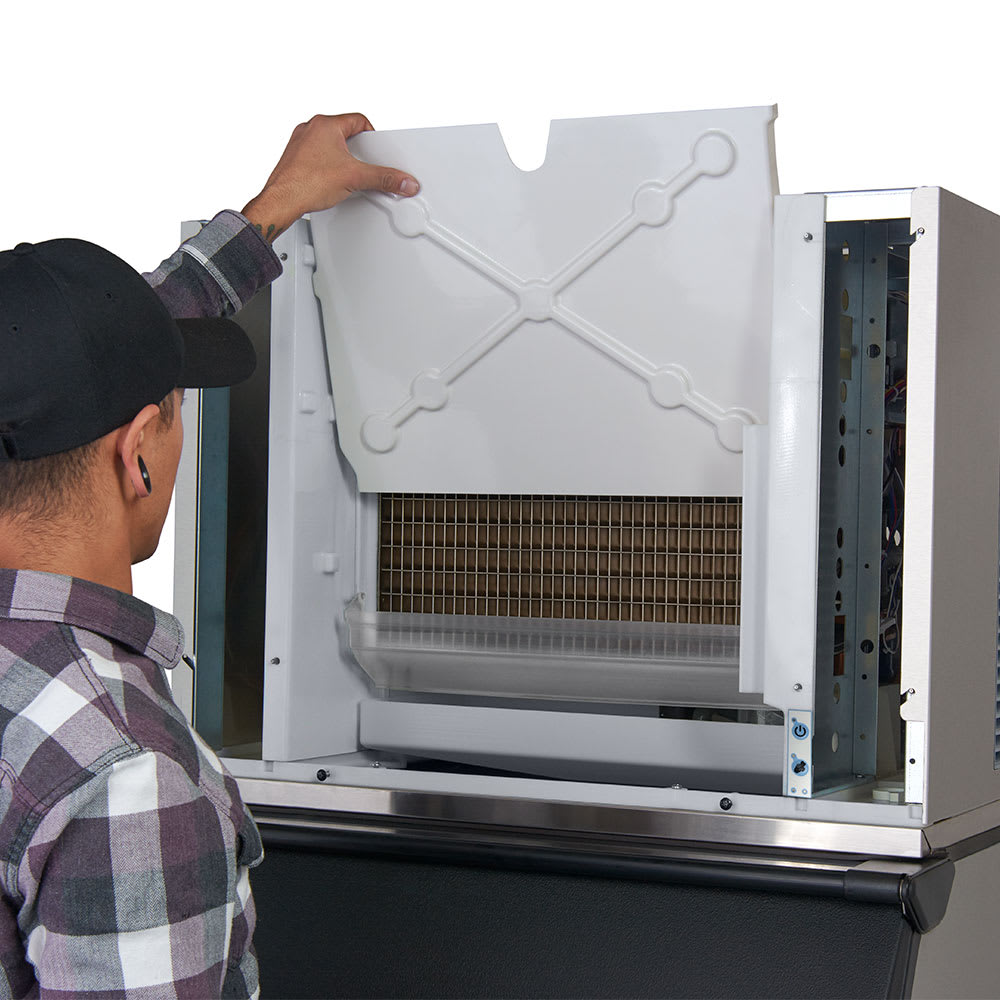

- Plastic food zone with snap-out parts
- R290 refrigerant
- Food zone components are dishwasher safe

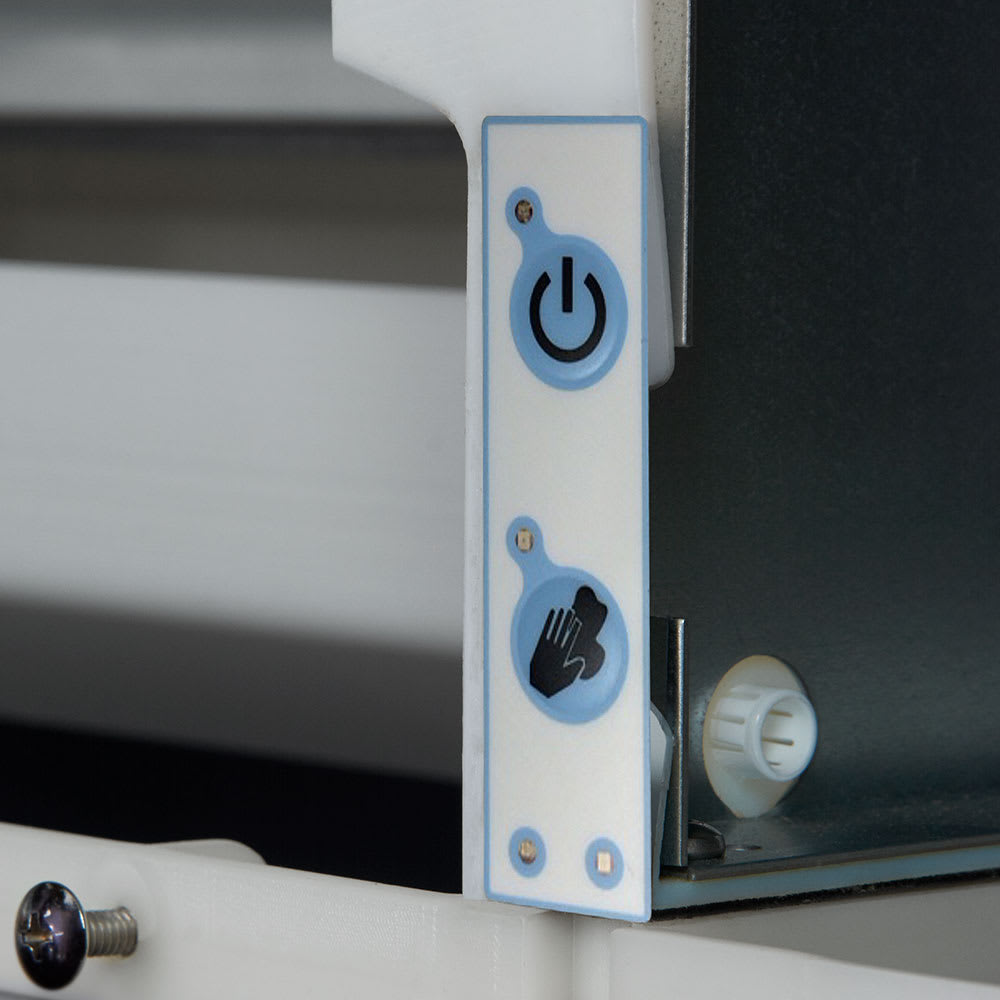

- 1-touch descaling and sanitizing
- PURE ICE antimicrobial protection built into unit
- LED status display
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 10.7 A, 4.75 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0430HW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 460 lb production/24 hours at 70°/50° (380 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0430HW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 460 |
| Also Known As | CIM0430HW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 155.00 |
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0430HW90 Ice-O-Matic CIM0430HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 460 lb/24 hr, Water Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,215.00 / Each | $4,870.00 / Each | $3,873.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 460 | 592 | 422 |
| Ice Type | Half Cube | Crescent Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 30.25 | 30 | 30 |
| Rating | Better | Best | Better |
| Voltage | 115 | 115 | 115 |
| Series | Elevation Series™ | KM EDGE X | Ice Kube |
| Refrigerant | R290 (Hydrocarbon) | R404A | R410A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
