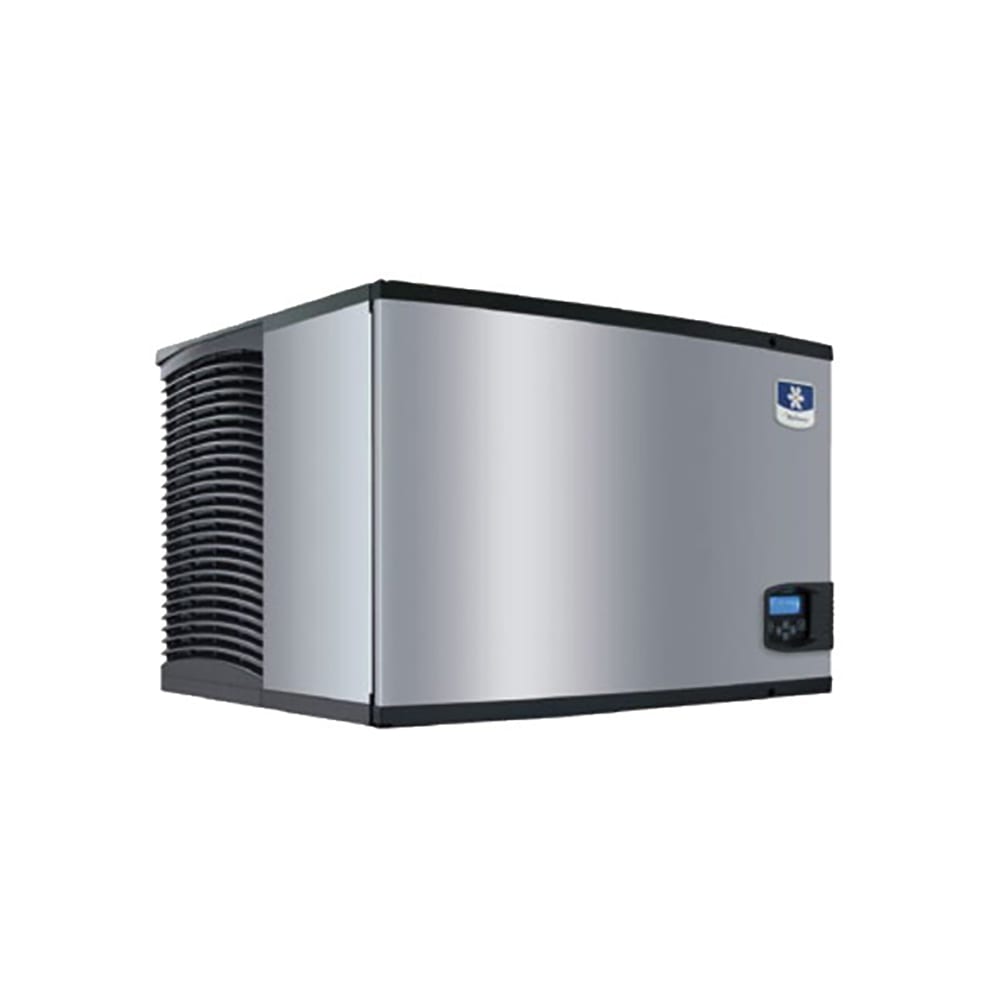

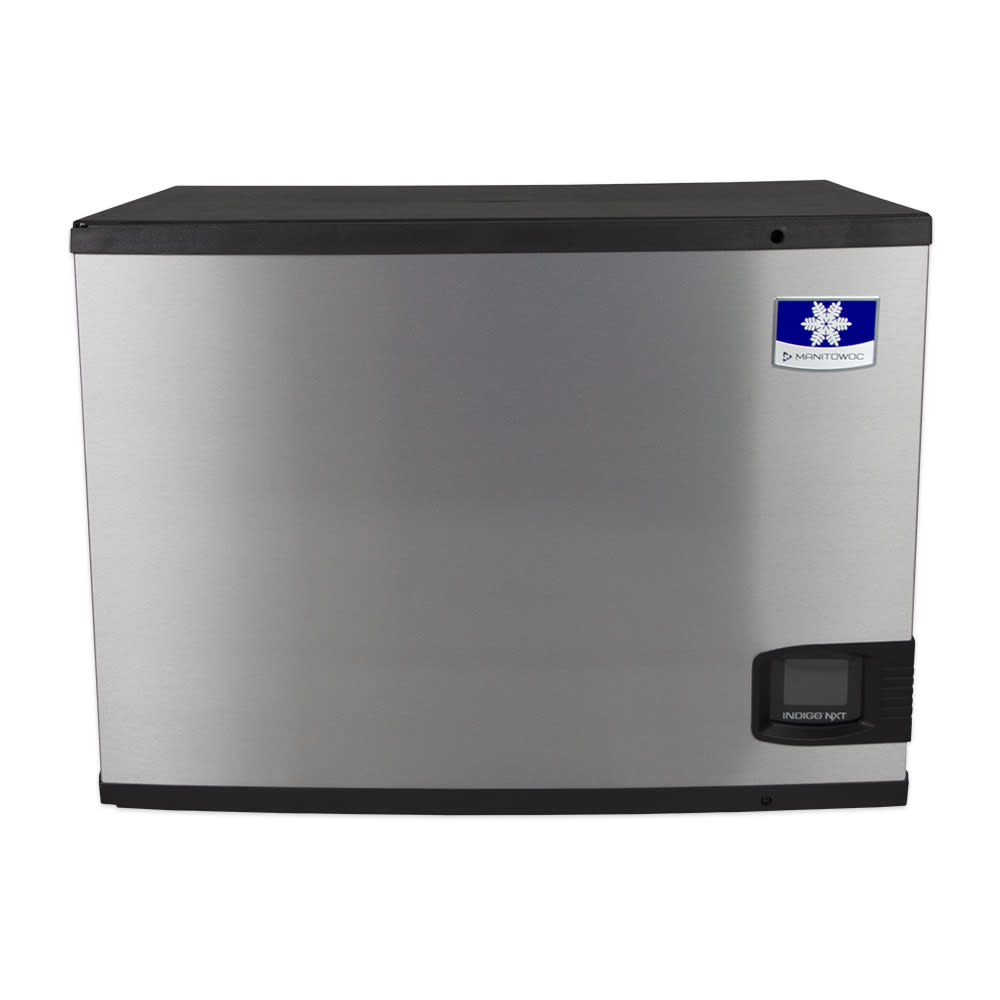

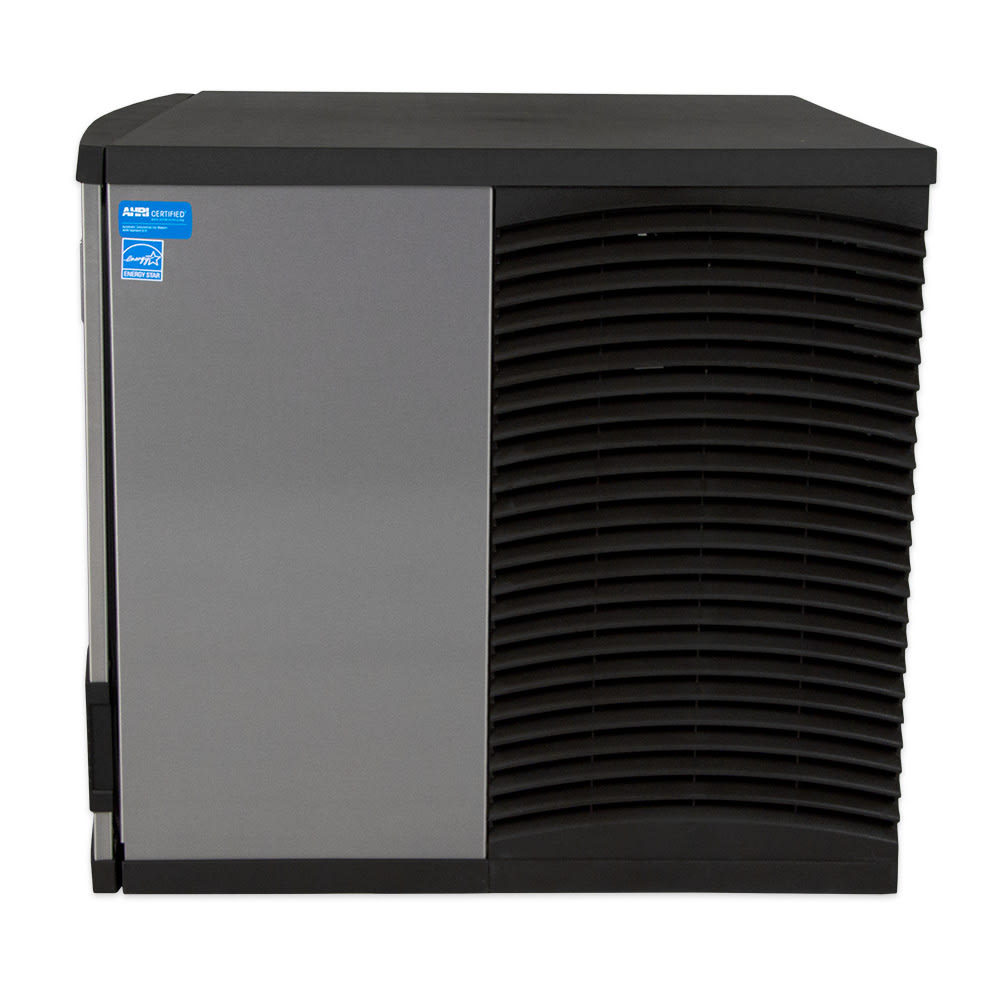

Manitowoc Ice IYP0450W 30" Indigo NXT™ Half Cube Ice Machine Head - 464 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
$4,266.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Manitowoc Ice IYP0450W Description
The Manitowoc IYP0450W 161 Indigo NXT™ ice maker is can produce 464 pounds of ice every 24 hours. Several advanced features make the machine easy to use, including an illuminated easyTouch® display that reports on the operating status, displays ice and water information, and signals when the machine needs to be cleaned. The built-in intelligent diagnostics monitor for issues that could affect performance and provide troubleshooting information.
This ice machine head is built for simplified cleanup. Its hinged door swings out of the way to access the food zone. Many of the critical food zone components can be removed for cleaning, including the water trough, distribution tube, curtain, and sensor probes. The stainless steel exterior of the Manitowoc IYP0450W 161 Indigo NXT is finished in a clear coat called DuraTech®, a material that resists corrosion and helps prevent the appearance of dirt and fingerprints.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Water-cooled condensing unit
- 464-lb. capacity for high-yield applications
- Intelligent diagnostics constantly monitor and report maintenance requirements and troubleshooting information
- Acoustical sensing probe sends a signal to harvest ice when it reaches the ideal thickness
- Adjust settings easily through the easyTouch display
- Ice production can be programmed for convenience
- Hinged front door swings out of the way to provide access to food zone
- Water curtain, distribution tube, water trough, and probes are removable to simplify cleanup
- Resists scratches and appearance of fingerprints through the DuraTech coating on the stainless steel exterior
- R290 hydrocarbon refrigerant
- Ambient temperature range for operation: 40-110 degrees F
- Water temperature range for operation: 40-90 degrees F
- 3,800-6,000 BTU
- 11.2 A, 4.7 kW
- 115 V/60 Hz/1 ph

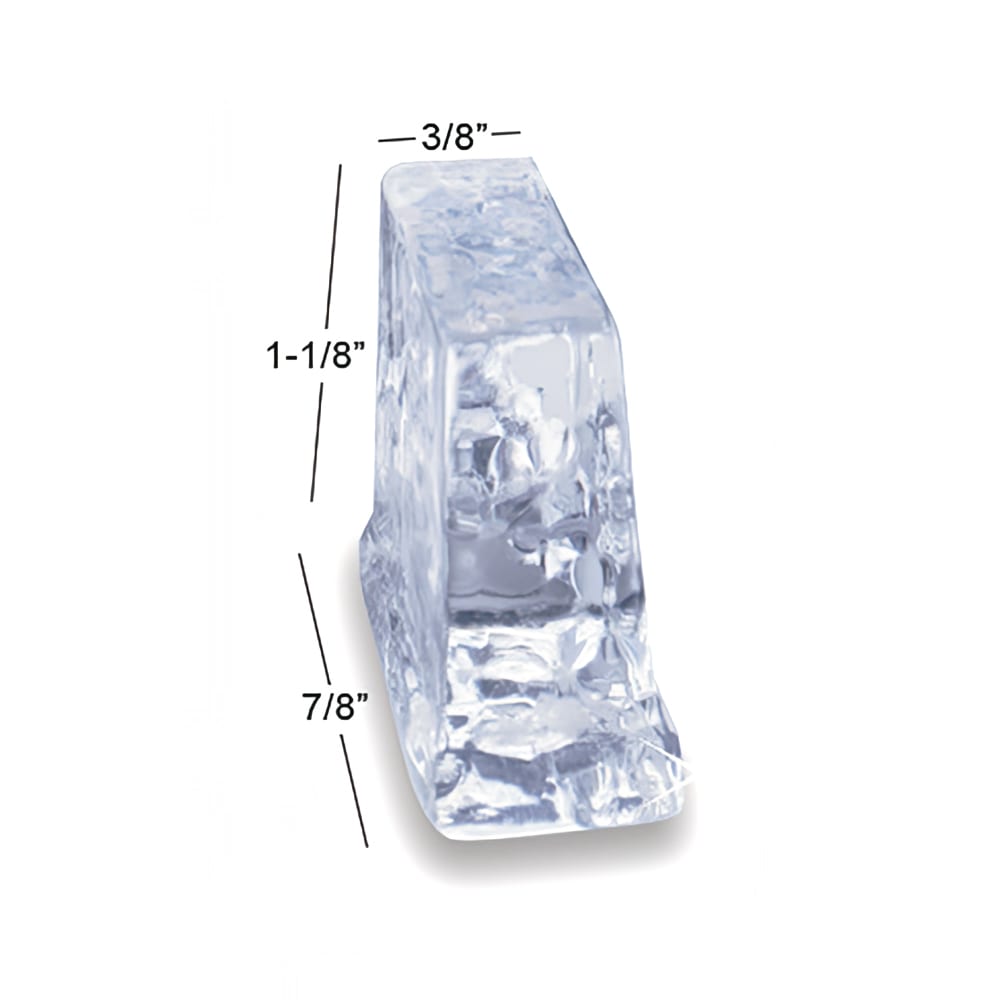

- Ice cube dimensions: 0.375 in. W x 1.125 in. D x 0.875 in. H
- Overall dimensions: 30 in. W x 24 in. D x 21.5 in. H
- Note: a bin is required for operation and plug and cord are not included
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0450W within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Manitowoc Ice IYP0450W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 464 |
| Also Known As | IYT0450W |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 21.5 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 155.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice IY0455W161
Compare to Similar Items
| Attributes |
Manitowoc Ice IYP0450W Manitowoc Ice IYP0450W 30" Indigo NXT™ Half Cube Ice Machine Head - 464 lb/24 hr, Water Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,266.00 / Each | $4,870.00 / Each | $3,617.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | Typically ships in 4 - 8 Business Days | Typically ships in 4 - 8 Business Days |
| 24 Hr. Production (lb) | 464 | 592 | 425 |
| Ice Type | Half Cube | Crescent Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 30 | 30 | 30 |
| Rating | Best | Best | Better |
| Voltage | 115 | 115 | 115 |
| Series | Indigo NXT™ | KM EDGE X | Ice Kube |
| Refrigerant | R290 (Hydrocarbon) | R404A | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces 464 lbs. of half-cube ice every 24 hours.
Yes, the ice head requires a storage bin.
This ice shape suits blended drinks and soda service.
Yes, the trough, probes, and curtain remove for cleaning.
A water-cooled condenser supports hot kitchen environments.
Its diagnostics display troubleshooting and cleaning reminders.
The DuraTech™ coating minimizes dirt and fingerprint buildup.
It fits 30-in.-wide ice storage bins.
It can produce up to 464 lb. of ice per 24 hours.
It makes half-cube ice.
It measures 30 in. W x 24 in. D x 21 1/2 in. H.
It uses a water-cooled condensing system.
It requires 115 V electrical service.
It uses single-phase power.
It uses R290 refrigerant.
It requires a hardwired electrical connection.
Its listed certifications include AHRI, cULus Listed, CE, and NSF.
Its exterior is made of stainless steel.
It requires a 3/8-in. water inlet connection.
No, this ice machine head is sold without an ice bin.
It must be paired with a separately purchased ice bin or dispenser.
It must be paired with a separately purchased ice bin or dispenser.
It has a one-touch cleaning function.
Yes, it has an alert system.
