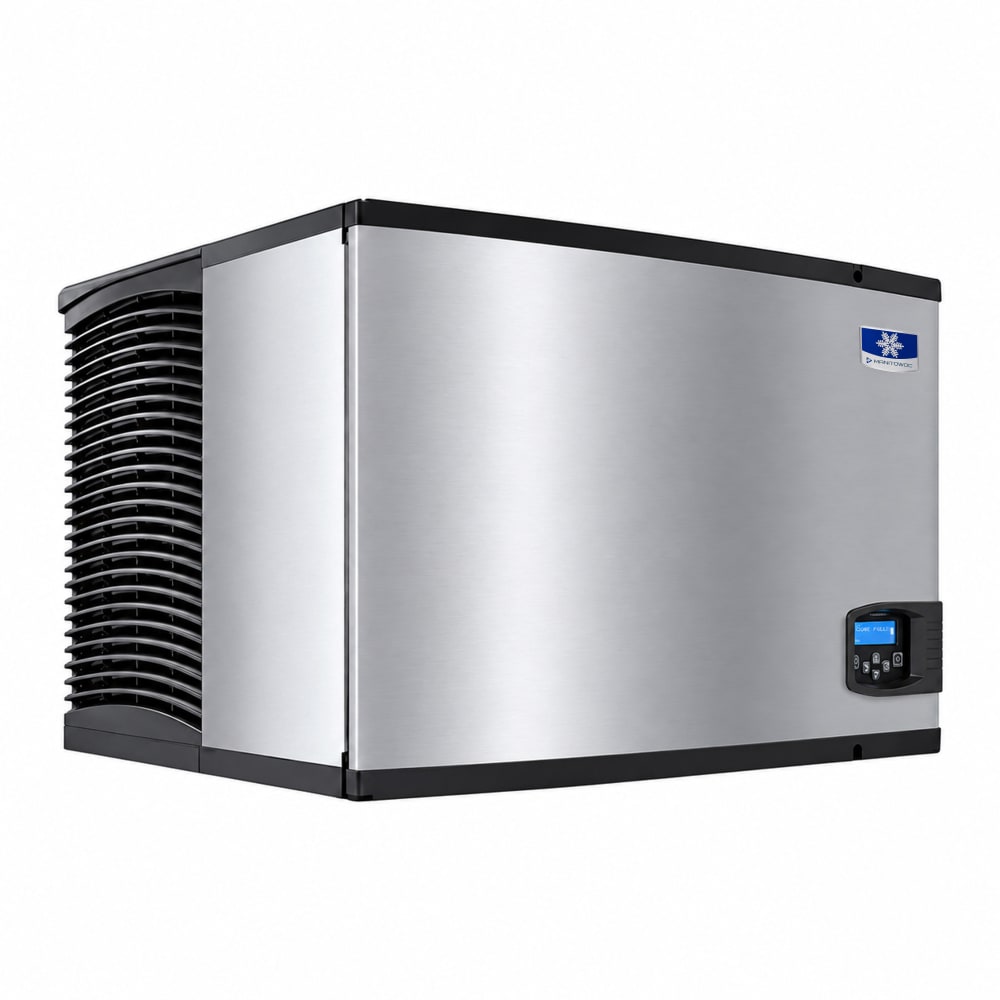

Manitowoc Ice IDT0450W 30" Indigo NXT™ Full Cube Ice Machine Head - 430 lb/24 hr, Water Cooled, 115v

If ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, the Manitowoc Ice IDT0450W ice maker can produce 430 pounds in 24 hours. The higher the temperature of the air and water, the less ice the unit will produce each cycle. It makes dice ice—also called full-cube ice—for drinks, dispensing, and bagging. Its condenser is water cooled, so it is more difficult to install than air-cooled models but runs more efficiently if the required water is available.

The Manitowoc Ice IDT0450W full-cube ice machine head includes an acoustical ice sensing probe that uses sound waves to detect the thickness of ice. This energy-efficient unit can be programmed by ice volume or to shut off at certain times of the day through its icon-based touchscreen display. The foodzone and DuraTech® coated exterior is easy to clean, resisting fingerprints and dirt and including removable accessories. To ensure this unit is in optimal shape, 24-hour diagnostics and preventive maintenance are performed.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 430-lb. maximum daily ice production
• 360-lb. AHRI-certified daily ice production
• Dice ice size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Water-cooled, self-contained condensing unit
• Made of stainless steel with DuraTech coating to prevent fingerprints from forming
• Foodzone accessed behind hinged swinging door
• Removable water probe, pump, trough, distribution tube, and curtain
• Machine performs diagnosis and maintenance 24 hrs. a day
• Senses ice density acoustically through sound waves
• Volume and time programmable
• Controlled by icon-based touch screen
• Energy efficient R410A refrigerant
• Antimicrobial agent keeps internal surfaces bacteria free
• 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• Ice storage bin or dispenser is sold separately

Product Features

Dimensions & Utilities

• 30 in. W x 24 in. D x 21.5 in. H
• 11.2 A, 4.75 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity 430 lb./24 hours at 70°/50° (360 lb. AHRI certified 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

3-year Warranty, 5-year Compressor Parts

Manitowoc Ice IDT0450W Specifications
