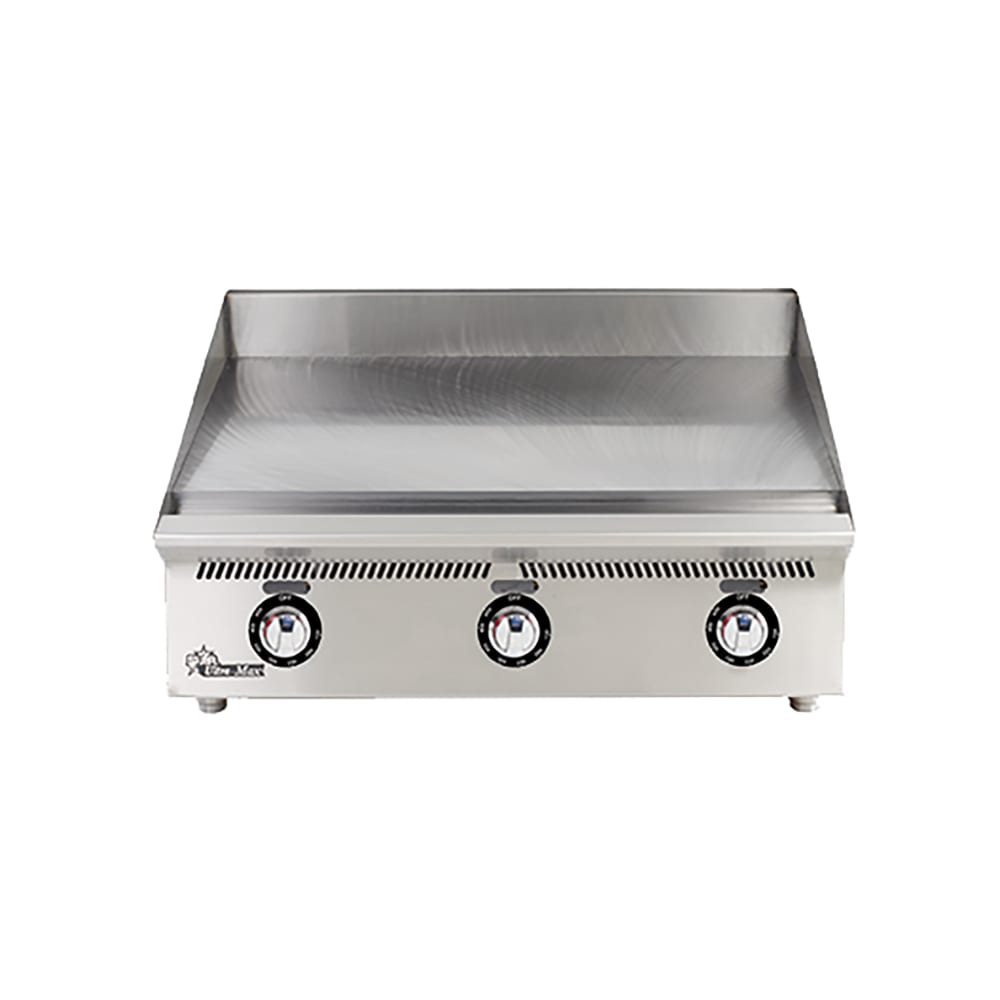

Star 836MA 36" Gas Griddle - Manual, 1" Steel Plate, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 062-836MANG • MPN: 836MA NG (B)

Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Web Price: $2,626.00

Image may not depict product color, inclusions or accessories.

Star 836MA Description

Star

Constructed with welded stainless steel sides, front, and splash guard, this 36 inch Star Manufacturing griddle has a front edge that remains safely cool-to-the-touch and a six quart stainless steel drawer. This Ultra-Max® griddle has heavy-duty metal knobs that are built to endure heat, a new burner that has a dual row porting design, and replaces model 836M. This Star Manufacturing griddle has a wrap-around stainless steel splash guard to prevent excessive messes.

Standard Features and Benefits:

  • 1-in. steel griddle plate quickly and evenly retains heat to thoroughly cook food with fast recovery
  • New heavy-duty metal knobs are built to withstand higher temperatures
  • New burner has a dual row porting design with 2 openings for gas flow, to allow for even temperature distribution
  • Welded construction for maximum durability
  • Stainless steel front edge remains safely cool to the touch
  • Wrap-around stainless steel splash guard minimizes mess
  • Wide grease trough accommodates 3-1/2 in. spatula for easy cleaning
  • 6-qt. stainless steel drawer
  • Heavy-duty 4-in. legs stabilize griddle while allowing for easy cleaning underneath
  • Steel burners are placed every 12-in. of the cooking surface and run on 30,000 BTU
  • Grease trough and chute have a width of 3-1/2 in. and are made to accommodate spatulas
  • Ships NG
  • Total Dimensions: 48-in. W x 32-3/8 in. D x 18-in. H
  • cULus, UL-EPH, and CSA Listed; ISO 9001:2000 Certified
  • Note: this unit replaces model 836M

Ultra-Max® Griddle, countertop NG gas, 36" W x 24" D cooking surface, 1" polished steel griddle plate, 3 manual controls, 5" tapered stainless wrap-around stainless steel splash guard, 3-1/2" W front grease trough with grease chute, 6 qt. stainless steel grease drawer, manual control valve, standing pilot light, 3/4" NPT male NG gas connection with a convertible pressure regulator, 4" stainless steel legs with 1-5/8" adjustment, stainless steel body, 90,000 BTU, cULus, UL, CSA, NSF 4

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

Star 836MA Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As 836M
Control Manual
Plate Material Steel
Heat Gas
Gas Type Convertible
BTU / Burner 30000
Overall Width (in) 36
Cooking Area Depth (in) 24
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Pressure Regulator
Specialty Options Front Grease Trough
Warranty 3 years parts & labor
Overall Depth (in) 32.38
Weight 399.00
Star 836MA Certifications
  • UL
  • NSF
