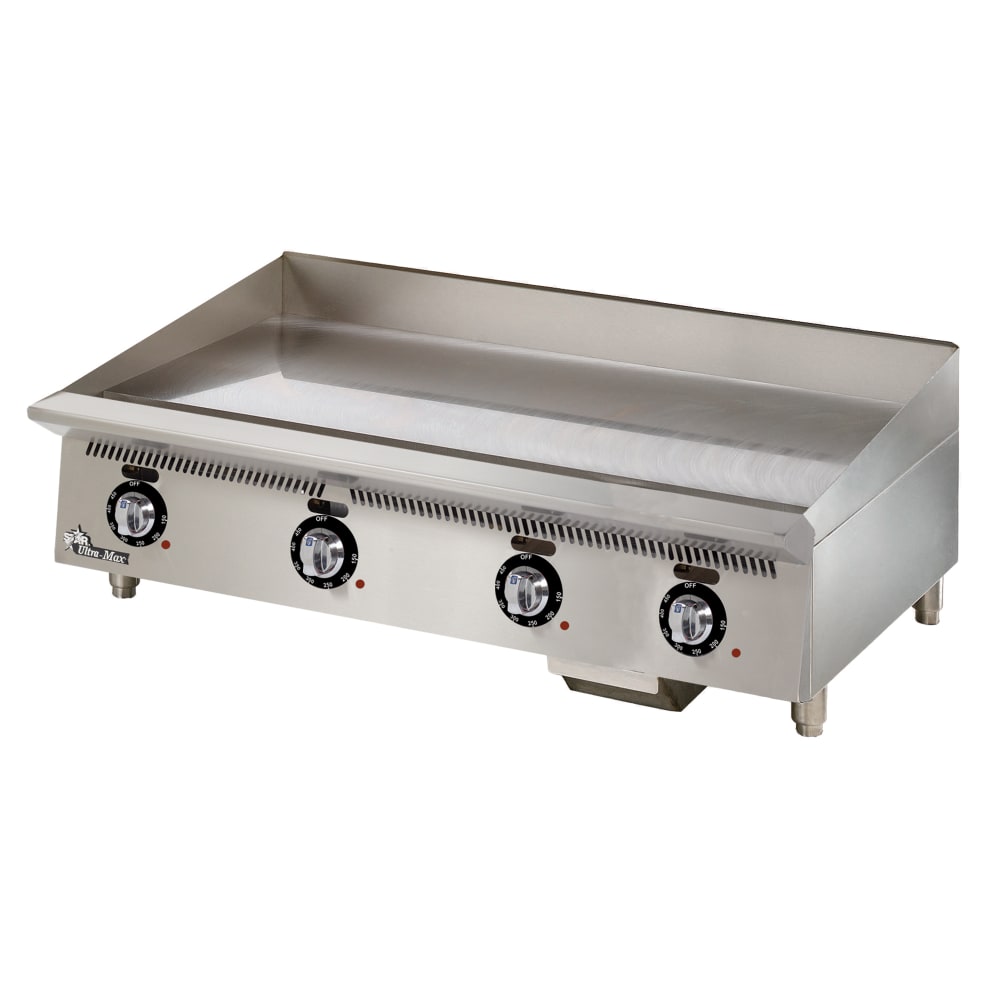

Star 748TA 48" Electric Griddle - Thermostatic, 1" Steel Plate, 208v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 062-748TA208 • MPN: 748TA 208 (B)
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Web Price: $5,065.00

Image may not depict product color, inclusions or accessories.

Star 748TA Description


The Star 748TA Ultra-Max® griddle is 48 inches long with 12-inch sections. Each section is independently heated and has an embedded snap-action thermostat to quickly alter temperatures. It operates from 150 to 450 degrees Fahrenheit and has side and rear splash guards to contain messes to the cooktop. To provide strength and resist corrosion, the base of this Star 748TA Ultra-Max griddle is made of stainless steel.

Product Details

  • Temperature range: 150-450 degrees F
  • 12-in. sections are controlled with an embedded snap-action thermostat
  • 1-in.-thick, polished steel plate withstands heating up and cooling down repeatedly
  • 5.5-in. splash guards at the rear and sides minimize the amount of splatter on the counter
  • 3.5-in. x 1-in. grease trough eases the cleaning process
  • Durable stainless steel base resists rusting
  • 4-in. adjustable legs elevate the unit to a comfortable working height
  • 1-in. clearance is required at the rear and sides
  • 17.4 kW, 83.6 A
  • 208 V/60 Hz/1 ph
  • Overall dimensions: 48 in. W x 33.6 in. D x 18 in. H
  • cULus and UL-EPH listed
  • Made in the U.S.

There is additional information about commercial griddles in our griddles buyers' guide.

Ultra-Max® Heavy Duty Griddle, electric, countertop, 48" W x 24" D cooking surface, 1" thick polished griddle plate, 150°-450°F snap-action thermostat and 4350 watt element every 12", 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. stainless steel grease drawer, heavy-duty metal knobs, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-5/8" adjustment, cULus, UL EPH Classified, Made in USA, 208v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Star 748TA Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As 748T
Control Thermostatic
Plate Material Steel
Heat Electric
Overall Width (in) 48
Cooking Area Depth (in) 24
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Snap Action
Specialty Options Front Grease Trough
Warranty 3 years parts & labor
Overall Depth (in) 34
Hertz 60
Voltage 208
Phase 1
Product Type Countertop Cooking Equipment
Product Griddle
Weight 520.00
Star 748TA Certifications
  • UL
  • NSF
