- Snap-Action thermostat control from 150 to 450 deg F provides accurate temperature control of +/- 10 degree of set point. Internal plate sensor accurately measures the temperature of the griddle plate 3/16' from the cooking surface for instant response to surface temperature change and fast recovery.
- Highly polished 1' thick steel plate for superior heat distribution, fast recovery and energy efficient operation.
- Custom designed 4350 watt element every 12' of cooking surface provides superior cooking performance.
- Euro-style design with stylishly curved, ergonomically advanced front panel provides easy access and viewing of controls.
- Safety pilot with auto-shut off for added safe
- Heavy-duty all-weld body construction with stainless steel front, side panels, bull nose and splash guard.
- Spatula wide 3-1/2' front grease trough and grease chute for easier cleaning.
- Large 6 quart stainless steel grease drawer.
- Extra-heavy 4' adjustable legs to fit your counter-top needs.
- Floor model stands available for free standing units. Optional casters available.
- Dimension: 24" (Width) X 33-11/16" (Depth) X 18" (Height)
- Grid Area: 573 square in.
- Weight: 220 lbs
- Power: 8.7 kW
- Voltage: 208 V
- 1 Phase, 41.8 A
- Ultra-Max griddles feature 1" thick highly polished steel griddle plate, 5" tapered stainless steel splash guard, 3-1/2" wide front access stainless steel grease trough, stainless steel 6 quart capacity grease drawer, and stainless steel front panels, side panels, and bull nose.
- Includes a 4350 watt element every 12" of width controlled by snap action electric thermostat.
- Griddles are equipped with a junction box at the rear for making electrical connections.
- Heavy-duty 4" legs are included.

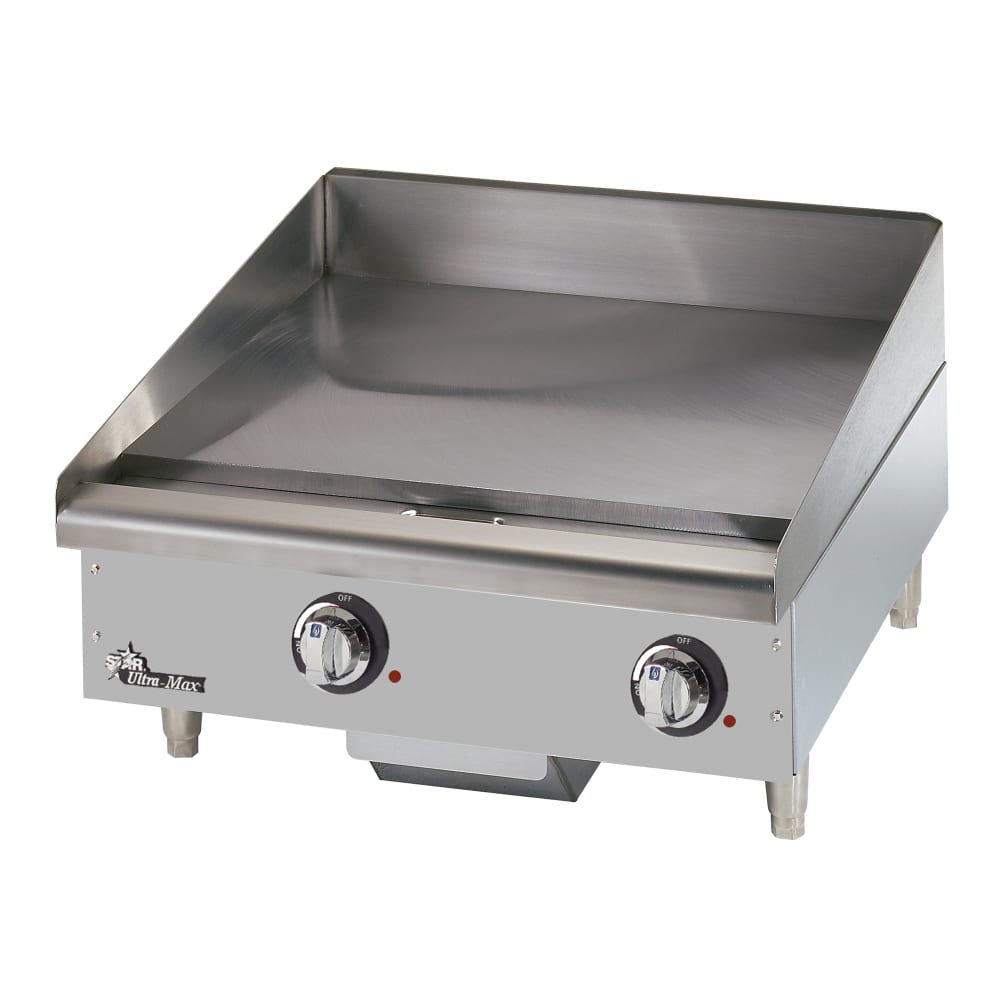

Ultra-Max® Heavy Duty Griddle, electric, countertop, 24" W x 24" D cooking surface, 1" thick polished griddle plate, 150°-450°F snap-action thermostat and 4350 watt element every 12", 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. stainless steel grease drawer, heavy-duty metal knobs, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-5/8" adjustment, cULus, UL EPH, 208v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Star 724TA SpecificationsPDF Spec Sheet
|Overall Width (in)||24|
|Cooking Area Depth (in)||24|
|Plate Thickness (in)||1|
|Control Spacing (in)||12|
|Specialty Options||Snap Action|
|Specialty Options||Front Grease Trough|
|Warranty||3 years parts & labor|
|Overall Depth (in)||34|
