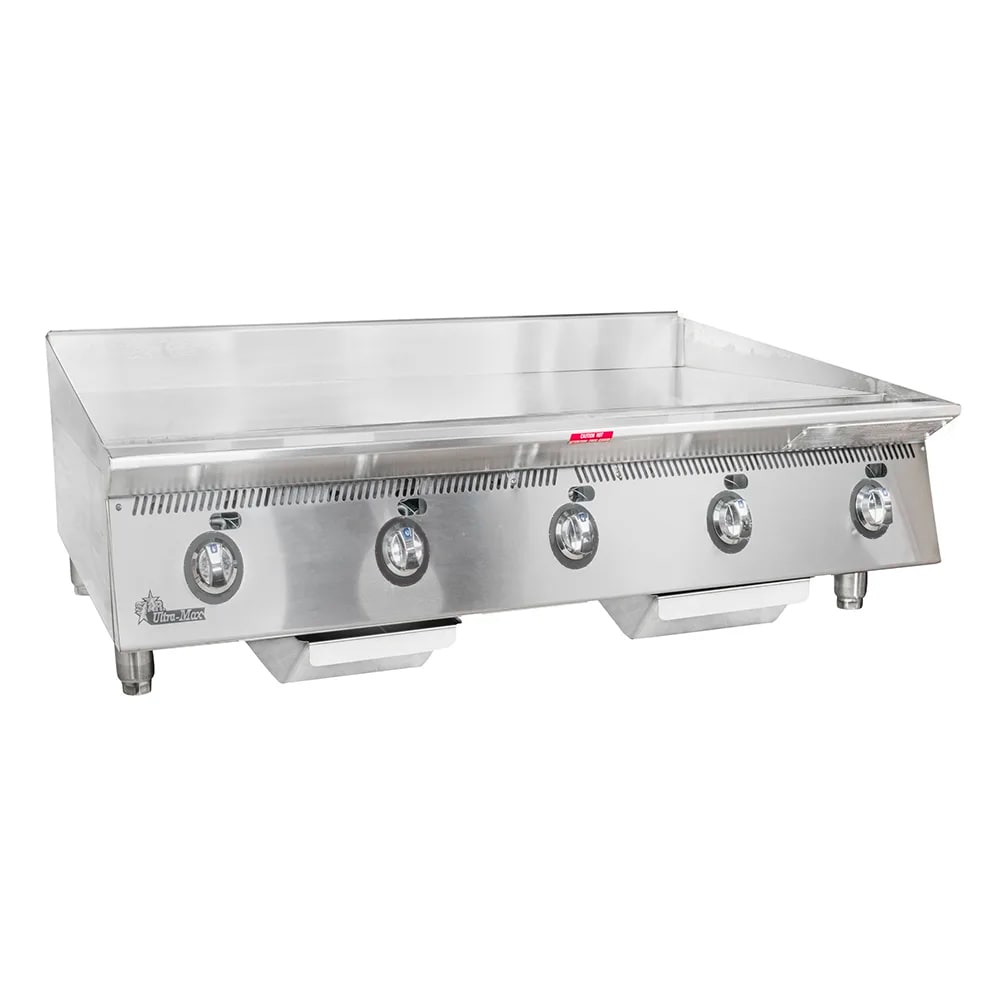

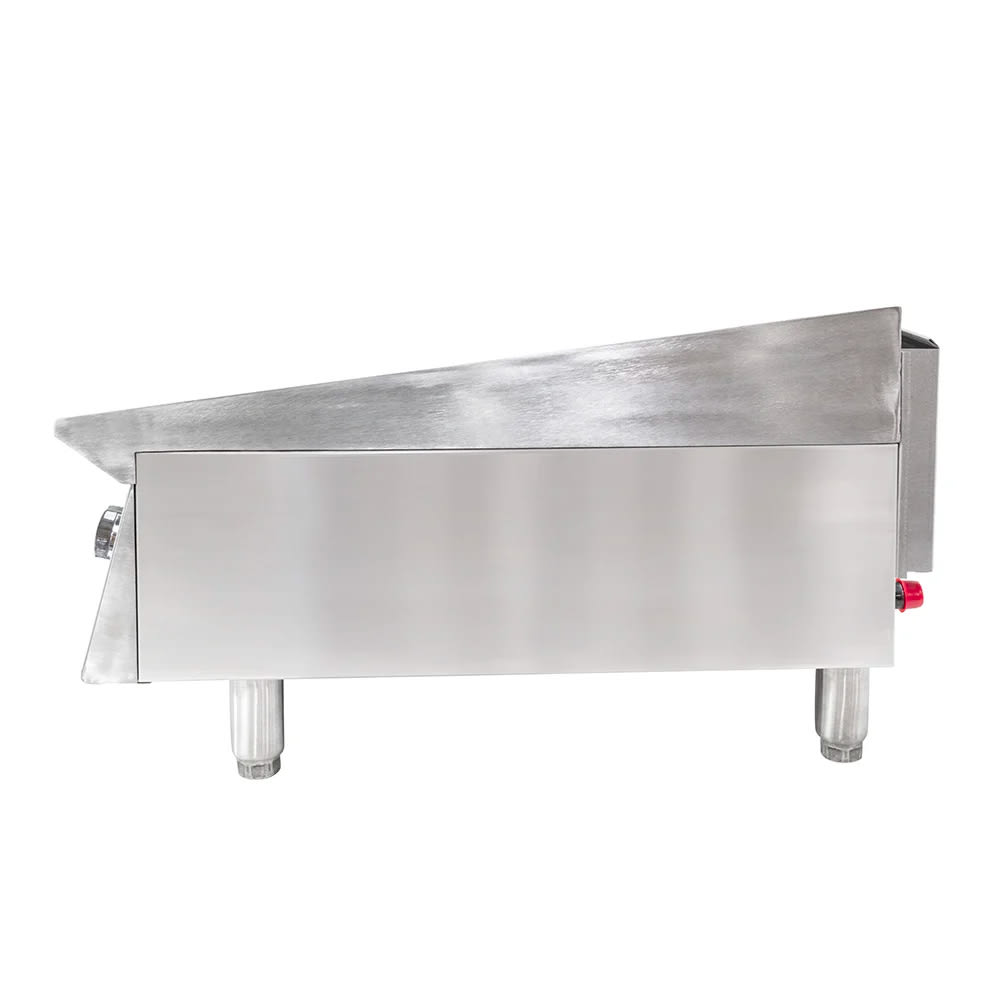

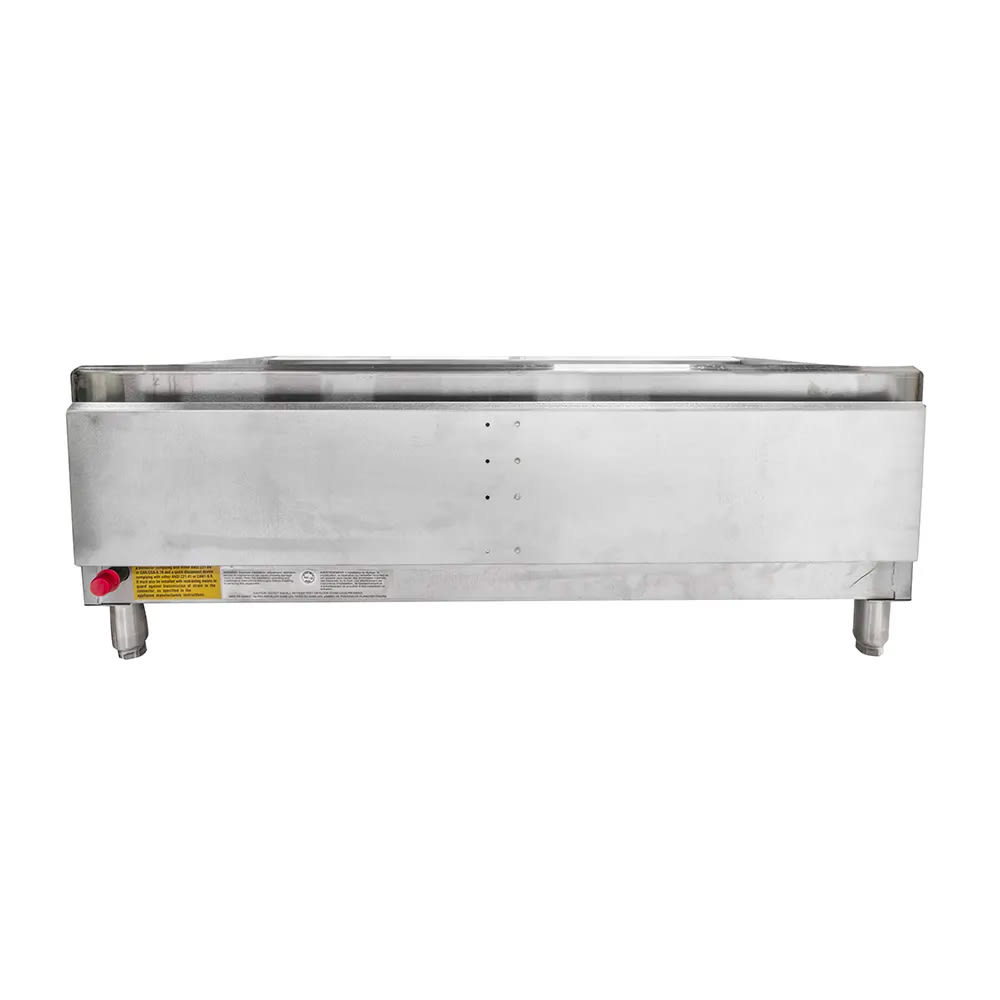

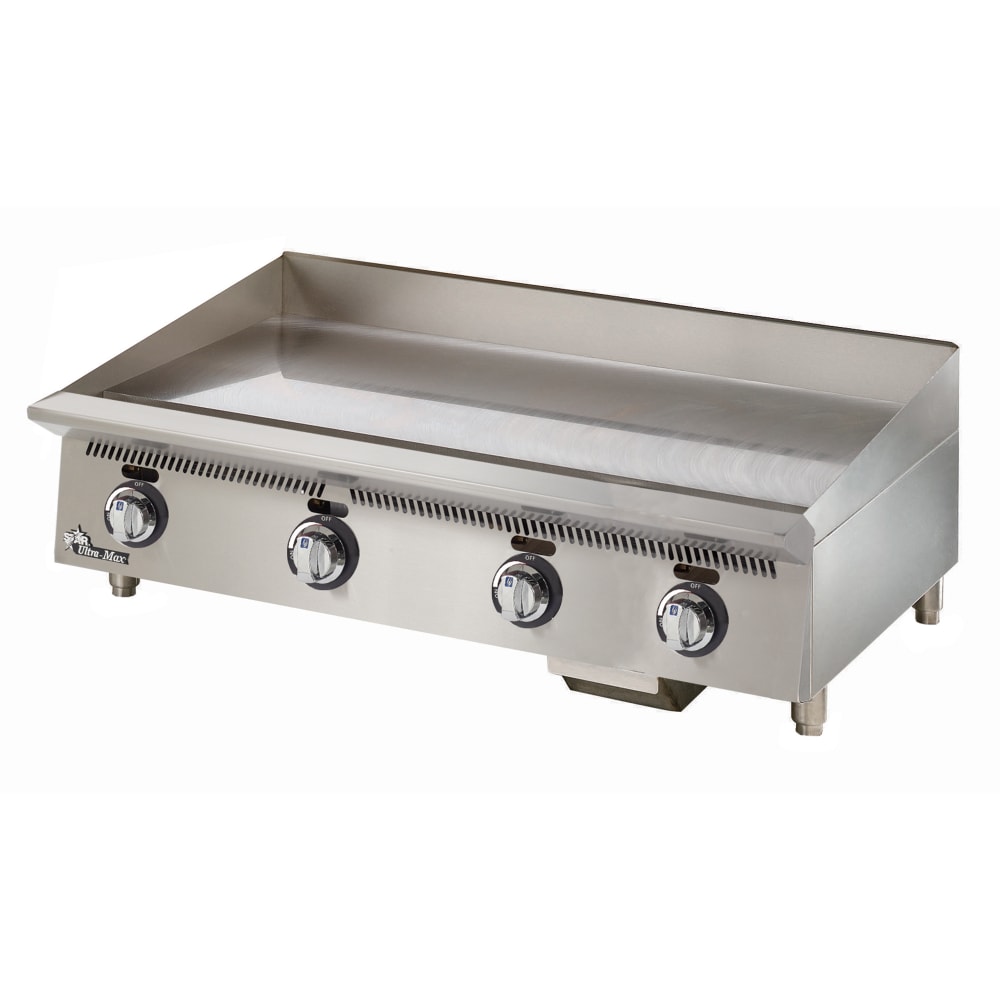

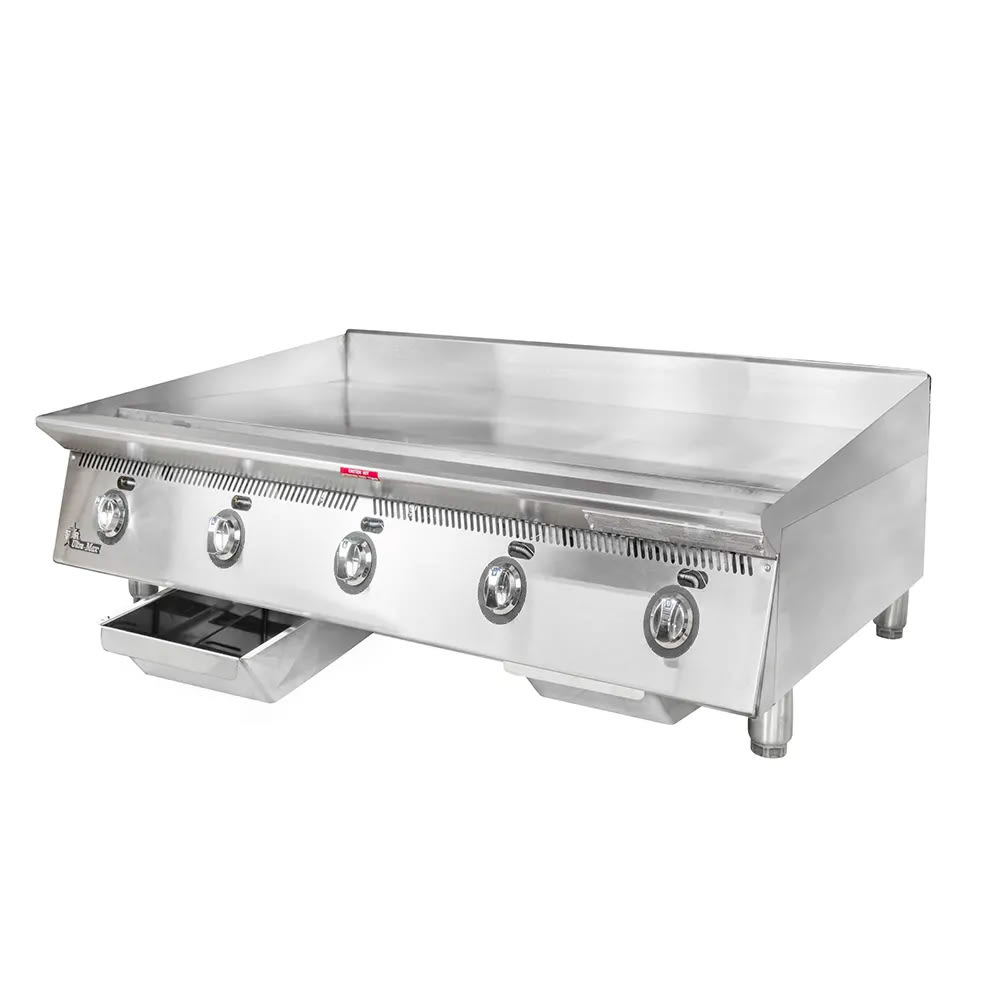

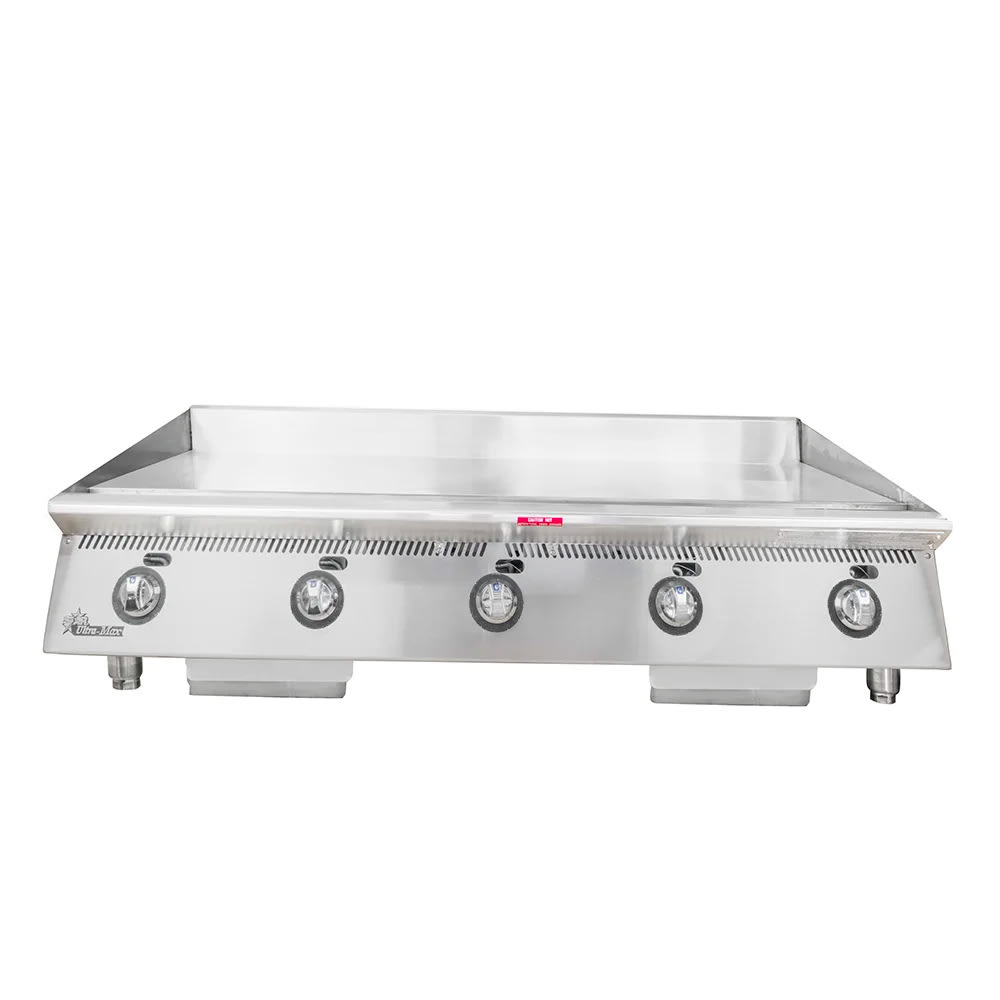

Star 860MA 60" Gas Griddle - Manual, 1" Steel Plate, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 062-860MANG • MPN: 860MA NG (B)

Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Web Price: $4,154.00

Image may not depict product color, inclusions or accessories.

Star 860MA Description


With a cool-to-the-touch bull nose made from stainless steel, the Star Manufacturing Ultra-Max® griddle provides a safe and comfortable work zone for the operator. The steel plate on this manual griddle is one inch thick and is highly polished to ensure heat distribution, faster recovery, and energy efficiency. This Ultra-Max® griddle replaces model 860M with noticeable improvements in the knobs and burners.

Standard Features and Benefits:

  • Manual control valve
  • New metal knobs are longer lasting and heavy-duty in design to resist high temperatures
  • 24-in. D cooking surface
  • 1-in. thick steel plate is highly polished and has faster recovery and heat distribution while remaining energy efficiency
  • 30,000 BTU steel burners are placed every 12-in. on the cooking surface
  • New heavy-duty burners include a dual row porting
  • Front, side panels and splash guard are made from heavy-duty, all-welded stainless steel
  • Bull nose is made from stainless steel and creates a comfortable work zone while remaining cool-to-the-touch
  • Front panel is ergonomically angled and gives easy access and viewing of controls
  • Standing pilot light
  • Front grease trough is 3-1/2 in. W to accommodate standard spatulas

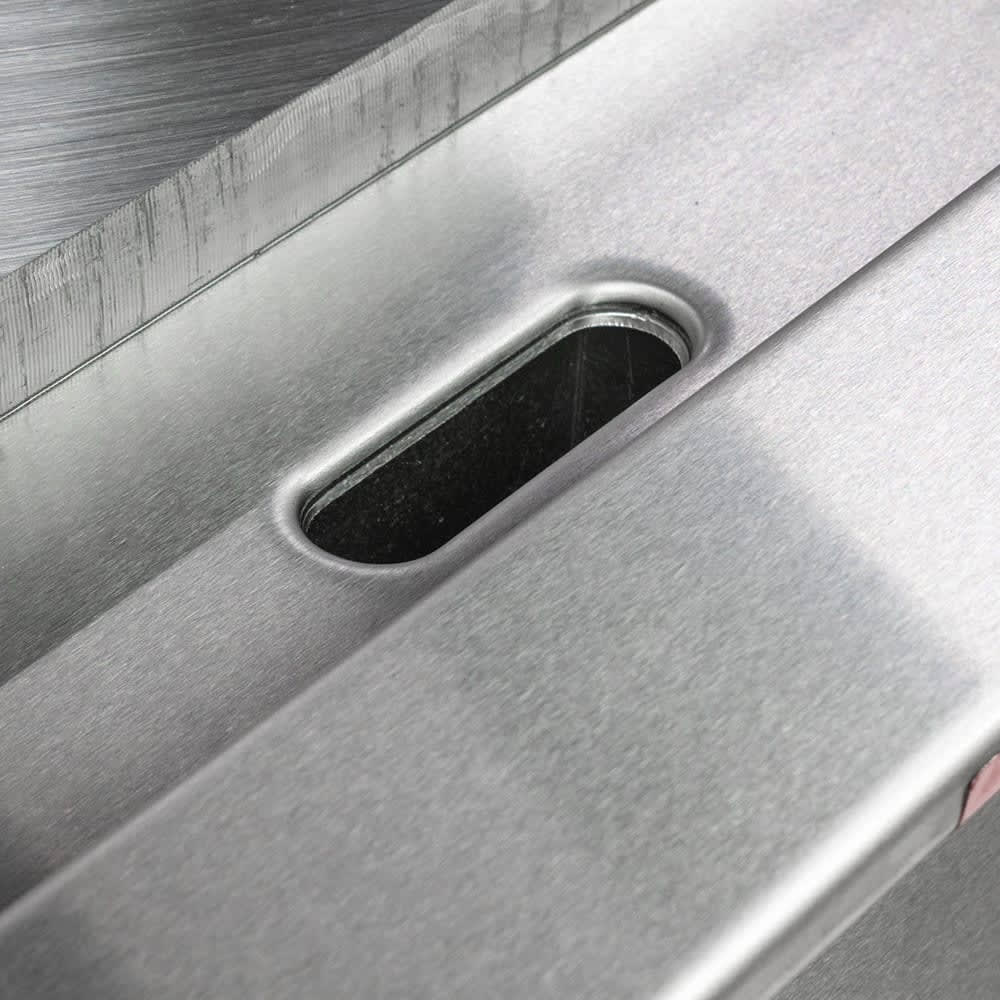

  • Grease chute helps in clean up

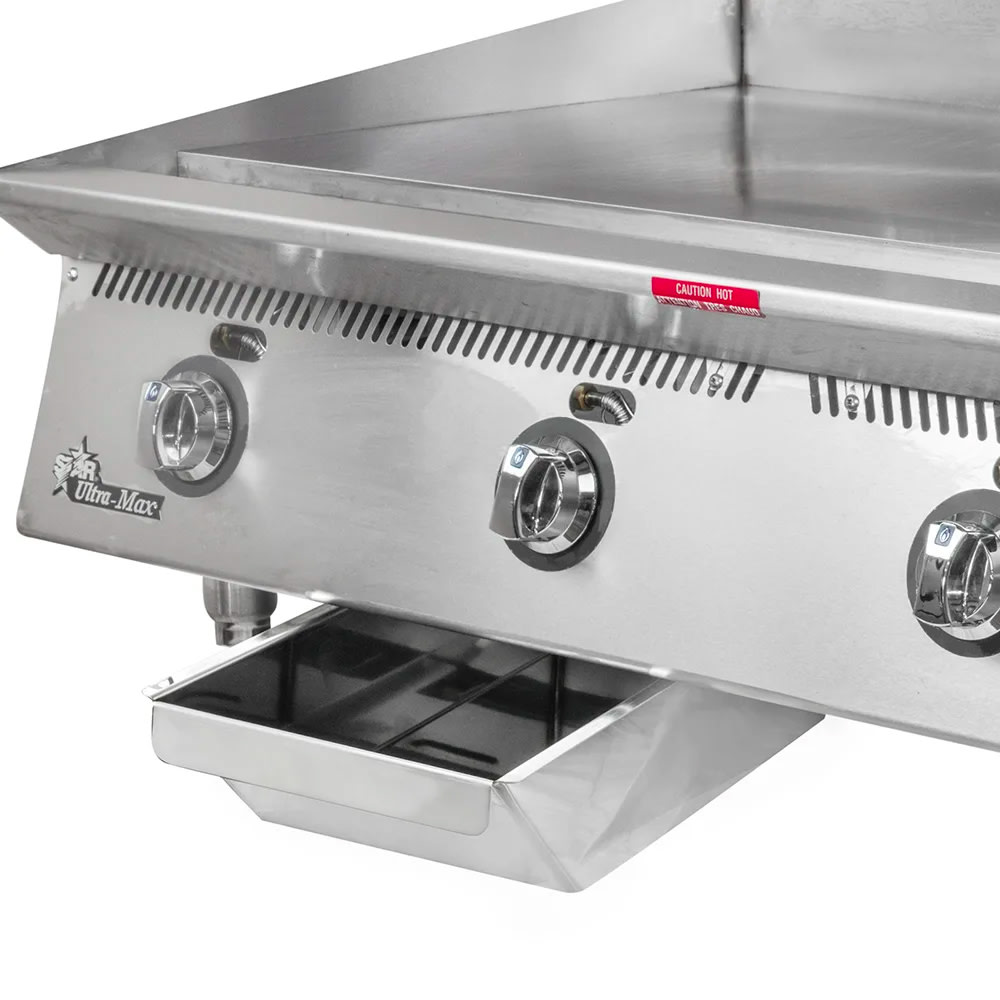

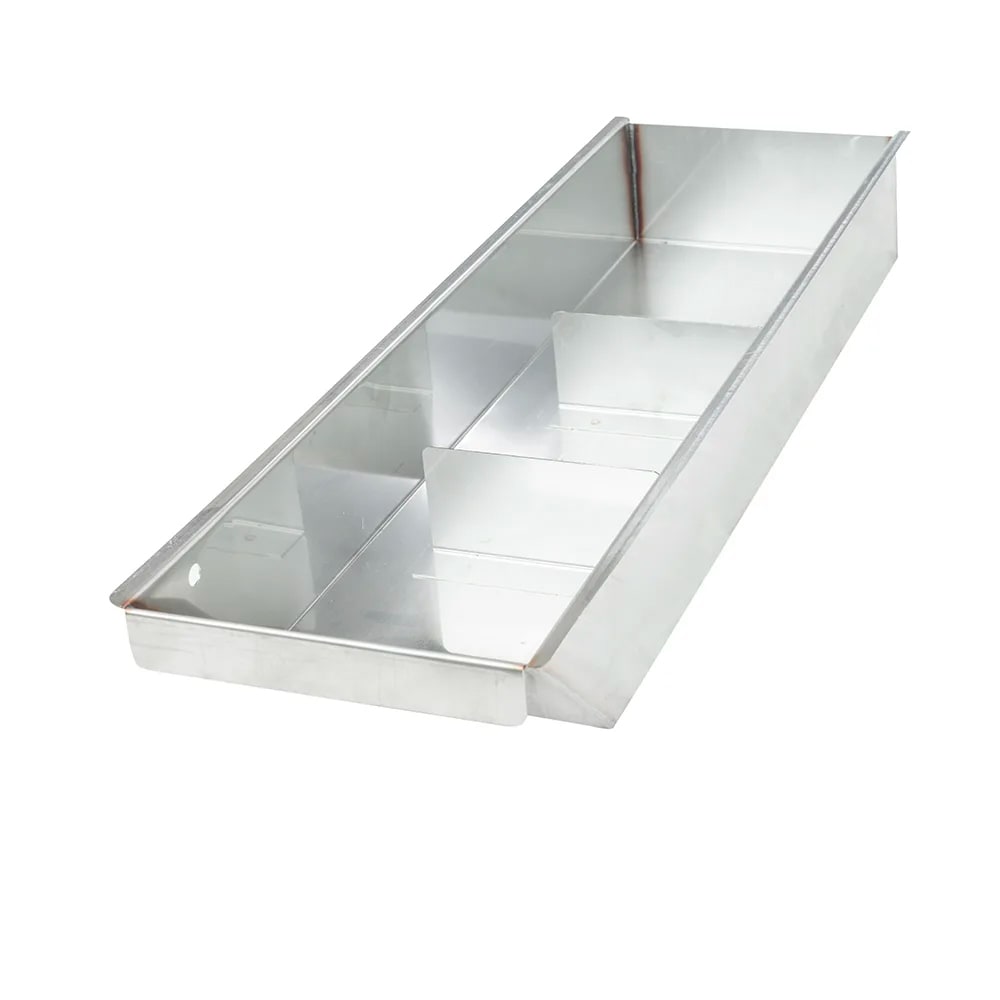

  • Stainless steel grease drawer has a 6-qt. capacity
  • 4-in. adjustable legs
  • 150,000 BTU
  • Total Dimensions: 60-in. W x 32-3/8 in. D x 18-in. H
  • UL-EPH, cULus, and CSA Listed; ISO 9001:2000 Certified
  • Note: this unit replaces model 860M

Ultra-Max® Griddle, countertop NG gas, 60" W x 24" D cooking surface, 1" polished steel griddle plate, 5 manual controls, 5" tapered stainless wrap-around stainless steel splash guard, 3-1/2" W front grease trough with grease chute, 6 qt. stainless steel grease drawer, manual control valve, standing pilot light, 3/4" NPT male NG gas connection with a convertible pressure regulator, 4" stainless steel legs with 1-5/8" adjustment, stainless steel body, 150,000 BTU, cULus, UL, CSA, NSF 4

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

Star 860MA Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As 860M
Control Manual
Plate Material Steel
Heat Gas
Gas Type Convertible
BTU / Burner 30000
Overall Width (in) 60
Cooking Area Depth (in) 24
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Pressure Regulator
Specialty Options Front Grease Trough
Warranty 3 years parts & labor
Overall Depth (in) 32.38
Weight 635.00
Star 860MA Certifications
  • UL
  • NSF
