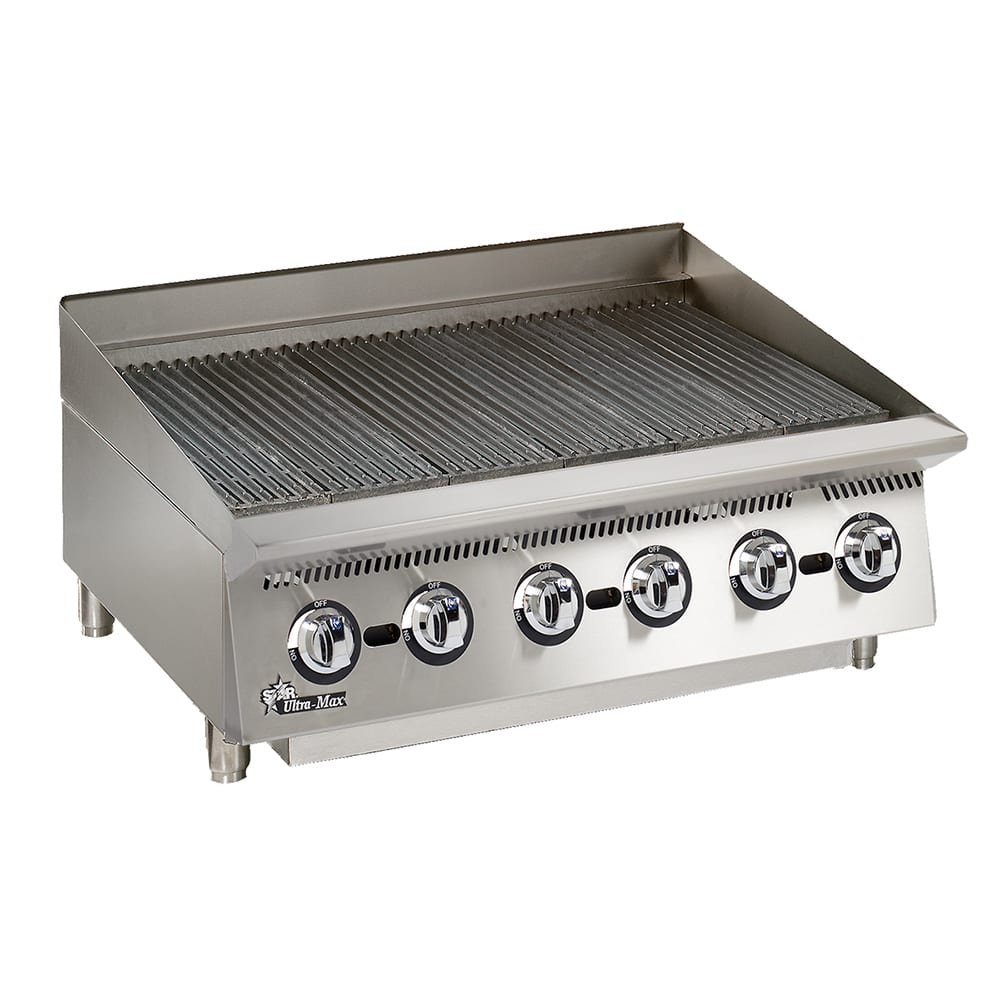

Star 8136RCBB 36" Charbroiler - Manual Controls, Steel Radiants, 120000-BTU, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 062-8136RCBANG • MPN: 8136RCBB NG (QS)

Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Web Price: $3,528.80

Image may not depict product color, inclusions or accessories.

Star 8136RCBB Description


This Star Ultra-Max® radiant char-broiler replaces 8136RCB and has a steel radiant for even heat distribution. Cast iron grates on the char-broiler can be reversed to sear or gently cook and can be adjusted to a flat or slanted position to meet cooking requirements. Tubular burners are set every six inches across the char-broiler's cooking space to distribute heat evenly for consistent cooking results.

Product Details

  • NG gas (LP gas conversion kit included)
  • Steel alloy radiant with grooves
  • 906-sq in. grid - 30% more cooking space than previous Star models
  • 6 burners, each with an all-metal control knob
  • 20,000 BTU cast iron burners every 6-in. of cooking surface
  • Reversible cast iron grates for different cooking requirements
  • Grates can be individually positioned to be flat or slanted
  • Stainless steel 5-in. splash guard, water pan, and bull nose
  • Bull nose front stays cool even when char-broiler is in use
  • 4-in. adjustable legs
  • 120,000 BTU
  • Overall Dimensions: 36-in. W x 30-5/8 in. D x 18-in. H
  • cULus and UL-EPH Listed, ISO 9001:2000 Certified

Durable Construction

  • Improved heavy-duty metal knobs are designed to last longer than previous designs
  • Stainless steel construction on body and front panel is easy to clean and resists corrosion and discoloration for longer than other materials
  • High-strength steel alloy radiant does not bend or crack under thermal shock like cast iron does

Designed to Cook Quicker and Enhance Flavors

  • Steel radiants deliver more heat than traditional cast iron burners
  • Straight tubular cast iron burners have even heat distribution to cook food quickly and sear in flavor
  • Each burner is controlled by a front-mounted knob for greater sectional control
  • Reversible cast-iron cooking grates have a thick side for searing food quickly and a thin side for delicate items
  • Cast iron surfaces retain heat and maintain a consistent cooking temperature better than other materials

Ultra-Max® Charbroiler, gas, 36"L, 30-5/8"D, 18"H, steel radiants, adjustable manual controls every 6", welded steel frame with stainless steel side & front panel, bullnose, cast iron broiling grates, drip pan, splash guard & grease trough, 4" legs, 120,000 BTU, cULus, UL, NSF 4. Shipped with field conversion kit for LP.

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Star 8136RCBB Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As 8136RCB
BTU 120,000
Category Char Broilers & Outdoor Grills
Cooking Surface Stainless Steel
Function Heavy Duty
Grid Area 906
Heat Gas
Height (in) 18
Type Radiant
Width (in) 36
Warranty 3 year
Weight 378.00
Star 8136RCBB Certifications
  • UL
  • NSF
