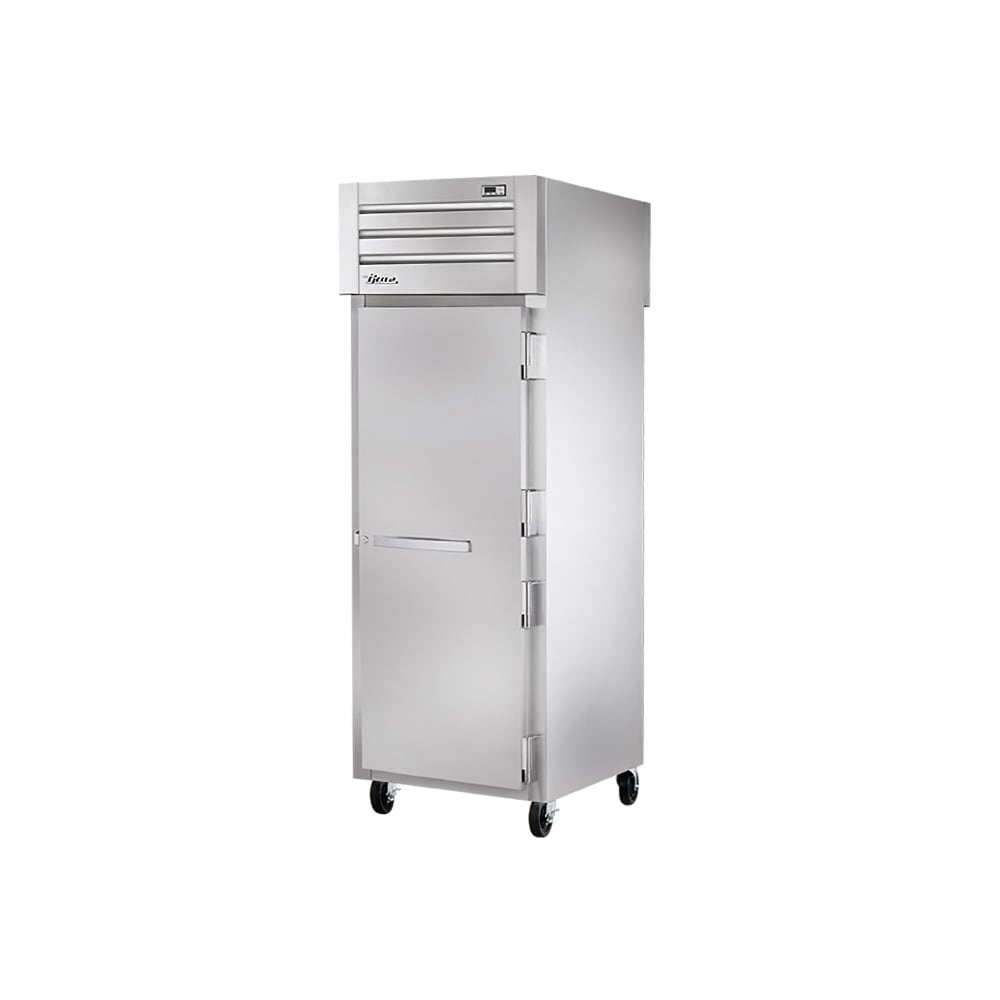

TA Series - Pass-Thru Heated Cabinet
Model TA1HPT-1S-1S - 1 Solid Front / 1 Solid Back Swing Doors, 1 Interior Kit, 31 Cu. Ft.
TRUE - 100% Manufactured in America - Over 60 years experience - Best In Class 2001-2008 Eight Consecutive Years
- Provides cabinet holding temperature of 80 degree F to 180 degree F (26.6 degree to 82.2 degree C)
- Equipped with low-velocity to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch.
- Two (2) stainless steel (for corrosion resistance), finned tube heated elements. (1000 watts each) for uniform generation of electric heat. Cabinet comes with a total of 2000 watts.
- 300 series stainless steel exterior front, sides, back and bottom. The very finest stainless with higher tensile strength for fewer dents and scratches
- Anodized aluminum interior cabinet liner 300 series stainless steel floor with coved corners.
- Energy efficient, triple pane, thermal insulated glass door. 300 series stainless steel rear door liner and floor with coved corners.
- Three (3) adjustable, heavy duty chrome plated wire shelves. 25' x 28 13/16' D (635 mm x 732). Four (4) chrome plated shelf clips to included per shelf.
- Positive seal self-closing door with 120deg; stay open feature. Lifetime guaranteed door hinges and torsion type closure system.
- Entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation. Optional Features / Accessories Up-charge and lead times may apply
- 4' (102 mm) diameter swivel castors.
- Seismic/flanged legs.
- Chrome shelves
- #1 pan slides
- #2 rod style pan slides.
- Curb mountable units.
- Export units - consult factory.
- Curb mountable unit.
- Prison package options - consult factory. Warranty Info
- 1 year warranty on all parts and labor
- Additional 4 year on compressor. (U.S.A. only) Installation Manual
- View Installation Manuals for True Refrigeration Equipment
Remote Cabinet Info
Remote cabinets (condensing unit supplied by others; system comes standard with 404A expansion valve and requires R404A refrigerant). Contact Customer Service for more information.
SPEC SERIES Pass-thru Heated Cabinet, one-section, stainless steel front & sides, (1) stainless steel door front & rear with locks, cam-lift hinges, digital temperature control, aluminum interior, (3) chrome shelves, 5" castors, 1.5KW, NEMA 6-15P, 208-230v/60/1, 9' cord, MADE IN USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
True Refrigeration STA1HPT-1S-1S SpecificationsPDF Spec Sheet
|Doors||Full Solid/ Full Solid|
|Construction||SS Exterior & Alum Interior|
|Also Known As||TA1HPT1S1S, TA1HPT-1S-1S, TRUTA1HPT1S1S, TRUE TA1HPT-1S-1S, 890TA1HPT1S1S|
|Category||Pass Thru/Specialty Heated Cab|
|Specialty Options||Pass Thru|
|Size||Full Height (69" +)|
