Kold-Draft GBX1064LC/KDB650 1047 lb Full Cube Ice Machine w/ Bin - 660 lb Storage, Water Cooled, 208-230v

Built for high-volume ice production, the Kold-Draft GBX1064LC/KDB650 modular ice machine with storage bin produces up to 1,047 pounds of full-cube ice per day. The water-cooled, self-contained condenser regulates operating temperatures and minimizes heat buildup for reliable performance. Compatible with GB series ice makers, this unit integrates easily into commercial operations. The full-dice size ice is ideal for beverage service, food preservation, and cocktail presentation. The included storage bin holds 660 pounds of ice, ensuring a steady supply during peak hours.

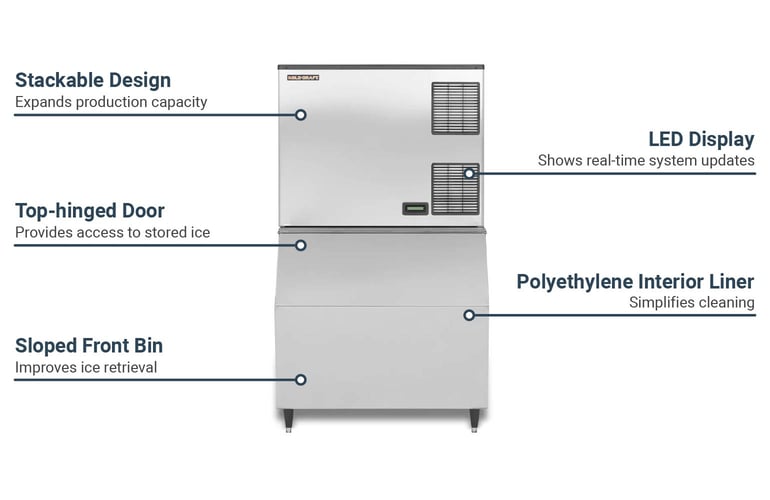

The Kold-Draft GBX1064LC/KDB650 ice machine features a stackable design to expand ice production when needed. A polyethylene interior liner simplifies cleaning, while the LED display provides real-time monitoring of system performance and ice levels. A stainless steel frame with a plastic top and louvers provides durability and corrosion resistance. The sloped front bin and top-hinged door improve accessibility, and six-inch legs elevate the unit for stability and airflow.

Product Details

• 1,047-lb. full-cube ice production per day
• Water-cooled, self-contained condenser
• Thermostatic expansion valve
• R-404a refrigerant
• Stainless steel frame
• Plastic top and louvers
• Full-dice size ice
• Stackable design
• LED display
• Polyethylene interior liner
• Sloped front
• Top-hinged door
• 6-in. legs

Ice Bin

• 660-lb. ice storage capacity
• 42³/₁₀-in. width
• Polyethylene interior liner
• Sloped front
• Top-hinged door
• Compatible with GB series ice makers
• Includes ice scoop

Dimensions & Utilities

• Overall dimensions: 42³/₁₀ in. W x 35 in. D x 74⁷/₁₀ in. H
• 208-230 V/60 Hz/1 ph
• 12.9 A
• Produces up to 1,047 lbs. of ice at 70 degrees F air and 50 degrees F water temperature

Product Features

*Free shipping on Kold-Draft GBX1064LC/KDB650 within the 48 contiguous states.

From The Manufacturer

Ice Maker, cube-style, water-cooled self-contained condenser, production capacity up to 1047 lbs/24 hours at 70°/50° (918 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 208-230v/60/1-ph, 12.9 amps, cETLus, Made in USA

Ice Storage Bin, 42" W, sloped front, top-hinged door, 660 lb ice storage capacity, stainless steel exterior, polyethylene interior liner, 6" legs (for GB series ice makers)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts

Kold-Draft GBX1064LC/KDB650 Specifications

Documents

Spec Sheet

Installation Guide
