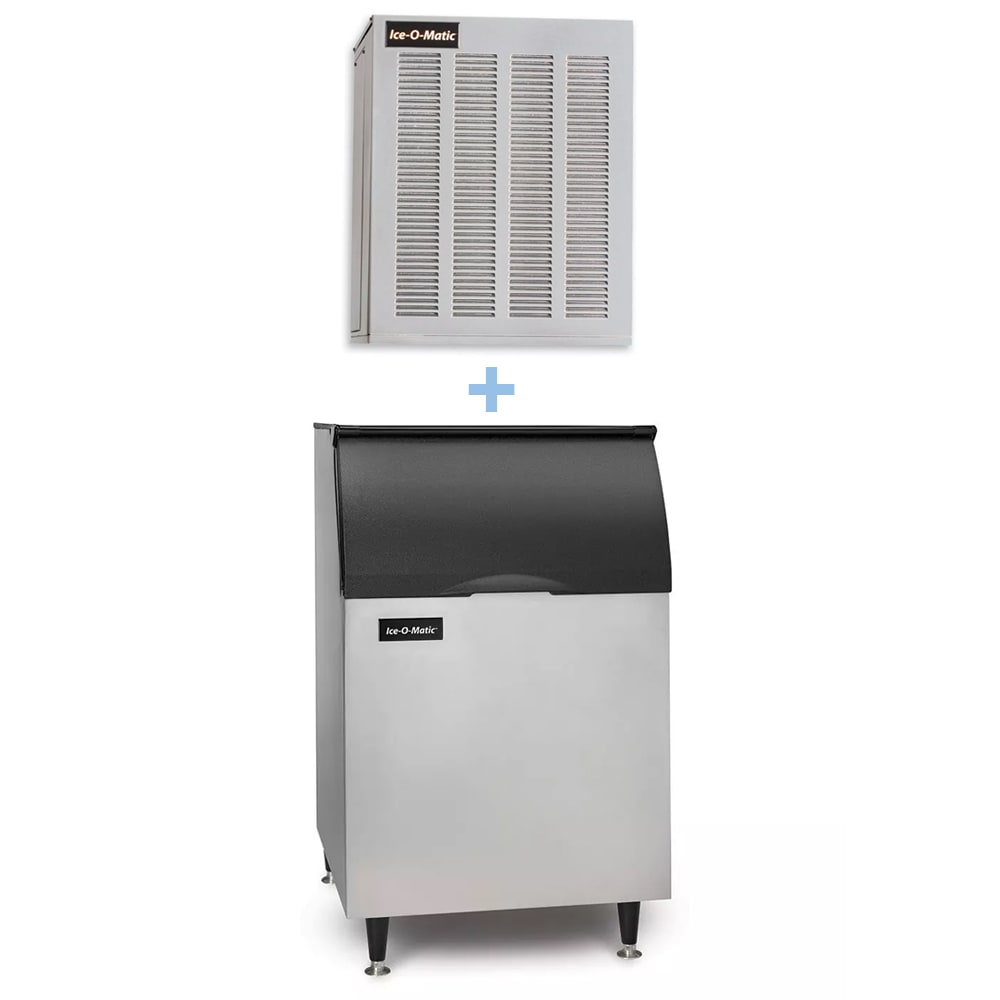

Ice-O-Matic GEM0956A/B55PS 1053 lb Nugget Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 208-230v/1ph

The Ice-O-Matic GEM0956A/B55PS nugget ice machine head and bin combo can produce as much as 1,053 pounds of ice per day in favorable conditions and store as much as 510 pounds of that ice in its insulated bin for later use. Operating with an air-cooled system, this unit consumes less water and power than similar cube-style ice makers. For simplicity and space conservation in a crowded area, the ice maker’s condenser is self-contained and requires no special building modifications to install or operate.

Sealing up extra spaces so cold air doesn’t escape, the Ice-O-Matic GEM0956A/B55PS nugget ice maker head and bin combo comes with a KBT19 bin top that enables users to securely mount the ice machine head atop the bin. An aluminum exterior finish lends the ice bin corrosion-resistance, and its slope front door is top hinged for streamlined access. With a depth of 31 inches, the bin is capable of holding a large amount of ice in a compact footprint.

Ice Maker Product Details

• Pearl Ice® series
• Air cooled
• Produces soft, chewable nugget ice
• Ice cube dimensions: ¹⁄₂ in. W x ³⁄₈ in. D
• 1,053-lb. maximum daily ice production
• Self-contained condenser
• Uses less water and power than cube-style ice makers
• Durable stainless finish exterior
• Space-saving, 21-inch-wide footprint
• SystemSafe load monitoring system protects gearbox from damage
• Water sensor prevents failures caused by low water, no water, or adverse water conditions
• Stainless steel evaporator and auger withstand intensive use
• Industrial grade roller bearings add strength
• Heavy-duty gearbox provides long-term performance
• Ideal incoming water pressure: 20-120 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• Heat displacement: 5,600 BTU

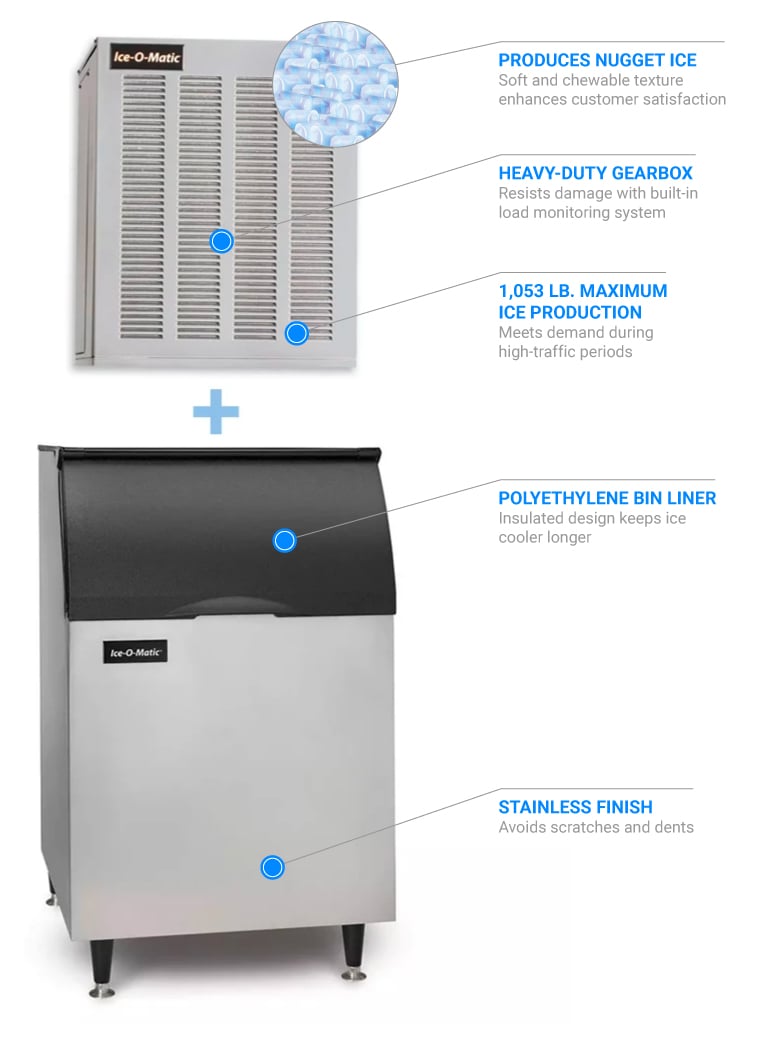

Product Features

Bin Product Details

• Includes KBT19 bin top for mounting 22-in. ice maker on 30-in. bin
• 510-lb. storage capacity
• Aluminum exterior finish adds durability
• Top-hinged, slope front door
• Polyethylene liner is foam insulated to preserve ice
• Bin is 31-in. deep to hold a large amount of ice without wasting floor space
• Supported by adjustable legs that measure 6 in.

Dimensions & Utilities

• Head: 21 in. W x 24 in. D x 27 in. H
• Bin: 30 in. W x 31 in. D x 50 in. H
• Potable water inlet: ³⁄₈ in.
• Water outlet: ³⁄₄ in.
• 11.8 A, 4.06 kW
• 208-230 V/60 Hz/1 ph

From The Manufacturer

Pearl Ice® Maker w/ Bin, soft, chewable ice crystals, air-cooled, self-contained condenser, approximately 1053 lb/478 kg production/24 hours, durable stainless finish, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE, ENERGY STAR®; Ice Bin w/ Bin Top: 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6" legs, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Compressor Parts
