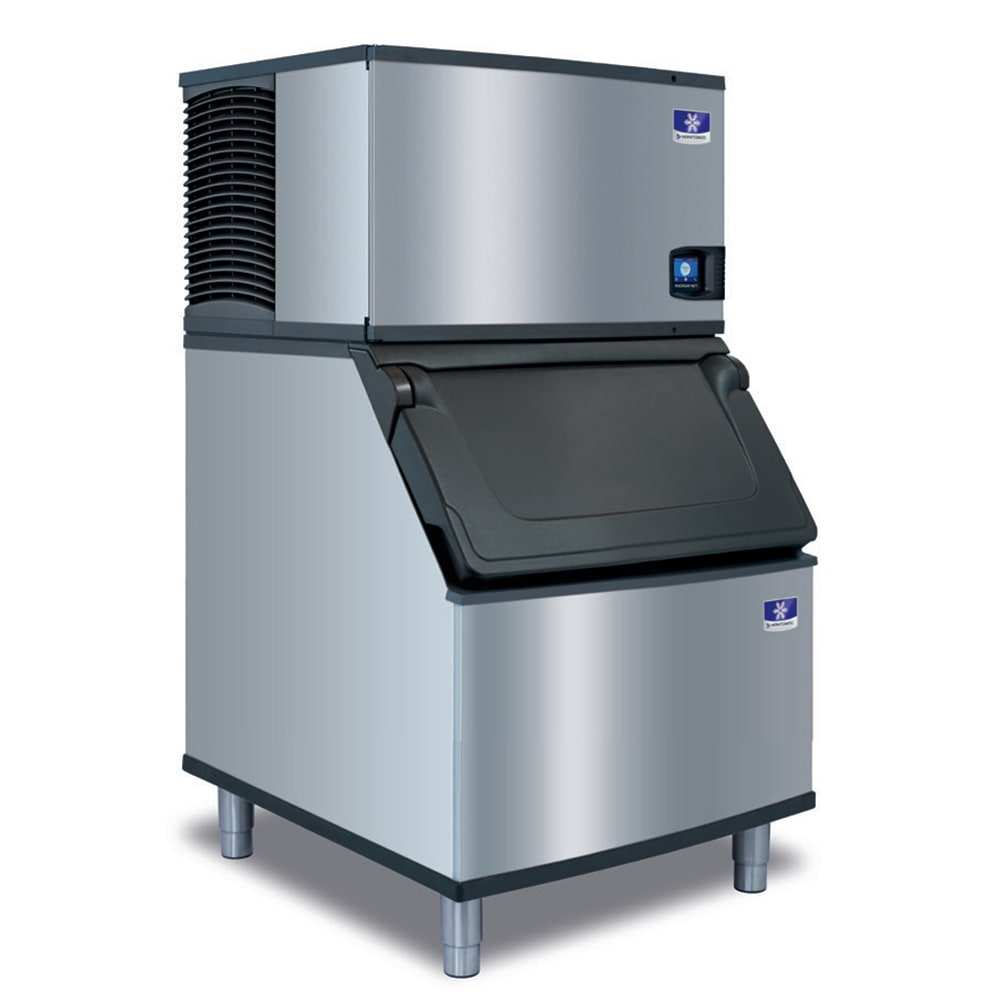

Manitowoc Ice IYT0300A/D400 310 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 365 lb Storage, Air Cooled, 115v

For dependable storage, the Manitowoc Ice IYT0300A/D400 ice maker's bin is insulated with foam, preventing ice from melting before it's served. It accommodates as much as 365 pounds, and the ice scoop can retrieve 5.3 pounds at a time. The bin's door opens from the front using side grips and stays open while ice is scooped to prevent it from slamming shut and causing injury. This scoop includes knuckle and thumb guards to keep users' hands out of the product.

The Manitowoc Ice IYT0300A/D400 half-cube ice maker with bin performs 24-hour maintenance and diagnostics to ensure the system operates correctly. Ice production can be programmed, and to adjust the settings, employees can use the icon-based easyTouch® display. Because the exterior of this unit has a DuraTech™ construction, it's resistant to smudges and corrosion. This ice maker produces 230 to 310 pounds of ice daily depending on environmental conditions.

Ice Maker Details

• Part of the Indigo NXT™ series
• 310-lb. maximum daily ice production
• 230-lb. AHRI-certified daily ice production
• Makes half-cube ice
• Ice dimensions: ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.
• Condenser is self-contained and air cooled
• Cools with R404a refrigerant
• Ice production can be programmed to reduce energy
• Maintenance performed 24 hours
• AlphaSan® antimicrobial inhibits germ growth in the foodzone
• DuraTech exterior is smudge resistant
• Settings adjusted with easyTouch display
• Active sense with an acoustic, ice-sensing probe
• Ideal ambient temperature range: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 4,600-BTU heat transfer capacity

Ice Bin Details

• 365-lb. application capacity
• 12.3-cu.-ft. interior space
• Front-opening door is side hinged with side grips
• Door stays open while ice is scooped
• Foam insulation prevents ice from melting
• DuraTech exterior provides durability and corrosion resistance
• 5.3-lb. scoop with a knuckle and thumb guard
• Polyurethane Artic Blue bin liner

Dimensions & Utilities

• Ice maker: 30 in. W x 24.5 in. D x 16.5 in. H
• Ice bin: 30 in. W x 34 in. D x 38 in. H
• 8.8 A
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT0300A/D400 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 310 lb/24 hours at 70°/50° (230 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R404a refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 30"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 365 lbs. application capacity, AHRI certified 12.3 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0300A/D400 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
