Scotsman NS0922AX-32/B842S/KBT39 956 lb Prodigy Plus® Nugget Ice Machine w/ Bin & Filter - 778 lb Storage, Air Cooled, Soft Nugget

KaTom #: 044-NS0922A32B842S • MPN: NS0922AX-32/B842S/KBT39/AP2-P
  • 044-NS0922A32B842S Primary Thumbnail Image
  • 044-NS0922A32B842S Multiple Thumbnail Image #1
  • 044-NS0922A32B842S Multiple Thumbnail Image #2
  • 044-NS0922A32B842S Multiple Thumbnail Image #3
  • 044-NS0922A32B842S Multiple Thumbnail Image #4
  • 044-NS0922A32B842S Multiple Thumbnail Image #5
  • 044-NS0922A32B842S Multiple Thumbnail Image #6
  • 044-NS0922A32B842S Multiple Thumbnail Image #7

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

Retail Price: $26,094.00

$10,442.00 /Each

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove
Ryan Boerger User Image
Ask a Foodservice Equipment Specialist

Scotsman NS0922AX-32/B842S/KBT39 Description

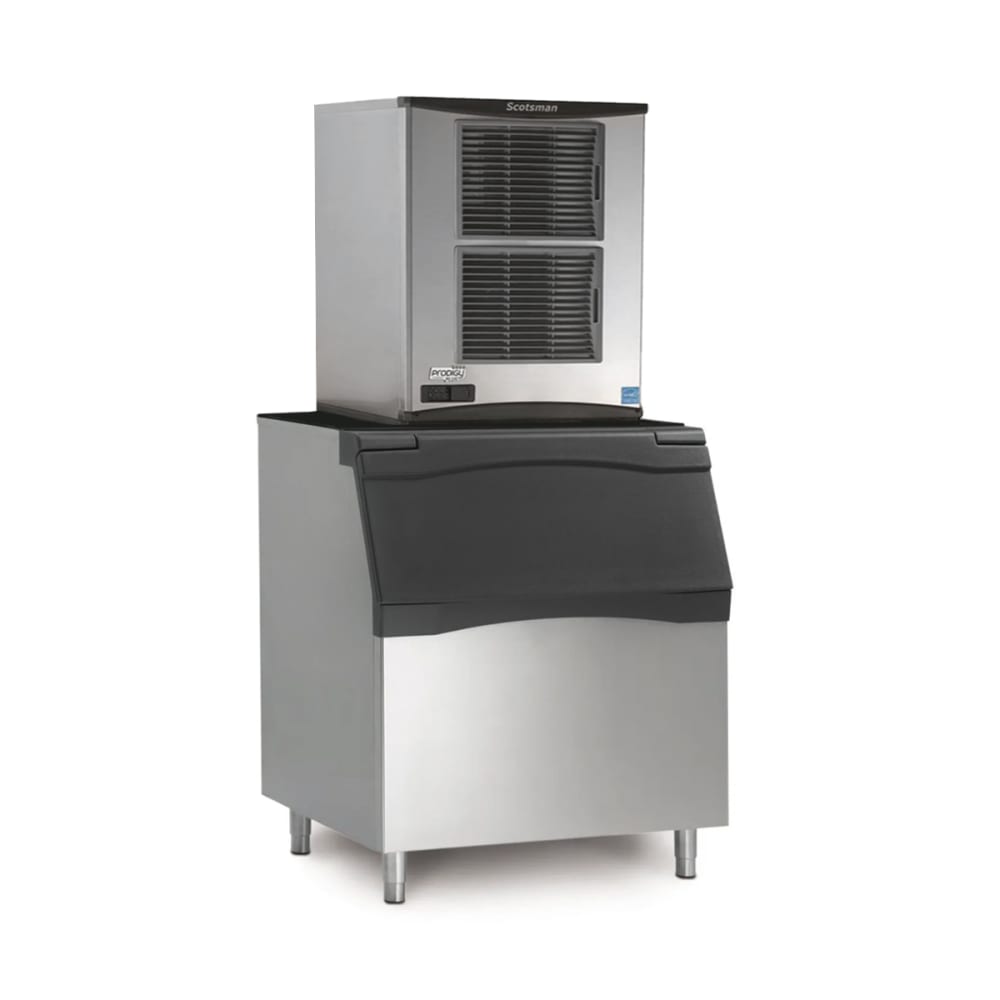

The Scotsman NS0922AX-32/B842S/KBT39/AP2-P nugget ice machine with bin operates with an air-cooled, self-contained condenser, cools with R290 refrigerant, and can make 784 to 956 pounds of ice per day depending on environmental conditions. Its bin stores 778 pounds of ice, ensuring product is ready when it's needed. Because the bin comes with a scoop, users can retrieve ice without contaminating it with their hands. This bin is insulated with polyurethane to prevent product from melting. This unit includes the AP2-P water filter.

To view warranty information and service manuals, the Scotsman NS0922AX-32/B842S/KBT39/AP2-P ice maker with bin has a QR code that can be scanned. AgION™ antimicrobial protects it from quick germ growth; cleaning can be performed at the push of a button. This unit creates soft, chewy nugget ice that's a favorite when serving an array of customers. For durability, the exterior has a stainless steel finish, while the auger and evaporator are made of stainless steel to resist rust and corrosion.

Service Information
Unit-specific QR code provides access to support materials
High-Volume Production
Produces up to 956 lb. of ice per 24 hours
778-lb. Bin Storage
Keeps ice available at the dispensing station
Nugget Ice Type
Chewable pieces suit beverage service
Heat Removal Method
air cooled, self-contained condenser manages heat
Maintenance Alerts
AutoAlert™ lights communicate operating status and service needs

  • Part of the Prodigy Plus® series
  • 956-lb. maximum daily ice production
  • 784-lb. AHRI-certified daily ice production
  • Makes Original Chewable Ice®

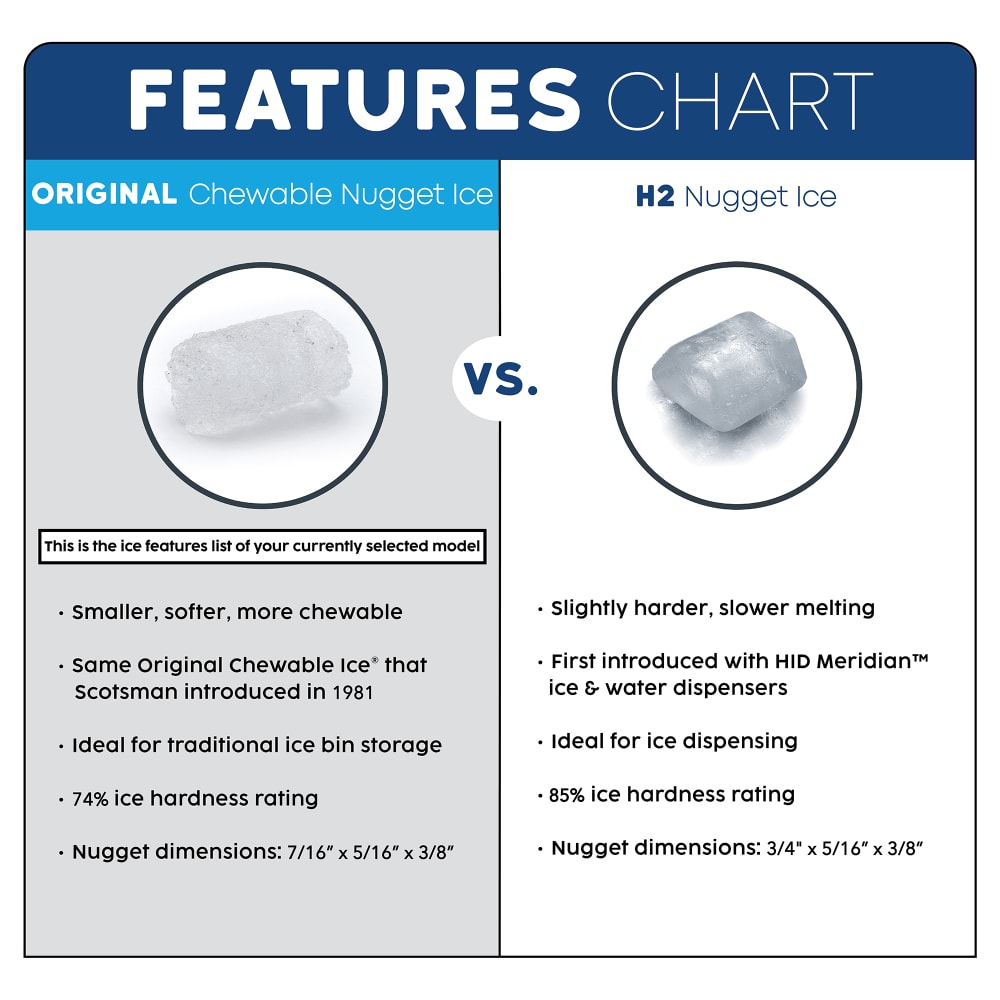

  • Ice dimensions: 7⁄16 in. x 5⁄16 in. x 3⁄8 in.
  • Air-cooled condenser uses R290 refrigerant
  • Self-contained refrigeration system
  • QR code is unit specific
  • 1-touch cleaning
  • AgION antimicrobial inhibits germ formation
  • Stainless steel auger and evaporator
  • Stainless steel finish
  • Bearings are maintenance free and sealed
  • AutoAlert™ indicating lights
  • AP2-P water filter included
  • Ideal incoming air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSIG
  • 10,500-BTU heat transfer capacity

  • 778-lb. application capacity
  • Includes polyurethane insulation
  • Metallic exterior finish
  • Polyethylene-lined interior
  • Ice scoop and built-in holder
  • Top-hinged door
  • Door opens from the front
  • Baffle can be removed without tools
  • Includes 6-in. legs
  • KBT39 top kit included

  • Ice maker: 22 9⁄10 in. W x 24 in. D x 27 in. H
  • Ice bin: 42 in. W x 34 in. D x 50 in. H
  • 11.9 A
  • 208-230 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Scotsman NS0922AX-32/B842S/KBT39 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 956 lb/24 hours at 70°/50° (707 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 208-230v/60/1-ph, NSF, cULus, ENERGY STAR®

Ice Bin, top-hinged front-opening door, 778 lb application capacity, for top-mounted ice maker, 42" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF; (KBT39) Bin Top, for use with all 22" (55.9cm) modular cubers, flakers & nugget makers except EH222 on B842 bin

AquaPatrol™ Plus Water Filtration System, double system, 4.2 gallons per minute max flow, designed for cubers over 650 lb and up to 1,200 lb, and for flakers and nuggets over 1,200 lb, cULus, NSF

Warranty Icon
Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NS0922AX-32/B842S/KBT39 Specifications

Warning Small Important Prop 65 information for California residents.

Replacement for the Following Item
  • Scotsman N0922A32B842S


















Related Categories
0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

Yes. It produces 956 lbs. per 24 hours.

— KaTom Foodservice Equipment Specialist

It holds 778 lbs. of stored ice.

— KaTom Foodservice Equipment Specialist

Yes. It includes AgION™ antimicrobial protection.

— KaTom Foodservice Equipment Specialist

It produces soft chewable nugget ice.

— KaTom Foodservice Equipment Specialist

Yes. It includes one-touch cleaning operation.

— KaTom Foodservice Equipment Specialist

Yes. The bin requires 6-in. rear clearance.

— KaTom Foodservice Equipment Specialist

Yes. It uses front-breathing airflow design.

— KaTom Foodservice Equipment Specialist

Yes. The polyurethane insulation slows ice melting.

— KaTom Foodservice Equipment Specialist

It produces up to 956 lbs. of ice per 24 hours.

— KaTom Foodservice Equipment Specialist

The bin holds up to 778 lbs. of ice.

— KaTom Foodservice Equipment Specialist

It makes nugget ice.

— KaTom Foodservice Equipment Specialist

It measures 42 in. W x 34 in. D x 77 in. H.

— KaTom Foodservice Equipment Specialist

It uses an air-cooled condensing system.

— KaTom Foodservice Equipment Specialist

It requires 208/230 V/60 Hz/1 ph.

— KaTom Foodservice Equipment Specialist

It requires a 3/8-in. water inlet connection.

— KaTom Foodservice Equipment Specialist

It uses R290 refrigerant.

— KaTom Foodservice Equipment Specialist

Ice is accessed through a front-opening, top-hinged door.

— KaTom Foodservice Equipment Specialist

It is designed for room temperatures from 50°F to 100°F.

— KaTom Foodservice Equipment Specialist

Yes, it includes both the ice machine head and storage bin.

— KaTom Foodservice Equipment Specialist

Its listed certifications include AHRI, C UL Us Classified, C-UL US, C-UL-US Listed, ENERGY STAR, NSF and UL.

— KaTom Foodservice Equipment Specialist

Yes, it has a removable air filter.

— KaTom Foodservice Equipment Specialist

Yes, it has a one-touch cleaning cycle.

— KaTom Foodservice Equipment Specialist

Yes, the bin is insulated with polyurethane.

— KaTom Foodservice Equipment Specialist

Yes, the bin includes an ice scoop.

— KaTom Foodservice Equipment Specialist

Yes, it has antimicrobial protection to help inhibit microbial growth.

— KaTom Foodservice Equipment Specialist

Yes, it includes a water filter.

— KaTom Foodservice Equipment Specialist

It requires incoming water pressure from 20 to 80 PSI.

— KaTom Foodservice Equipment Specialist

It requires incoming water from 40°F to 100°F.

— KaTom Foodservice Equipment Specialist
