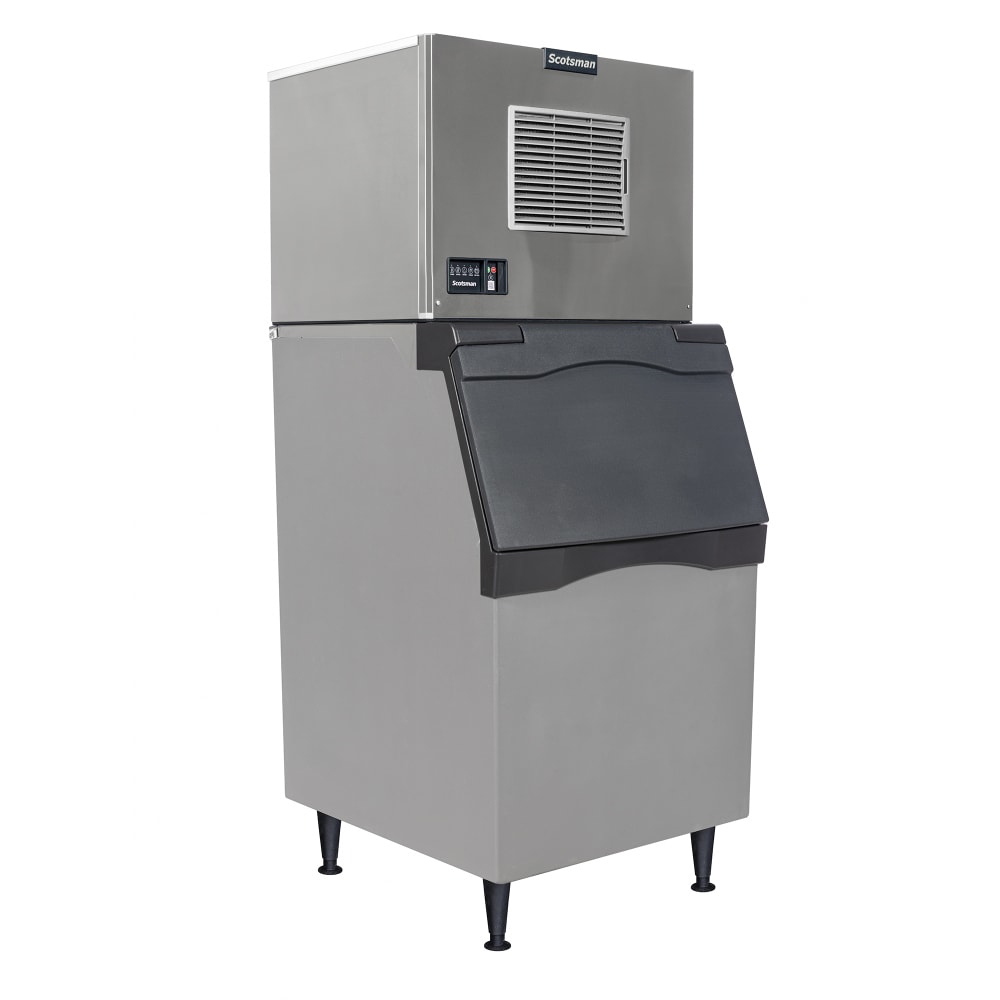

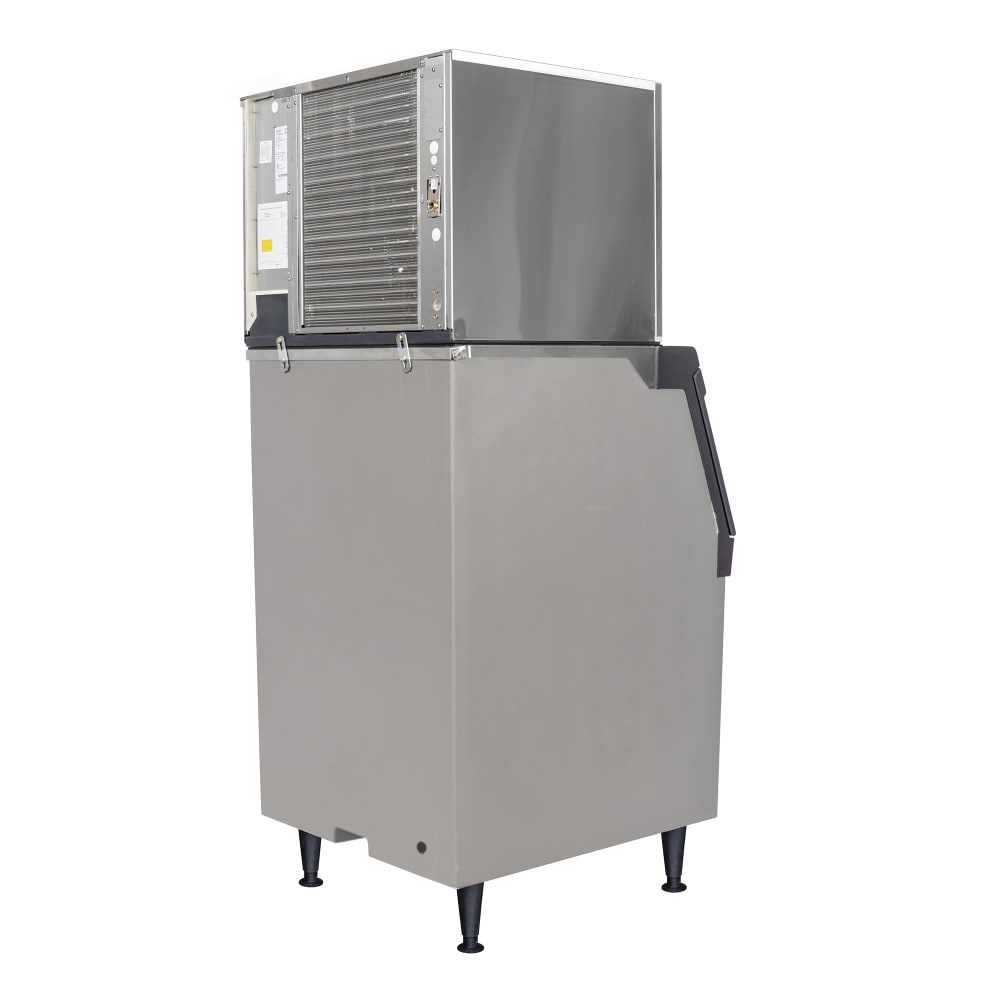

Scotsman MC0530MA-1/B530P 525 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin - 536 lb Storage, Air Cooled, 115v

The Scotsman MC0530MA-1/B530P Prodigy ELITE® ice machine and bin has a stainless steel finish over a corrosion-resistant, rotocast plastic construction. With a 536-pound storage capacity and polyurethane insulation, ice is kept from melting in the polyethylene interior. A scoop is included with a built-in scoop holder to keep ice sanitary, and a recessed drain fitting creates flexibility when installing.

For uninterrupted air flow, the Scotsman MC0530MA-1/B530P ice machine with bin has an air filter located on its front. It can make 525 pounds of ice daily and has an air-cooled condenser that uses R404A refrigerant. AutoAlert™ lights activate when maintenance and service is needed, and a QR code on the front of the unit can be scanned for technical and warranty information. Operators can use the ICELINQ® mobile app from Scotsman to check the ice machine dashboard, adjust the unit’s settings, and walk through a step-by-step guided cleaning process. Its WaterSense feature monitors water quality to reduce scale buildup. To maintain a constant supply of ice, Harvest Assist technology uses hot gas and a probe to guide the ice into the bin.

Ice Machine Details

• Part of the Prodigy ELITE series
• 525-lb. daily ice production
• 380-lb. AHRI-certified daily ice production
• Stainless steel finish
• Air-cooled condenser
• Can be connected to movile app via bluetooth for settings adjustments, diagnostics reports, and guided cleaning instructions
• R404A refrigerant
• AutoAlert indicator lights display the operating status
• ICELINQ mobile app available
• QR code provides technical service and warranty information
• 1-touch cleaning eliminates the need for monitoring
• Front-located air filter enables installation against walls and other equipment
• Removable front panel is self-aligned
• WaterSense feature provides sanitary ice
• Harvest Assist system uses a probe and gas to guide ice into the bin
• Antimicrobial technology keeps the unit sanitary between cleanings
• Full-cube ice size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• 7,900 BTU
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSI
• Required ambient air temperature: 50-100 degrees F

Ice Bin Details

• 536-lb. storage capacity
• Polyurethane foam insulation keeps ice cold
• Polyethylene interior resists scratches and dents
• Rotocast plastic construction resists rust
• Removable baffle
• Flexible installation is provided by a recessed drain fitting

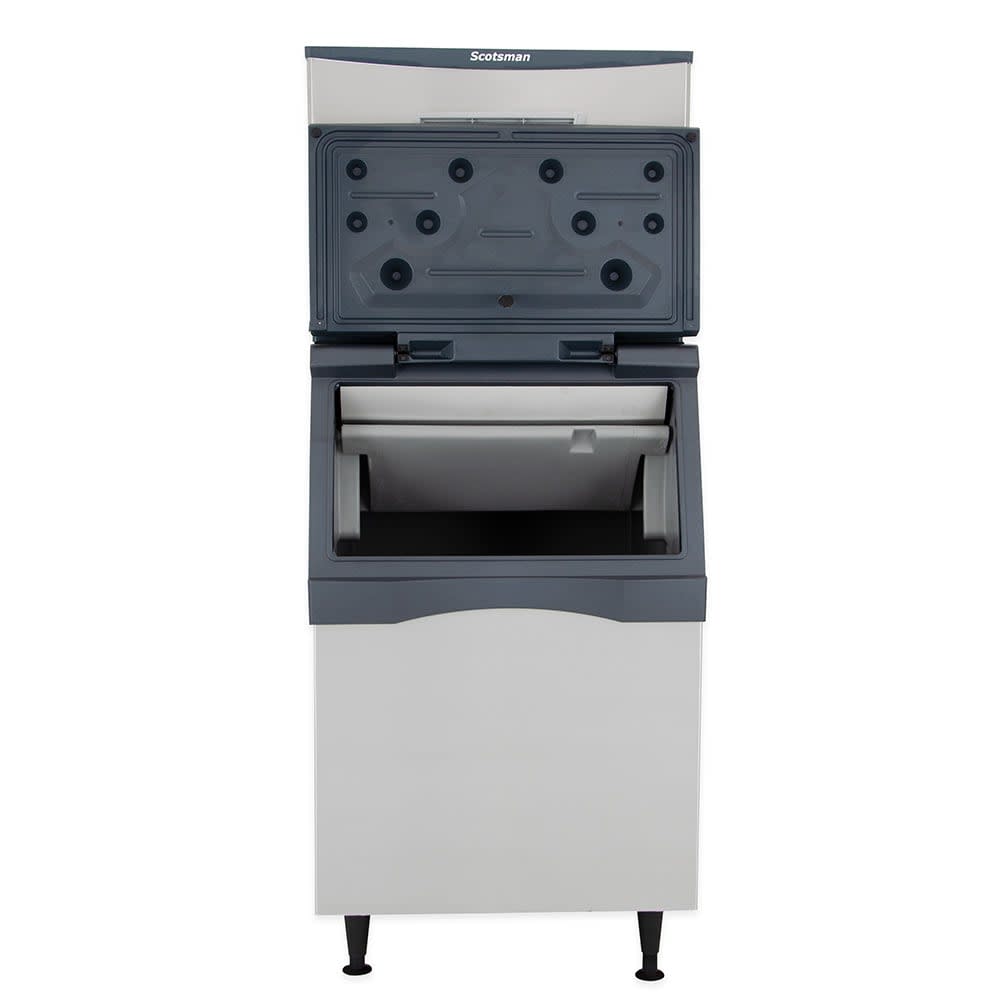

• Spring-loaded door with hidden hinges facilitates opening and closing the bin
• Ice scoop with a built-in scoop holder

Product Features

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 24 in. D x 23 in. H
  • 15.2 A, 5.8 kW
  • 115 V/60 Hz/1 ph
• Ice Bin
  • 30¹/₂ in. W x 34 in. D x 50 in. H

From The Manufacturer

MC0530MA-1 Ice Maker: Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 15.2 amps, cULus, NSF, engineered and assembled in USA; B530P Ice Bin: Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, rotocast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

BPA Free

Contains no chemical Bisphenol A (BPA)

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
