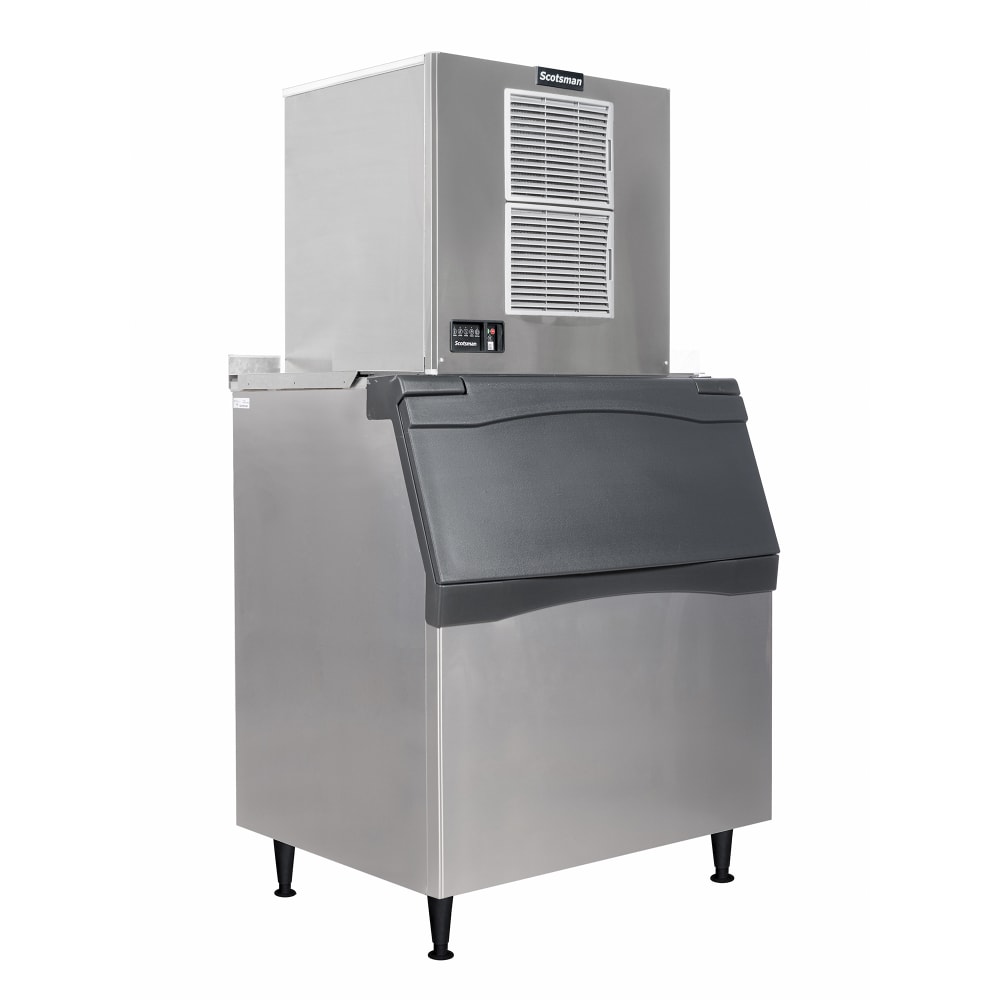

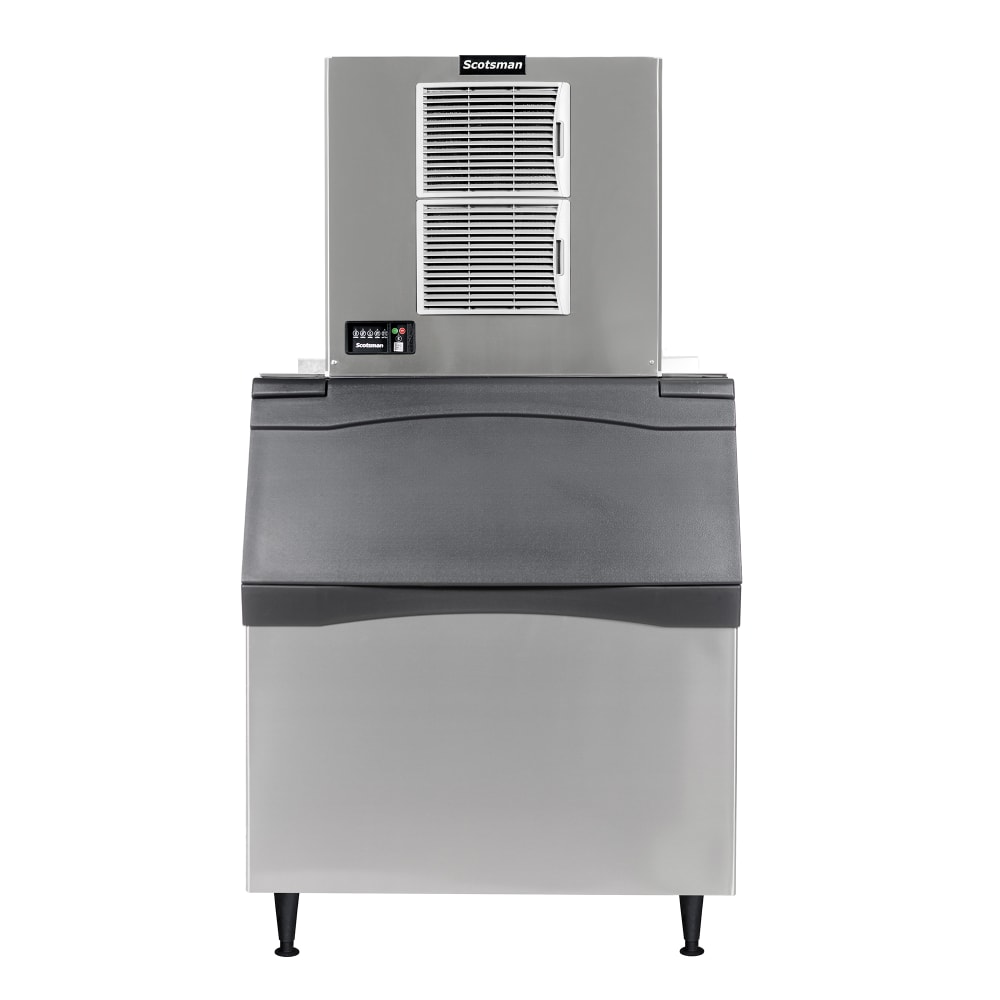

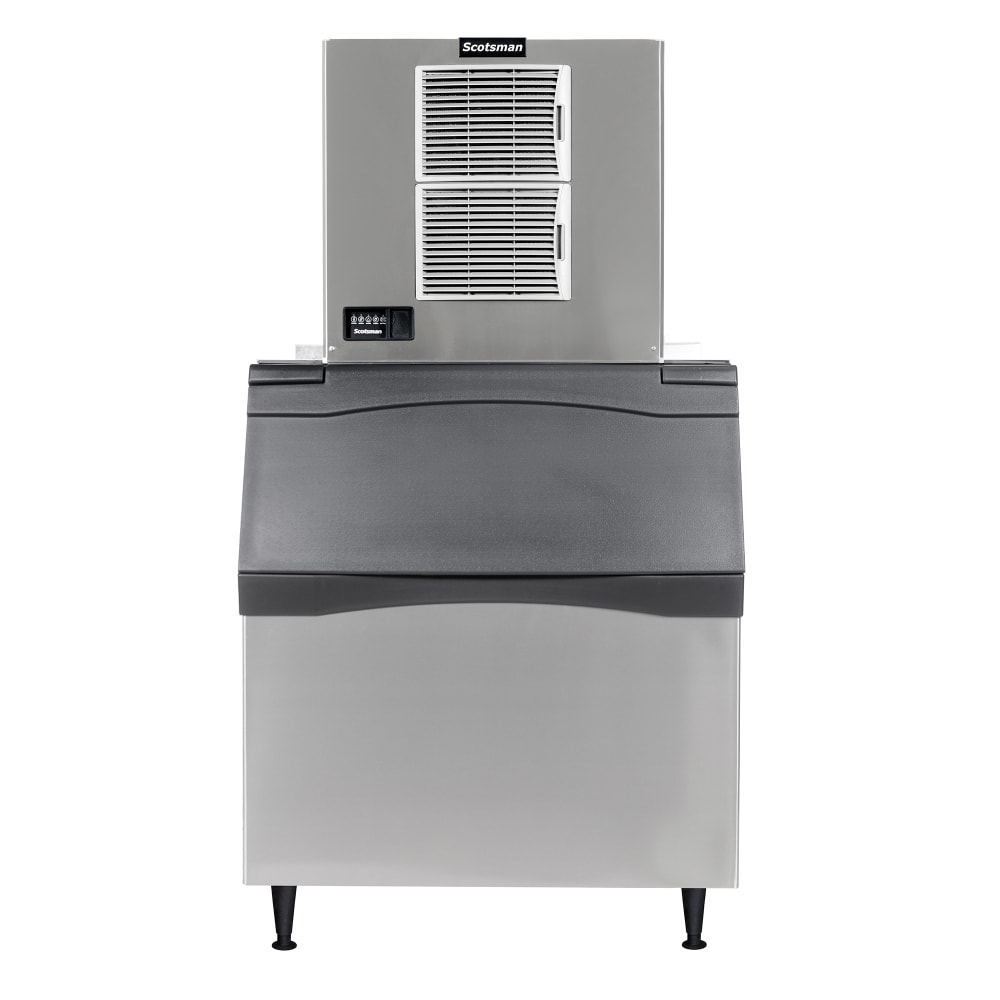

Scotsman MC1030MA-32/B842S/KBT29 1077 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin - 778 lb Storage, Air Cooled, 208-230v

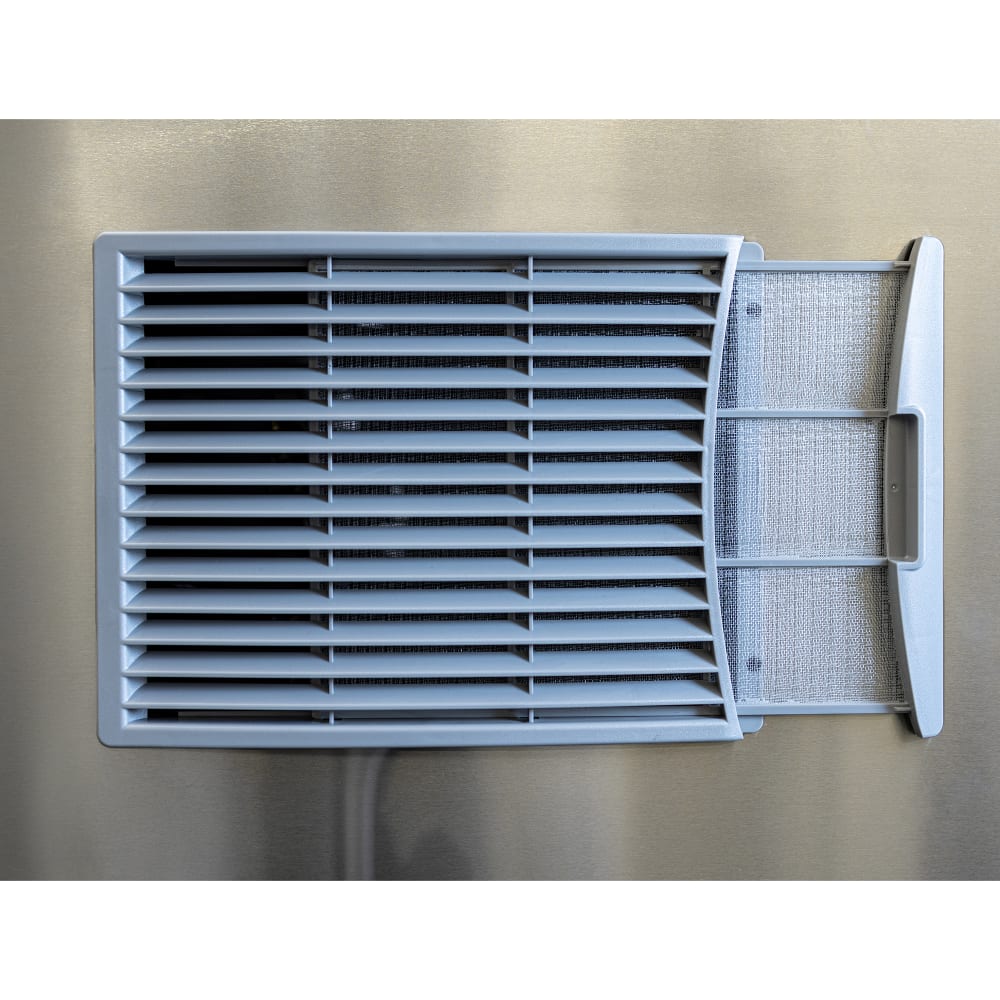

The Scotsman MC1030MA-32/B842S/KBT29 Prodigy ELITE® commercial ice machine and bin has a head with one-touch cleaning functionality for background cleaning while the user works on other tasks. It employs WaterSense purge control to combat scale buildup, preventing it from affecting performance. The stainless steel finish adds strength and rust defense to the head, and its air filter is located on the front for ideal efficiency.

The bin's polyurethane insulation seals in cold air to ensure ice stays frozen. The polyethylene interior shields the bin from scoop denting or scratching. The bin door opens and closes promptly for user convenience during long and busy shifts. The Scotsman MC1030MA-32/B842S/KBT29 ice maker includes an ice scoop and a built-in scoop holder, which buffers the handle away from the ice.

Ice Maker Details

• Part of the Prodigy ELITE line
• 1,700-lb. maximum daily ice production
• 816-lb. AHRI-certified daily ice production
• Stainless steel finish is long lasting and durable
• Air-cooled system
• One-touch cleaning
• Produces full cubes

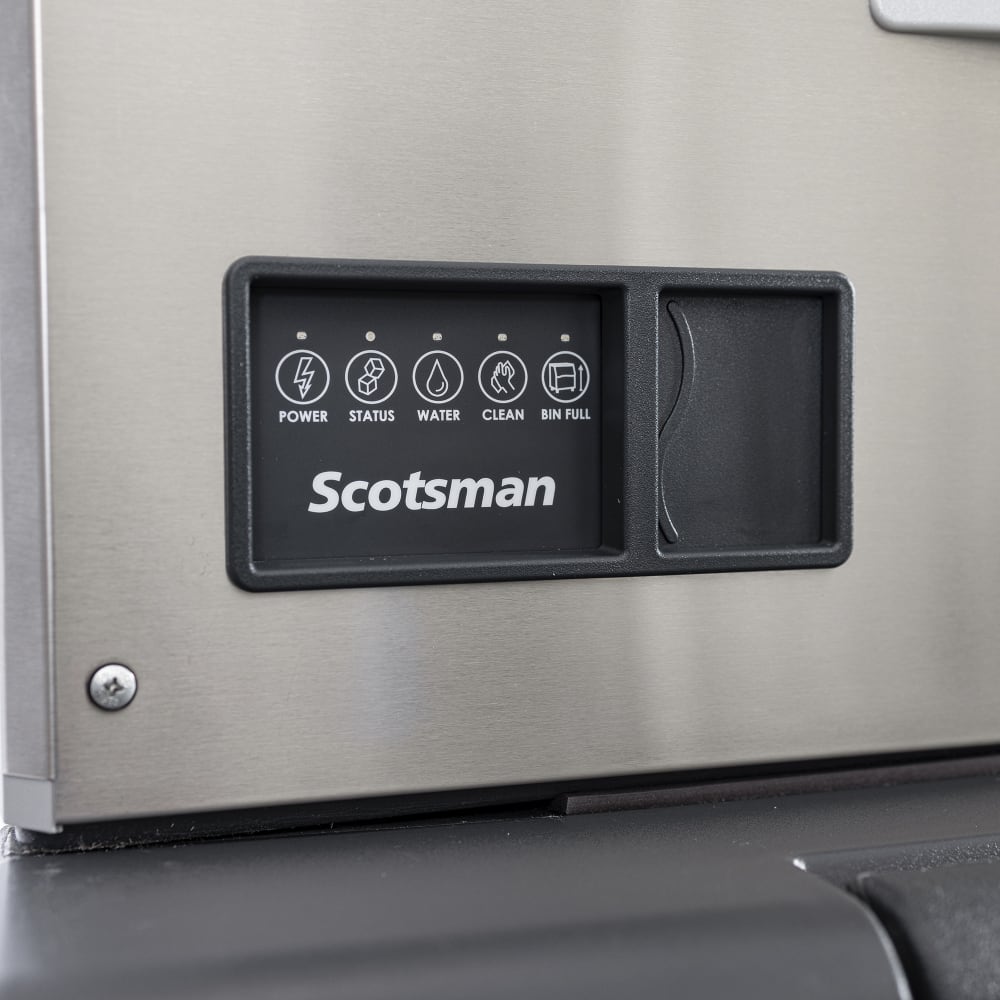

• AutoAlert™ lights up as required
• WaterSense purge control counteracts scale buildup
• Antimicrobial protection on interior surfaces
• R404A refrigerant

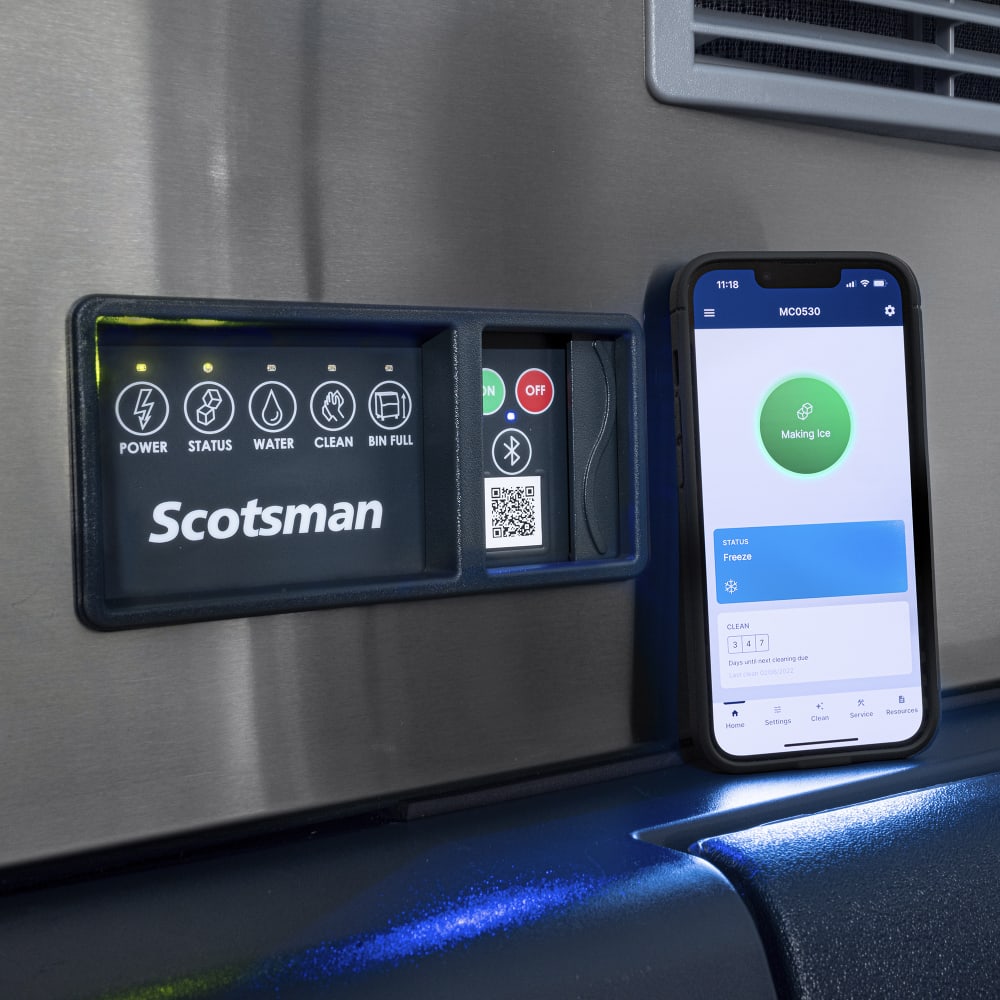

• Compatible with ICELINQ® app
• Preservation mode minimizes downtime and alerts operators to potential issues
• Bluetooth® connectivity
• 16,200-BTU heat transfer capacity
• Ideal ambient air temperature: 70-90 degrees F
• Ideal incoming water temperature: 50-70 degrees F
• Ideal incoming water pressure: 20-80 PSIG

Ice Bin Details

• 778-lb. application capacity
• 6-in. legs
• Spring-loaded door
• Polyethylene interior endures the scraping motions of the scoop
• Includes an ice scoop
• Removable baffle
• Polyurethane insulation keeps ice from melting
• Built-in scoop holder keeps handle germs out of the ice

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24 in. D x 29 in. H
• 16 A, 4.83 kW
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 42¹/₂ in. W x 34 in. D x 50 in. H

Product Features

From The Manufacturer

MC1030MA-32 Ice Maker: Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 1077 lb/24 hours at 70°/50° (816 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filters, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 208-230v/60/1-ph, 16.0 amps, cULus, NSF, engineered and assembled in USA; B842S Ice Bin: Ice Bin, top-hinged front-opening door, 778 lb application capacity, for top-mounted ice maker, 42" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; KBT29 Ice Bin Top: Bin Top Kit, for 30" modular cubers on B842S, BH801 bin

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

BPA Free

Contains no chemical Bisphenol A (BPA)

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
