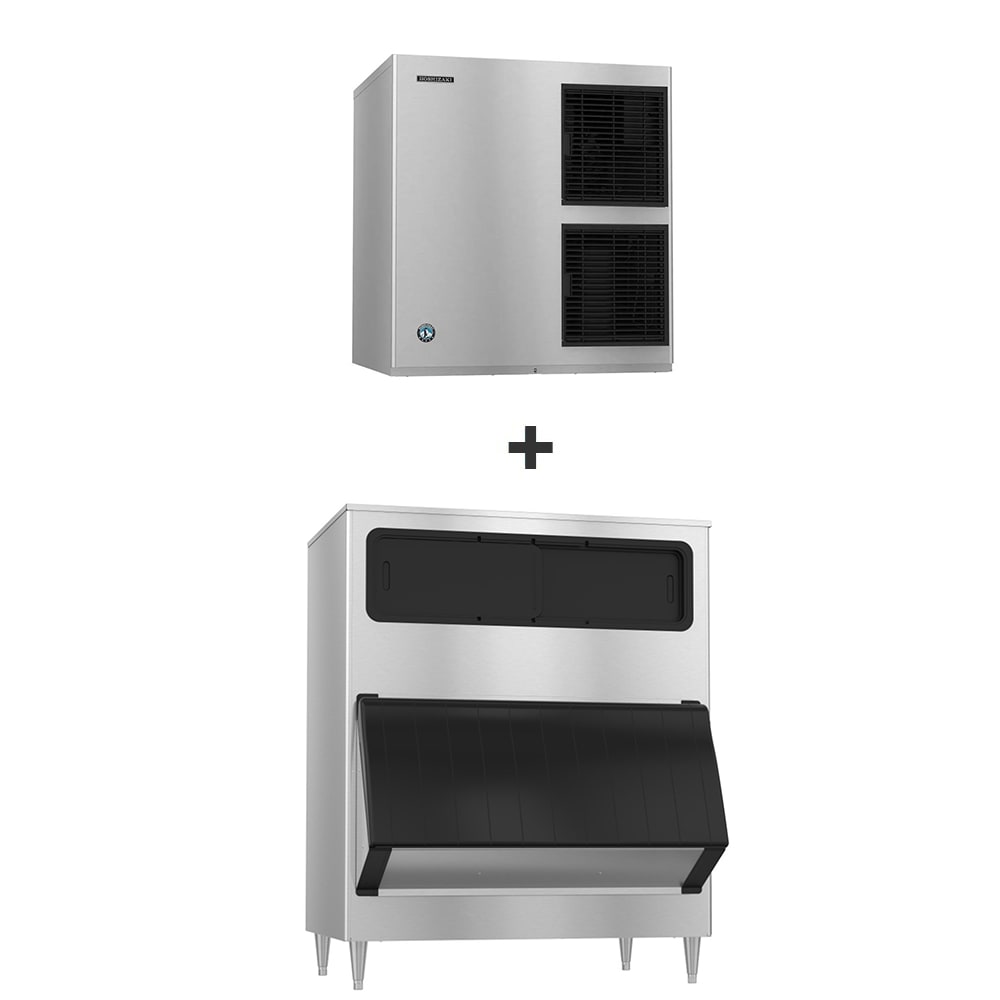

Hoshizaki KM-901MWJ/B-1150SS 950 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Water Cooled, 208-230v

Depending on ambient conditions, the Hoshizaki KM-901MWJ/B-1150SS ice maker with bin produces a maximum of 950 pounds of ice in a day. Its head creates crescent cube ice, which is a versatile ice style that's useful in applications from bagging and selling to blending in smoothies. It uses a water-cooled condenser, which is self-contained for streamlined installation.

The Hoshizaki KM-901MWJ/B-1150SS ice maker and bin combo holds 1,148 pounds of ice in its storage compartment. To facilitate thorough cleaning, the interior of the bin is lined with a seamless piece of polyethylene. Constructed of durable stainless steel, the bin's exterior withstands commercial use without rusting and denting.

Ice Maker Details

• 950-lb. daily ice production
• 870-lb. daily AHRI-certified ice production
• Produces crescent cube ice
• Ice cube size: ¹⁄₂ in. W x 1¹⁄₈ in. D x 1¹⁄₂ in. H
• CycleSaver™ feature minimizes energy use while efficiently making ice
• Self-contained condenser uses R404A refrigerant
• Condenser is water cooled
• EverCheck™ alert system notifies users of maintenance issues
• Sturdy stainless steel exterior
• H-Guard Plus® antimicrobial agent inhibits bacterial growth to enhance ice flavor
• 12,700-BTU heat transfer capacity

Product Features

Ice Bin Details

• 1,148-lb. storage capacity
• Bottom pouch-style door is hinged
• Top window for product monitoring
• Stainless steel construction resists stains and scratches
• Foamed-in-place polyurethane insulation keeps ice cold during storage
• Seamless polyethylene liner
• Mounted on 6-in. adjustable stainless steel legs
• Protected with H-Guard Plus antimicrobial treatment

Ideal Operating Conditions

• Temperature range: 45-100 degrees F
• Water temperature range: 45-90 degrees F
• Water pressure range: 10-113 PSIG
• 12-in. clearance at top, rear, and sides

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 27³⁄₈ in. D x 32¹⁄₂ in. H
  • 10 A, 3.6 kW
  • 208-230 V/60 Hz/1 ph
• Ice Bin
  • 48 in. W x 41 in. D x 60³⁄₁₆ in. H

*Free shipping on Hoshizaki KM-901MWJ/B-1150SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 950 lb/24 hours at 70°/50° (870 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 10.0 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-901MWJ/B-1150SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
