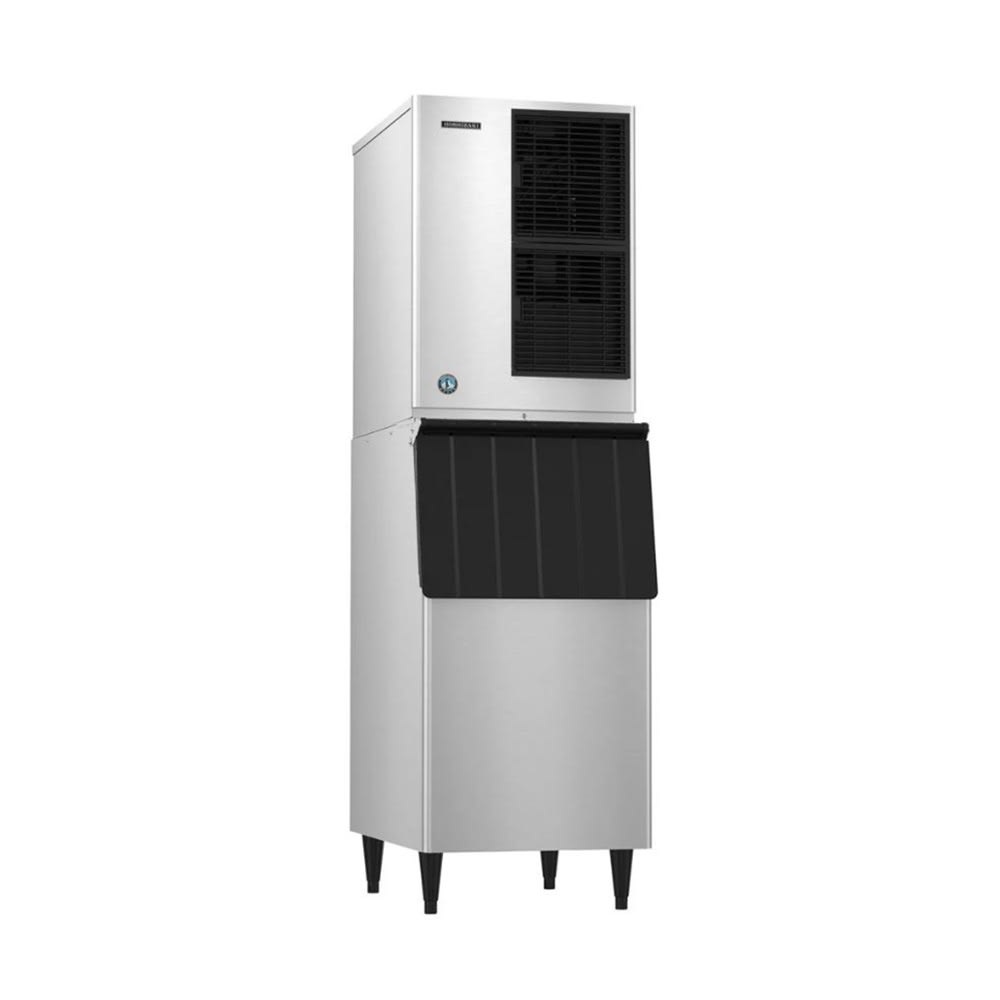

Hoshizaki KM-901MWJ/B-500SF 950 lb KM Series Crescent Cube Ice Machine w/ Bin - 500 lb Storage, Water Cooled, 208-230v

The Hoshizaki KM-901MWJ/B-500SF ice maker with bin has a maximum production capacity of 950 pounds when operating in ideal conditions. Its ice machine head produces crescent cubes, which have a high ice-to-water ratio that makes them suitable for serving in glasses of soda and blending into smoothies. Its condenser is self-contained and cooled by water.

For storage, the Hoshizaki KM-901MWJ/B-500SF ice maker and bin combo accommodates 500 pounds of ice. To prevent ice from melting before it's used, the bin is insulated with foamed-in-place polyurethane. The bin's exterior is constructed of galvanized steel with a PVC coating, ensuring durability in a high-volume environment.

Ice Maker Details

• 950-lb. daily ice production
• 870-lb. daily AHRI-certified ice production
• Makes versatile crescent cube ice
• Ice cube size: ¹⁄₂ in. W x 1¹⁄₈ in. D x 1¹⁄₂ in. H
• Self-contained condenser is water cooled
• Uses R404A refrigerant
• EverCheck™ audibly alerts users when maintenance problems arise
• CycleSaver™ efficiently makes ice while using little energy
• Stainless steel exterior is durable against rust and dents
• H-Guard Plus® antimicrobial agent inhibits growth of mold and bacteria
• 12,700-BTU heat transfer capacity

Product Features

Ice Bin Details

• 500-lb. storage capacity
• Top-hinged, front-opening door
• PVC-coated galvanized steel exterior
• Insulated with foamed-in-place polyurethane
• Included ice scoop is treated with H-Guard Plus antimicrobial agent
• Mounted on painted legs

Ideal Operating Conditions

• Temperature range: 45-100 degrees F
• Water temperature range: 45-90 degrees F
• Water pressure range: 10-113 PSIG
• 12-in. clearance at top, rear, and sides

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 27³⁄₈ in. D x 32¹⁄₂ in. H
  • 10 A, 3.6 kW
  • 208-230 V/60 Hz/1 ph
• Ice Bin
  • Overall: 30 in. W x 32.3 in. D x 46 in. H
  • Interior: 27 in. W x 27.7 in. D x 37.6 in. H

*Free shipping on Hoshizaki KM-901MWJ/B-500SF within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 950 lb/24 hours at 70°/50° (870 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 10.0 amps, NSF, UL

Ice Bin, 30"W, top-hinged front-opening door, 500-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-901MWJ/B-500SF Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
