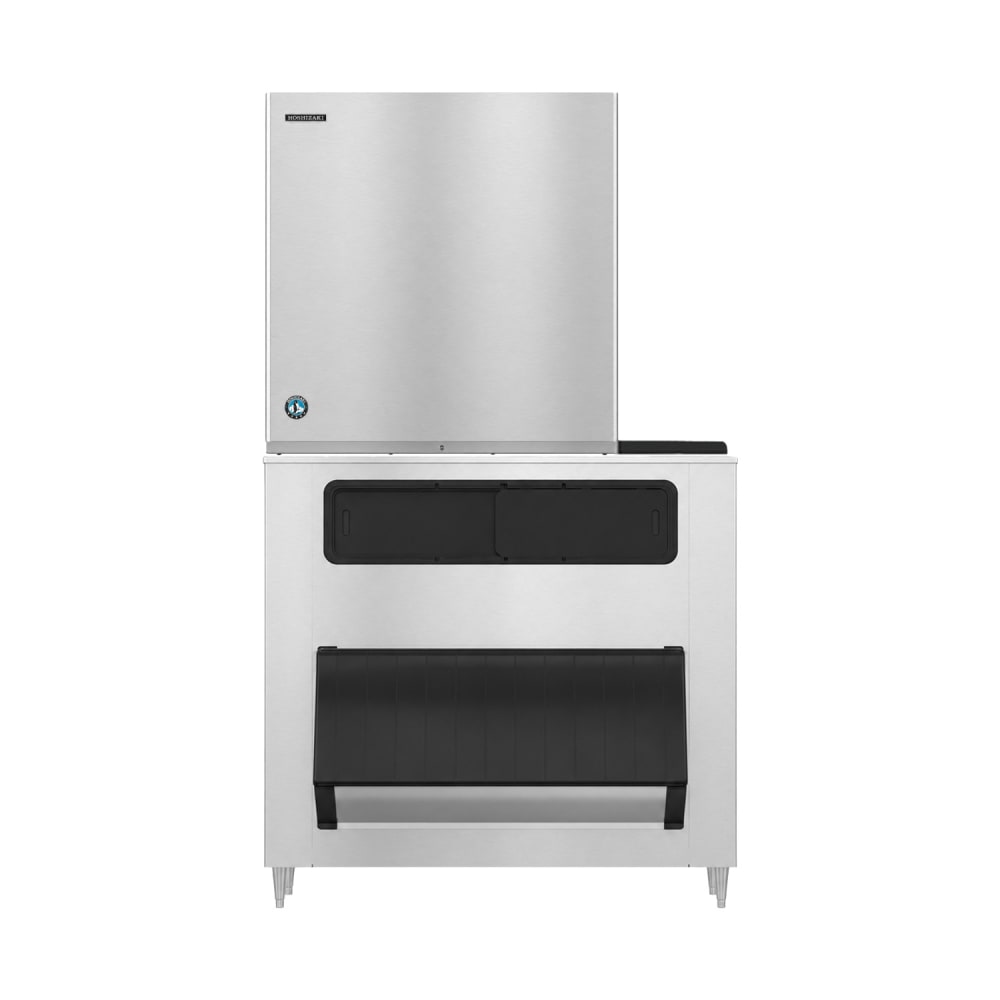

Hoshizaki KM-1100MWJ/B-1150SS 1073 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Water Cooled, 208-230v

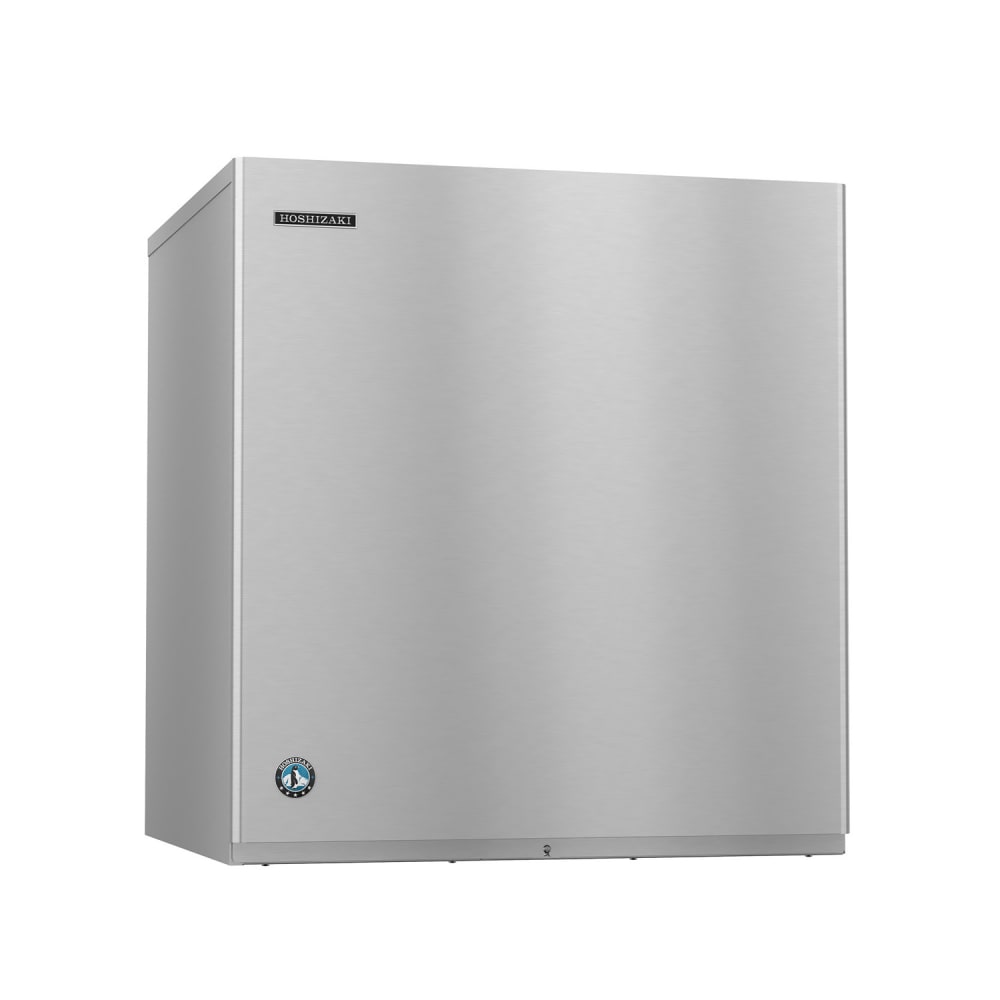

The Hoshizaki KM-1100MWJ-B-1150SS ice maker with bin produces and stores enough ice to meet an establishment's needs in a minimal footprint. Its ice maker creates as much as 1,073 pounds of ice per day in ideal atmospheric conditions. It creates crescent-style ice, which is a versatile ice type that can be either served in a soft drink or blended into a smoothie. Its condenser is self-contained and water cooled.

The Hoshizaki KM-1100MWJ-B-1150SS ice machine head and bin include a universal top kit that attaches the head to the bin. Ice can be removed from the bin through the pouch-style door, which minimizes condensate formation so water doesn't spill and create a slipping hazard around the machine. The bin interior accommodates 1,148 pounds of ice at a time and is treated with H-Guard Plus® antimicrobial agent to prevent mildew from forming and affecting the taste of ice.

Ice Maker Details

• Production capacity: 1,073 lbs. per 24 hrs. at 70 degrees F
• AHRI certified production capacity: 1,006 lbs. per 24 hrs. at 90 degrees F
• Individual crescent cube-style ice is great for serving with soft drinks
• Ice cube size: ¹⁄₂ in. W x 1¹⁄₈ in. D x 1¹⁄₂ in. H
• H-Guard Plus antimicrobial agent halts the growth of mildew
• Self-contained condenser is water cooled
• R404A refrigerant
• Stainless steel finish is resilient against scratches and corrosion
• 17,100 BTU heat transfer capacity
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 12-in. top, side, and rear clearances

Product Features

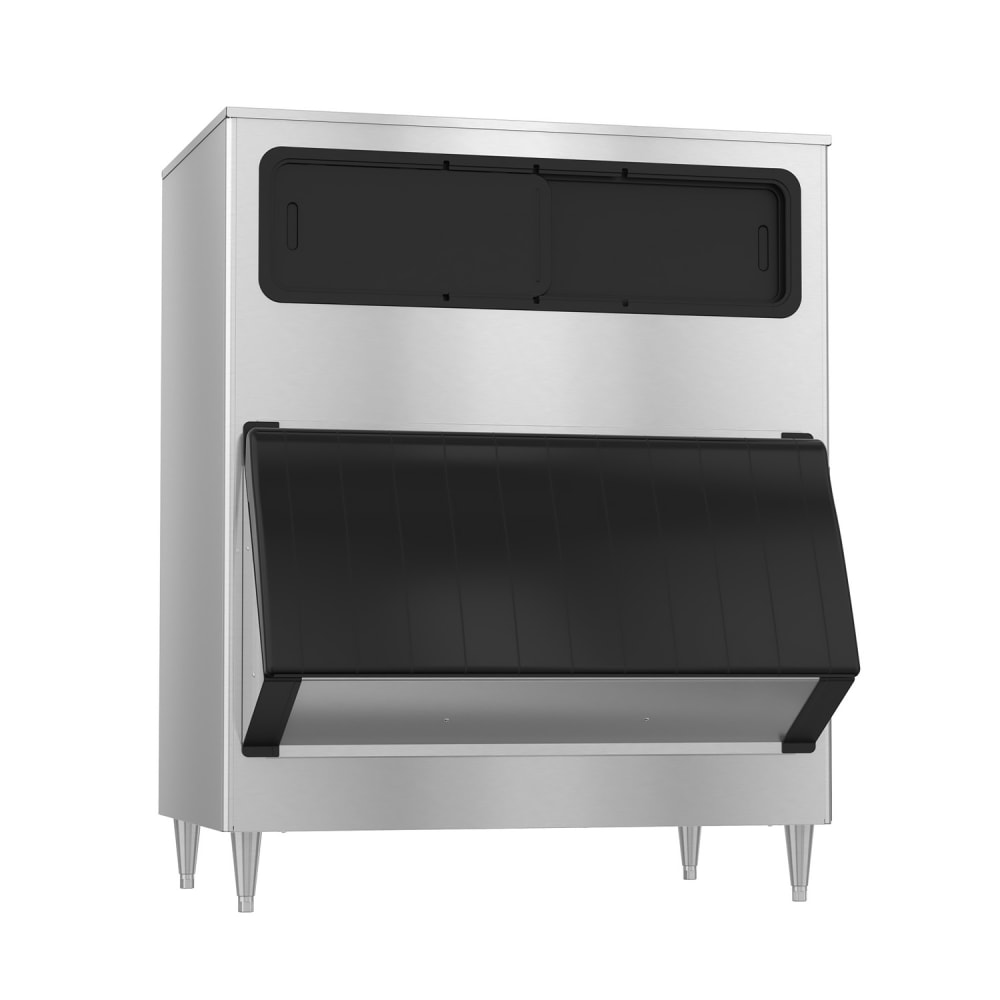

Ice Bin Details

• Storage capacity: 1,148 lbs.
• Hinged bottom door and top view windows
• Foamed-in-place polyurethane insulation in all walls and bottom prevents ice from melting
• Protects against unsanitary bacteria with H-Guard Plus antimicrobial agent and seamless polyethylene liner
• Pouch-style door maximizes access while minimizing spillage
• Accommodates a top-mounted ice maker
• Includes a universal top
Includes an 82-oz. scoop
• Mounted on adjustable stainless steel legs

Dimensions & Utilities

• Ice maker: 30 in. W x 27³⁄₈ in. D x 32¹⁄₂ in. H
• Ice bin: 48 in. W x 41 in. D x 60³⁄₁₆ in. H
• 9.6 A
• 208-230 V/60 Hz/1 ph

From The Manufacturer

Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 1073 lb/24 hours at 70°/50° (1006 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 9.6 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
