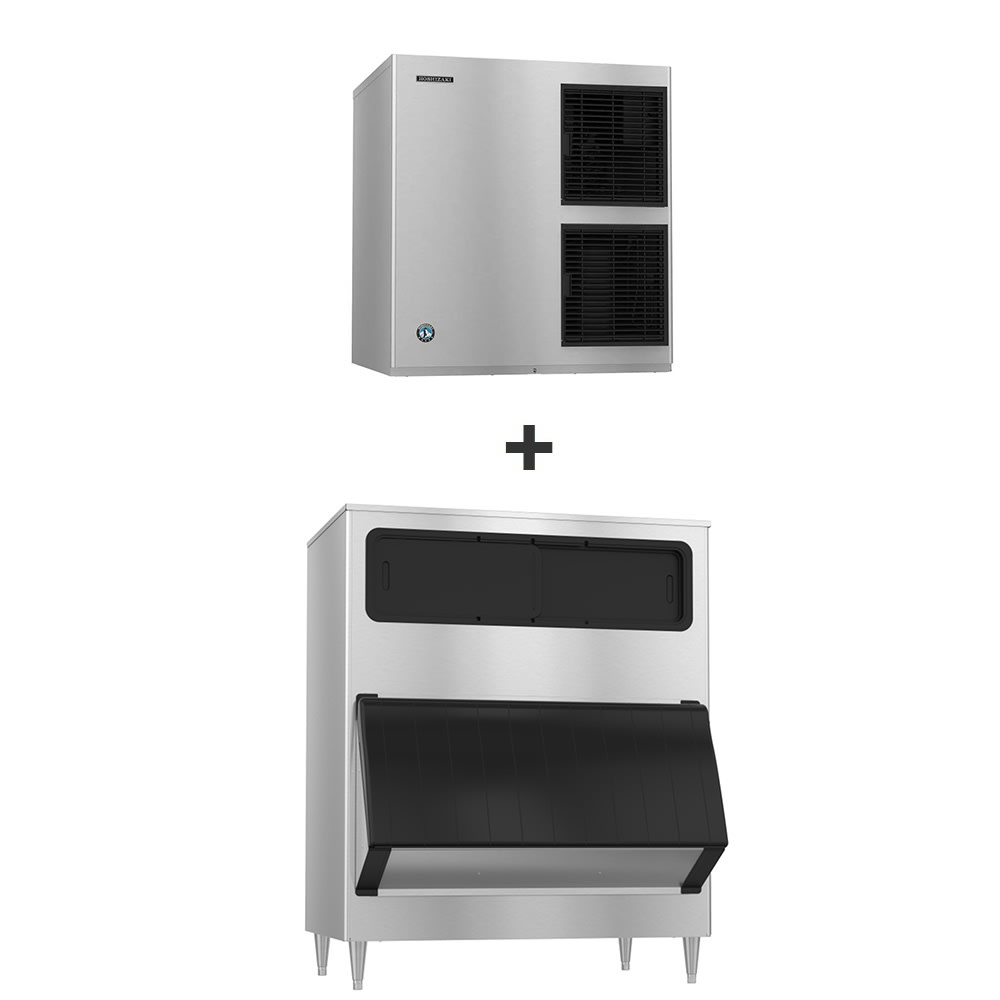

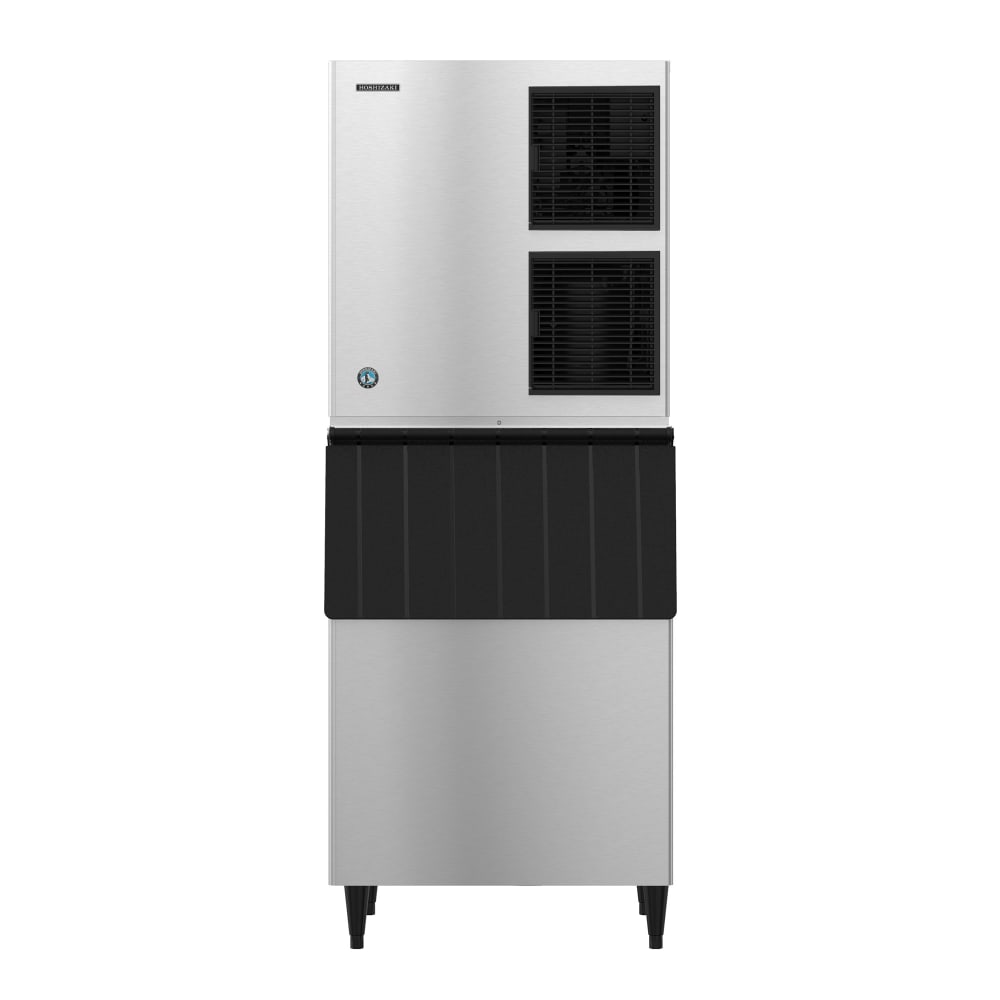

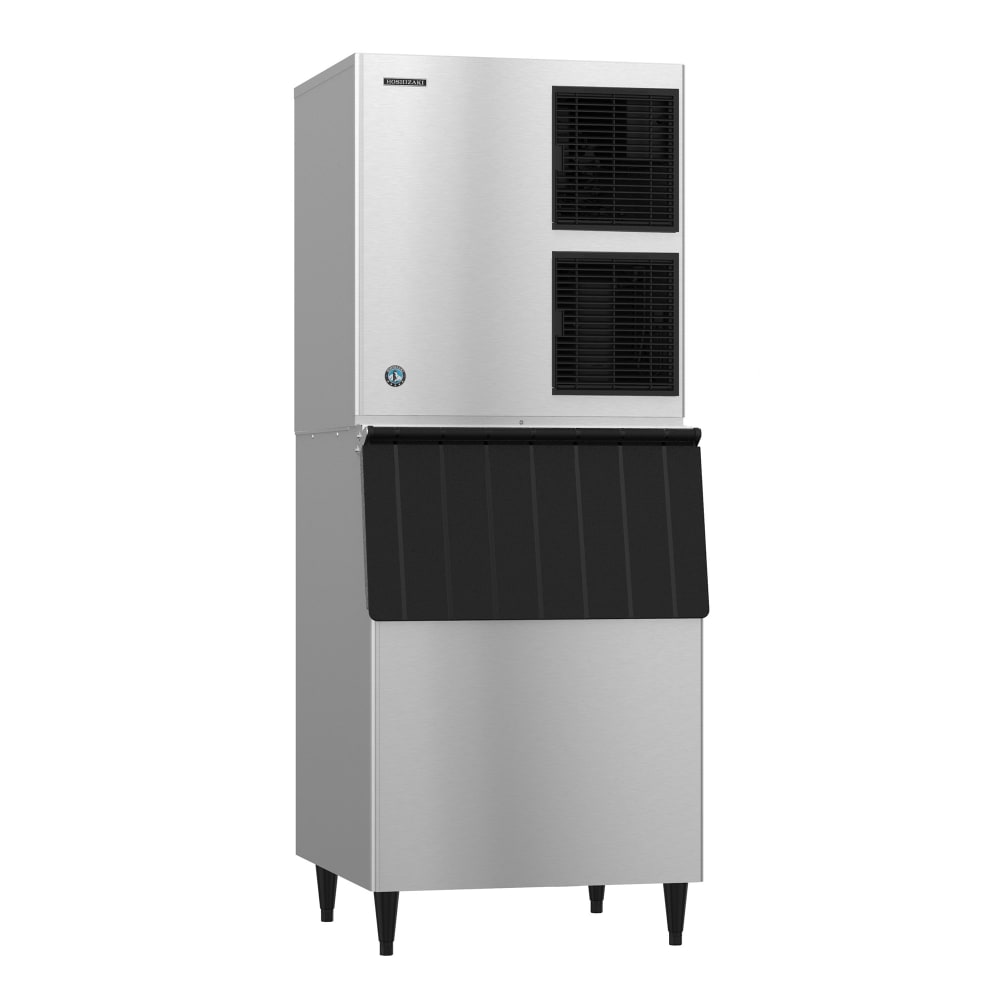

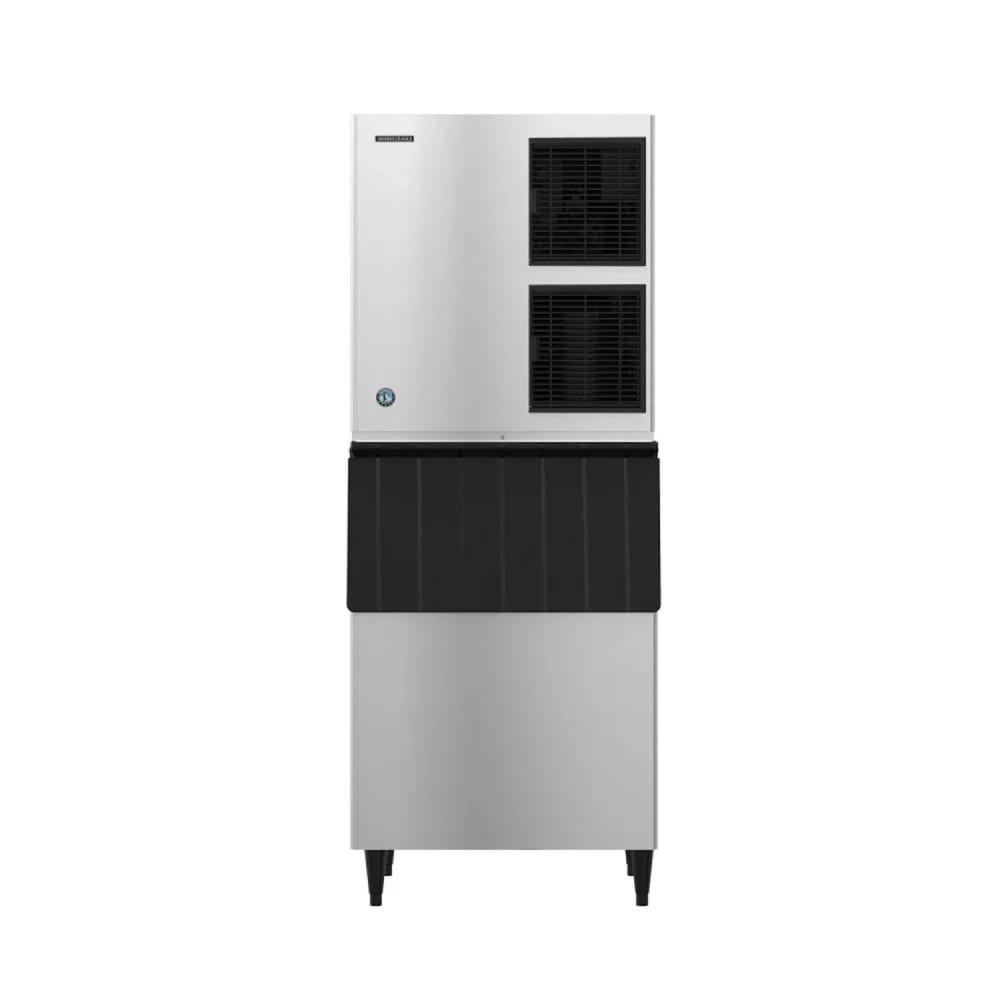

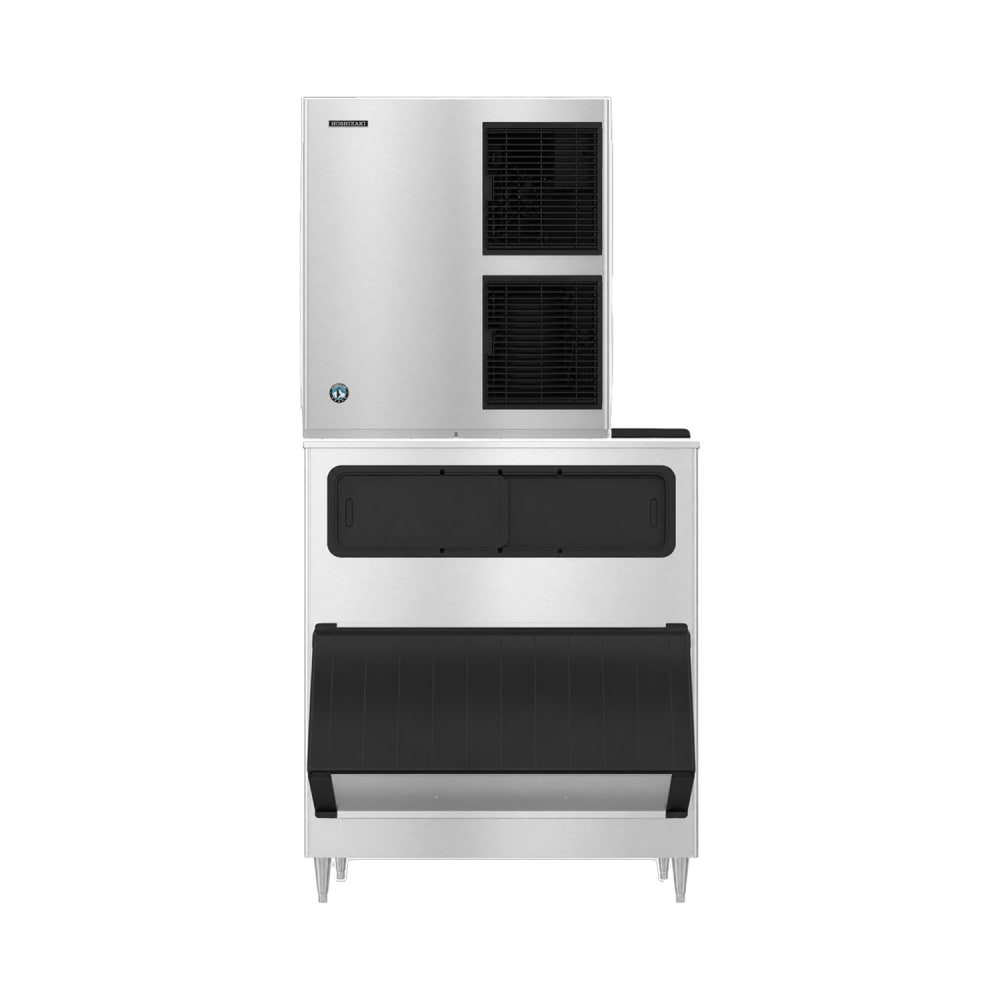

Hoshizaki KM-1100MAJ/B-1150SS 1087 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Air Cooled, 208-230v

Each day, the Hoshizaki KM-1100MAJ/B-1150SS ice maker with bin can produce 1,087 pounds of crescent cube ice in ideal conditions. The ice machine and the included scoop are protected by H-Guard Plus antimicrobial agent to reduce the risk of bacteria forming on the ice. To enable users to maintain the unit, an alert system informs them of possible discrepancies and the exterior is made of stainless steel for brisk cleaning.

To preserve ice at optimal serving conditions, the Hoshizaki KM-1100MAJ/B-1150SS ice maker's bin is insulated with foamed-in-place polyurethane and the top windows enable viewing without opening the door, so cool air does not escape. The bottom-hinged door's pouch style prevents condensation buildup, so water does not spill out when opened. Because the polyethylene bin liner is seamless, it can be wiped promptly when it is time for cleaning.

Ice Maker Details

• 1,087-lb. maximum daily ice production
• 935-lb. AHRI-certified daily ice production
• Crescent cube ice size: ¹⁄₂ in. x 1¹⁄₂ in. x 1¹⁄₈ in.
• H-Guard Plus antimicrobial minimizes bacteria growth
• Optimal operation is ensured by the EverCheck™ alert system
• Air filters are removable for maintenance
• Made of stainless steel for prompt cleaning
• Air-cooled unit with a self-contained condenser
• Uses R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• Ideal clearances: 12 in. on the sides, back, and top
• 15,700-BTU heat transfer capacity

Product Features

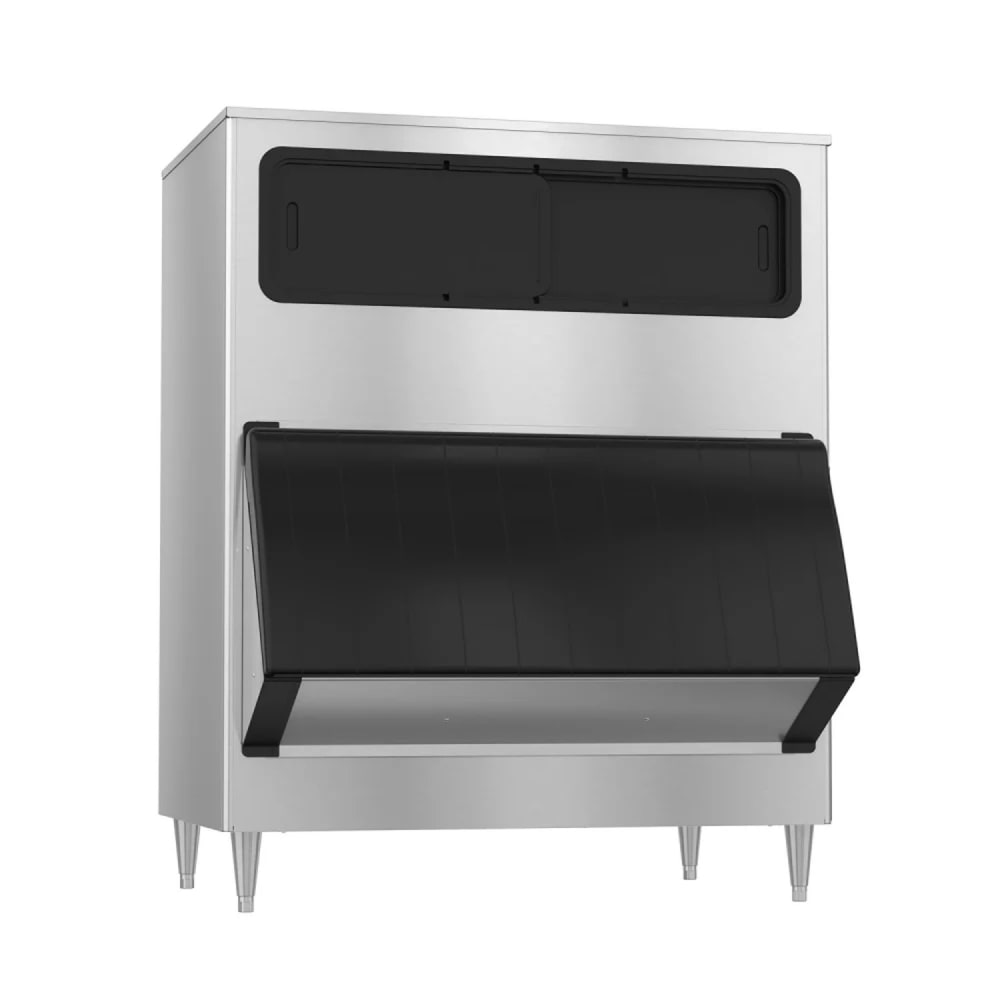

Ice Bin Details

• 1,148-lb. application capacity
• 82-oz. scoop is protected by antimicrobial agent
• Sealed door gasket protects the bin from bacteria
• Hinged bottom, pouch-style door reduces condensation
• Top windows provide a view of the interior
• Insulated with polyurethane to preserve ice
• Made of durable stainless steel
• 6-in. adjustable legs
• Polyethylene bin liner is seamless for cleaning
• Baffle for smooth access

Dimensions & Utilities

• Bin: 48 in. W x 41 in. D x 60.13 in. H
• Ice maker: 30 in. W x 27.38 in. D x 32.5 in. H
• 12.5 A, 4.9 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Hoshizaki KM-1100MAJ/B-1150SS within the 48 contiguous states.

From The Manufacturer

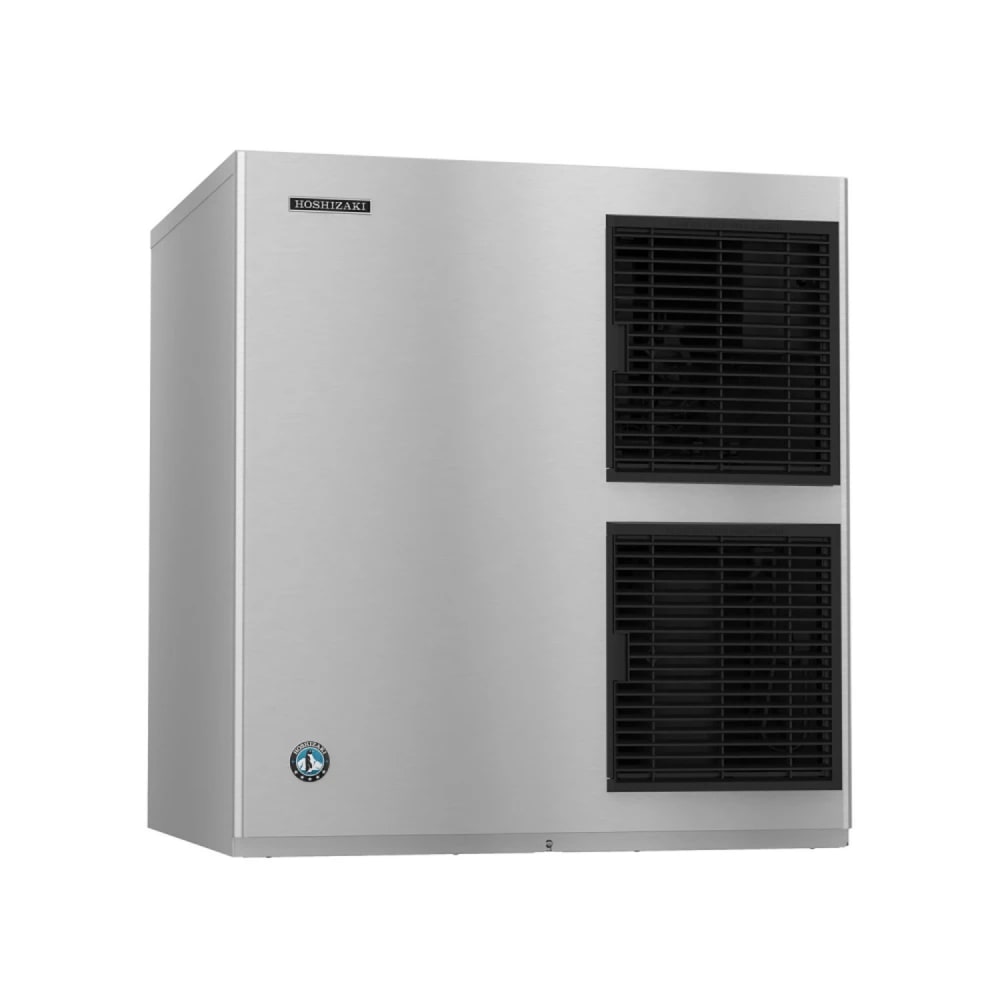

Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 1087 lb/24 hours at 70°/50° (935 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 12.5 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
